DVS Heat Transfer Fan and Controller Only (EC Motor)

Sale price$1,250.00
In stock

Included Items

The following table outlines useful information, such as quantities of included items.

This product is our DVS EC Heat Transfer fan and controller only. It is for people who already have their own ducting and ceiling diffusers in place. If you're looking for a complete heat transfer kit, including ducting, diffusers and fittings, then please see our DVS EC Heat Transfer Kits.

DVS EC Heat Transfer Kits
Component

Quantity

Fan Motor (Made in Germany)

1 (200mm DVS EC Heat Transfer Fan)

DVS EC Heat Transfer LED Controller (Made in New Zealand)

1

Temperature Sensor

2 (Fan Motor and LED Controller)

Cat5e Network Cable

10 m

5 Years Warranty

Yes

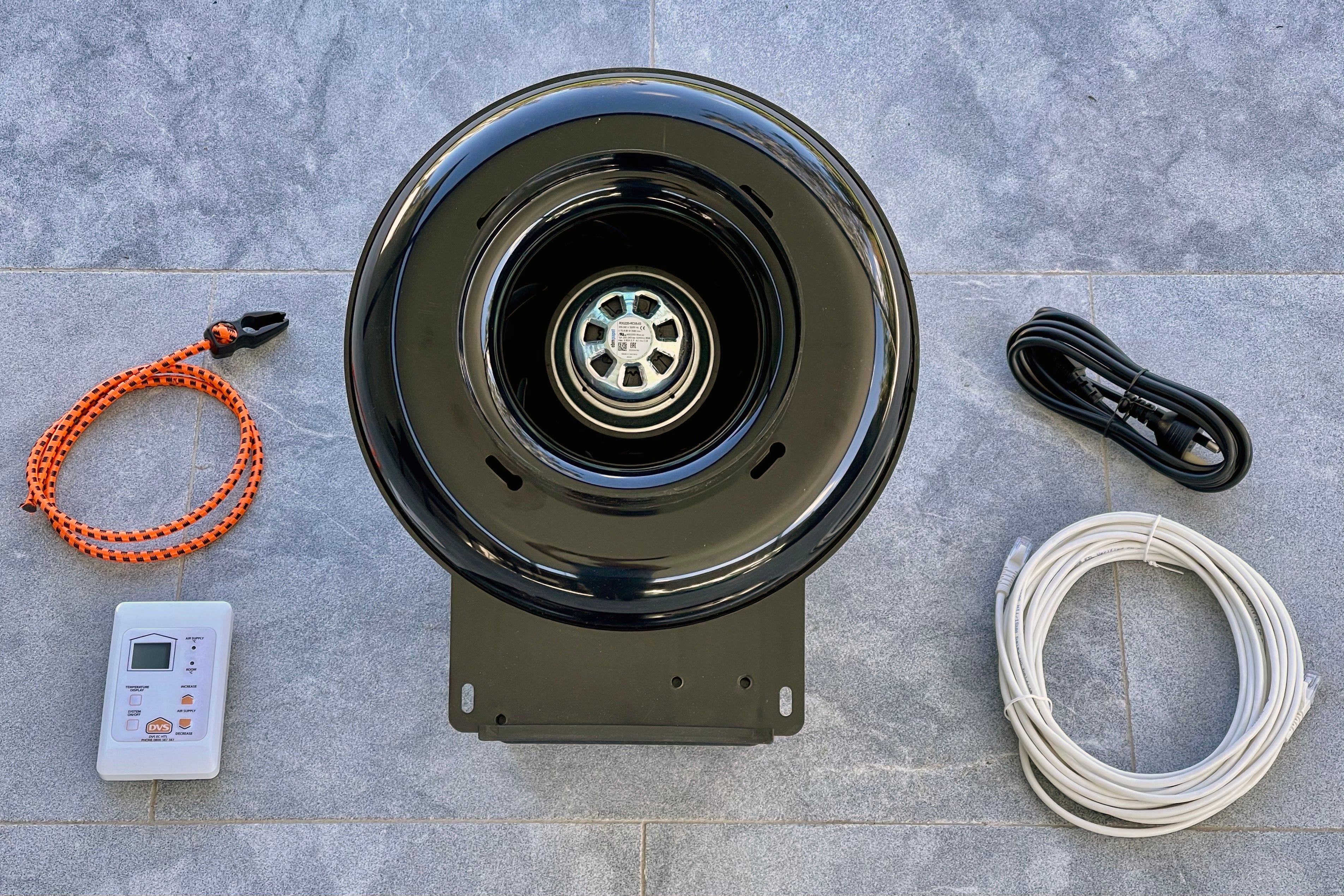

Components

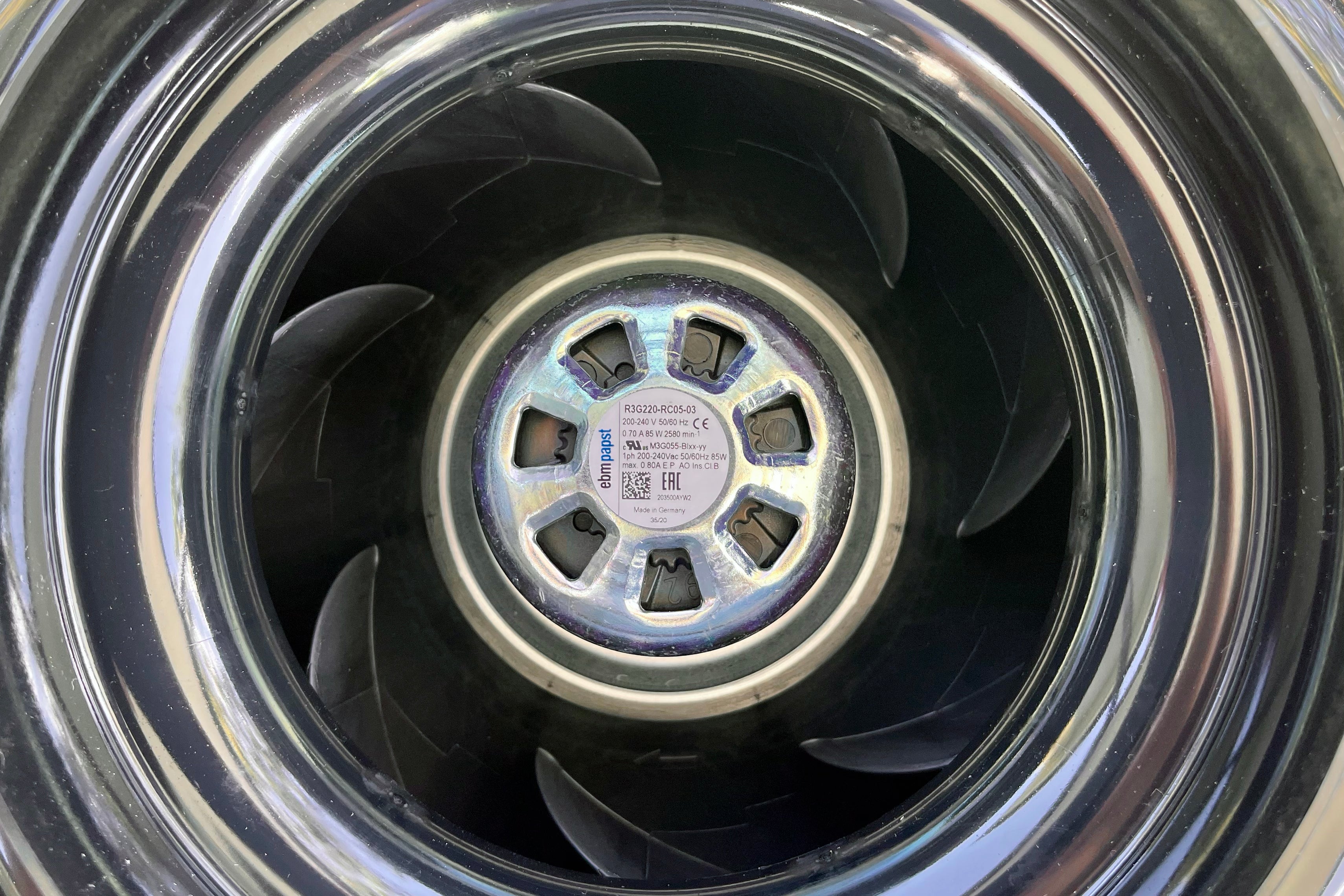

DVS 200mm EC Motor Centrifugal Fan

This is the motor. It is very quiet and efficient. It is suspended in your roof space by the orange bungee strap so that vibrations can't be transferred through the structure. It has an internal temperature sensor to measure the temperature of the air being transferred.

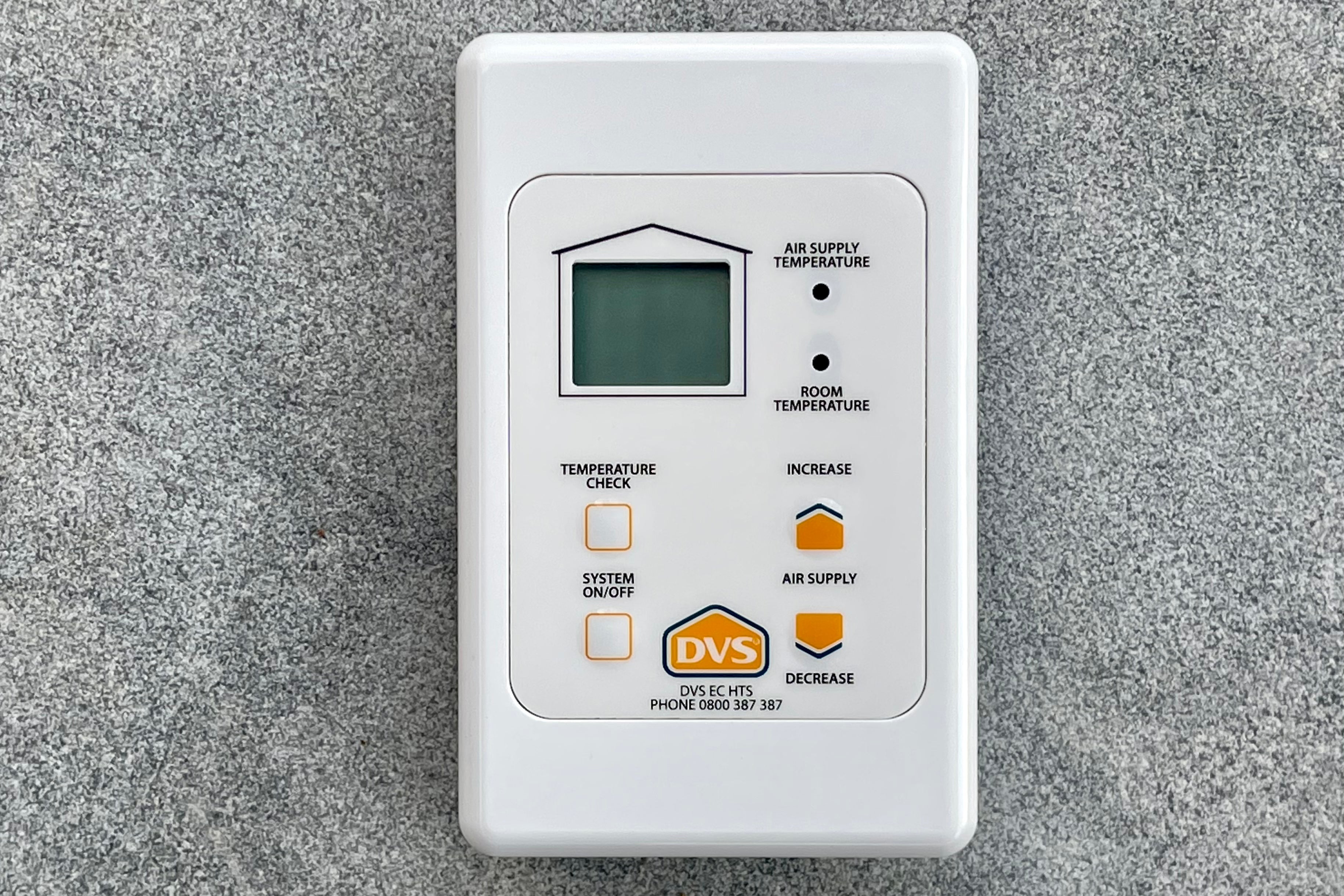

DVS EC Heat Transfer LED Controller

The intuitive controller features temperature display, thermostat automation, fan speed control, and on/off operation. It is connected to the fan via a standard Cat 5e network cable, for simple plug and play operation. It has a temperature sensor to measure the air temperature in the room where it is installed.

Elastic Bungee Strap

The orange bungee strap is elastic and 1m long unstretched. It is used to suspended the fan motor in your roof space so that vibrations can't be transferred through the structure. It is passed through the two holes visible at the bottom of the fan motor and fastened over a truss in your roof space.

Cat 5e Network Cable

This is a standard Cat 5e network cable and is 10m long. It connects the fan motor to the LED control panel for simple plug and play operation. Longer cables can be used if required.

IEC Power Lead

This is a standard IEC power lead and is 2m long. It has an Australian 3 pin plug on one end and a male IEC plug on the other end. The 3 pin plug plugs into a power point and the IEC plug plugs into the fan motor. Longer cables can be used if required.

Fan Specifications / FAQ

DVS EC Heat Transfer Systems

While you may have a perfectly good heating source in the living area (such as a wood burner), the heat it generates does not always extend to other areas, such as the bedrooms. The DVS EC Standalone Heat Transfer System uses excess heat from your existing heating to create supplementary heating for other rooms in your home – making the best use of heat you’ve already paid for.

The DVS EC Standalone Heat Transfer System is designed to provide supplementary heating to rooms isolated from the main heating source (log burner or other solid fuel burner). This can have the effect of reducing the amount of in room ‘paid for’ heating you need to use.

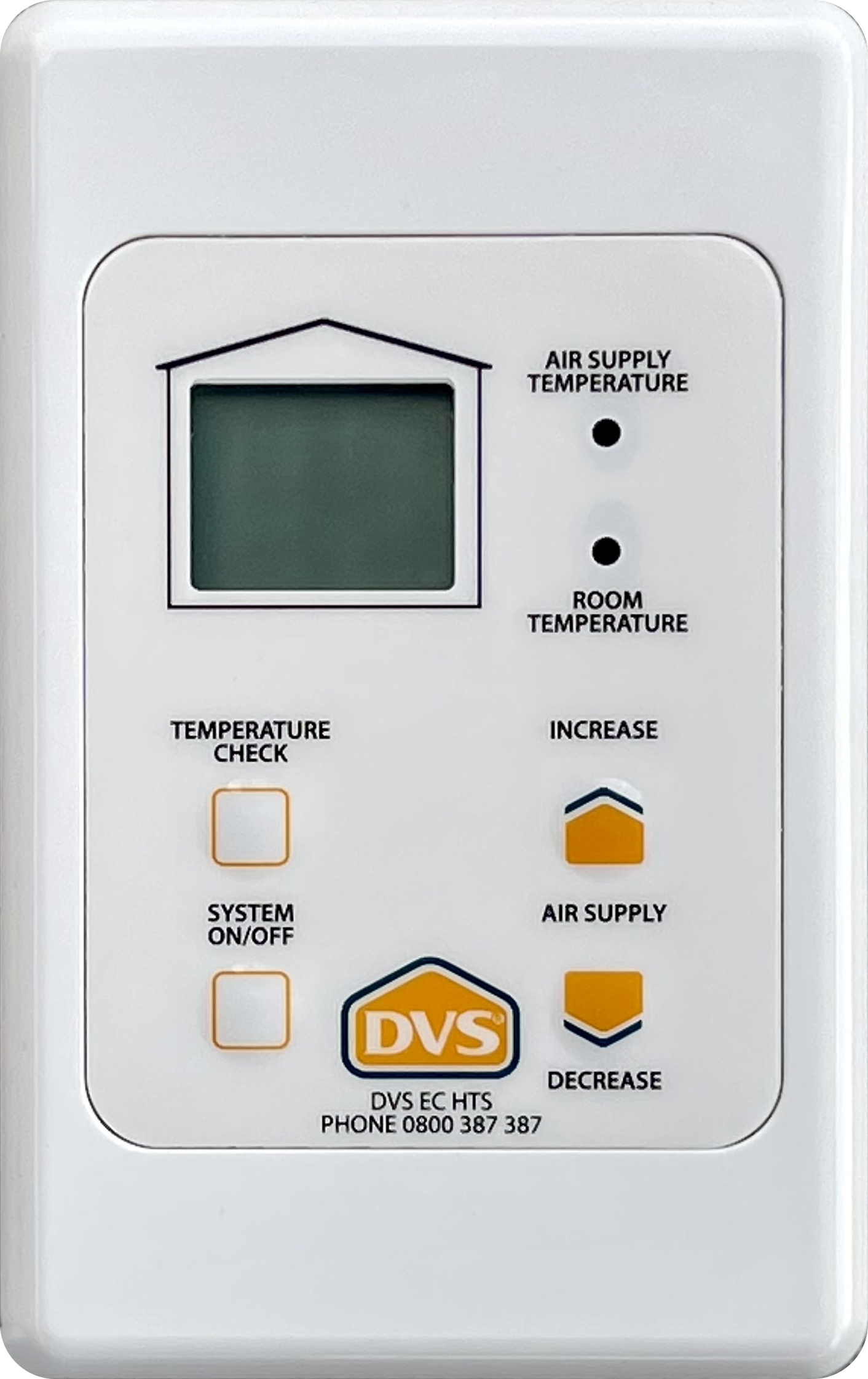

DVS EC Heat Transfer Control Panel

The DVS EC Heat Transfer System features an intuitive controller with temperature display, thermostat automation, fan speed control, and on/off operation.

It is connected to the fan via a standard Cat 5e network cable, for simple plug and play operation.

Click Here to download a User Manual for the DVS EC Standalone Heat Transfer Controller.

Why Choose a DVS EC Heat Transfer System?

The DVS EC Heat Transfer System is the most advanced standalone heat transfer system on the Australian market. It uses a German made 200mm EC centrifugal fan and has an intuitive custom designed controller with temperature display, thermostat automation, fan speed control, and on/off operation.

Some of the many benefits include:

What Makes Fresh Ventilation Different

Fresh Ventilation is a family owned and operated business. Our main business has specialised in the installation of premium quality ventilation systems for over 10 years.

Effective heat transfer systems require quality components and proper installation. Given that no two homes are the same, there is no one-size-fits-all solution to heat transfer systems. This is why we place a strong emphasis on customised solutions and after-sales support to help you get the most from your system.

Our focus is on premium products and expert advice to create ventilation systems that actually work.

All of our kits include:

Personal installation maps tailored to your home.

One-on-one conversations to help us understand what is going on and recommend how best to solve it.

One-on-one telephone and/or FaceTime conversations to help you with installing your system.

Installation photos and videos outlining best practices and things to avoid.

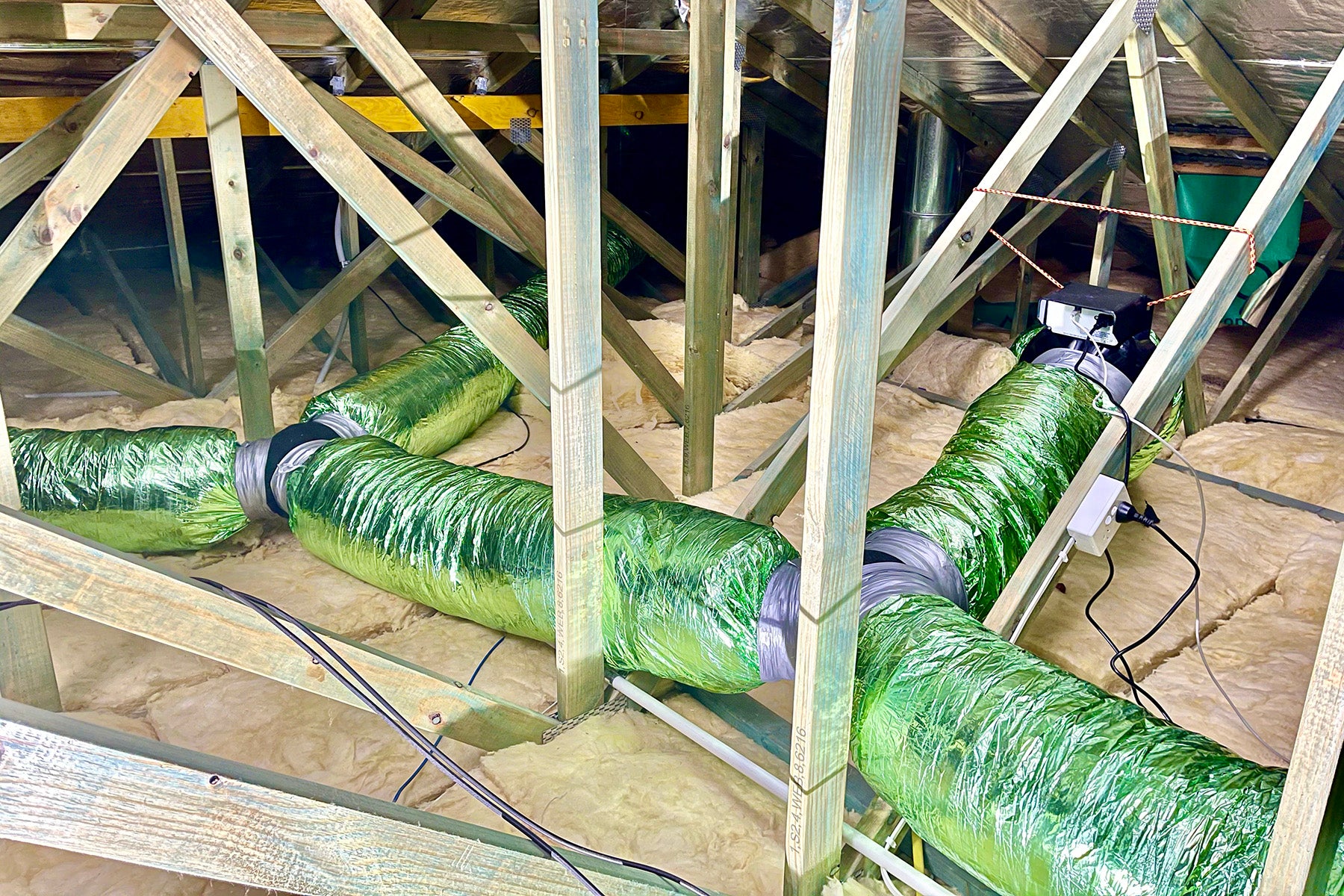

Ventilation System Installation
