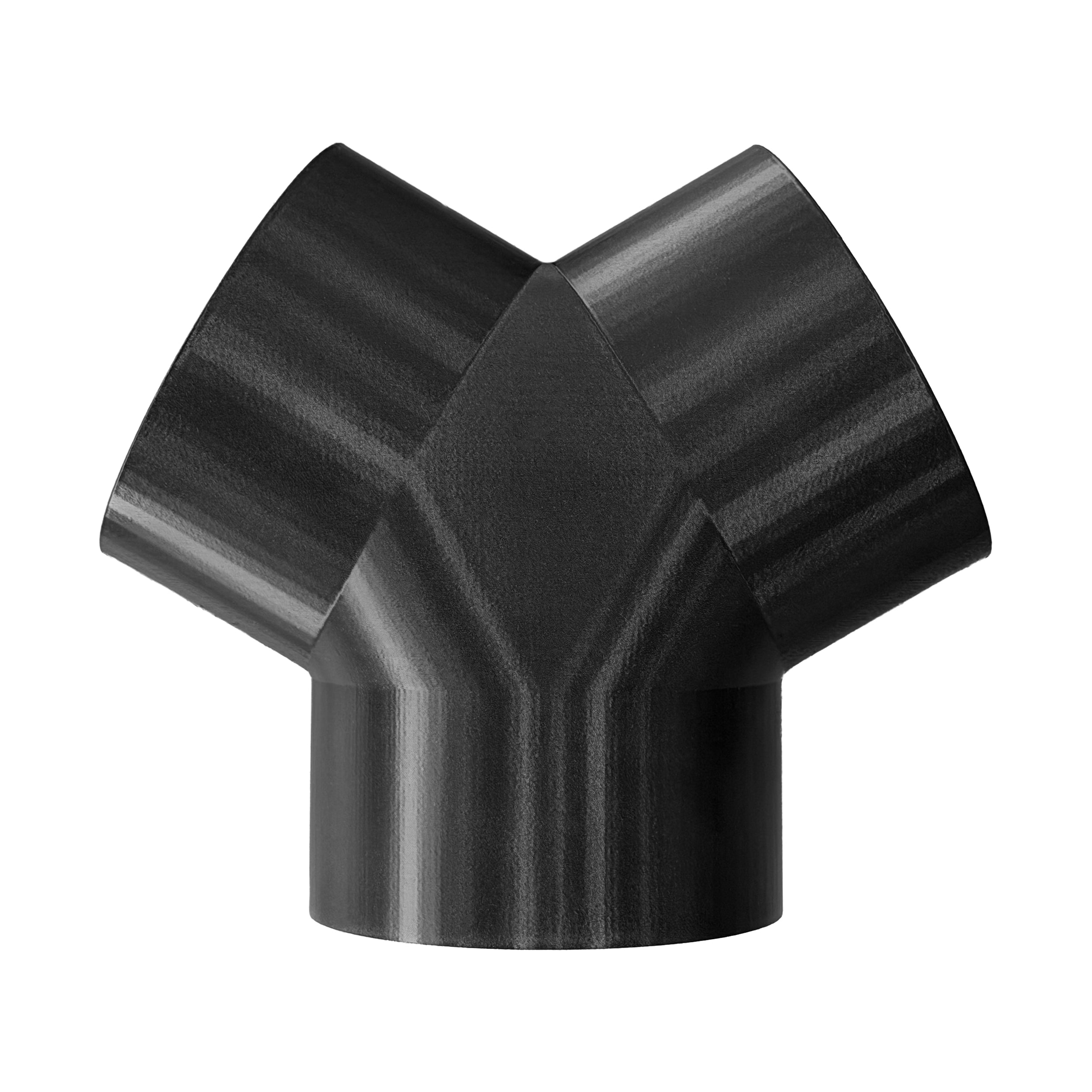

3D Printed 100mm Uninsulated Duct Splitter
Made to Order
• Our 3D printed products are made to order.
• Please allow 1 to 2 days for manufacturing before shipment.
• Please call us if your order is urgent.
We've never been able to find y-piece duct splitters in 100mm and 125mm sizes - so we printed our own!
Our 3D printed 100mm uninsulated duct splitter makes installations faster, cleaner, and far easier to work with. Printed in-house with a professional 3D printer from UV stable acrylonitrile styrene acrylate (ASA) or V0 fire-rated polycarbonate (PC), it offers exceptional strength, temperature resistance, and safety for continuous use in residential and commercial ventilation systems.
Designed specifically for standard 100mm flexible ducting — avoiding the frustration of wrestling with rigid or semi-rigid pipe.
These splitters are ideal for both new installations and retrofits where space is tight or bends are unavoidable. They also simplify routing through ceiling spaces, cabinetry, and awkward runs where larger diameter ducting won't fit.
Key features:
- Accepts 100mm flexible ducting.
- Smooth internal airflow path to minimise pressure loss.
- Lightweight, strong, and locally printed by Fresh Ventilation.
- Suitable for tight spaces, offsets, and complex routing.
Each duct splitter is printed with a Bambu Lab H2D Pro and undergoes fit testing to guarantee a snug, leak-free connection — designed and made in Australia to support quality installations.
Specifications
- Duct Spigot: 3 x 100mm x 50mm
- Height: 165mm
- Width: 190mm
Bambu Lab ASA
Bambu ASA is a highly durable material that offers exceptional UV, weather, mechanical, and thermal resistance. Its unique combination of properties makes it an ideal material for printing outdoor models (plant signs, mailboxes, wind vanes, etc.) and structural parts that require long-term exposure to challenging outdoor conditions.
Product Features
- Extraordinary UV Resistance
- Exceptional Temperature Resistance
- High Impact Strength and Durability
- Outdoor Use for Long-Term Purpose
- Heat Resistance: 100°C
Print Specifications
- Material: UV Stable Acrylonitrile Styrene Acrylate
- Colour: Black/White
- Profile: 0.20mm Balanced Strength
- Top Shell Layers: 6
- Infill Density: 15%
- Print Duration: 9h29m
- Filament: 155.59g
