Rising damp carries soluble salts up into the masonry, known as efflorescence. This dampness affects the quality of air that you breathe while you’re indoors. A damp home with low ventilation has air that contains pollutants which can trigger the development of asthma and other respiratory-related infections, as well as allergic reactions.

One of the main problems when homes are damp is the development of mould, usually on the wall. As a result, allergens are produced. Even if your home is clean and dust-free, you may find yourself sneezing, experiencing itchy eyes or a runny nose when you come into contact with the spores produced when mould grows from a damp area in your property from lack of air flow. Another danger associated with rising damp issues is the fact that it creates an environment for the development and multiplication of harmful bacteria such as mould.

Rising damp can be a homeowner’s worst nightmare as the building structure can be affected by rising damp. The integrity of the foundations can be seriously put at risk due to rising damp.

Another culprit for rising damp is the age of your home. Homes built before 1980 are often found with damp rising in capillary action in the brick work or masonry due to the fact that the walls were either inferior or had no damp course. The internal walls of these older homes have a more common issue with water penetration. Building regulations have since been updated over the years to include items to help prevent this problem from occurring. There is a damp treatment and solution for each reason of rising damp.

Whenever a home has a rising damp issue, the main reason behind it is usually the high levels of moisture in the air and the lack of natural sub floor ventilation. There are many situations that can lead to different house structures having rising damp and therefore creating places for mould to grow.

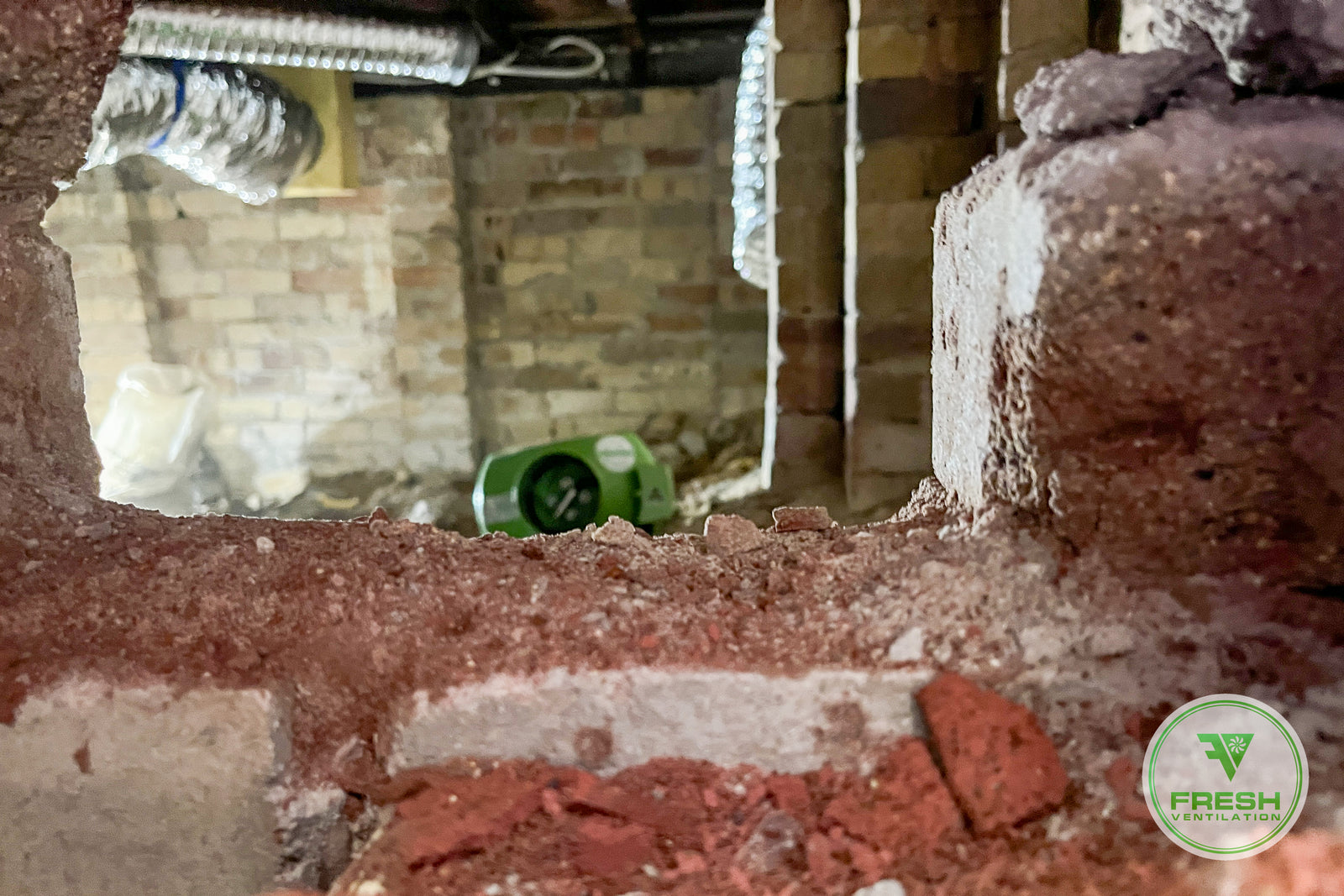

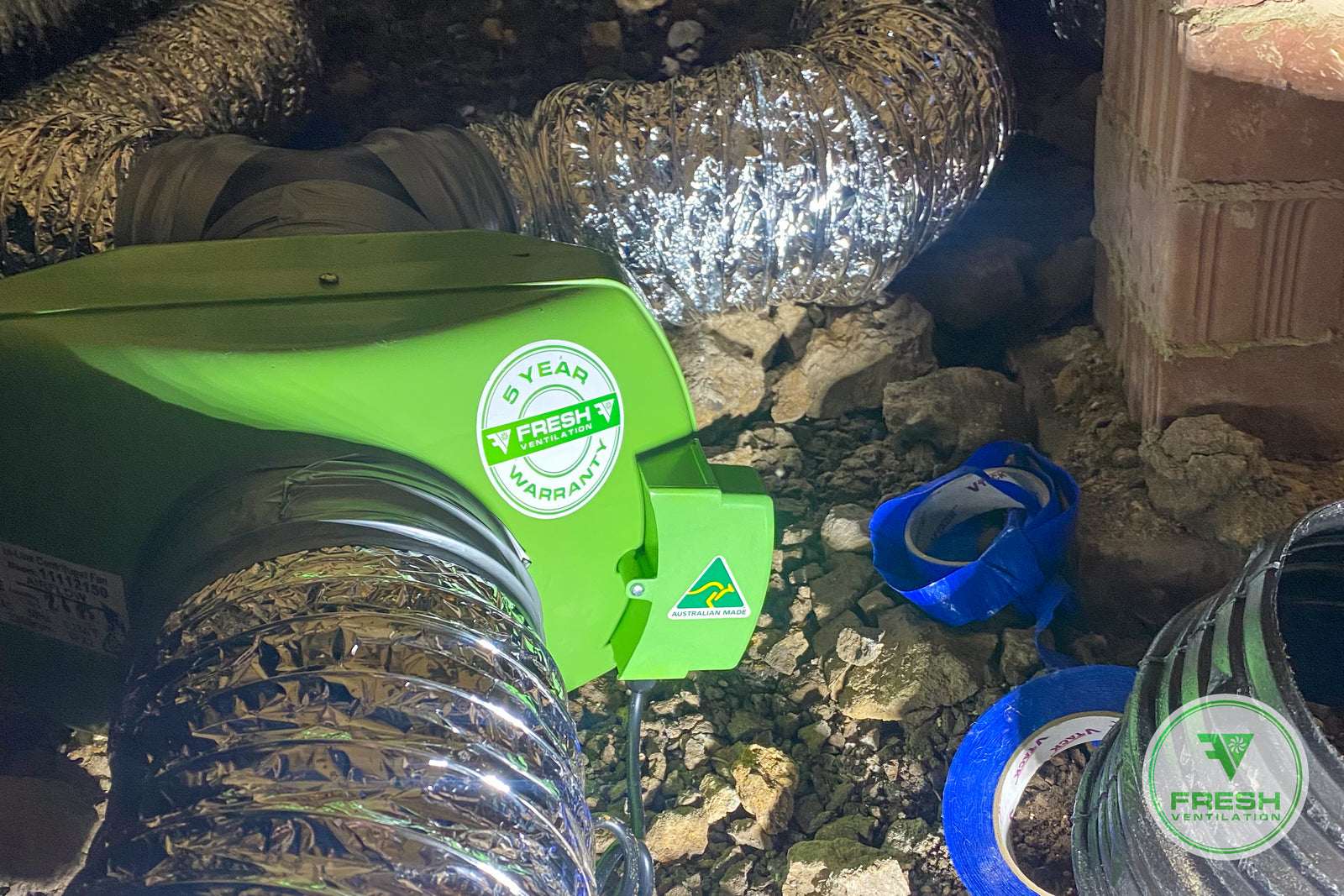

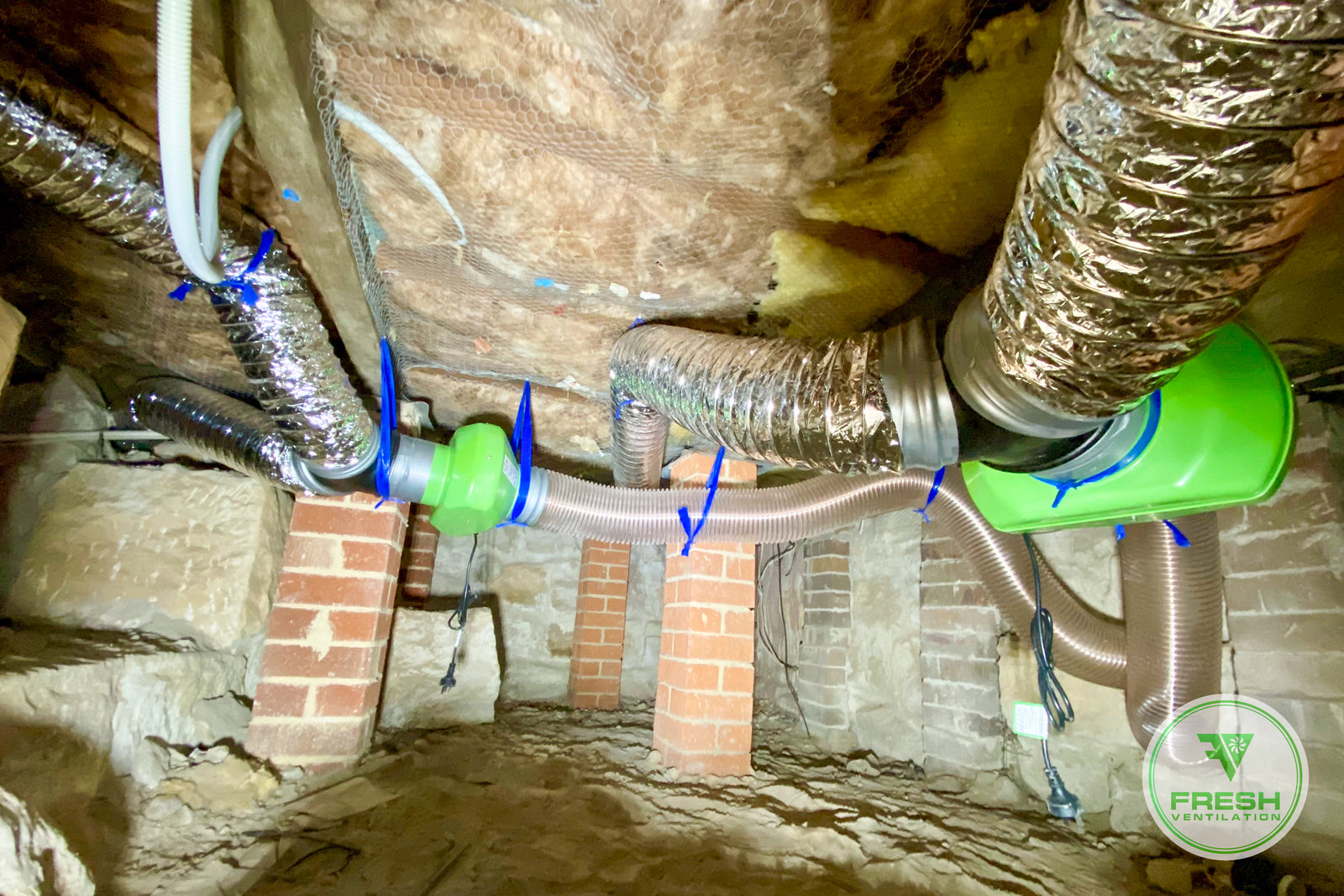

A common area in the home that can create rising damp is under the house – the sub floor area. The sub floor area can easily harbour ground moisture, causing rising damp throughout your home’s masonry structure. Mould, usually on the walls inside your home, is a sign of rising damp. Rising damp can also cause pest problems when located at ground level. The damp conditions can be a magnet for termites who like to eat the damp wood. This occurs especially when there is insufficient air flow. A leaking pipe beneath your floor can also cause the sub floor area of your property to become damp, more so when there aren’t enough vents or a sub floor ventilation system that can facilitate proper circulation of air. Rising damp at floor level can weaken the structure of the wall. Masonry walls can begin to crumble.

Additionally, metallic material will experience corrosion, causing damage to the entire building. Rising damp is a real risk to your property, but sub floor ventilation can easily eradicate and prevent rising damp from developing. It is one of the best rising damp solutions.

Mould is almost always caused by dampness and poor ventilation in your home.

The signs of dampness and poor ventilation can often be quite obvious.

However, in newer homes, which are built to be almost airtight under building regulations, signs of poor ventilation aren’t always initially visible and may exist in the form of excessive moisture that can’t escape and hidden damp, which accumulates over time.

Musty odours, caused by dampness and poor ventilation in your home, are pretty off-putting and not particularly healthy.

Getting clean, fresh air in regularly through your home with proper ventilation will help greatly with lingering smells, flushing out the stale, contaminated air along with any musty odours.

Wet wood rot is due to water damage that may accumulate slowly over time, such as with leaking pipes or penetrating damp caused by the presence of moisture in the air. Wet rot will generally grow in humid conditions. Any piece of wood present in the home that is not protected is vulnerable to wet rot.

Termites are tiny insects that feed on wood. Rotting wood is more likely to attract termites. This is especially true of wet rot which contains plenty of moisture that the termites seek along with nutrients. Dry rot is not as conducive to termites, but they may still be present.

If you know your home has weeping windows, you’re definitely not alone. Thankfully, fixing window condensation can be as simple as improving the ventilation in your home.

Condensation forms on cold surfaces when they come into contact with moisture in the air. Dripping condensation and excessive moisture can result in a number of issues for your home and your family’s health.

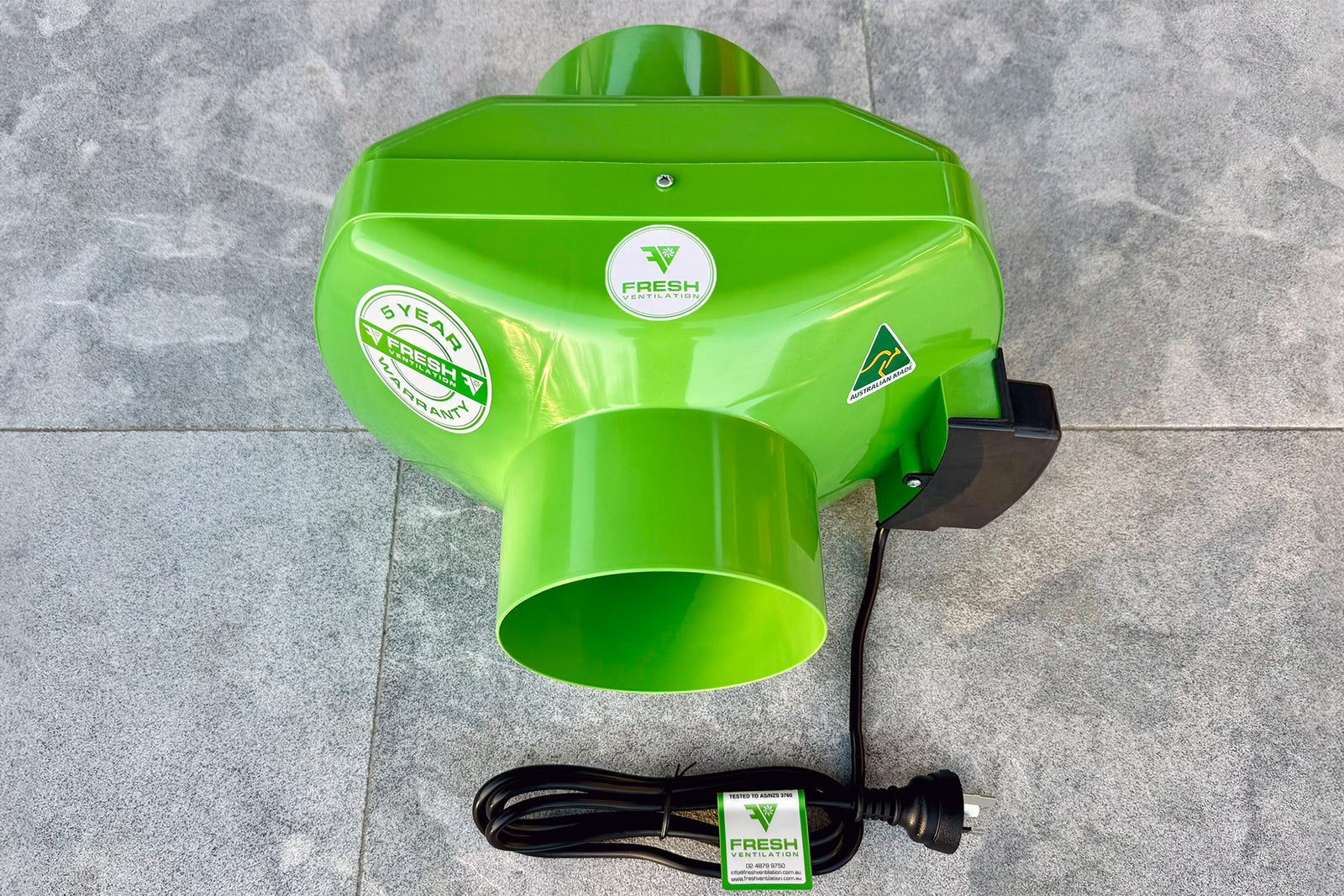

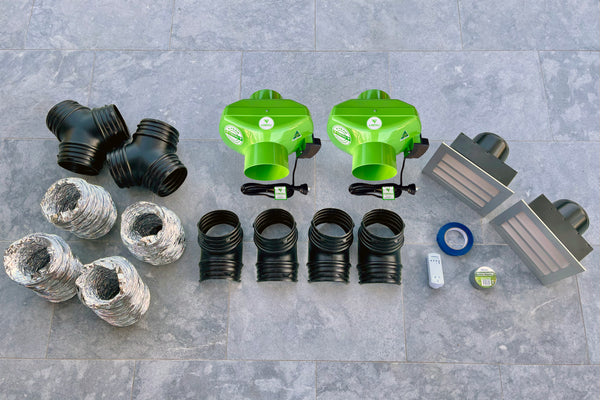

AC motors are cheaper than EC motors but still provide excellent performance. They are very quiet during operation and move large volumes of air through ducting. They operate at one fixed speed where they are most efficient.

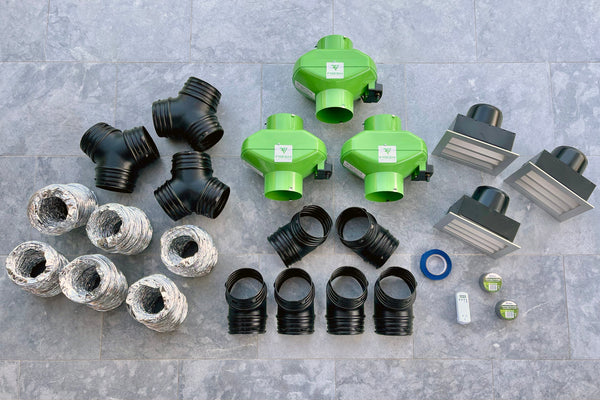

In real world use, EC motors provide even higher air flow, are extremely quiet during operation, are capable of silent operation at reduced fan speeds, have smoother fan rotation, and consume almost no power at reduced fan speeds. EC motors have adjustable speed and are very efficient at all speeds.

An electronically commutated (EC) motor is designed to run on an alternating current (AC) power supply, but it in fact bears a closer resemblance to a direct current (DC) motor. It is essentially a permanent magnet, brushless DC motor that incorporates on-board electronics. The added electronics allow an EC motor to combine the best features from both AC and DC motors, and then improve on them. For this reason, an EC motor is in a category of its own.

By utilizing this technology, EC fans are highly efficient and pay for themselves through lower operating costs and extended service life. They also provide many operational benefits that are often overlooked.

EC motors use permanent magnets and electrical windings to generate their magnetic fields, in a similar fashion to brushed DC motors. However, as their name suggests, they achieve commutation electronically rather than mechanically. This is only possible by incorporating on-board electronics within the housing of an electronically commutated EC motor.

The on-board electronics include a rectifier that converts the AC supply to DC. An integrated controller then directs the right amount of current, in the right direction, at the right time, through each of the windings. This develops magnetic poles in the stator, which interact with the permanent magnets in the rotor.

The position of each magnet is determined by using Hall effect sensors. The appropriate magnets are attracted, in sequence, to the magnetic poles in the stator. Simultaneously, the rest of the stator windings are charged with the reverse polarity. These attraction and repulsion forces combine to achieve rotation and produce the optimal torque. Since this is all done electronically, precise motor monitoring and control are possible.

Energy Efficiency

EC motor efficiency is often above 90%, allowing EC fans to consume up to 70% less energy, when compared to conventional fans. Running an EC fan at 80% speed saves nearly 50% of the energy.

Ease of Control

By continuously monitoring motor functions and automatically adjusting the control input, high efficiency is maintained throughout the operable speed range. EC motors are often capable of being turned down to 20% of full speed, while still maintaining 85% efficiency. Sensors that produce a 0-10V signal provide speed control without the need for a complex variable frequency drive.

Versatility

EC motors are capable of exceeding rated speeds. This allows fans with EC motors to achieve higher capacity within a smaller fan package.

Decibel ratings are misleading, and many manufacturers are simply dishonest. Please see our Instagram post HERE and our Instagram video HERE for a good explanation of the issue.

We've been installing fans for over 10 years. In that time we've tried everything available on the market, including all of our competitors' fans. We're confident that our fans, in an installed environment, are quieter than any comparable models on the market. Our decibel ratings have been independently tested by VIPAC Engineers & Scientists Ltd.

Frequency (pitch of the sound) is more important than overall noise (decibels). Most fans have a prominent motor ‘whine’ whereas our centrifugal fans have mostly airflow noise. Once installed, much of the airflow noise is eliminated by duct on either side of the fan, whereas motor whine still penetrates through building materials.

Normal Profile is our standard fan configuration. Normal Profile fans are round with a diameter of 342mm. Normal Profile fans are recommended for most installations.

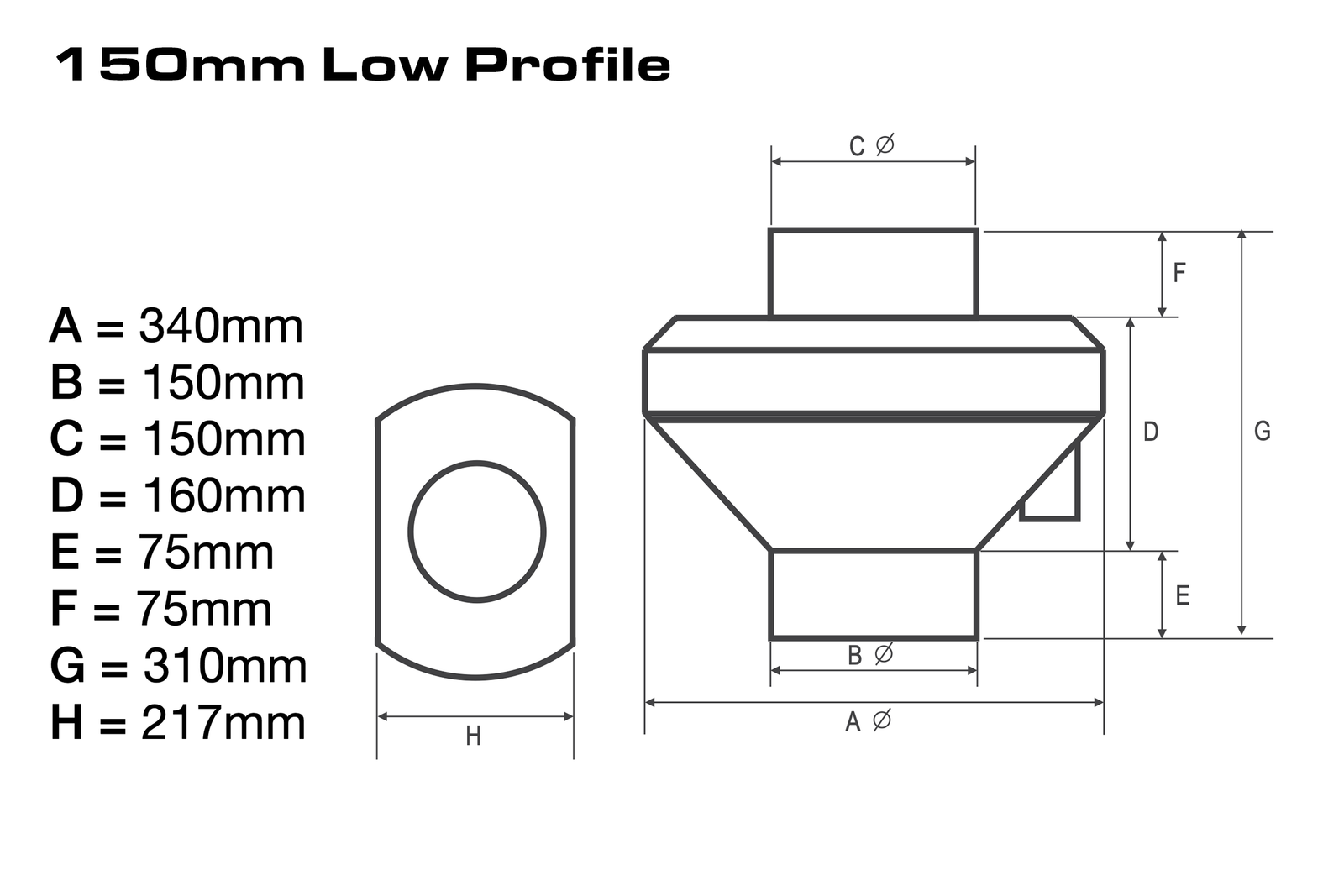

Low Profile fans are available in 150mm duct size only for shallow installations where access is limited. Low Profile fans are oval with a width of 340mm and a height of 217mm. The smaller footprint means that air flow is reduced by about 10%, but they still provide exceptional performance as their shallow environments generally have less cubic volume to ventilate.

AC motors are single speed motors. They run at 100% all the time.

EC motors are variable speed motors. They have a 0-10V potentiometer mounted on them to adjust their speed precisely between 0% and 100%.

While we are firm believers in the benefits and need for solar (we have 21kW of it on our roof), unfortunately solar sub floor ventilation fans do not work.

Solar sub floor ventilation systems typically use very low wattage axial fans. Axial fans don't cope well with pressure, which means when ducting is installed airflow volume is severely reduced.

Solar sub floor fans are very noisy. On the numerous occasions we have installed them (against our recommendation) the biggest complaint received has been the noise!

Lastly, solar sub floor ventilation fans don't work well when it's cloudy, overcast, or raining - they often don't work at all on such days! Unfortunately, this is when you need them the most!

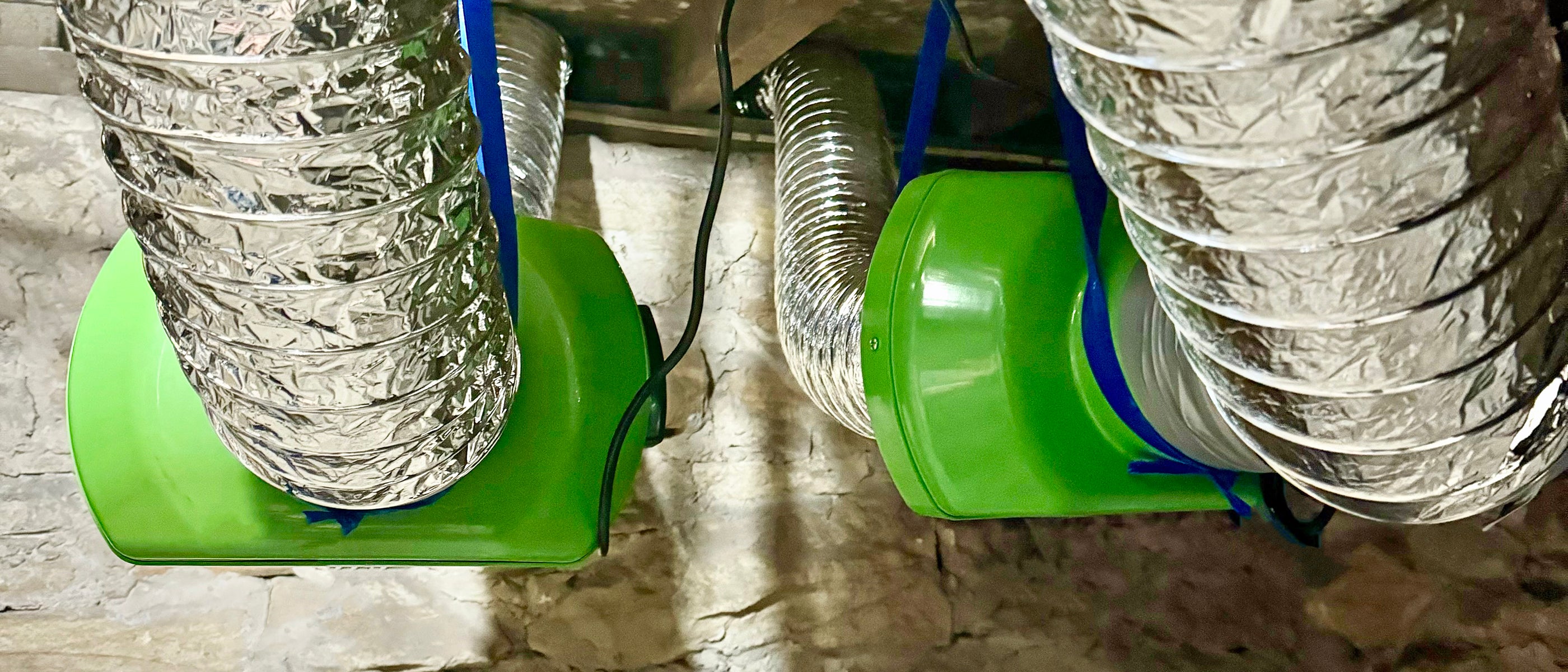

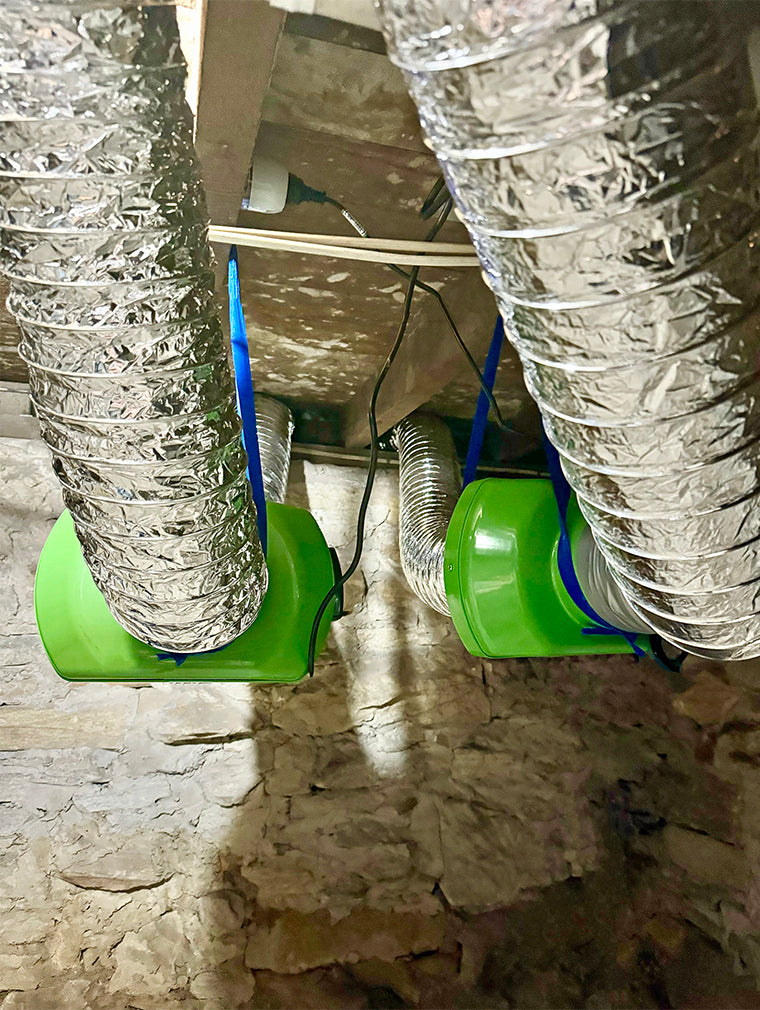

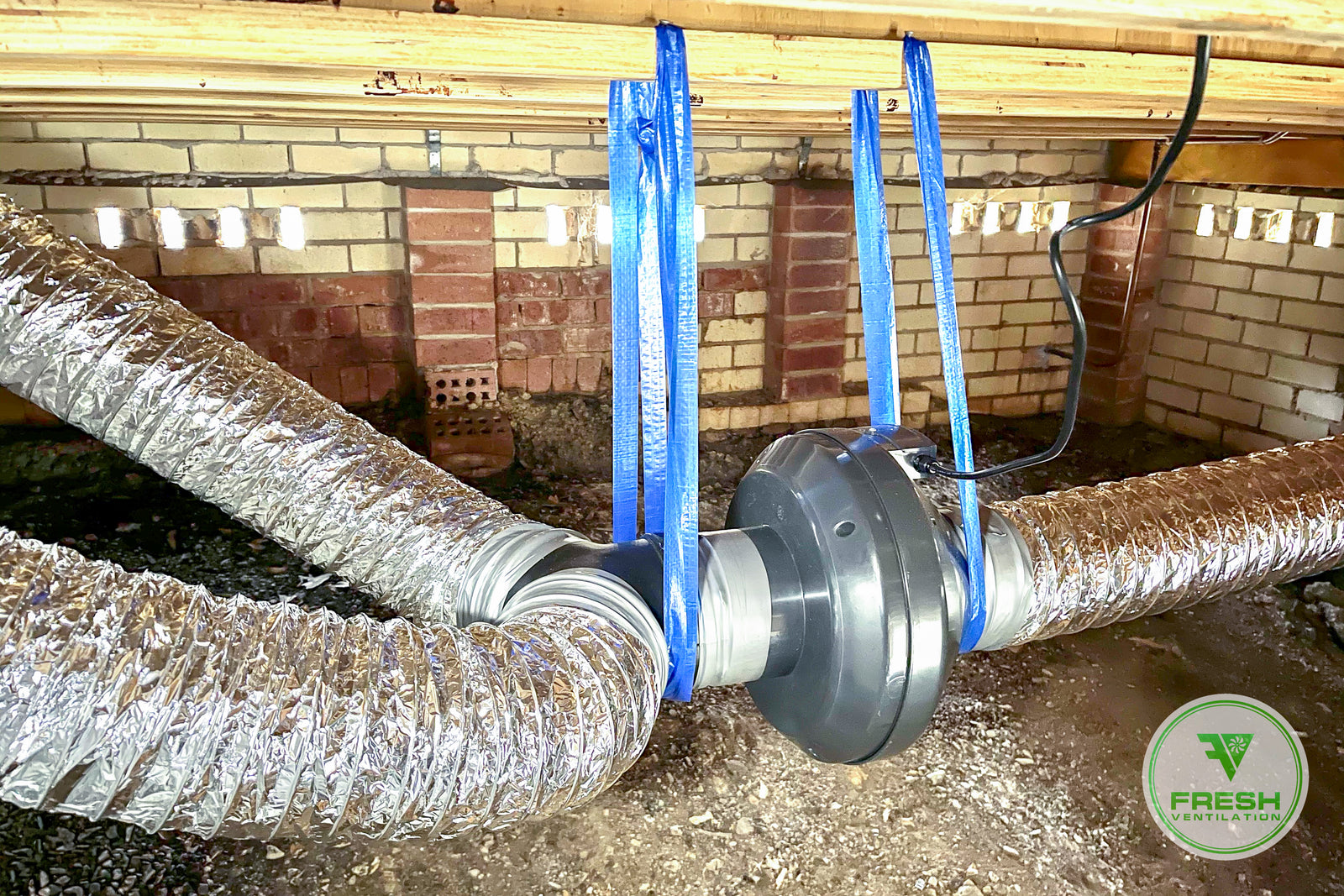

Mechanical sub floor ventilation means there is a powered fan motor present to move air around. The alternative, passive sub floor ventilation, relies on free air movement through gaps and openings.

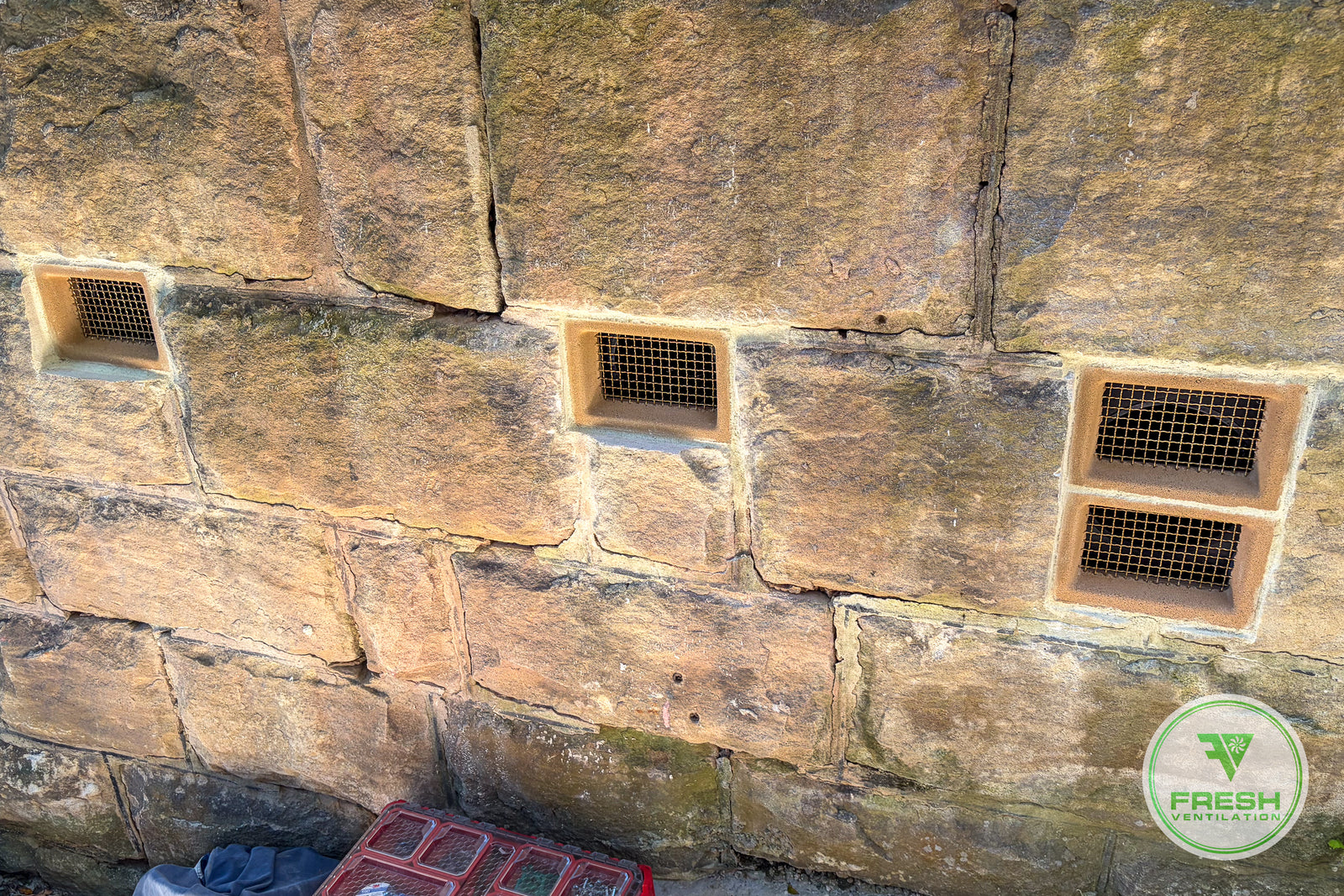

Passive sub floor ventilation includes any form of opening in the external walls of your sub floor area, such as weep holes, terracotta vents, wire mesh vents, and doors.

Passive sub floor ventilation is not effective if you are experiencing a mould and damp problem in your sub floor area. This is because it does not guarantee movement and exchange of air.

Cross-flow ventilation is nearly always impossible without mechanical subfloor ventilation. Air is lazy, so you can bet on it taking the path of least resistance. That’s why air always takes the easy way out as it moves through a sub floor space (assuming it even enters through restrictive passive vents in the first place). It’s much easier for air to pass through a large open section near the point of entry than to flow around multiple corners into small closed-off sections.

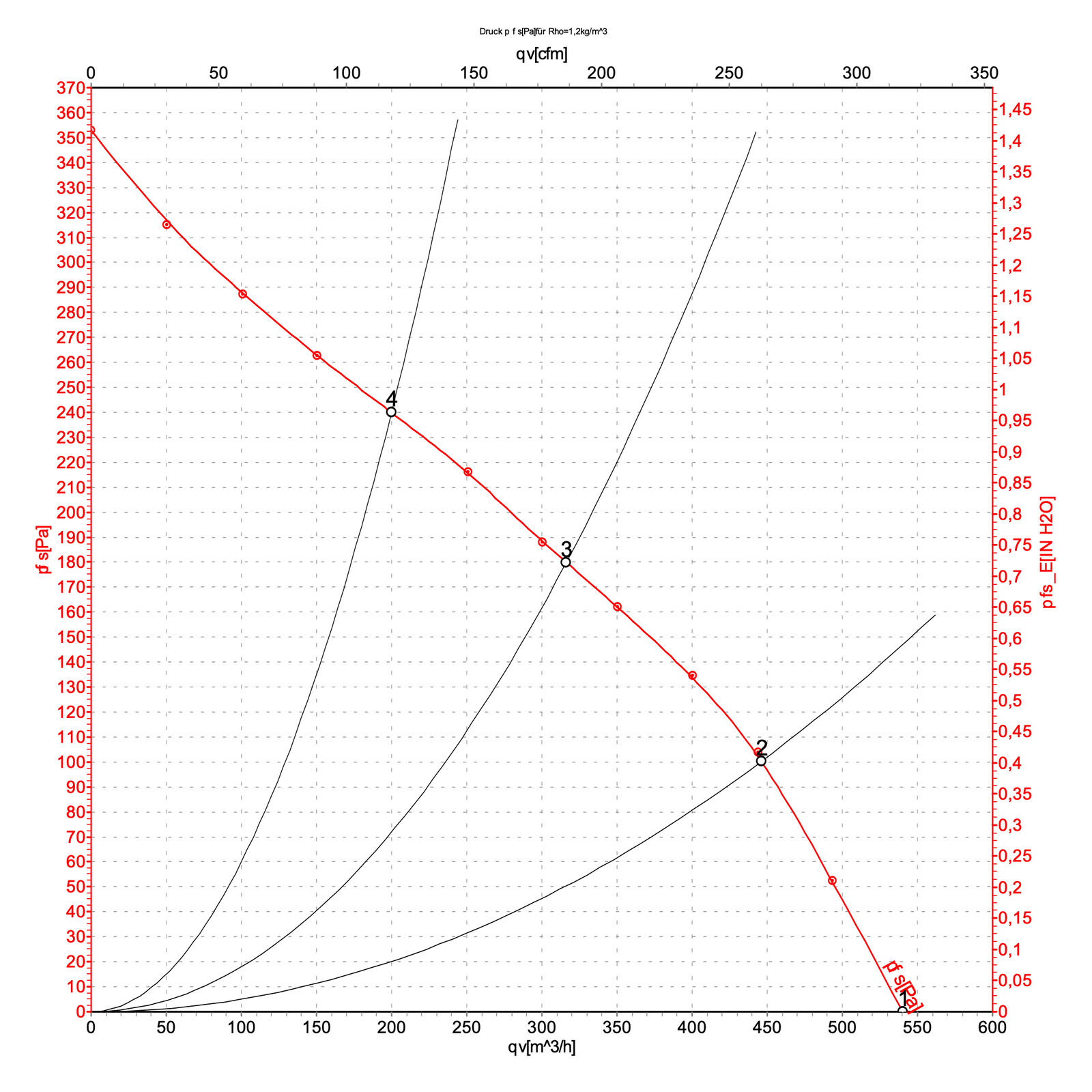

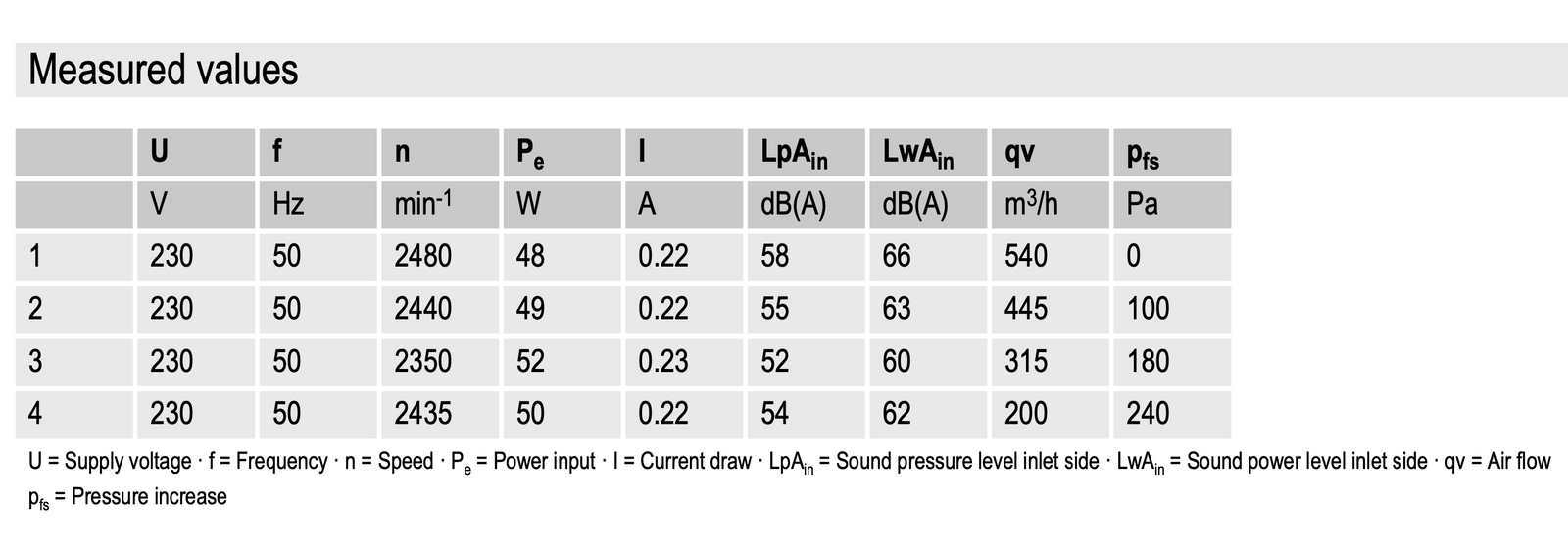

Having mechanical ventilation extracting stale air from these small closed-off sections creates cross-flow ventilation. This is because Air Out = Air In! Airflow is measured in cubic metres per hour (m3/h). For every cubic metre of stale air that gets drawn out from a space, 1 cubic metre of fresh air must get drawn in to the space. As the fans continually draw air out, fresh air enters through existing openings and works its way through the sub floor area to the point of extraction.

Our most popular configuration. The logic behind a negative pressure system is that a greater quantity of stale air is sucked out of the sub floor area than the fresh air that is blown into it.  The vacuum conditions created when stale air is continuously sucked out of the sub floor area will be filled by fresh air drawn in from outside.

Importantly, moisture and musty odours can be controlled since air is sucked out at a chosen location. However, the drying performance may be slightly slower than a positive pressure configuration.

A positive pressure system is the opposite of a negative pressure system. A greater quantity of fresh air is blown into the sub floor area using mechanical ventilation, which will as a result force the damp air out.

Positive pressure systems facilitate the drying up of damp or moist sub floor areas because dry air is constantly being blown over them. It can initially be more effective than trying to suck out moist air from damp surfaces. Caution needs to be taken to ensure that passive escape venting is sufficient for the damp air to leave the sub floor area to outside of the home, otherwise the dampness can end up rising into the home above.

Your sub floor ventilation system can be configured as a balanced pressure system, but this needs to be carefully considered and understood before installation. Like any sub floor ventilation system, the key to an effective balanced pressure system is to ensure that it is installed properly.

One or more fans create a positive pressure by blowing dry and fresh air into the sub floor area. An equal amount of fans work using negative pressure to expel the same amount of stale and moist air from the sub floor area. It is balanced because the speed at which the air moves into and out of the sub floor area is the same.
