200mm Duct Adaptor for Microwell Dry 400 Duct Dehumidifier (3D Printed)
Let customers speak for us

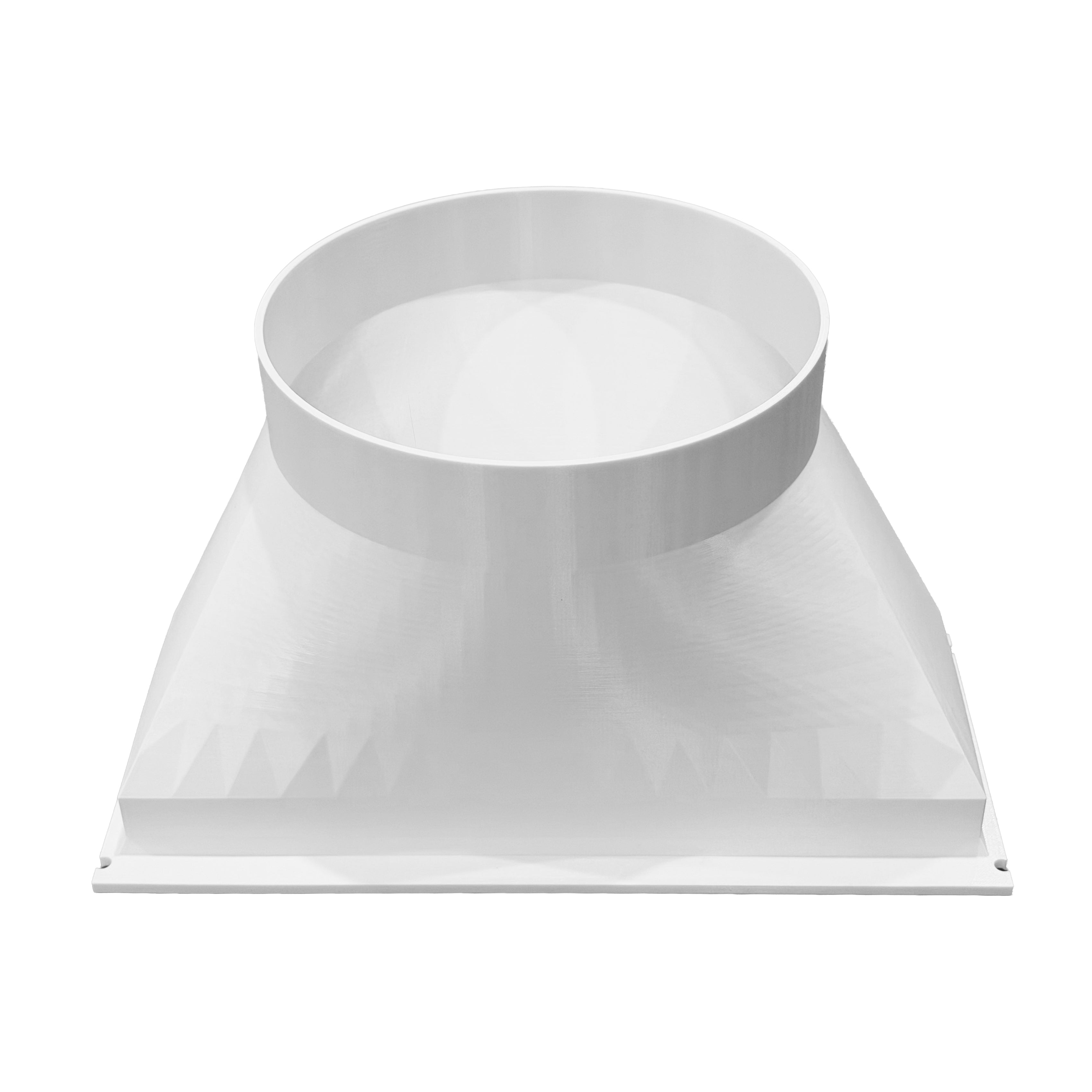

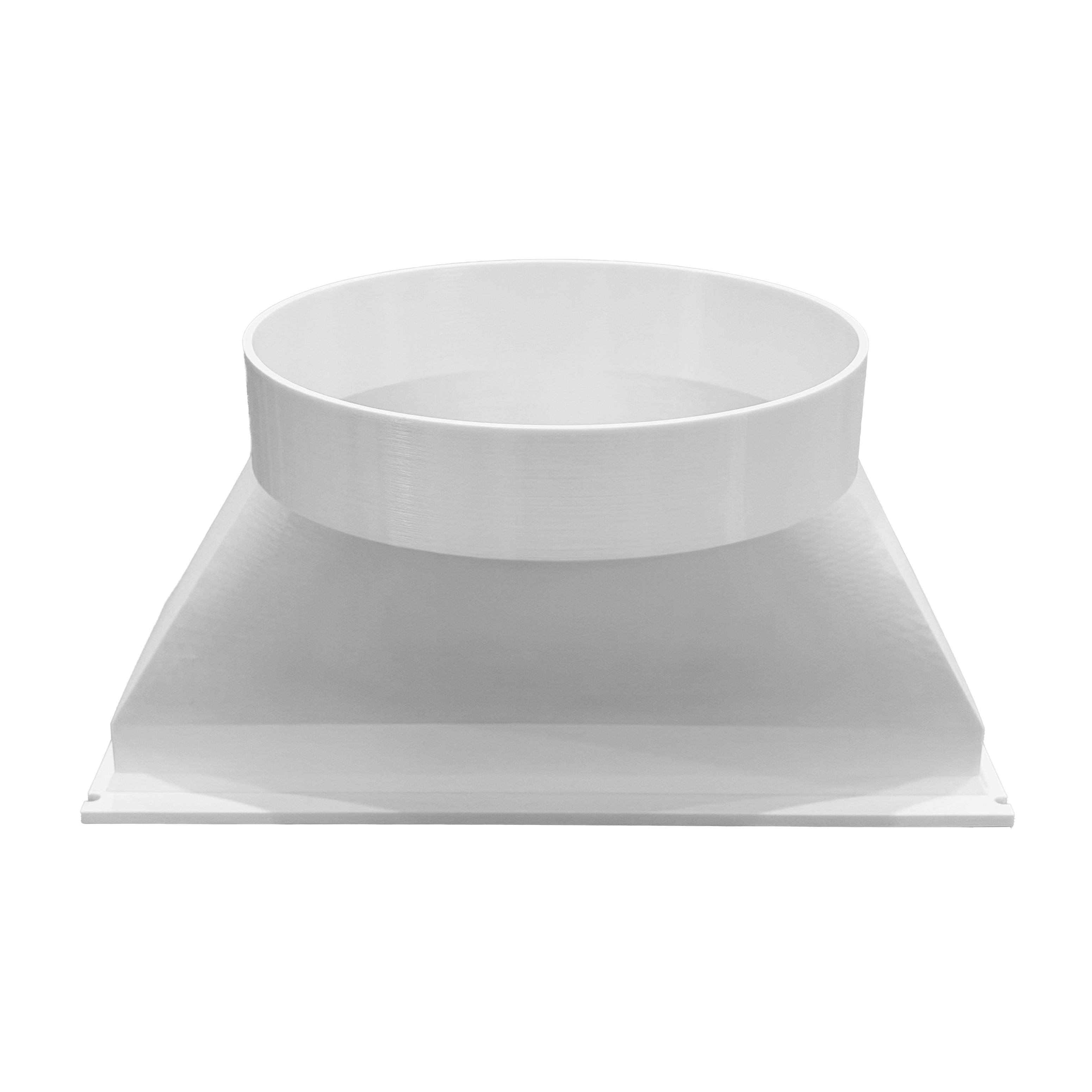

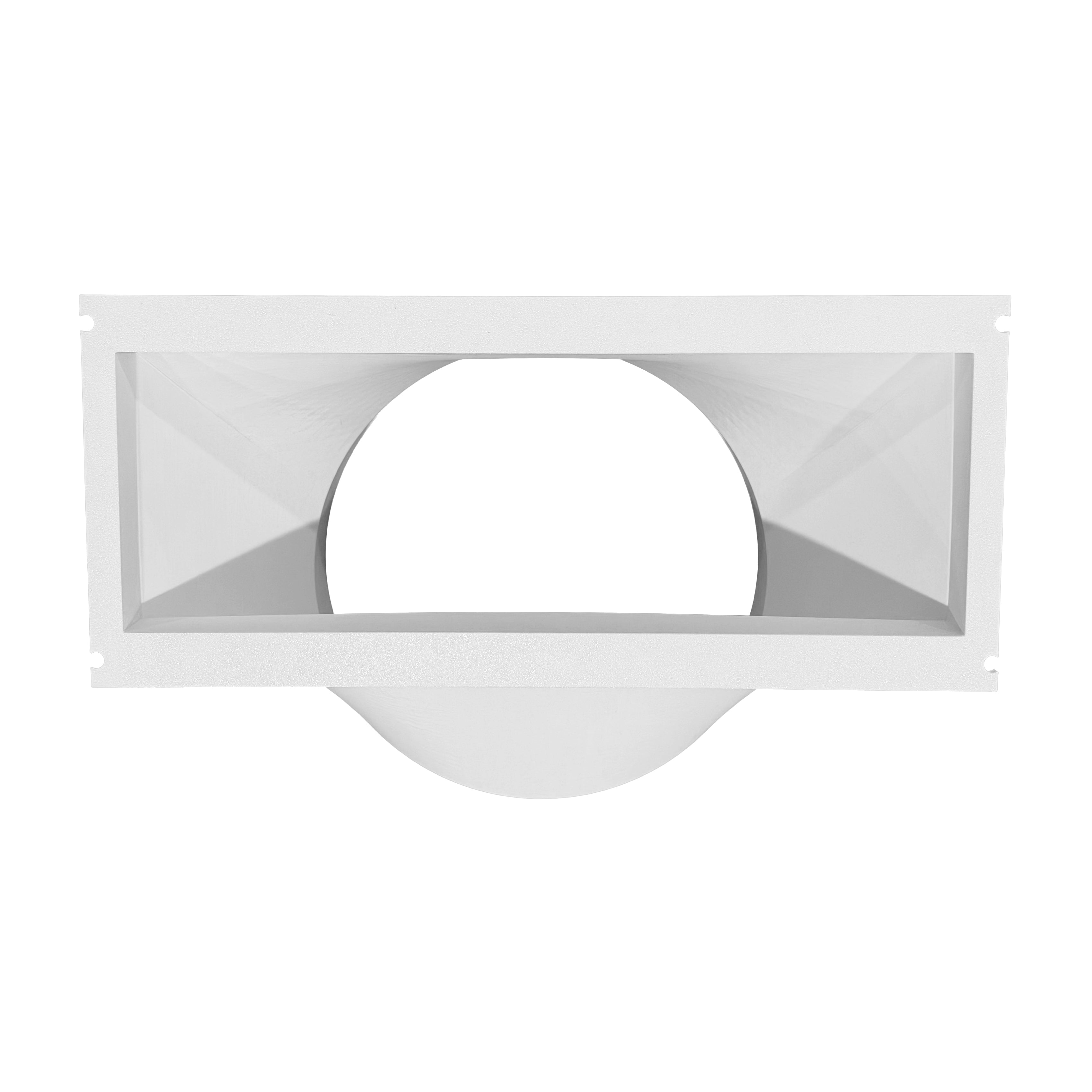

3D Printed Duct Adaptor for Microwell Dry 400 Duct Dehumidifier
Made to Order
• Our 3D printed products are made to order.
• Please allow 1 to 2 days for manufacturing before shipment.
• Please call us if your order is urgent.
Our 3D printed duct adaptor is custom-designed to perfectly fit the return/supply openings of the Microwell Dry 300 Duct and Microwell Dry 400 Duct dehumidifiers. Printed in-house with a professional 3D printer from UV stable acrylonitrile styrene acrylate (ASA) or V0 fire-rated polycarbonate (PC), it offers exceptional strength, temperature resistance, and safety for continuous use in residential and commercial ventilation systems.
This precision-printed fitting allows you to neatly connect one 200mm duct to a Microwell Dry 300/400 Duct dehumidifier — perfect for installations where space is limited or appearance matters.
To ensure optimal performance:
- Always use insulated ducting to minimise condensation and heat loss.
- Pull ducts tight and trim to exact length before securing.
- Support all ductwork with appropriate hanging straps to prevent sagging or kinks.
- Proper installation will help reduce pressure build-up and maintain balanced system operation.
Each duct adaptor is printed with a Bambu Lab H2D Pro and undergoes fit testing to guarantee a snug, leak-free connection — designed and made in Australia to support quality Microwell dehumidifier installations.
Specifications
- Duct Spigot: 200mm x 40mm
- Internal Opening: 300mm x 100mm
- Outer Flange: 324mm x 140mm
- Height: 170mm
- Screw Hole Size: M6
- Screw Hole Spacing: 320mm x 120mm
Bambu Lab ASA
Bambu ASA is a highly durable material that offers exceptional UV, weather, mechanical, and thermal resistance. Its unique combination of properties makes it an ideal material for printing outdoor models (plant signs, mailboxes, wind vanes, etc.) and structural parts that require long-term exposure to challenging outdoor conditions.
Product Features
- Extraordinary UV Resistance
- Exceptional Temperature Resistance
- High Impact Strength and Durability
- Outdoor Use for Long-Term Purpose
- Heat Resistance: 100°C
Print Specifications
- Material: UV Stable Acrylonitrile Styrene Acrylate
- Colour: Black
- Profile: 0.20mm Balanced Strength
- Top Shell Layers: 6
- Infill Density: 40%
- Print Duration: 19h10m
- Filament: 358.1g
Bambu Lab PC FR
Bambu PC FR is a high-performance polycarbonate engineered for demanding applications requiring superior flame retardancy, impact resistance, and heat stability. With outstanding durability, Bambu PC FR excels across a wide range of professional applications, including industrial components, protective casings, and high-temperature environments in sectors like automotive, electronics, and manufacturing.
Product Features
- UL 94-2023 V-0 Flame Retardancy
- Engineering-Level Mechanical Properties
- Heat Resistance: 113°C
Print Specifications
- Material: V0 Fire-Rated Polycarbonate
- Colour: Black
- Profile: 0.20mm Balanced Strength
- Top Shell Layers: 6
- Infill Density: 40%
- Print Duration: 19h13m
- Filament: 401.57g
