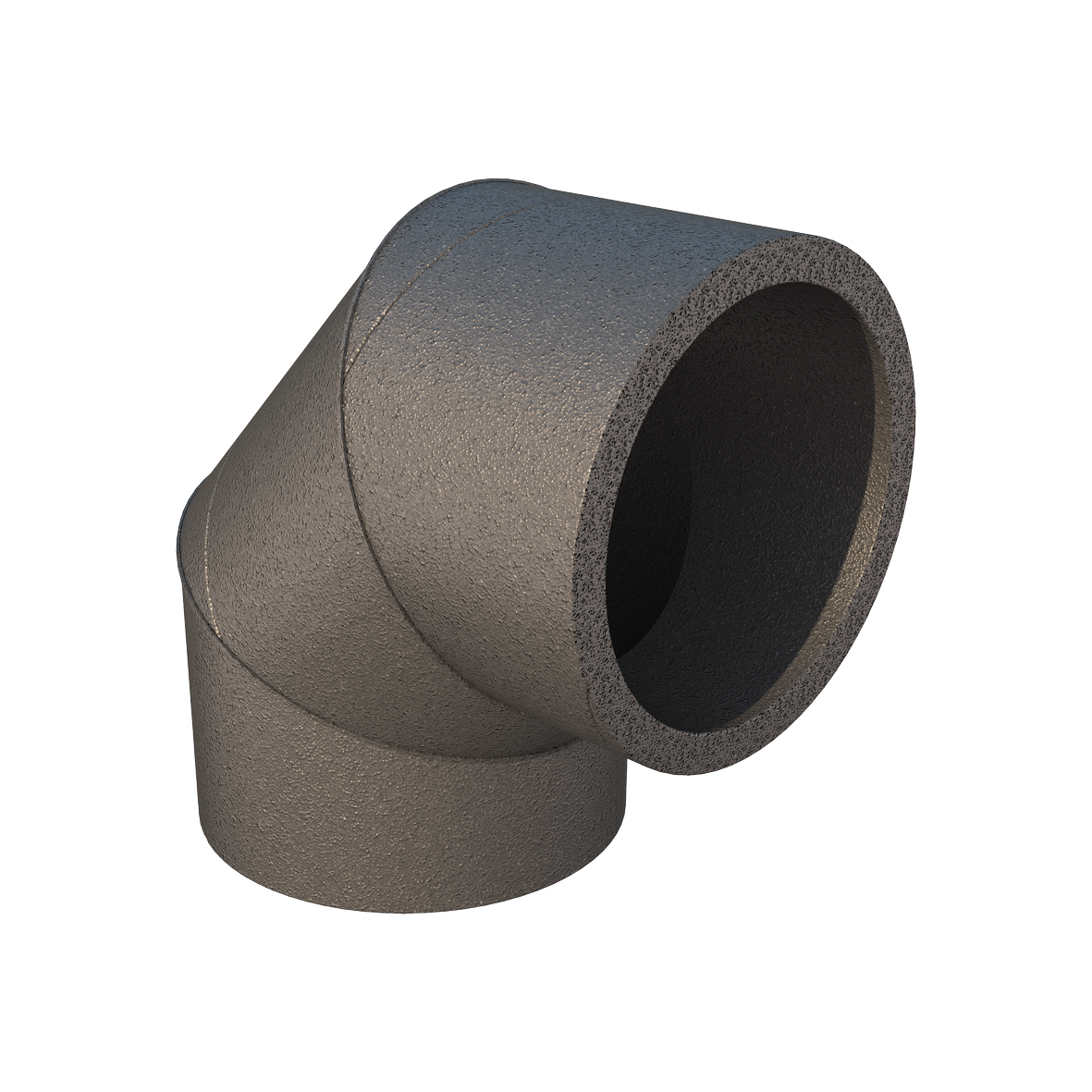

The Aerfoam 125 mm 90° Bend allows smooth directional changes within the Aerfoam system. Made from lightweight, insulated EPE foam, it helps prevent condensation, reduce heat loss, and absorb sound. The bend connects easily to other Aerfoam parts using dedicated connectors and can be securely mounted to walls or ceilings with brackets. Ideal for both central mechanical ventilation and heat pump systems.

  • Insulated to prevent condensation and minimise heat loss
  • Sound-absorbing material for a better indoor comfort
  • Easy mechanical connection and secure mounting
  • Lightweight and easy to cut, ensuring quick, effortless installation
  • Impact resistant
  • Airtight mechanical connections
  • Airtightness class D/ATC 2 up +/- 200 Pa, which minimises fan energy use and sound production
  • EPD certified and REACH compliant


Specifications

General
Product Name Aerfoam 125 Bend 90°
Type Bends
GTIN 8713645122991
Trade Name Aerfoam
Technical
Colour Grey
Material EPE
Airflow Direction Supply / Extract
Internal Duct Dimension 125 mm
Insulation Thickness 16 mm

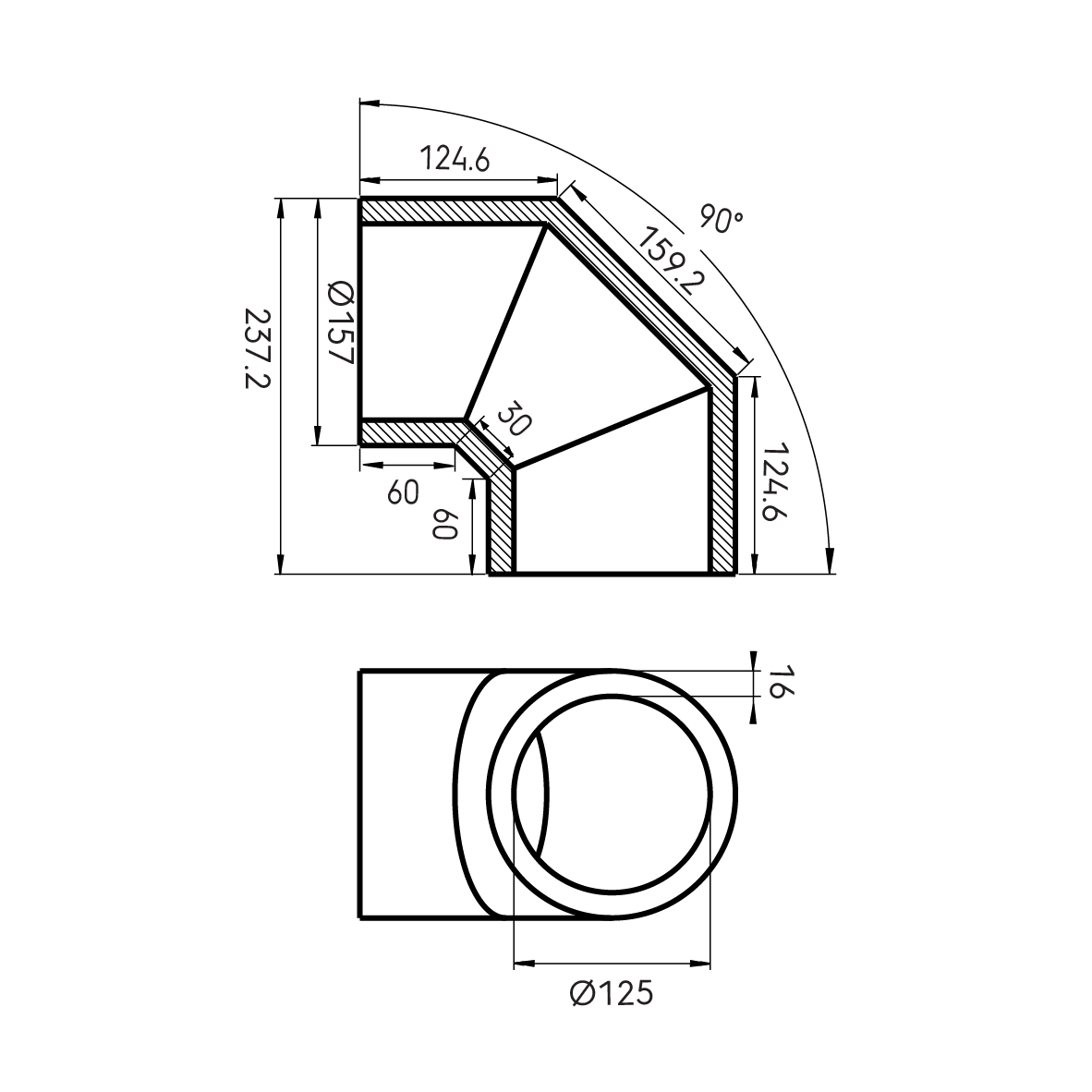

Dimensions
Length Gross 237 mm
Width 157 mm
Height 237 mm
Net Weight 0.06 kg
Logistical
Intrastat 39259080
Number per Packaging 1
Base Unit Packaging Unpacked
Gross Weight 0.06 kg
Packaging / Trade Length 237 mm
Packaging / Trade Width 157 mm
Packaging / Trade Height 237 mm
Performance
CE String -
Temperature Resistance (min.) -30 °C
Temperature Resistance (max.) 60 °C
Installation Temperature (min.) 0 °C
Installation Temperature (max.) 50 °C
