Aerfoam 160 T-Piece

Name: Aerfoam 160 T-Piece
Brand: Ubbink
SKU: UBBINK-188266
Price: 75.00 AUD
Availability: InStock

Available

Thanks for contacting us. We'll get back to you as soon as possible.

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

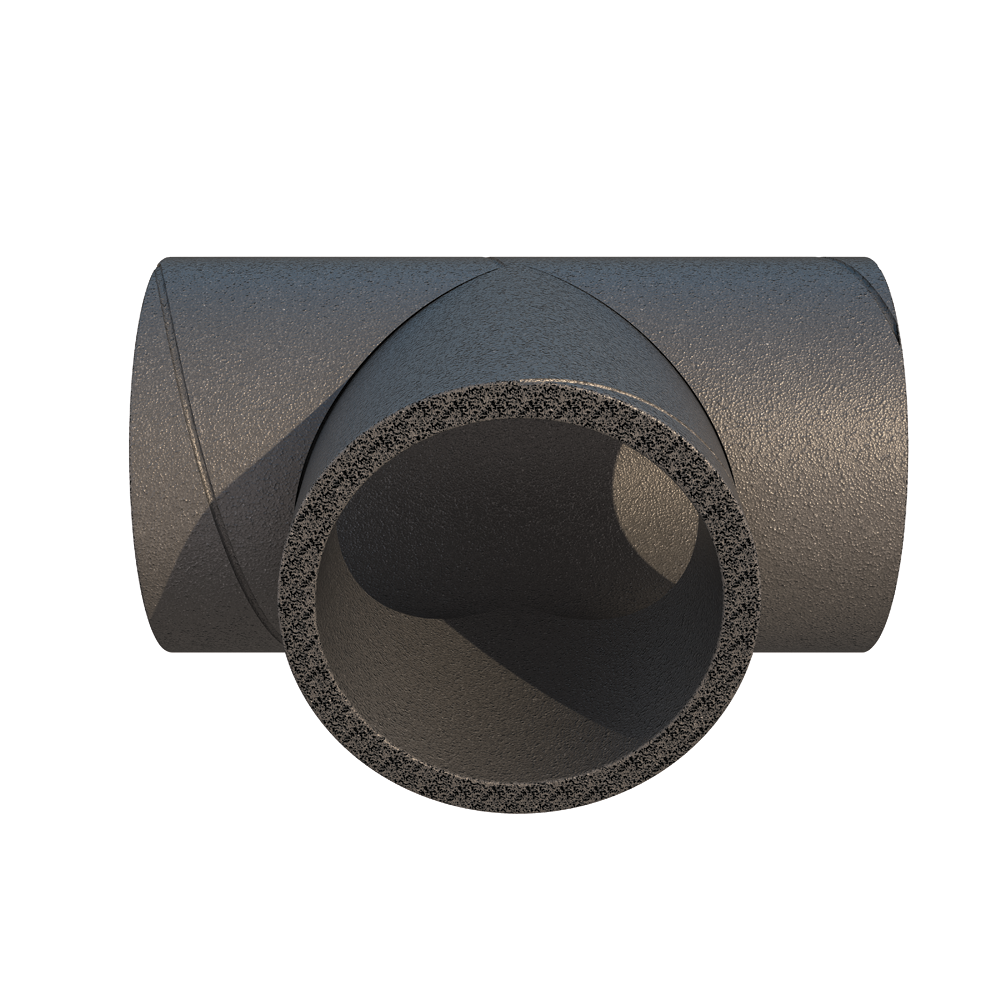

The Aerfoam 160 mm T-Piece allows branching in the Aerfoam system. Made of expanded polyethylene (EPE) duct, which minimises the risk of condensation and energy loss. It is very light and extremely easy and safe to install. All Aerfoam parts connect to each other using strong, airtight mechanical connections. They can also be securely mounted to walls or ceilings using brackets. Aerfoam is ideal for both central mechanical ventilation and domestic hot water heat pump systems.

Insulated to prevent condensation and minimise heat loss
Sound-absorbing material for a better indoor comfort
Easy mechanical connection and secure mounting
Lightweight and easy to cut, ensuring quick, effortless installation
Impact resistant
Airtight mechanical connections
Airtightness class D/ATC 2 up +/- 200 Pa, which minimises fan energy use and sound production
EPD certified and REACH compliant

Specifications

General

Product Name	Aerfoam 160 T-Piece
Type	T-Piece
GTIN	8713645211824
Trade Name	Aerfoam

Technical

Colour	Grey
Material	EPE
Airflow Direction	Supply / Extract
Internal Duct Dimension	160 mm
Insulation Thickness	16 mm

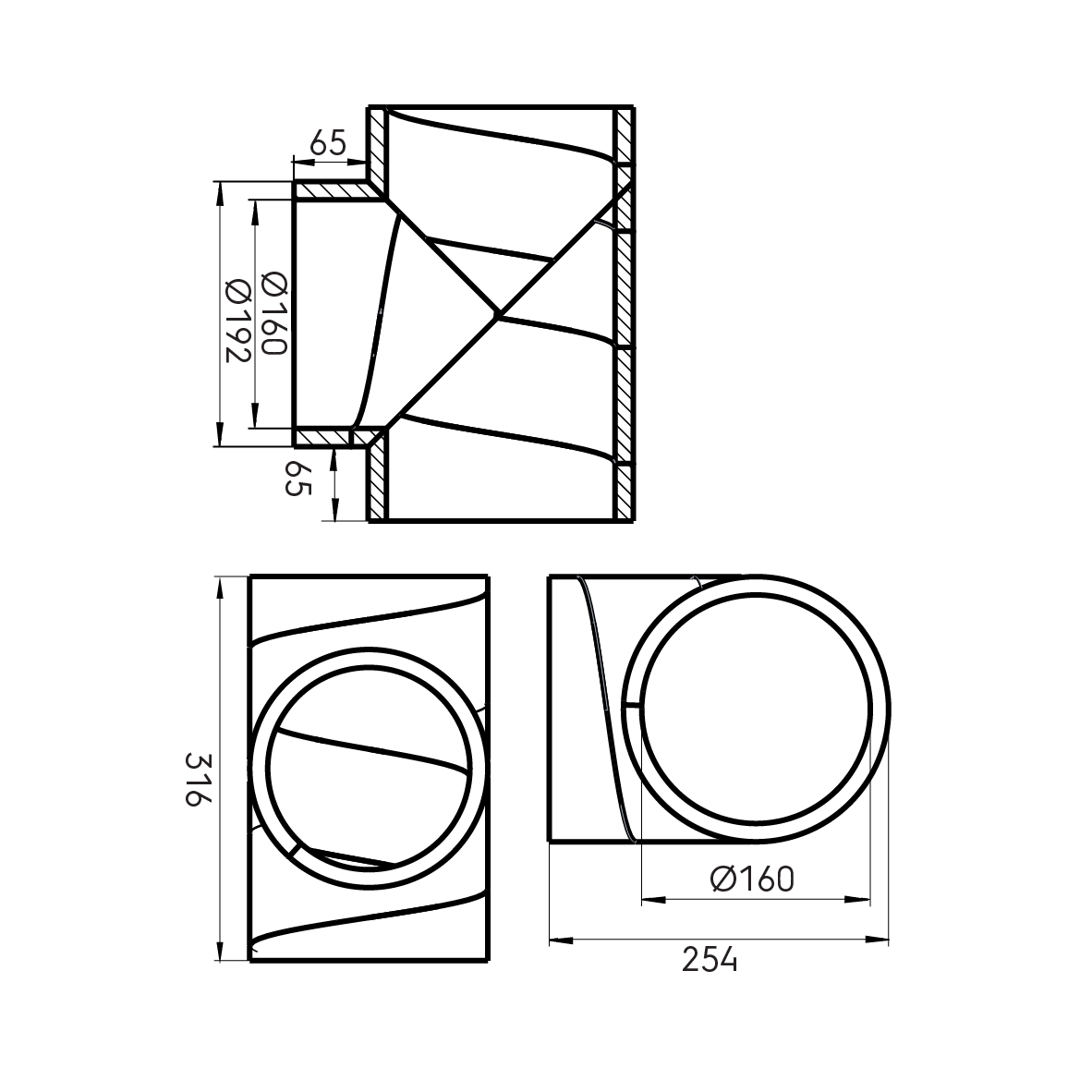

Dimensions

Length Gross	316 mm
Width	192 mm
Height	254 mm
Net Weight	0.25 kg

Logistical

Intrastat	39259080
Number per Packaging	1
Base Unit Packaging	Box
Gross Weight	0.4 kg
Packaging / Trade Length	408 mm
Packaging / Trade Width	263 mm
Packaging / Trade Height	306 mm

Performance

CE String	-
Temperature Resistance (min.)	-30 °C
Temperature Resistance (max.)	60 °C
Installation Temperature (min.)	0 °C
Installation Temperature (max.)	50 °C
