Aerfoam 200 Bend 45°
Aerfoam 200 Bend 45°
Aerfoam 200 Bend 45°

Aerfoam 200 Bend 45°

Thanks for contacting us. We'll get back to you as soon as possible.

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

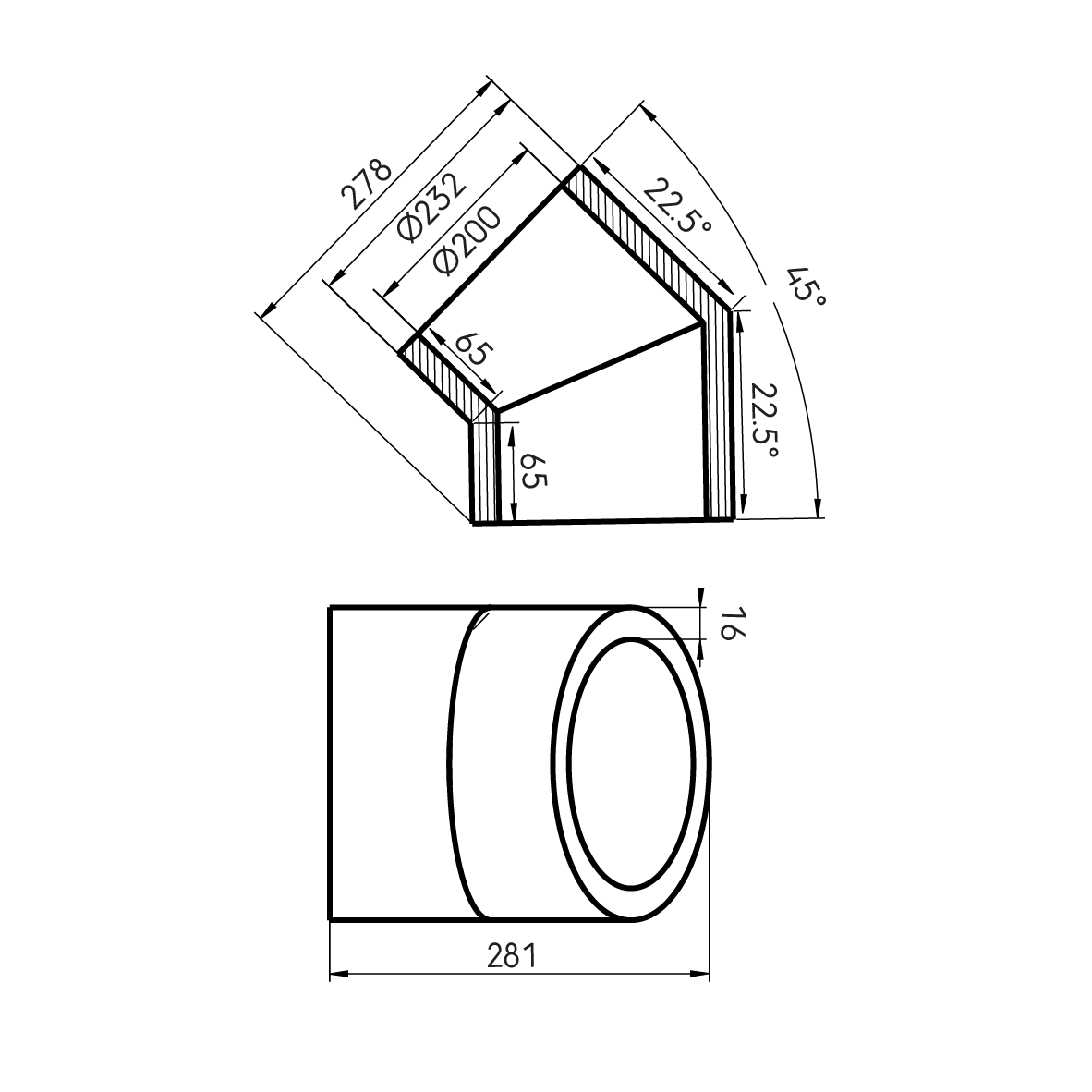

The Aerfoam 200 mm 45° Bend allows smooth directional changes within the Aerfoam system. Made from lightweight, insulated EPE foam, it helps prevent condensation, reduce heat loss, and absorb sound. The bend connects easily to other Aerfoam parts using dedicated connectors and can be securely mounted to walls or ceilings with brackets. Ideal for both central mechanical ventilation and heat pump systems.

  • Insulated to prevent condensation and minimise heat loss
  • Sound-absorbing material for a better indoor comfort
  • Easy mechanical connection and secure mounting
  • Lightweight and easy to cut, ensuring quick, effortless installation
  • Impact resistant
  • Airtight mechanical connections
  • Airtightness class D/ATC 2 up +/- 200 Pa, which minimises fan energy use and sound production
  • EPD certified and REACH compliant


Specifications

General
Product Name Aerfoam 200 Bend 45°
Type Bends
GTIN 8713645229812
Trade Name Aerfoam
Technical
Colour Grey
Material EPE
Airflow Direction Supply / Extract
Internal Duct Dimension 200 mm
Insulation Thickness 16 mm
Dimensions
Length Gross 278 mm
Width 232 mm
Height 281 mm
Net Weight 0.06 kg
Logistical
Intrastat 39259080
Number per Packaging 1
Base Unit Packaging Unpacked
Gross Weight 0.06 kg
Packaging / Trade Length 278 mm
Packaging / Trade Width 232 mm
Packaging / Trade Height 281 mm
Performance
CE String -
Temperature Resistance (min.) -30 °C
Temperature Resistance (max.) 60 °C
Installation Temperature (min.) 0 °C
Installation Temperature (max.) 50 °C
