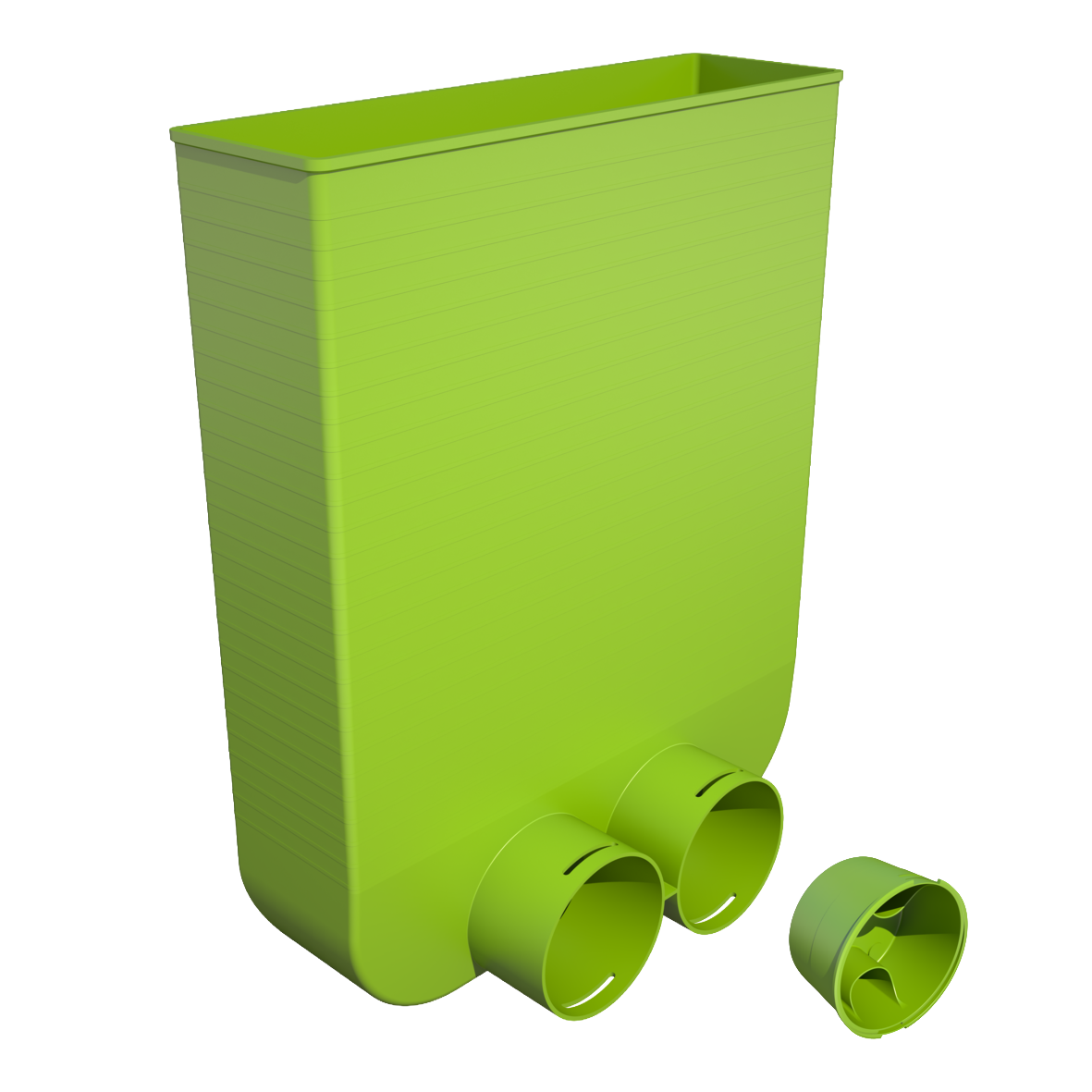

An AE34C duct accessory. Use an AE34C seal ring and an AE34C click ring to connect the AE34C duct to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

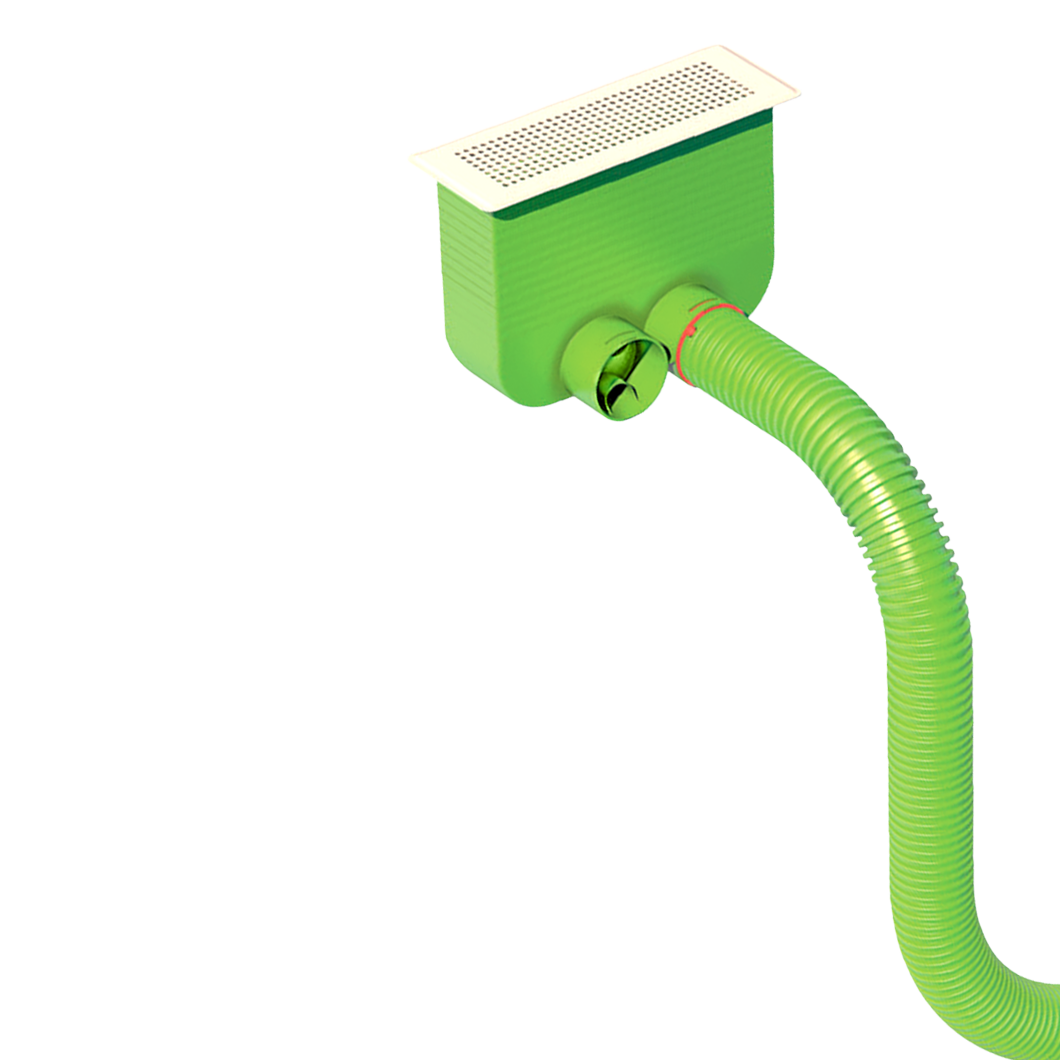

This item can be used to terminate a duct run inside a habitable room. An Air Excellent floor grille must be inserted into it.


Specifications

General
Product Name Air Excellent 2 x AE34C Floor Grille Adaptor
Type Adaptors
GTIN 8713645212777
Accessories in Package Cover Cap and 1 AE34C Accessory Cap
Trade Name Air Excellent
Technical
Colour Green
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Circular
Dimension 75 mm

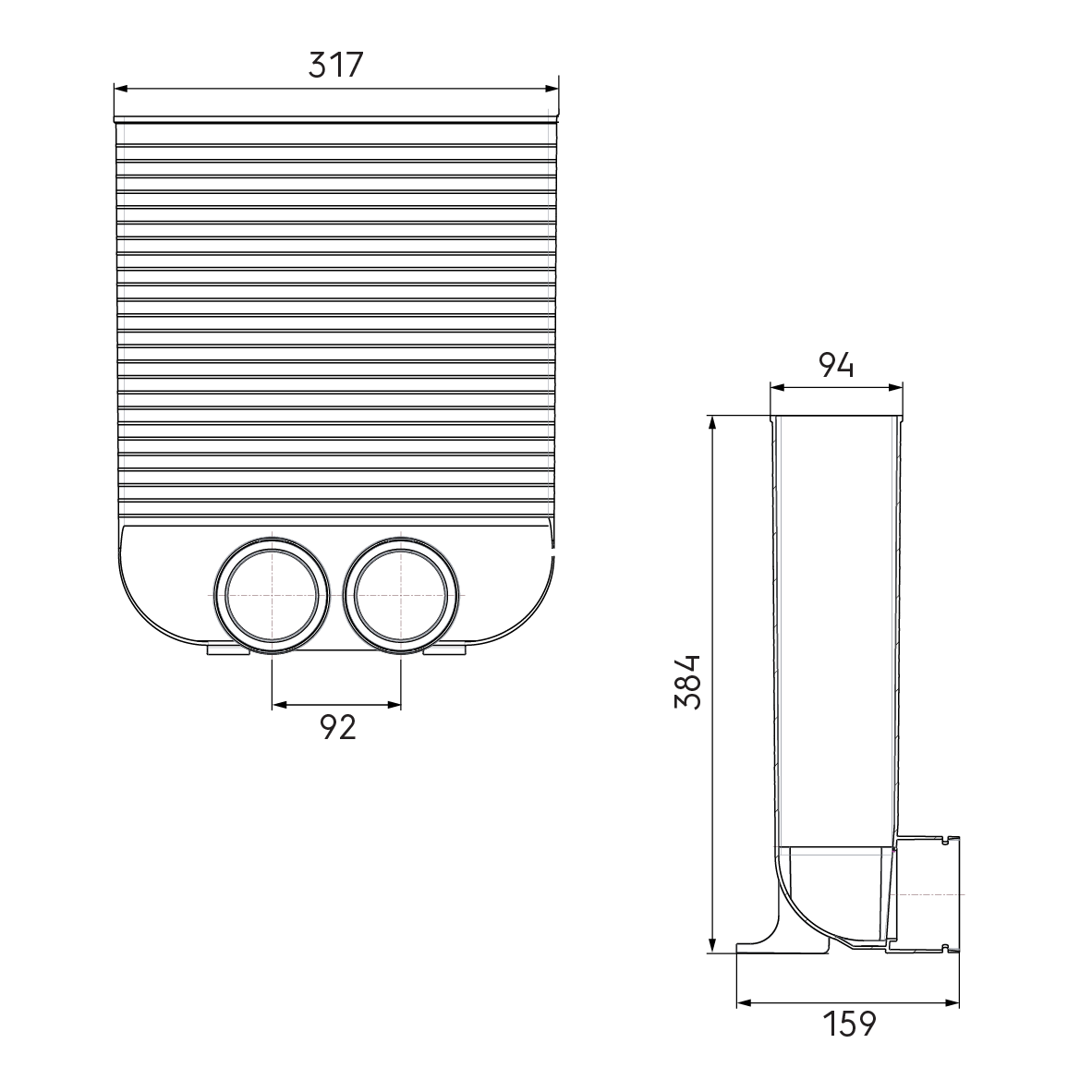

Dimensions
Length Gross 159 mm
Width 317 mm
Height 383 mm
Net Weight 0.793 kg
Logistical
Intrastat 39259080
Base Unit Packaging Unpacked
Gross Weight 0.793 kg
Packaging / Trade Length 159 mm
Packaging / Trade Width 317 mm
Packaging / Trade Height 383 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
