Air Excellent 2 x AE48C Floor Grille Adaptor
Air Excellent 2 x AE48C Floor Grille Adaptor

Air Excellent 2 x AE48C Floor Grille Adaptor

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

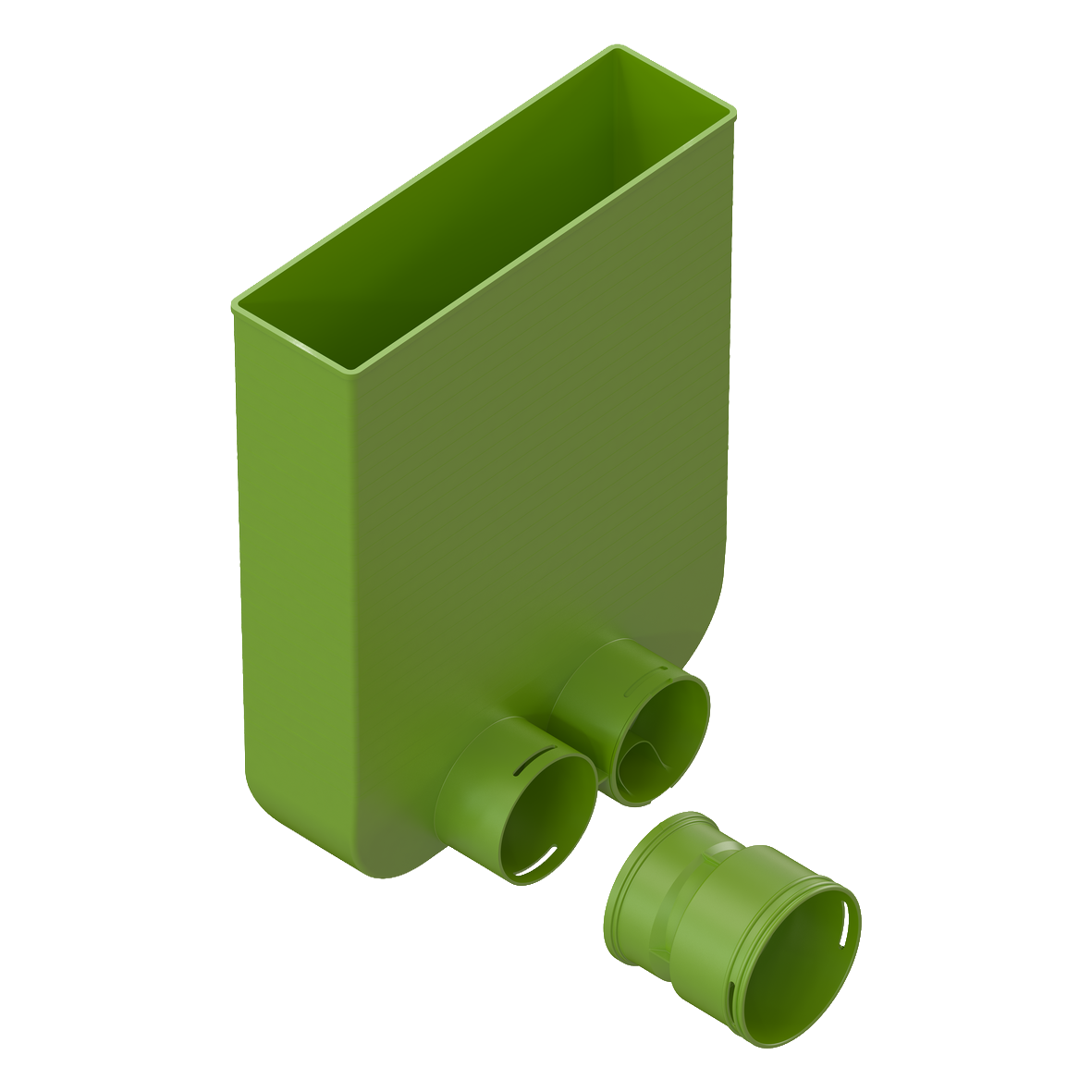

An AE48C duct accessory. Use an AE48C seal ring and an AE48C click ring to connect the AE48C duct to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

This item can be used to terminate a duct run inside a habitable room. An Air Excellent floor grille must be inserted into it.


Specifications

General
Product Name Air Excellent 2 x AE48C Floor Grille Adaptor
Type Adaptors
GTIN 8713645241814
Accessories in Package Cover Cap, 1 AE34C Accessory Cap and 1 AE48C DBOX Adaptor
Trade Name Air Excellent
Technical
Colour Green
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Circular
Dimension 90 mm

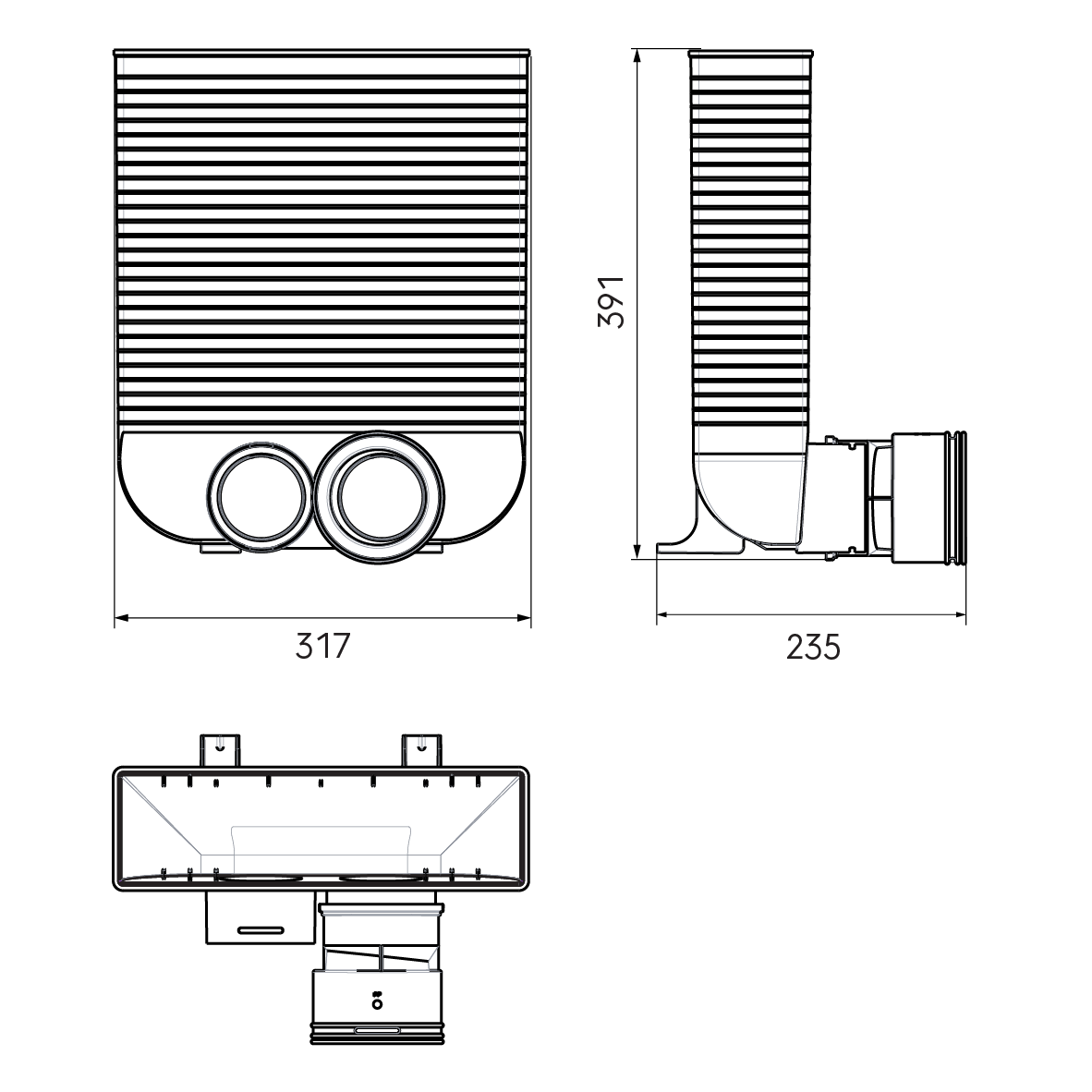

Dimensions
Length Gross 235 mm
Width 317 mm
Height 391 mm
Net Weight 0.854 kg
Logistical
Intrastat 39259080
Base Unit Packaging Unpacked
Gross Weight 0.854 kg
Packaging / Trade Length 235 mm
Packaging / Trade Width 317 mm
Packaging / Trade Height 391 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
