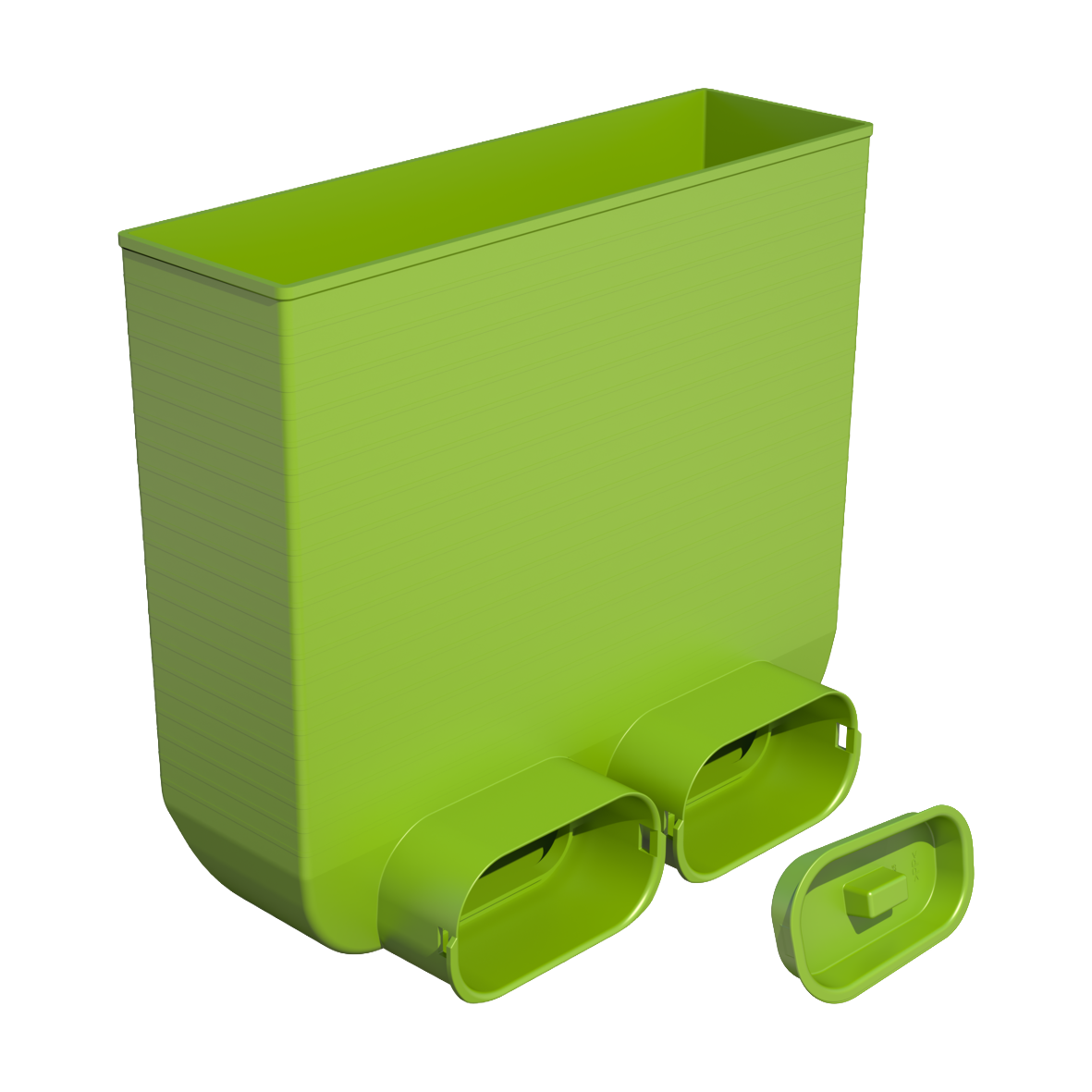

Air Excellent 2 x AE35SC Floor Grille Adaptor
Air Excellent 2 x AE35SC Floor Grille Adaptor

Air Excellent 2 x AE35SC Floor Grille Adaptor

Sold out

An AE35SC duct accessory. Use an AE35SC seal & click ring to connect the AE35SC duct to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

This item can be used to terminate a duct run inside a habitable room. An Air Excellent floor grille must be inserted into it.


Specifications

General
Product Name Air Excellent 2 x AE35SC Floor Grille Adaptor
Type Adaptors
GTIN 8713645175058
Accessories in Package Cover Cap and 1 AE35SC Accessory Cap
Trade Name Air Excellent
Technical
Colour Green
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Semi-Circular
Dimension 50 x 100 mm

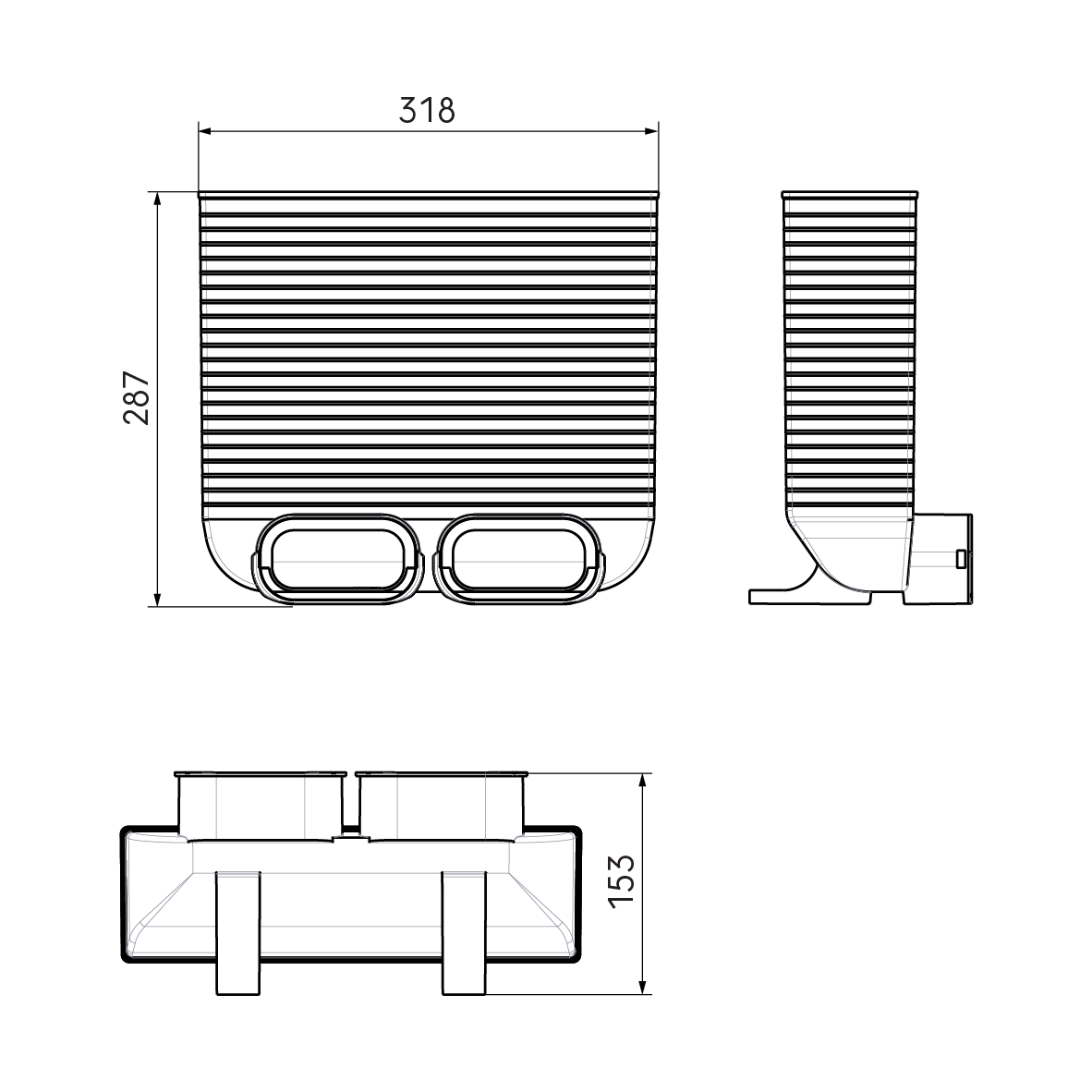

Dimensions
Length Gross 153 mm
Width 318 mm
Height 287 mm
Net Weight 0.76 kg
Logistical
Intrastat 39259080
Base Unit Packaging Unpacked
Gross Weight 0.76 kg
Packaging / Trade Length 153 mm
Packaging / Trade Width 318 mm
Packaging / Trade Height 287 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
