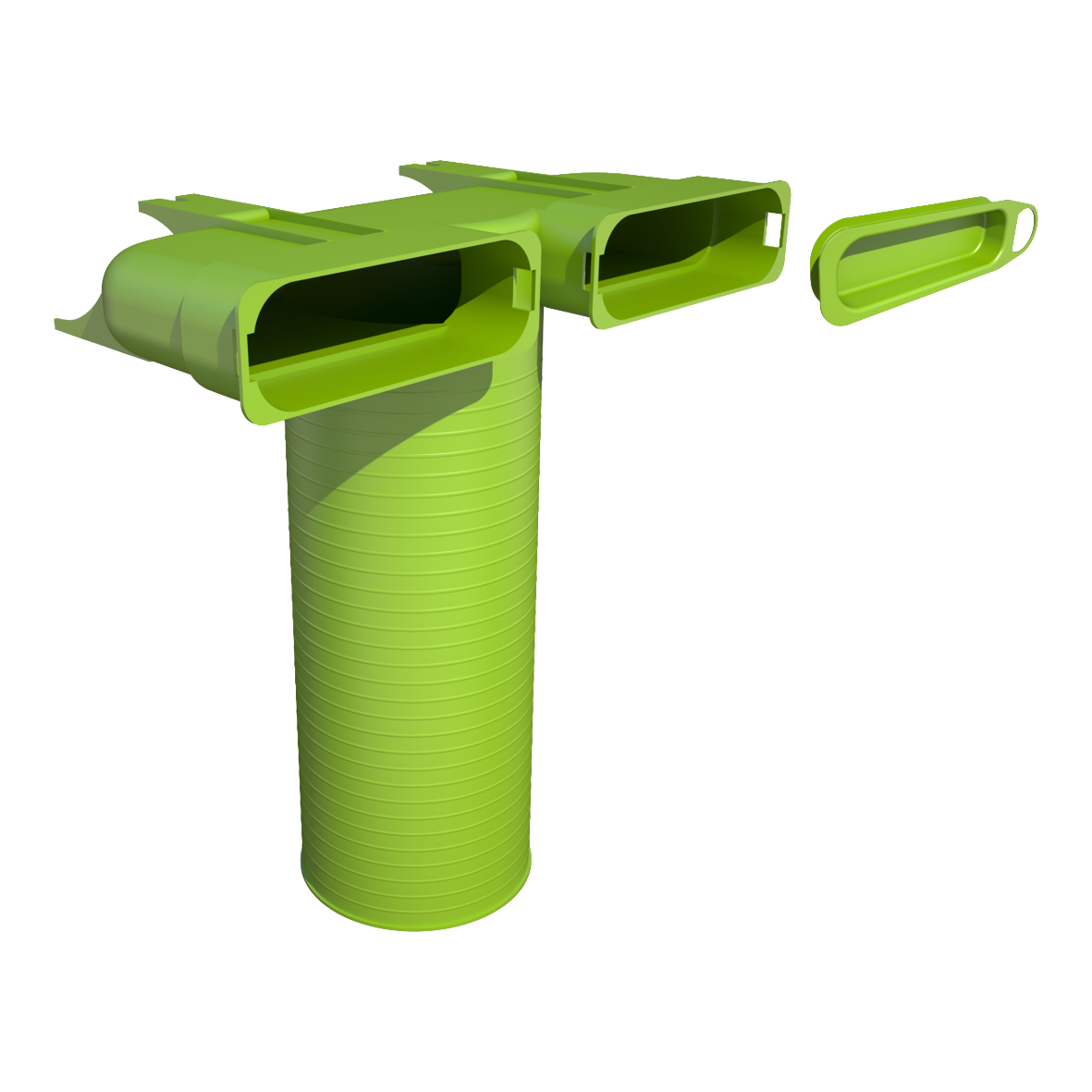

Air Excellent 2 x AE45SC Valve Adaptor 125mm 90°

Sold out

An AE45SC duct accessory. Use an AE45SC seal & click ring to connect the AE45SC duct to it.

Modular manifolds, which can be used with all 6 duct types
Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
Low system pressure loss due to radial design
Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

This item can be used to terminate a duct run inside a habitable or wet room. A valve must be inserted into it.

Specifications

General

Product Name	Air Excellent 2 x AE45SC Valve Adaptor 125mm 90°
Type	Adaptors
GTIN	8713645220314
Accessories in Package	Cover Cap and 1 AE45SC Accessory Cap
Trade Name	Air Excellent

Technical

Colour	Green
Material	PP
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Shape	Semi-Circular

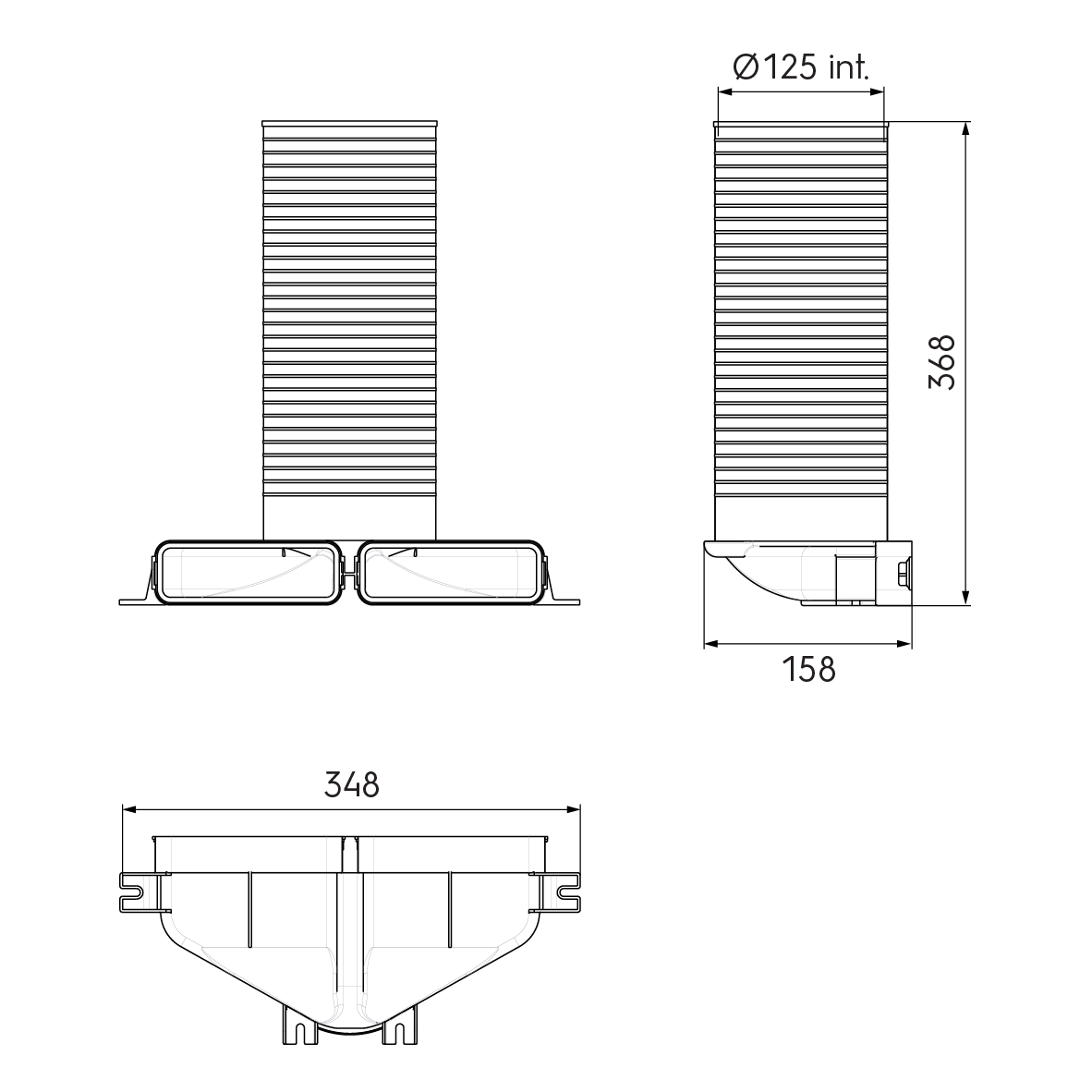

Dimension	50 x 140 mm

Dimensions

Length Gross	368 mm
Width	348 mm
Height	158 mm
Net Weight	0.67 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Unpacked
Gross Weight	0.67 kg
Packaging / Trade Length	368 mm
Packaging / Trade Width	348 mm
Packaging / Trade Height	158 mm
