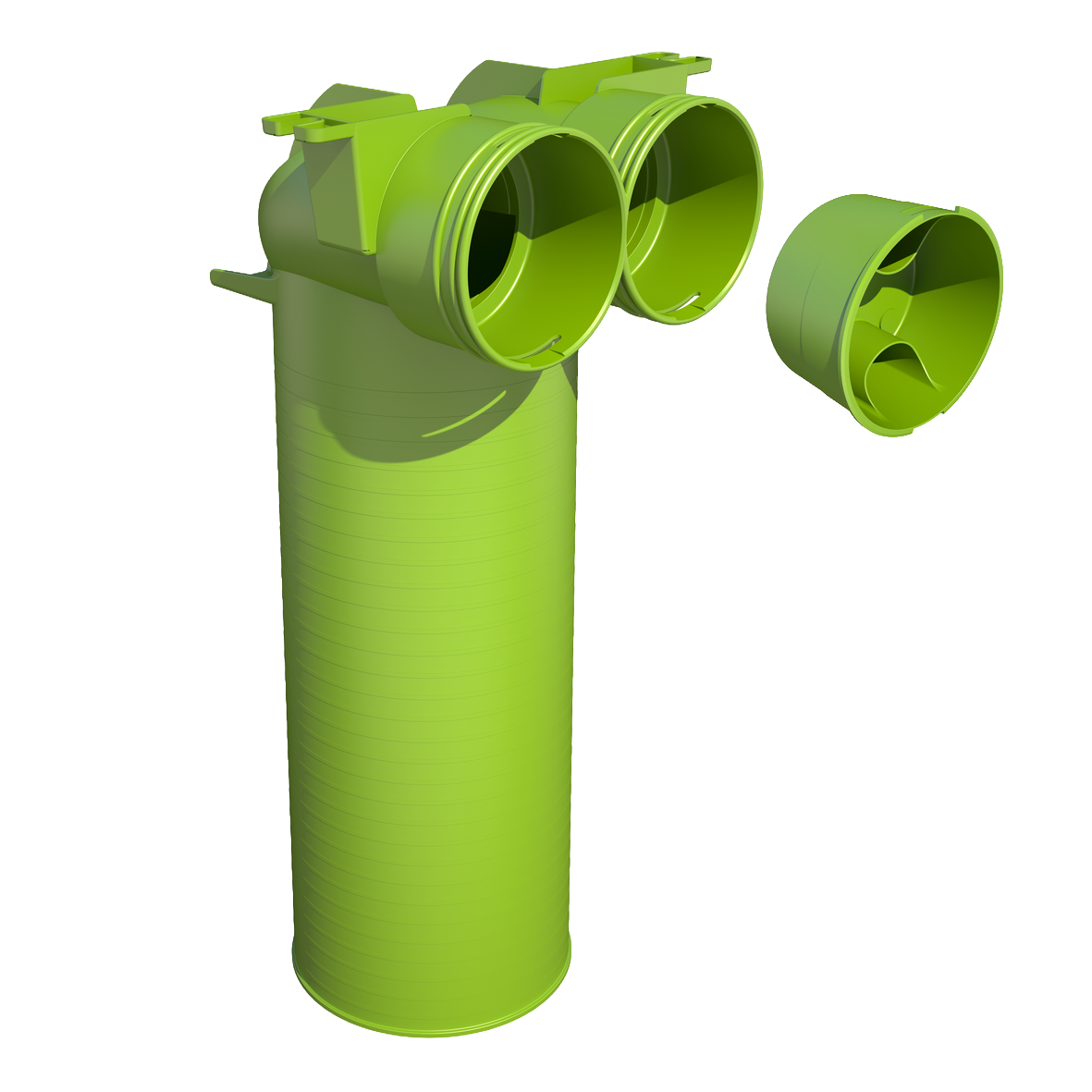

Air Excellent 2 x AE48C Valve Adaptor 125mm 90°
Air Excellent 2 x AE48C Valve Adaptor 125mm 90°

Air Excellent 2 x AE48C Valve Adaptor 125mm 90°

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

An AE48C duct accessory. Use an AE48C seal ring and an AE48C click ring to connect the AE48C duct to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

This item can be used to terminate a duct run inside a habitable or wet room. A valve must be inserted into it.


Specifications

General
Product Name Air Excellent 2 x AE48C Valve Adaptor 125mm 90°
Type Adaptors
GTIN 8713645204550
Accessories in Package Cover Cap and 1 AE48C Accessory Cap
Trade Name Air Excellent
Technical
Colour Green
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Circular
Dimension 90 mm

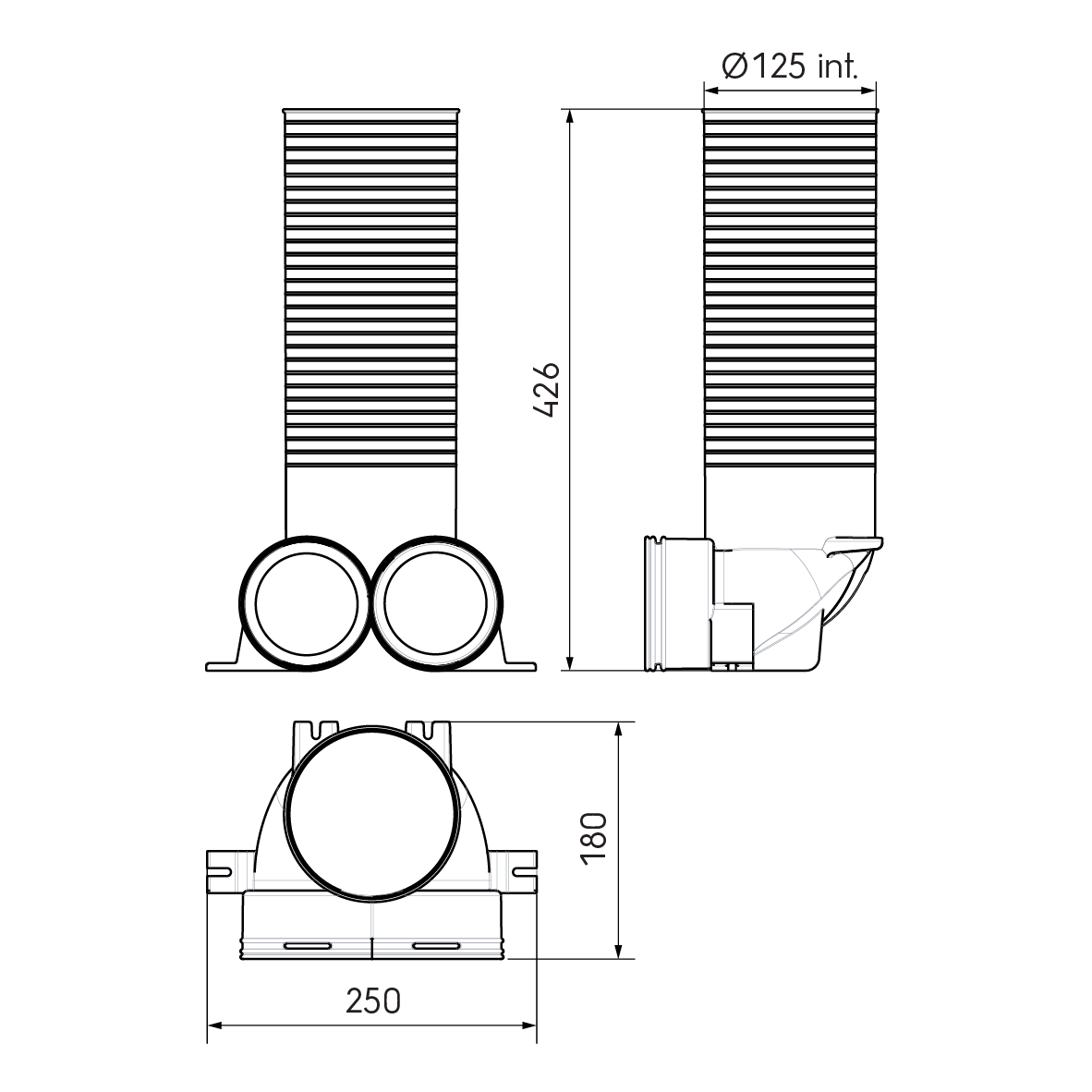

Dimensions
Length Gross 426 mm
Width 250 mm
Height 180 mm
Net Weight 0.44 kg
Logistical
Intrastat 39259080
Base Unit Packaging Unpacked
Gross Weight 0.44 kg
Packaging / Trade Length 426 mm
Packaging / Trade Width 250 mm
Packaging / Trade Height 180 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
