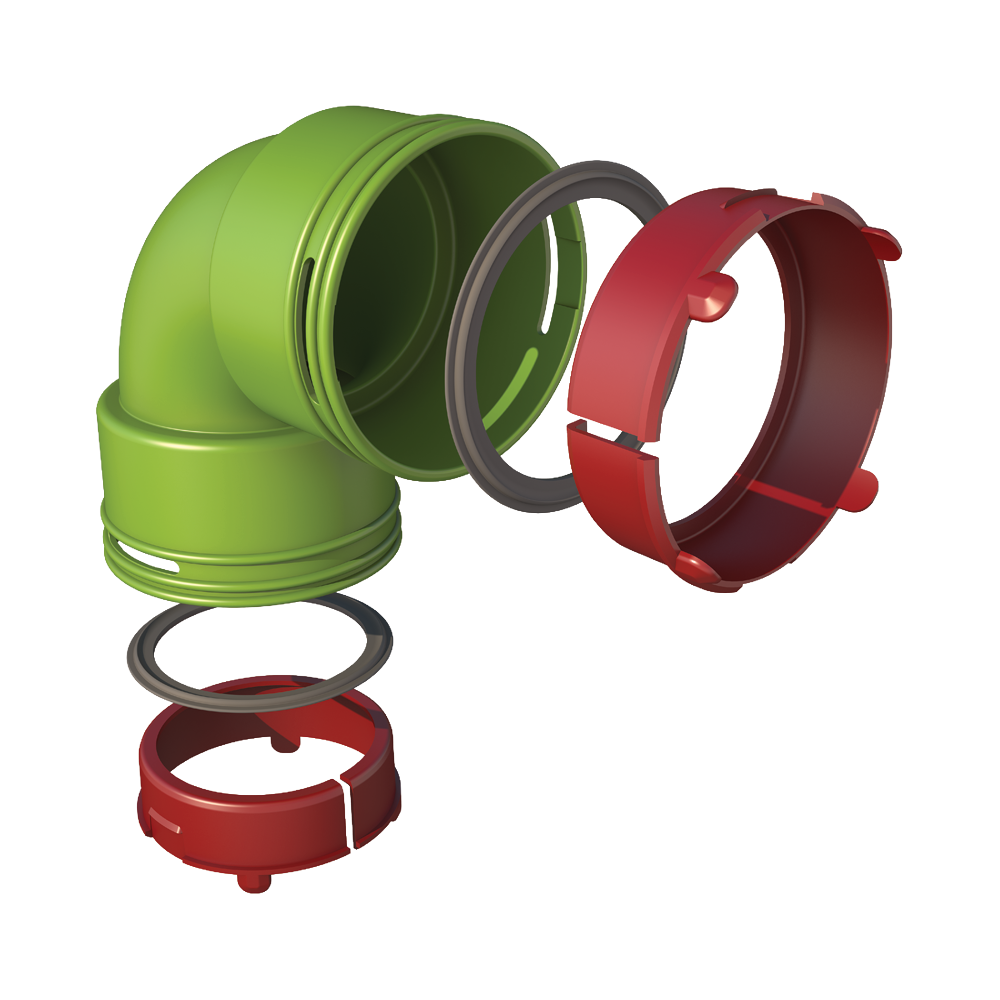

An AE34C duct accessory. Includes 2 AE34C seal rings and 2 AE34C click rings to connect the ducts to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

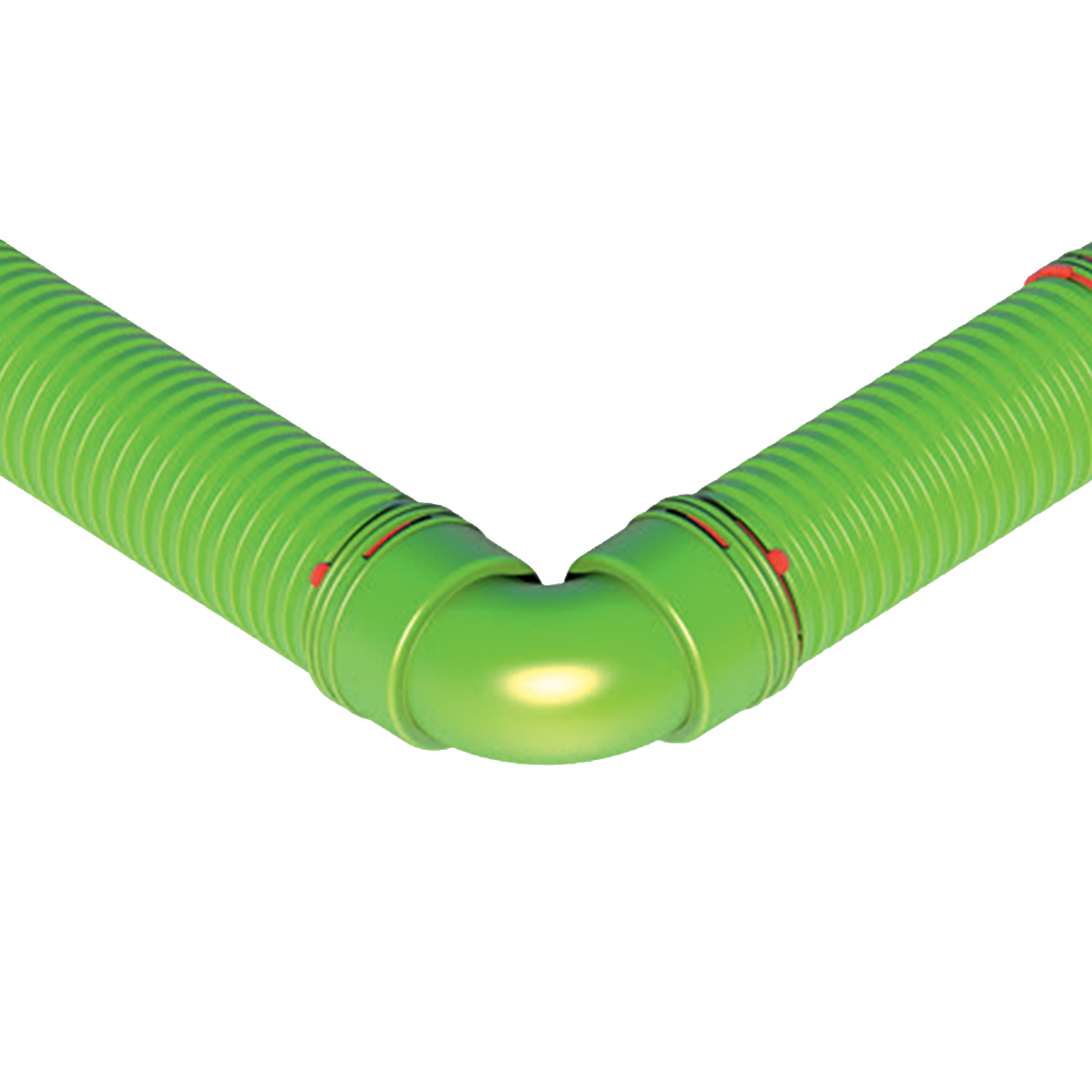

This item should be used when there is not enough space to bend the duct according to its minimum bending radius.


Specifications

General
Product Name Air Excellent AE34C Bend 90° Kit
Type Bends
GTIN 8713645216102
Trade Name Air Excellent
Technical
Colour Green
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Circular

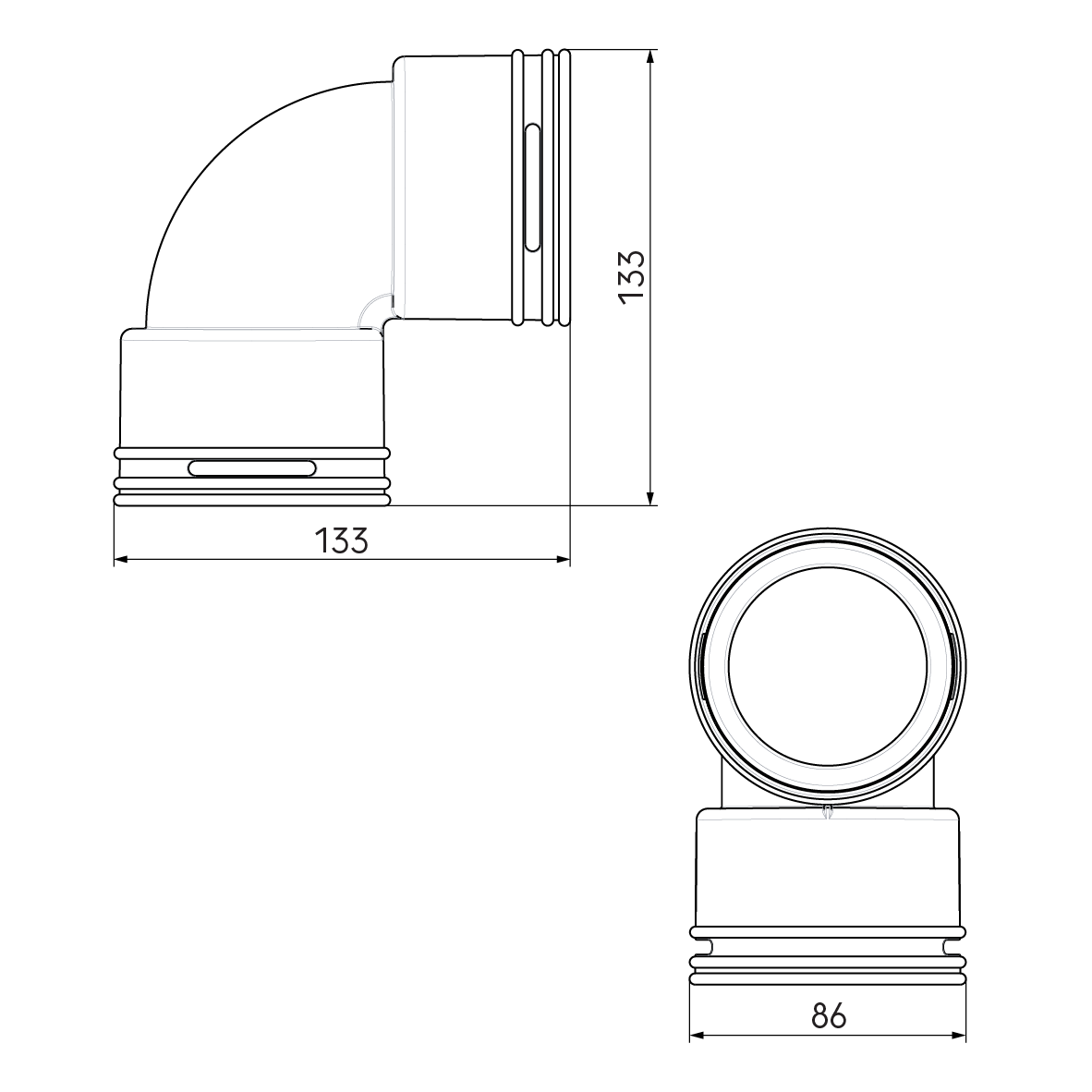

Dimension 75 mm
Dimensions
Length Gross 144 mm
Width 86 mm
Height 144 mm
Net Weight 0.12 kg
Logistical
Intrastat 39259080
Base Unit Packaging Sealed Bag
Gross Weight 0.12 kg
Packaging / Trade Length 144 mm
Packaging / Trade Width 86 mm
Packaging / Trade Height 144 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
