Air Excellent AE34C Connection Kit (Distribution Box - Valve Adaptor)

Air Excellent AE34C Connection Kit (Distribution Box - Valve Adaptor)

Name: Air Excellent AE34C Connection Kit (Distribution Box - Valve Adaptor)
Brand: Ubbink
SKU: UBBINK-188618
Price: 20.00 AUD
Availability: InStock

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

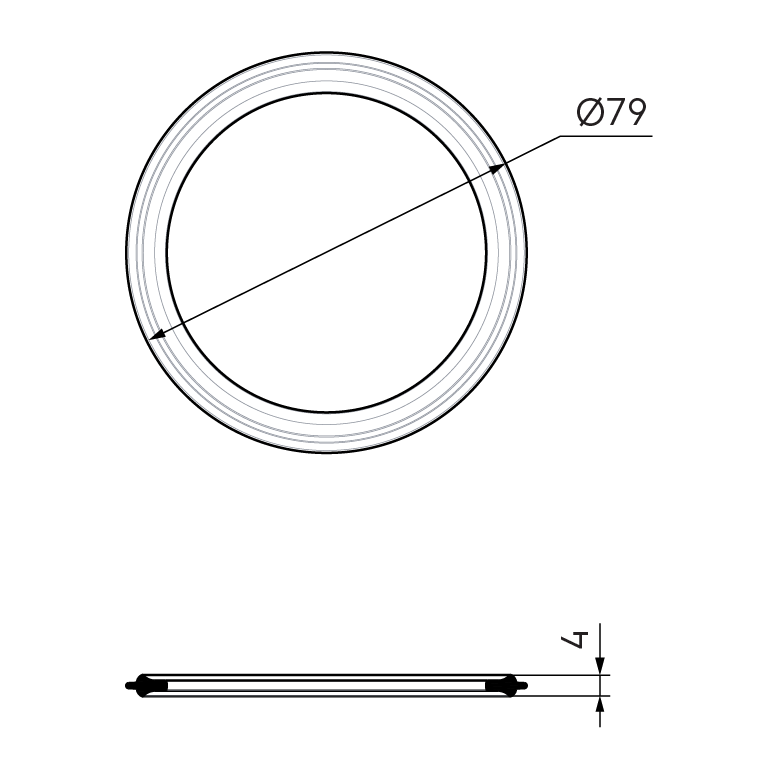

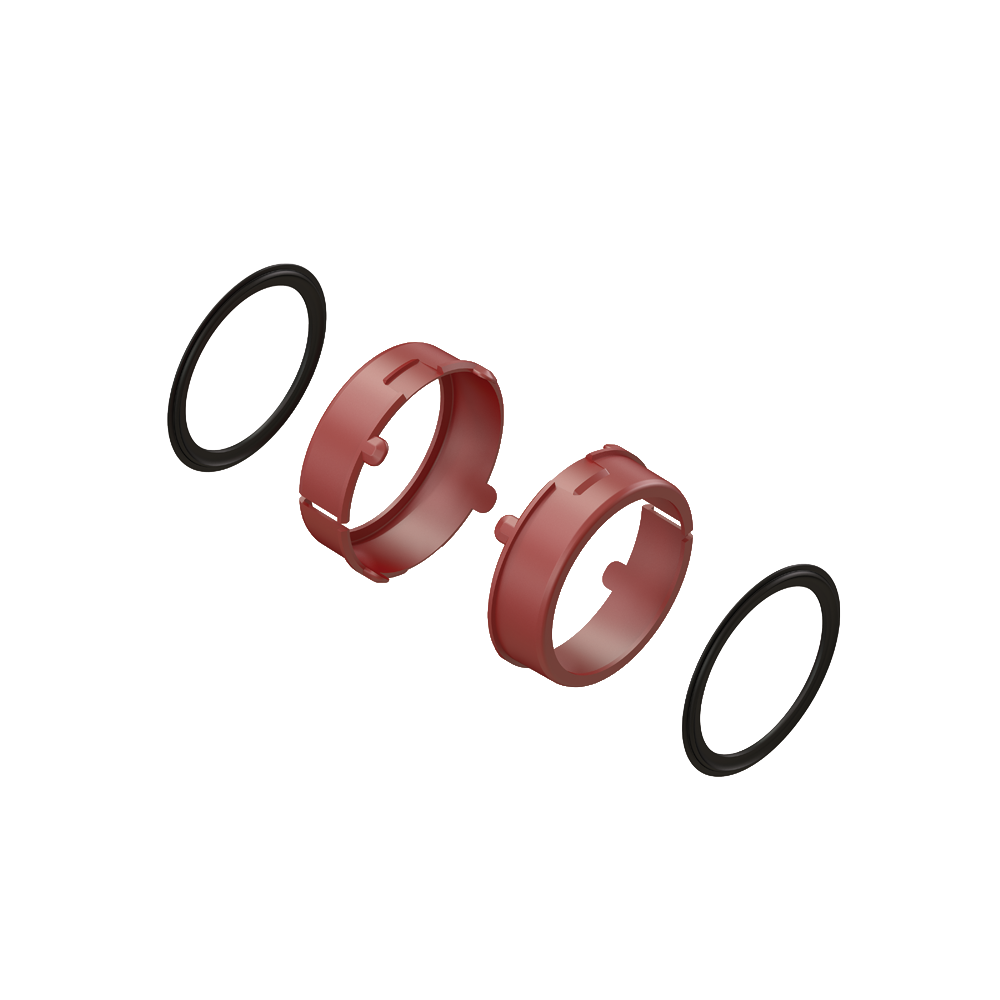

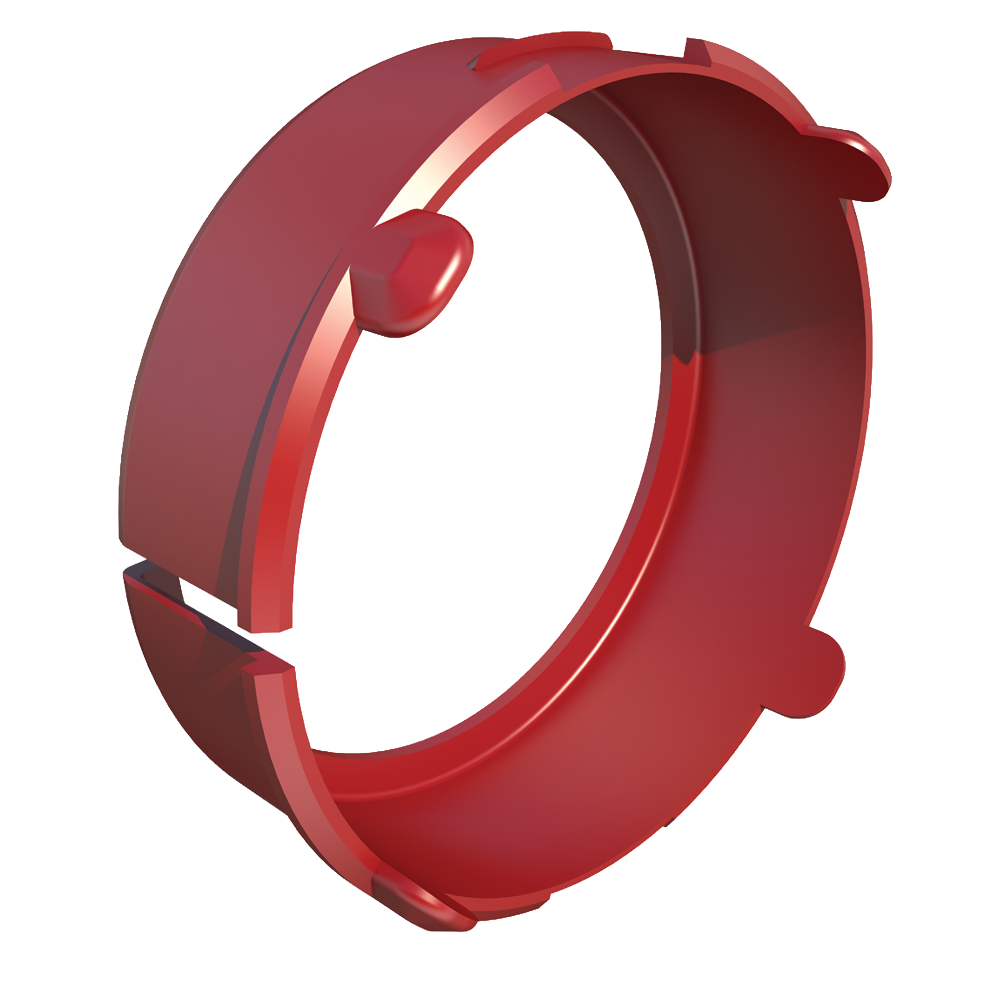

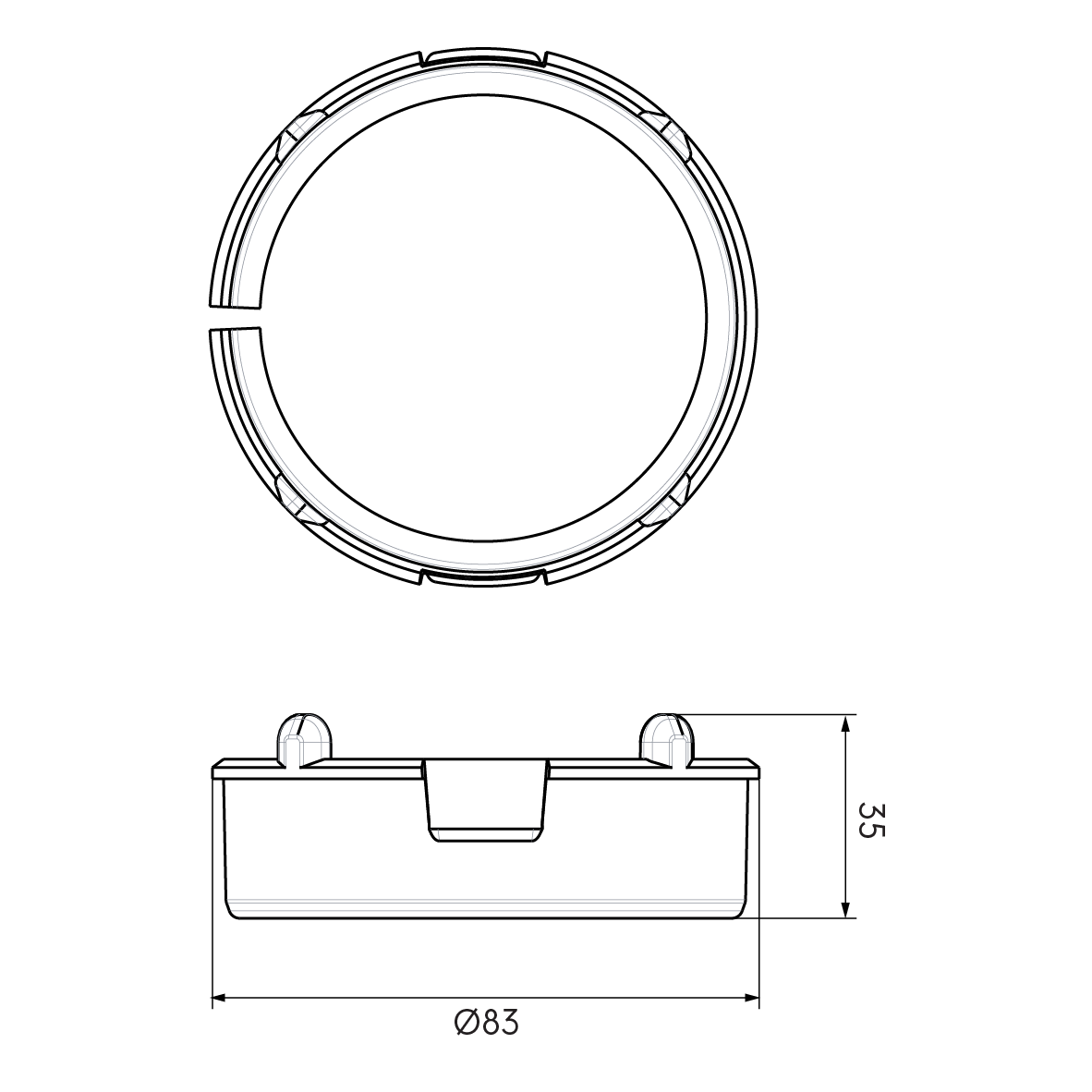

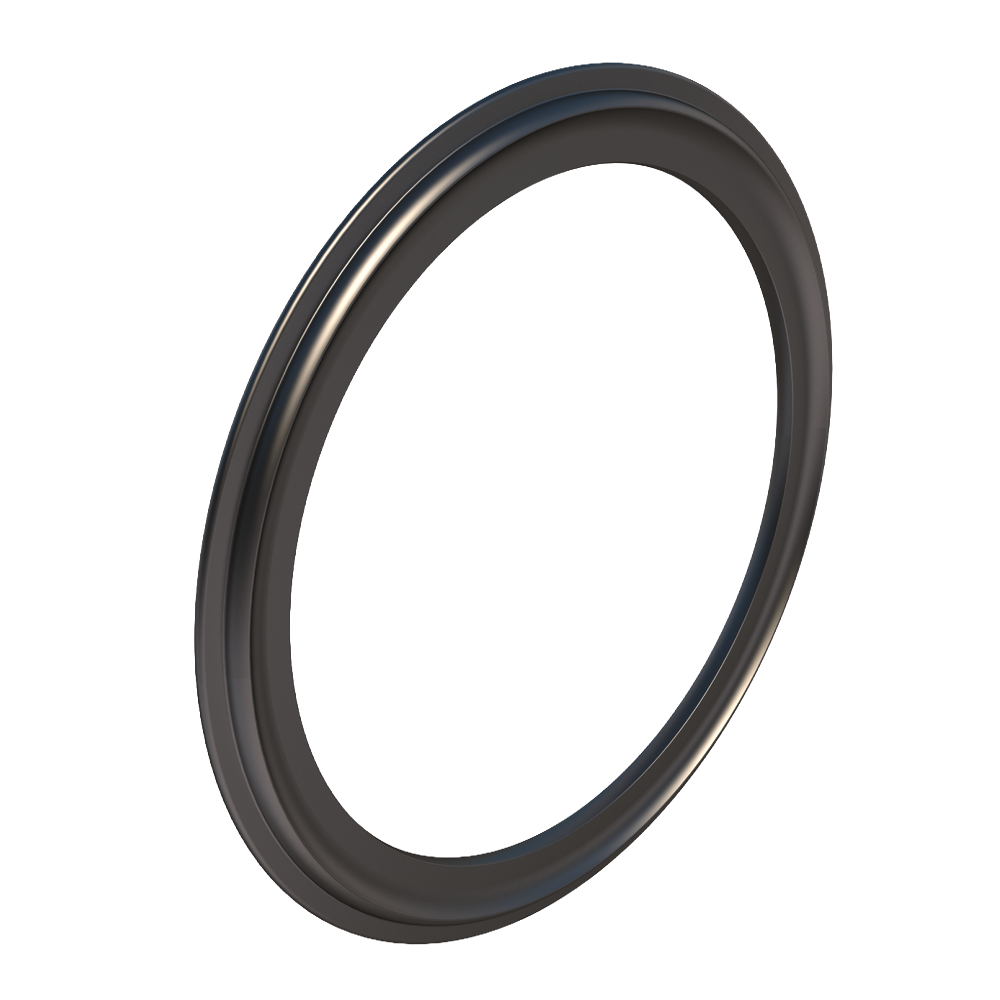

An AE34C duct accessory used to make airtight mechanical connections without tape or sealant. Includes 2 AE34C seal rings and 2 AE34C click rings to connect 1 AE34C duct between a valve adaptor and a distribution box.

Kits simplify ordering and eliminate the risk of missing components. Each kit includes everything required to connect a valve adaptor to a distribution box via one length of semi-rigid ducting, complete with all necessary connectors and seals at both ends.

Modular manifolds, which can be used with all 6 duct types
Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
Low system pressure loss due to radial design
Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

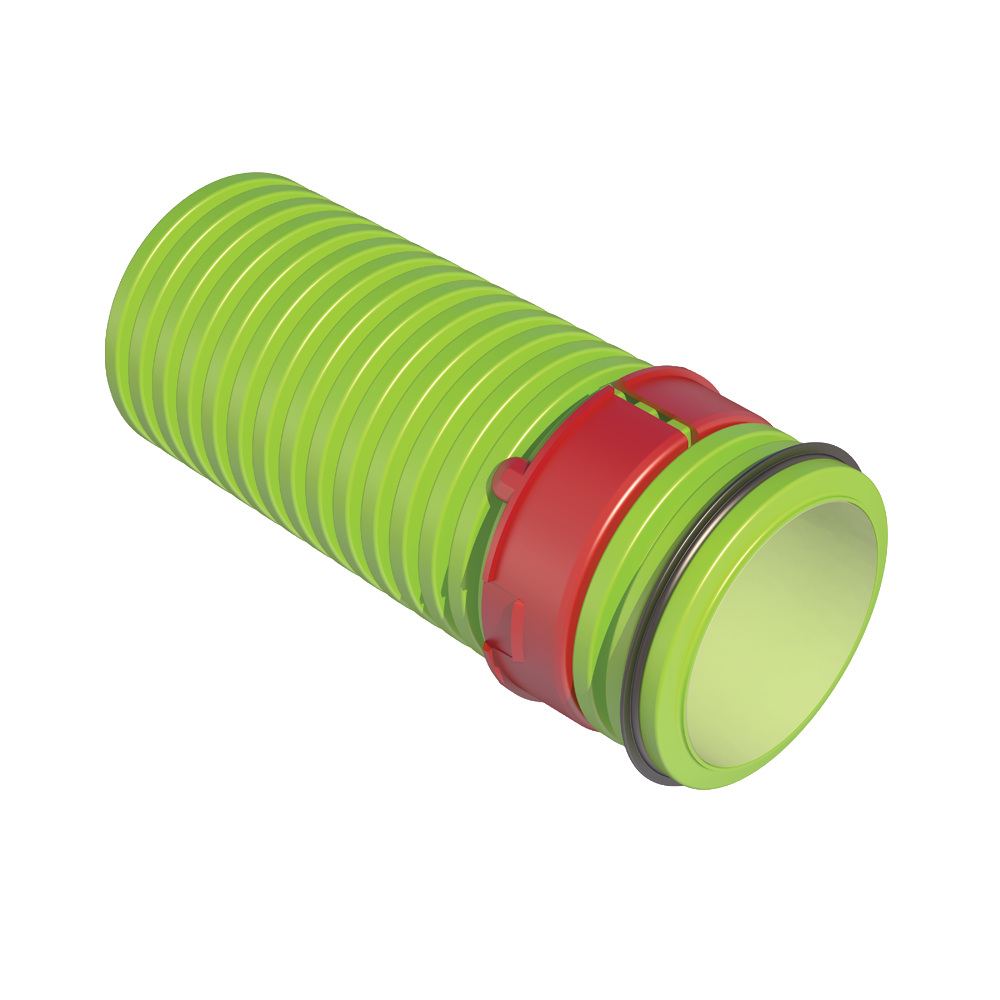

This item should be used to connect a duct to the Air Excellent distribution boxes and its accessories and creates a class ATC1 airtight connection up to +/- 1000 Pa.

Specifications

General

Product Name	Air Excellent AE34C Distribution Box Connection Kit
Type	Seals and Connectors
GTIN	8713645240572
Trade Name	Air Excellent

Technical

Colour	Red and Black
Material	PP and EPDM
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Shape	Circular
Dimension	75 mm

Dimensions

Length Gross	85 mm
Width	85 mm
Height	30 mm
Net Weight	0.04 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Sealed Bag
Gross Weight	0.04 kg
Packaging / Trade Length	85 mm
Packaging / Trade Width	85 mm
Packaging / Trade Height	30 mm
