Air Excellent AE34C Crossing Kit

Name: Air Excellent AE34C Crossing Kit
Brand: Ubbink
SKU: UBBINK-188181
Price: 80.00 AUD
Availability: InStock

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

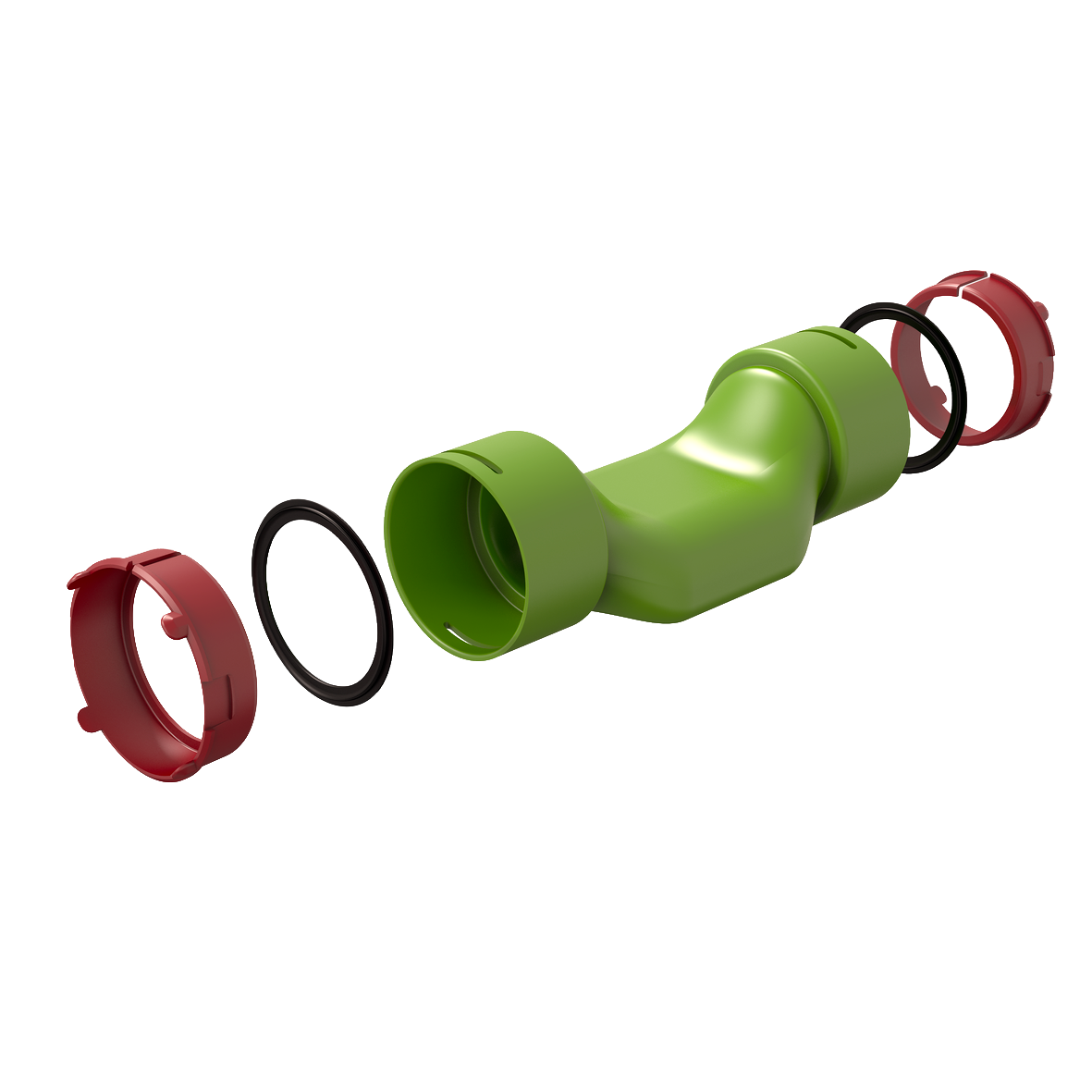

The Air Excellent AE34C crossing kit enables the connection of two AE34C semi-rigid ducts in tight spaces, minimising height to just 50mm to bypass obstacles. The kit includes a connector, two AE34C seal rings, and two AE34C click rings for a secure, airtight connection between the ducts and the connector.

Kits simplify ordering and eliminate the risk of missing components. Each kit includes everything required to join two Air Excellent ducts, complete with all necessary connectors and seals on both sides.

Seamless integration into the Air Excellent system for effortless connection
Modular manifolds, which can be used with all 6 duct types
Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
Low system pressure loss due to radial design
Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

This item can be used to connect 2 AE34C ducts, minimising height to just 50mm to bypass obstacles. Two AE34C crossing kits can be used to allow 2 ducts to cross over one another.

Specifications

General

Product Name	Air Excellent AE34C Crossing Kit
Type	Adaptors
GTIN	8713645245836
Trade Name	Air Excellent

Technical

Colour	Green
Material	PP
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Shape	Circular to Flat to Circular
Dimension	75 mm

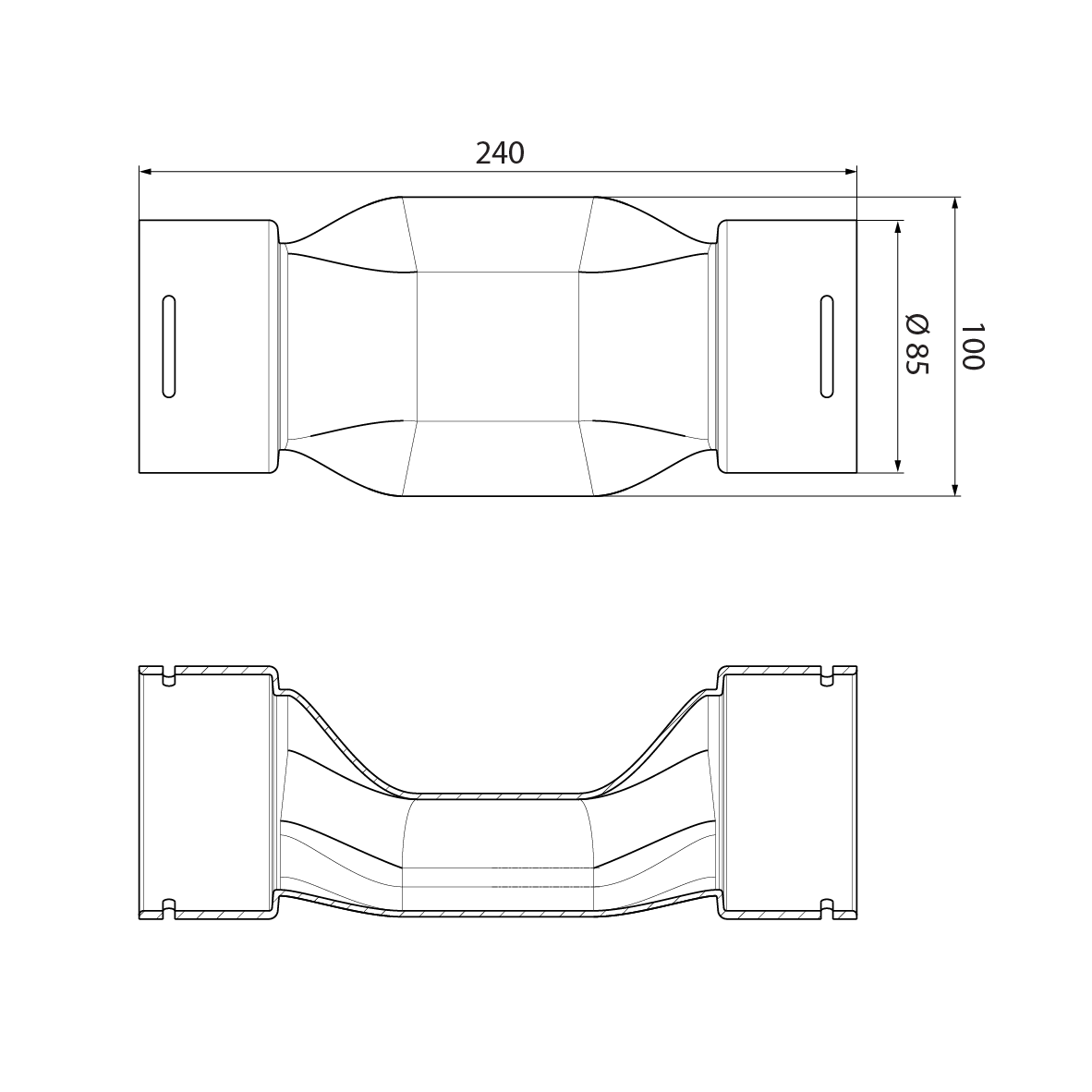

Dimensions

Length Gross	240 mm
Width	100 mm
Height	85 mm
Net Weight	0.272 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Sealed Bag
Gross Weight	0.272 kg
Packaging / Trade Length	240 mm
Packaging / Trade Width	100 mm
Packaging / Trade Height	85 mm
