Air Excellent AE45SC Connection Kit (Distribution Box - Valve Adaptor)

Air Excellent AE45SC Connection Kit (Distribution Box - Valve Adaptor)

Name: Air Excellent AE45SC Connection Kit (Distribution Box - Valve Adaptor)
Brand: Ubbink
SKU: UBBINK-188694
Price: 70.00 AUD
Availability: OutOfStock

Sold out

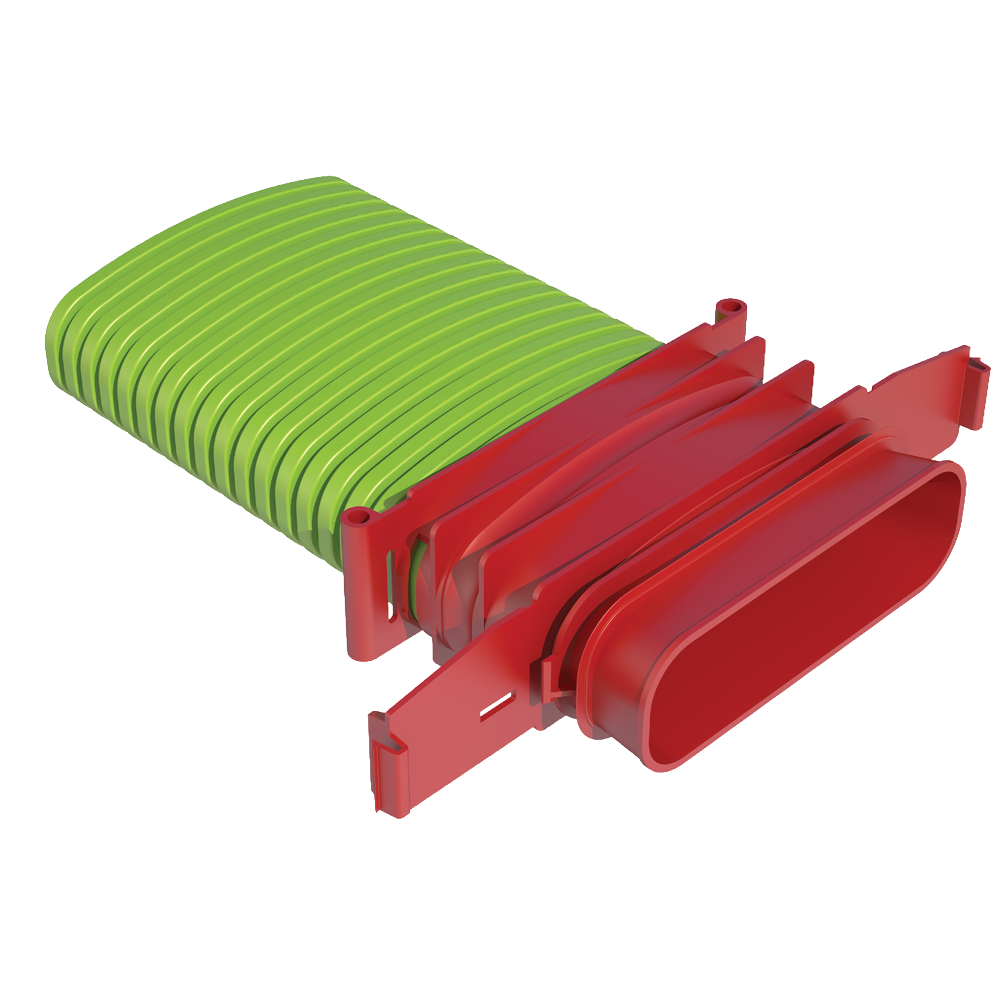

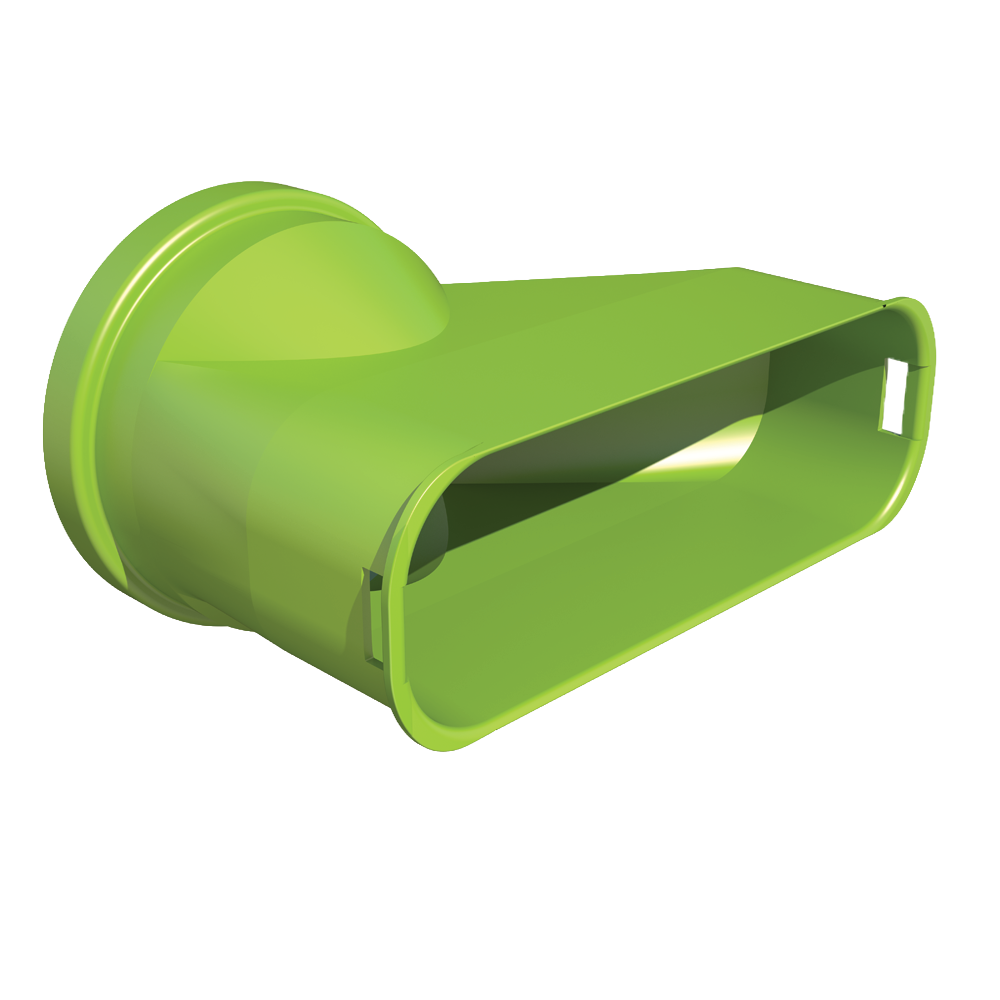

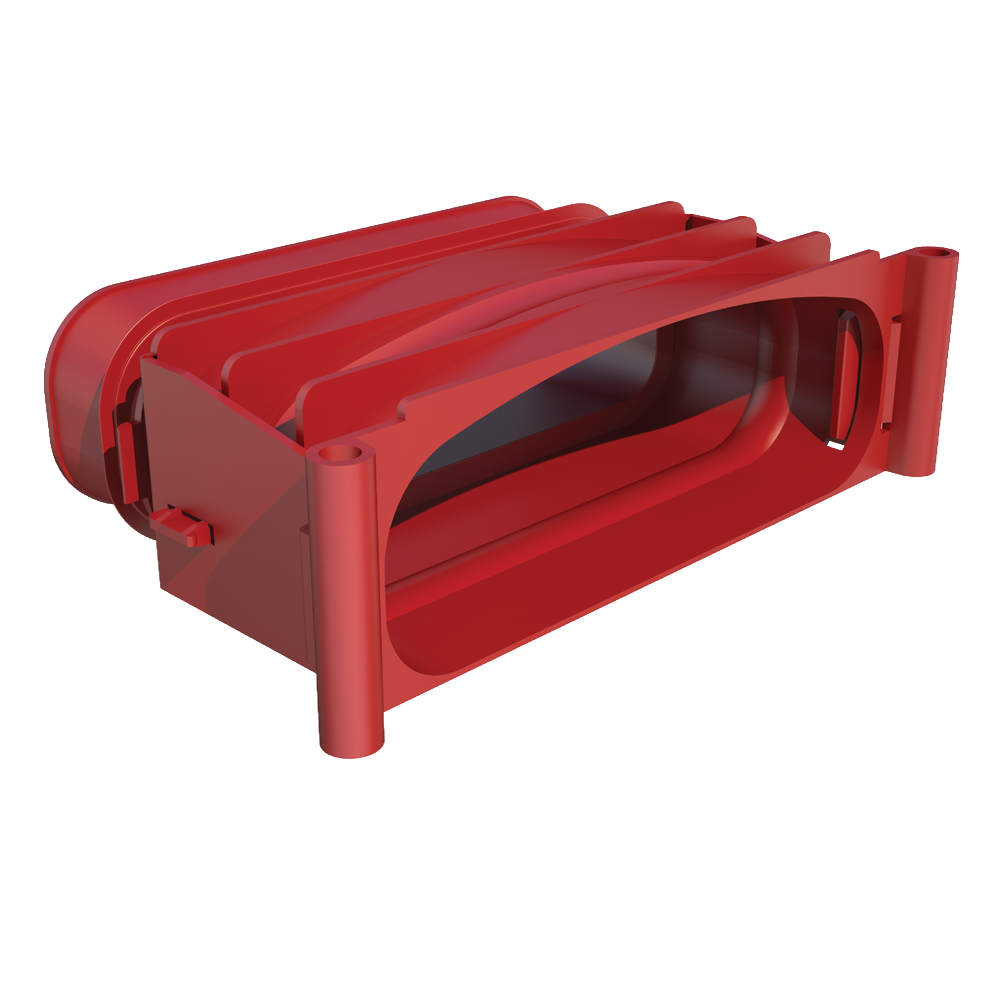

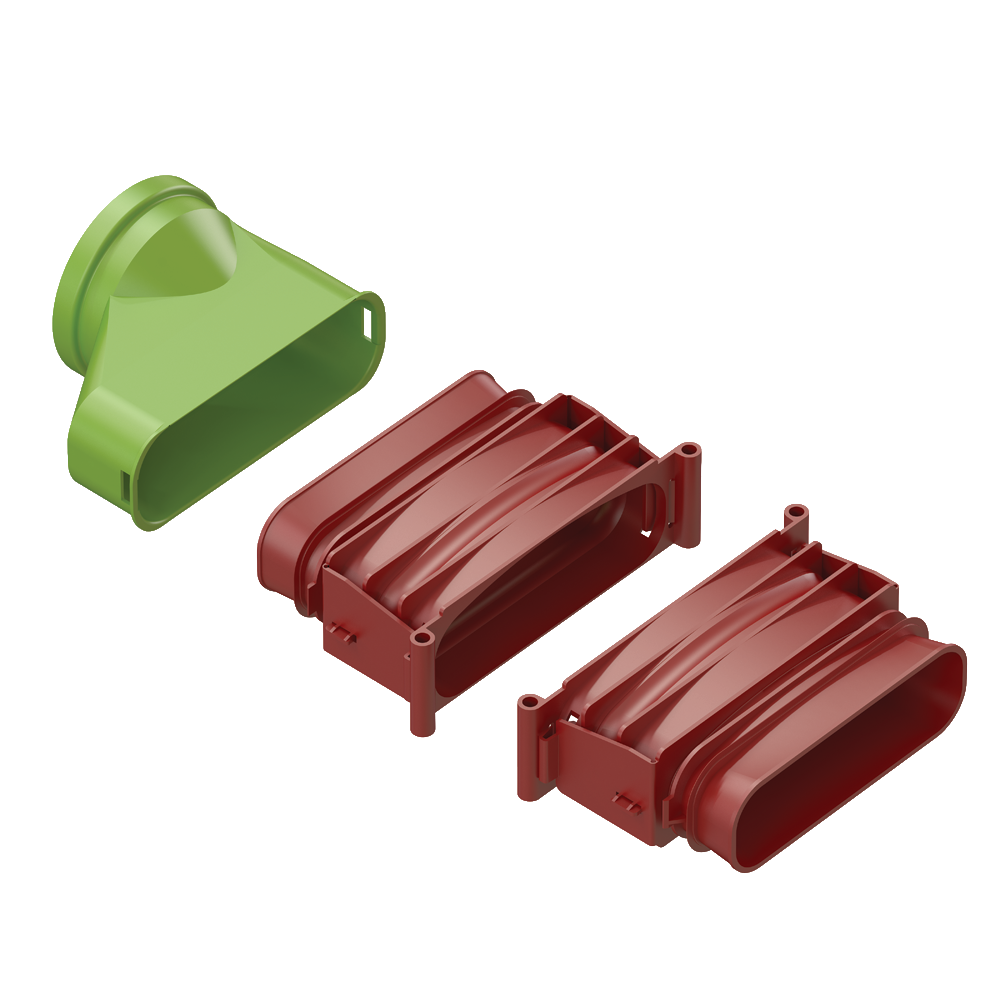

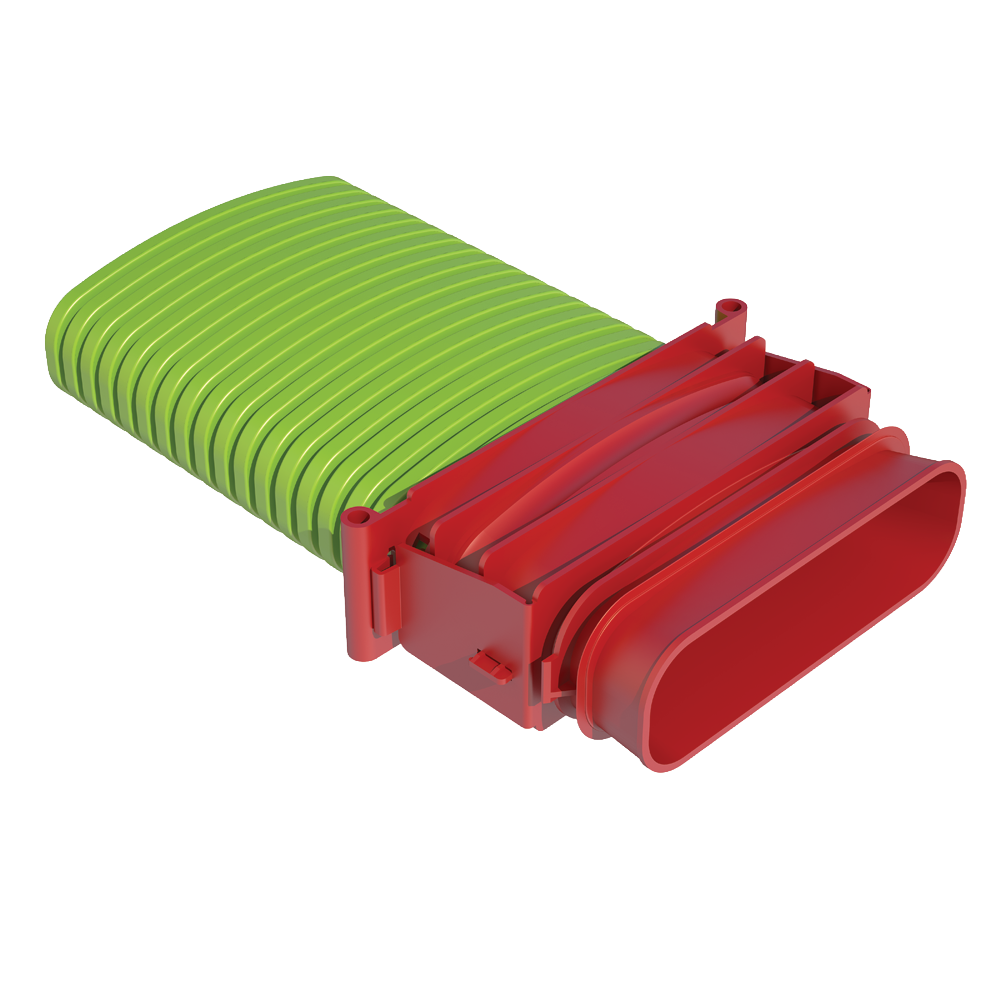

An AE45SC duct accessory used to make airtight mechanical connections without tape or sealant. Includes 1 AE45SC DBOX adaptor and 2 AE45SC seal & click rings to connect 1 AE45SC duct between a valve adaptor and a distribution box.

Kits simplify ordering and eliminate the risk of missing components. Each kit includes everything required to connect a valve adaptor to a distribution box via one length of semi-rigid ducting, complete with all necessary connectors and seals at both ends.

Modular manifolds, which can be used with all 6 duct types
Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
Low system pressure loss due to radial design
Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

This item should be used to connect a duct to the Air Excellent distribution boxes and its accessories and creates a class ATC1 airtight connection up to +/- 1000 Pa.

Specifications

General

Product Name	Air Excellent AE45SC Distribution Box Connection Kit
Type	Seals and Connectors
GTIN	8713645239736
Trade Name	Air Excellent

Technical

Colour	Green and Red
Material	PP and EPDM
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Shape	Semi-Circular

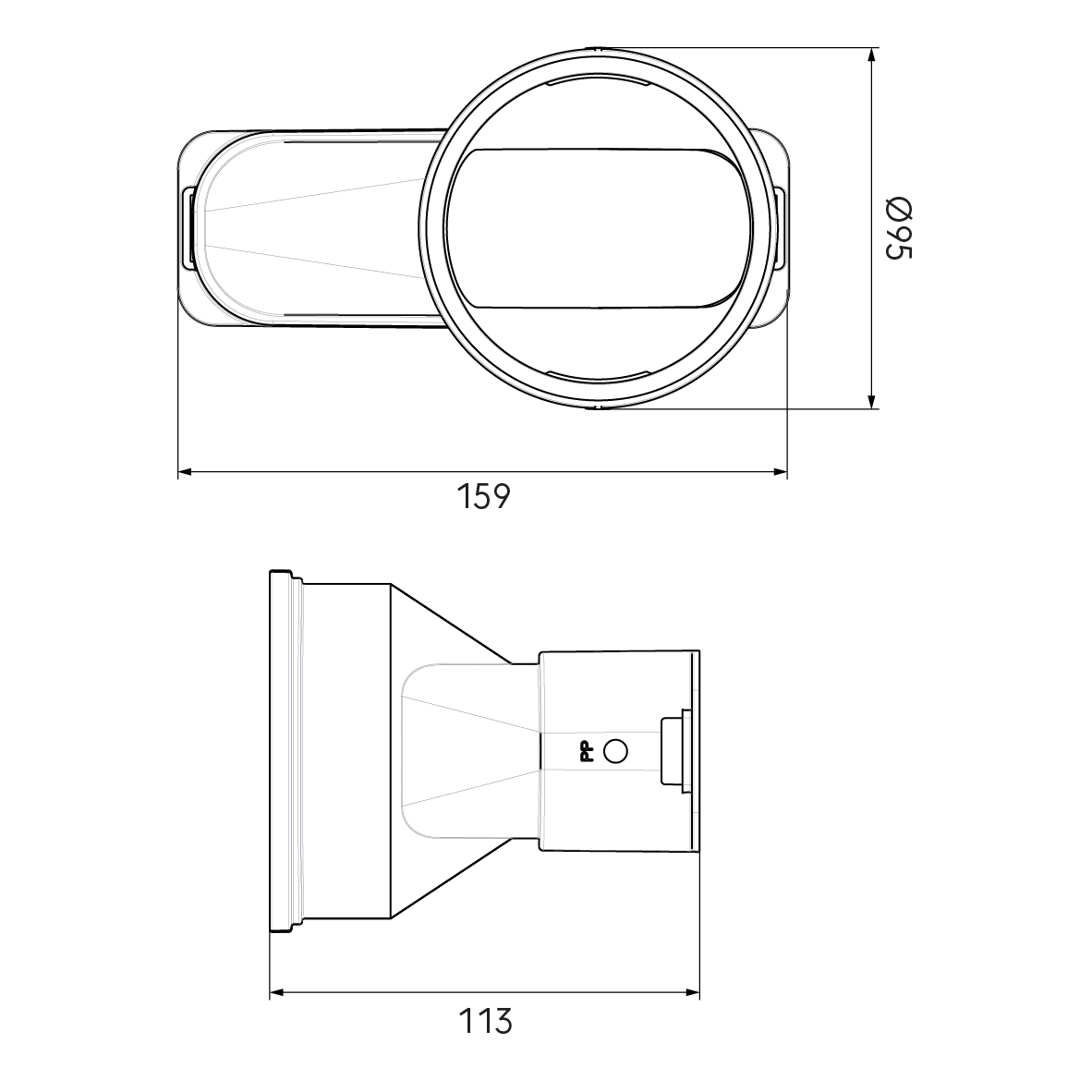

Dimension	50 x 140 mm

Dimensions

Length Gross	113 mm
Width	95 mm
Height	159 mm
Net Weight	0.299 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Sealed Bag
Gross Weight	0.299 kg
Packaging / Trade Length	125 mm
Packaging / Trade Width	195 mm
Packaging / Trade Height	200 mm
