Air Excellent AE45SC Connector Kit
Air Excellent AE45SC Connector Kit

Air Excellent AE45SC Connector Kit

Sold out

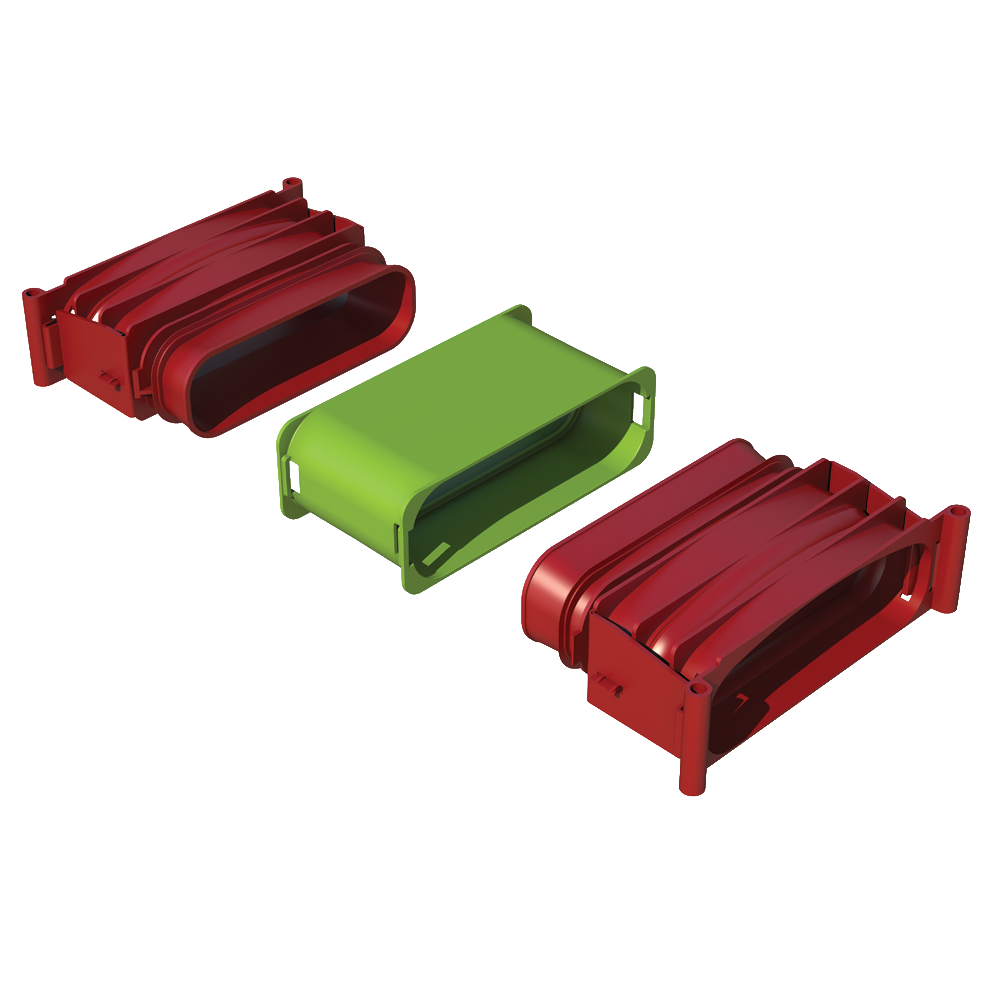

An AE45SC duct accessory used to connect AE45SC ducts. Includes 2 AE45SC seal & click rings to connect the ducts to it.

Kits simplify ordering and eliminate the risk of missing components. Each kit includes everything required to join two Air Excellent ducts, complete with all necessary connectors and seals on both sides.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

This item can be used to connect 2 AE45SC ducts.


Specifications

General
Product Name Air Excellent AE45SC Connector Kit
Type Connectors
GTIN 8713645217949
Trade Name Air Excellent
Technical
Colour Green
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Semi-Circular
Dimension 50 x 140 mm

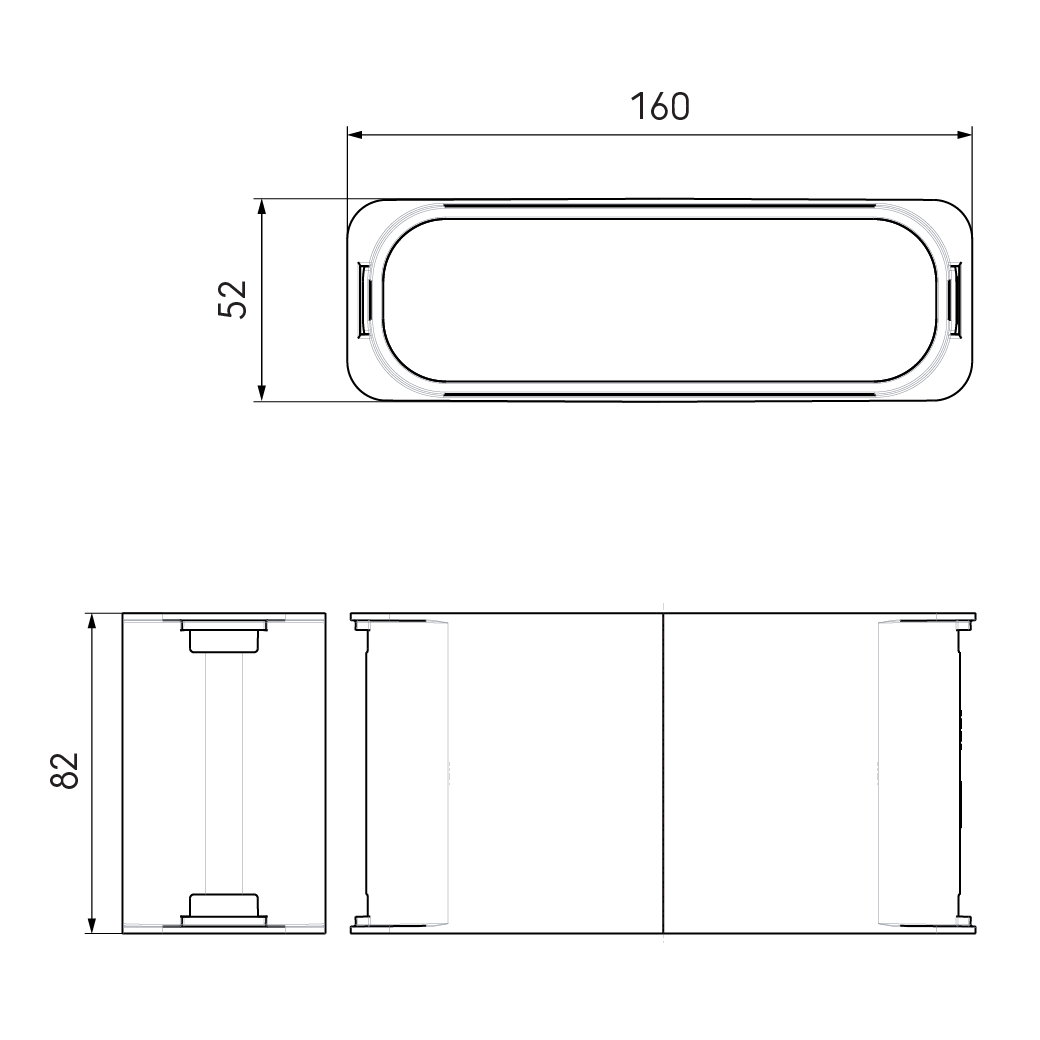

Dimensions
Length Gross 82 mm
Width 160 mm
Height 52 mm
Net Weight 0.245 kg
Logistical
Intrastat 39259080
Base Unit Packaging Sealed Bag
Gross Weight 0.245 kg
Packaging / Trade Length 200 mm
Packaging / Trade Width 150 mm
Packaging / Trade Height 55 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
