Air Excellent AE45SC Horizontal Bend 90° Kit
Air Excellent AE45SC Horizontal Bend 90° Kit

Air Excellent AE45SC Horizontal Bend 90° Kit

Sold out

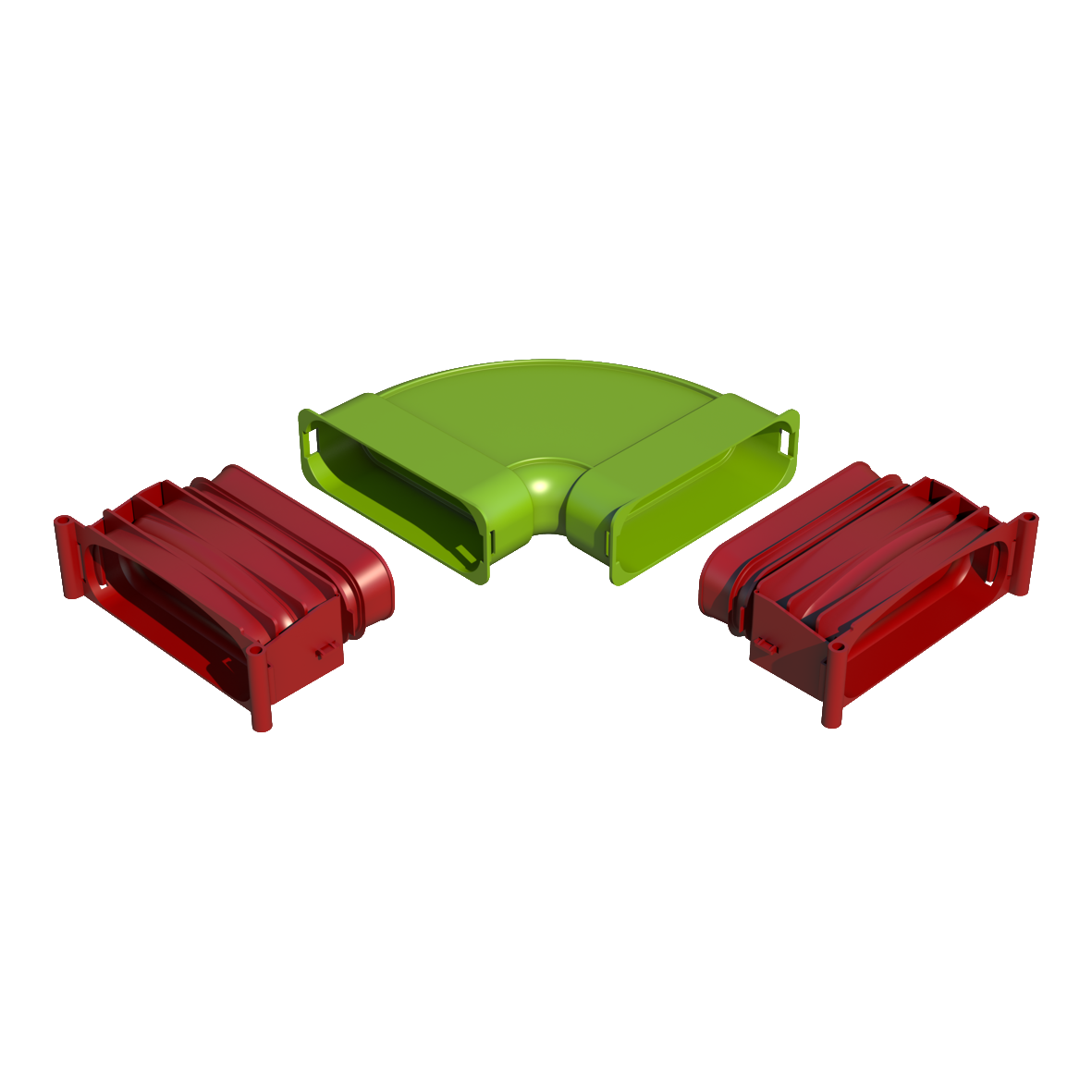

An AE45SC duct accessory. Includes 2 AE45SC seal & click rings to connect the ducts to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

This item should be used when there is not enough space to bend the duct according to its minimum bending radius.


Specifications

General
Product Name Air Excellent AE45SC Horizontal Bend 90° Kit
Type Bends
GTIN 8713645217956
Trade Name Air Excellent
Technical
Colour Green
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Semi-Circular

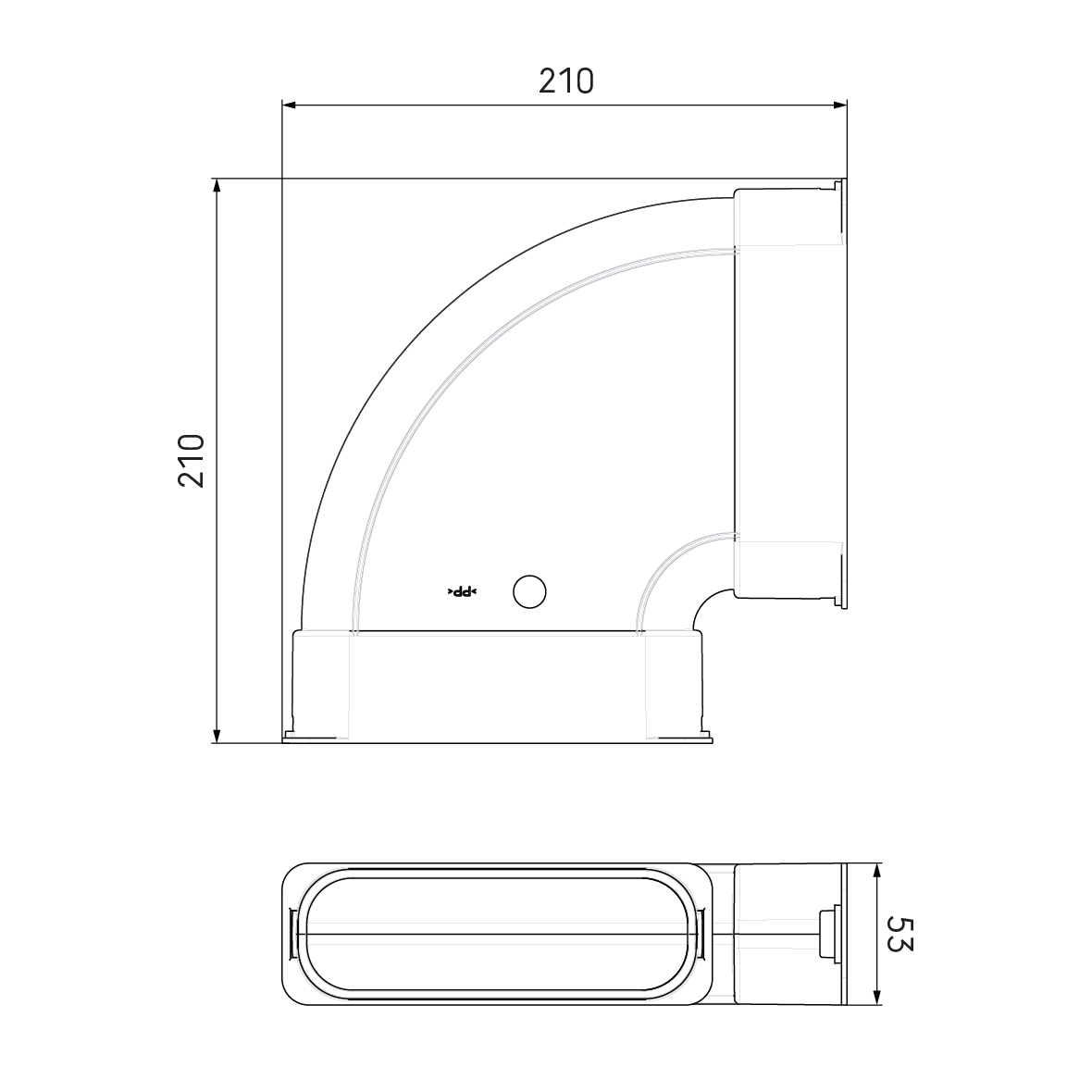

Dimension 50 x 140 mm
Dimensions
Length Gross 210 mm
Width 210 mm
Height 53 mm
Net Weight 0.355 kg
Logistical
Intrastat 39259080
Base Unit Packaging Sealed Bag
Gross Weight 0.355 kg
Packaging / Trade Length 260 mm
Packaging / Trade Width 260 mm
Packaging / Trade Height 55 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
