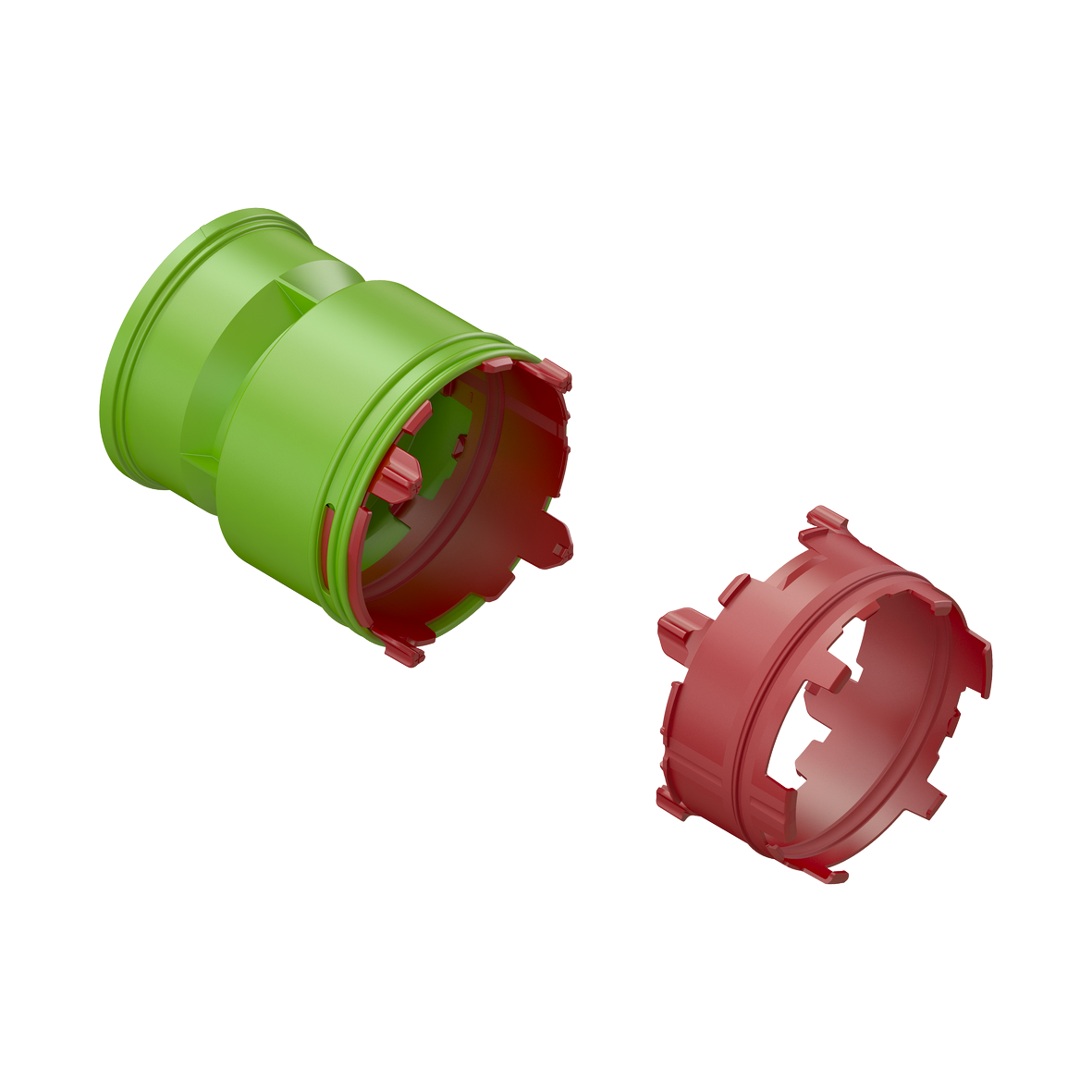

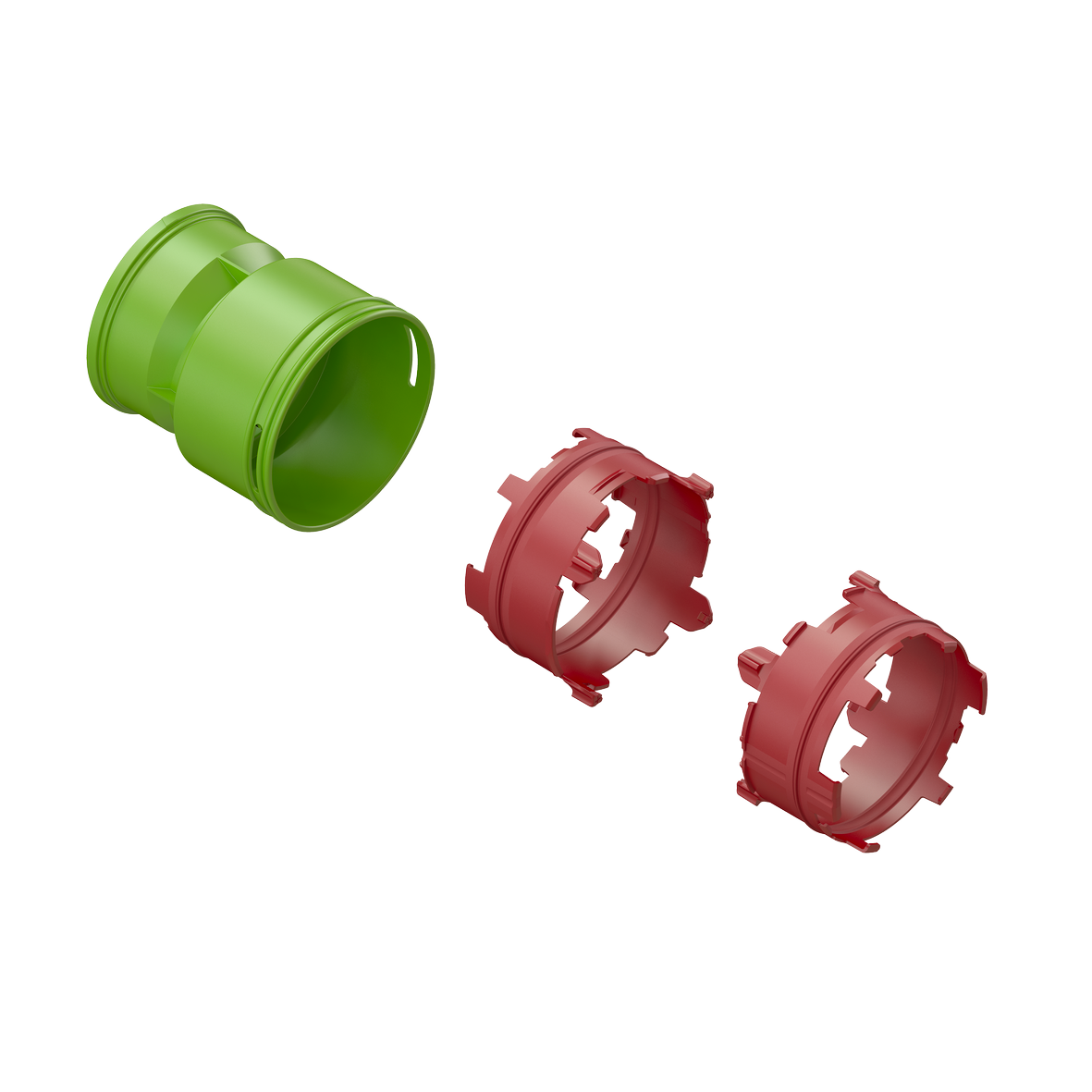

An AE48C duct accessory used to make airtight mechanical connections without tape or sealant. Includes 1 AE48C DBOX adaptor and 2 AE48C Click-Seal rings to connect 1 AE48C duct between a valve adaptor and a distribution box.

Kits simplify ordering and eliminate the risk of missing components. Each kit includes everything required to connect a valve adaptor to a distribution box via one length of semi-rigid ducting, complete with all necessary connectors and seals at both ends.

  • Airtight connections for reliable system performance
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Quick, tool-free installation
  • Lightweight design for easy handling
  • Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

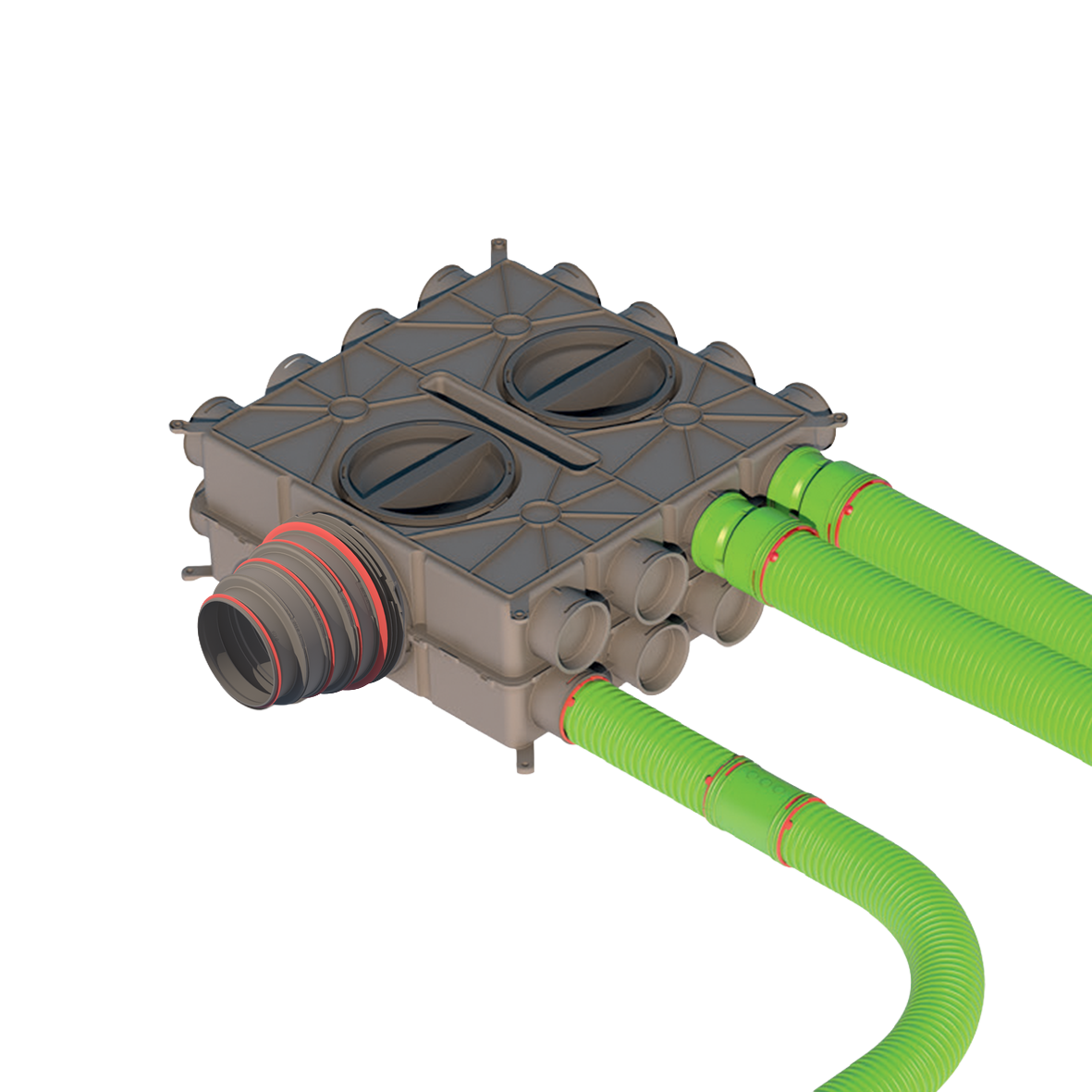

This item should be used to connect a duct to the Air Excellent distribution boxes and its accessories and creates a class ATC1 airtight connection up to +/- 1000 Pa.


Specifications

General
Product Name Air Excellent AE48C Distribution Box Connection Kit
Type Seals and Connectors
GTIN 8713645247779
Trade Name Air Excellent
Technical
Colour Green and Red
Material PP and EPDM
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Circular
Dimension 90 mm

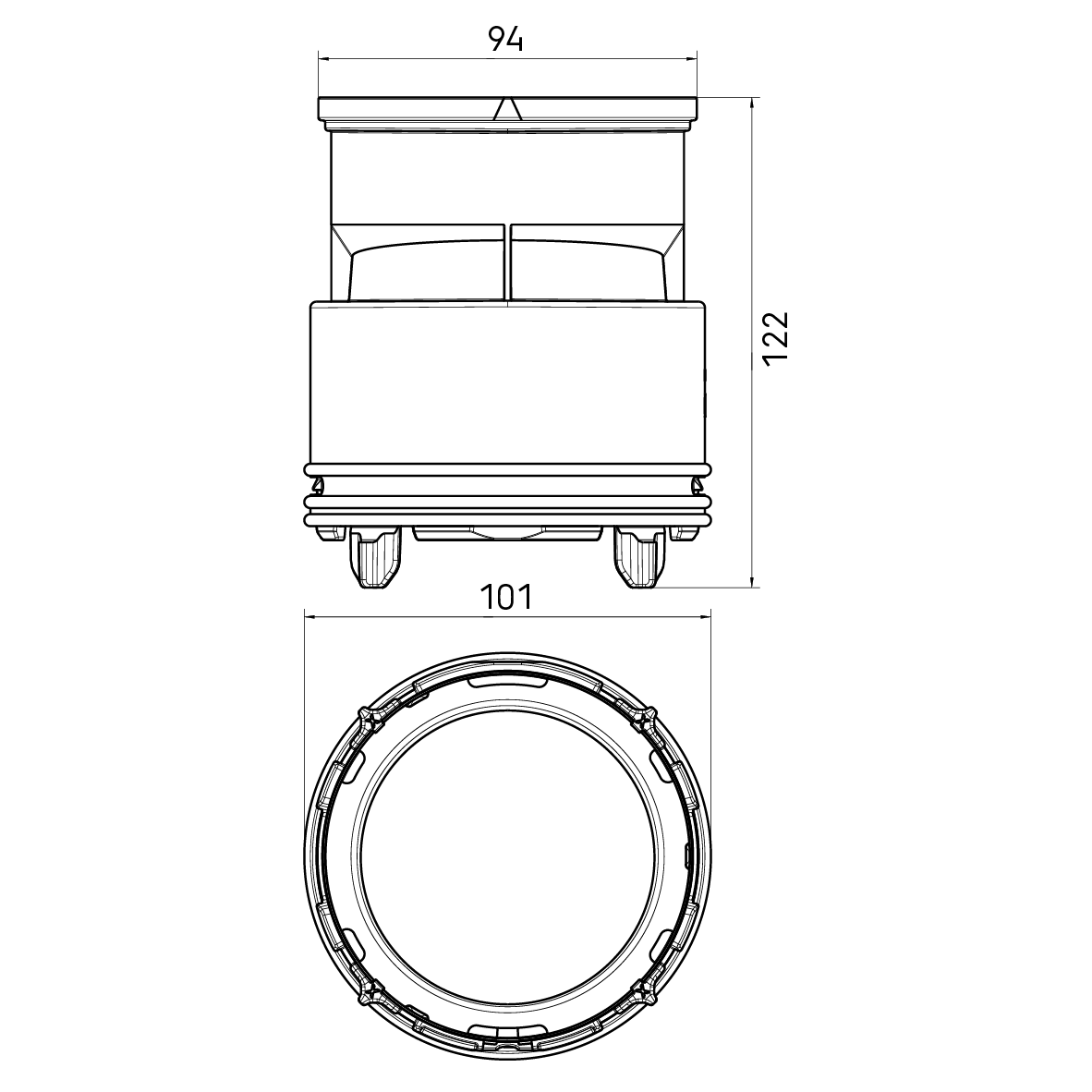

Dimensions
Length Gross 122 mm
Width 101 mm
Height 101 mm
Net Weight 0.096 kg
Logistical
Intrastat 39259080
Base Unit Packaging Sealed Bag
Gross Weight 0.096 kg
Packaging / Trade Length 122 mm
Packaging / Trade Width 101 mm
Packaging / Trade Height 101 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
