Air Excellent AE48C Connector Kit
Air Excellent AE48C Connector Kit
Air Excellent AE48C Connector Kit
Air Excellent AE48C Connector Kit

Air Excellent AE48C Connector Kit

Available

Thanks for contacting us. We'll get back to you as soon as possible.

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

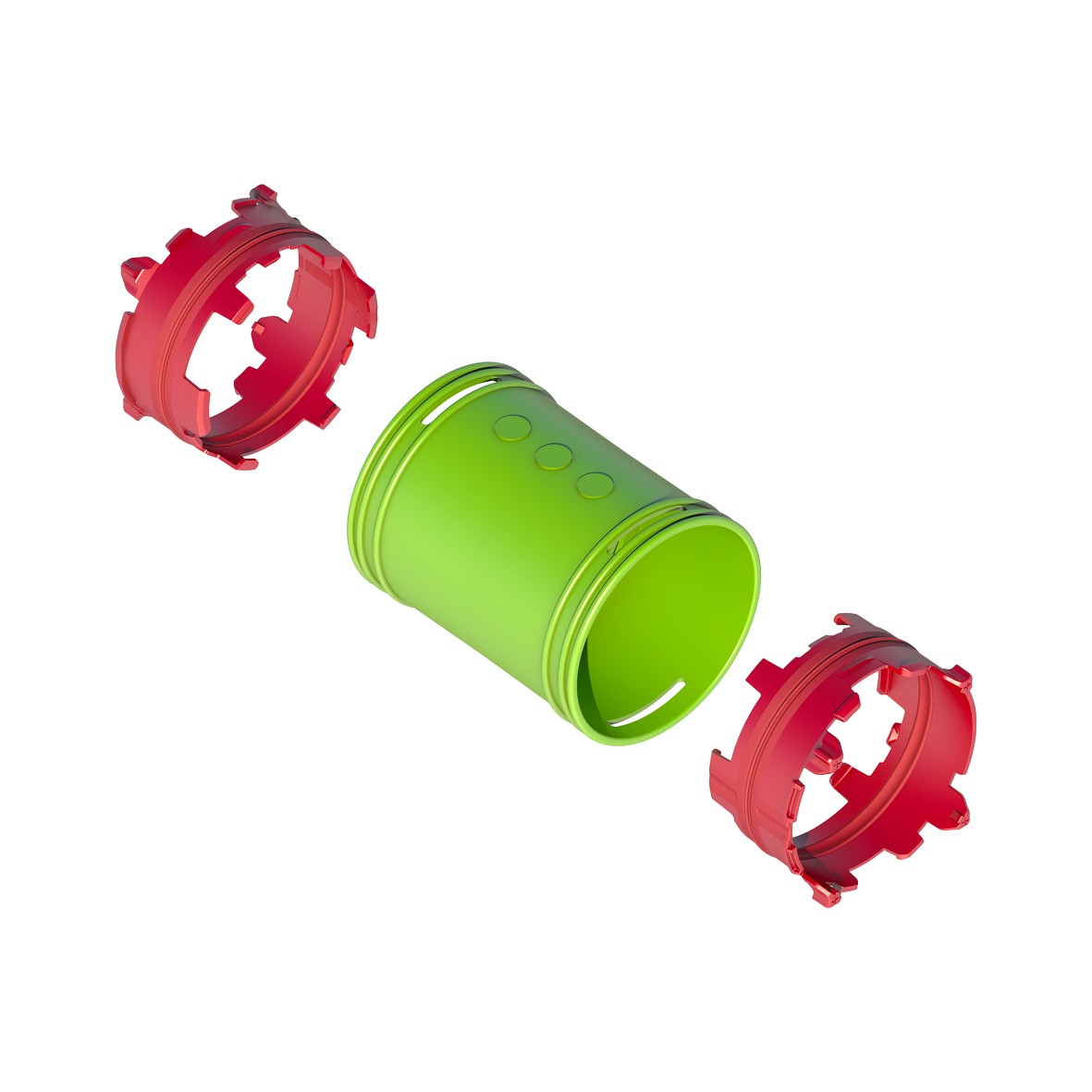

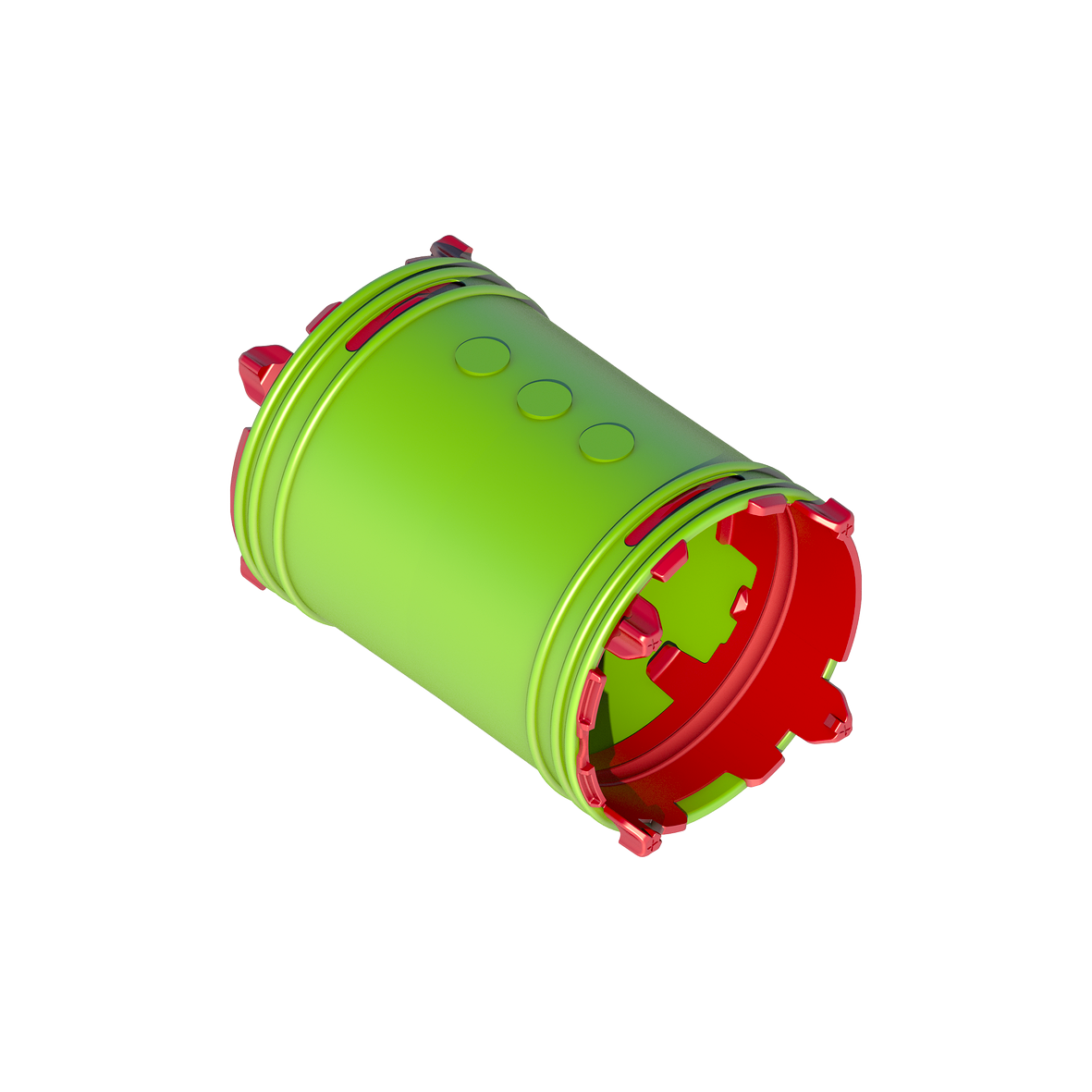

An AE48C duct accessory used to seamlessly connect two AE48C ducts, ensuring a quick, secure and tool-free installation. Includes 2 AE48C Click-Seal rings to connect the ducts to it.

Kits simplify ordering and eliminate the risk of missing components. Each kit includes everything required to join two Air Excellent ducts, complete with all necessary connectors and seals on both sides.

  • Airtight connections for reliable system performance
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Quick, tool-free installation
  • Lightweight design for easy handling
  • Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

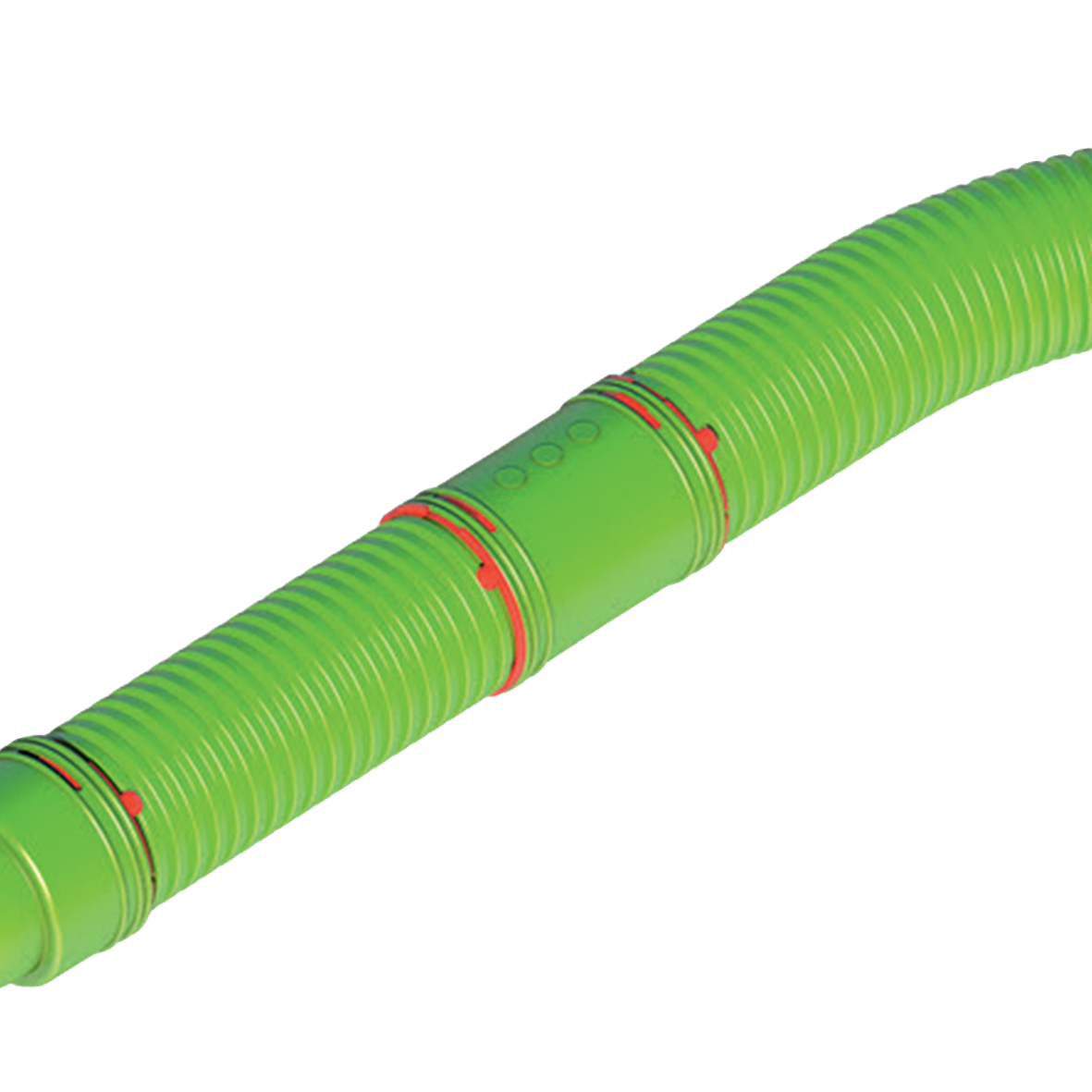

This item can be used to connect 2 AE48C ducts.


Specifications

General
Product Name Air Excellent AE48C Connector Kit
Type Connectors
GTIN 8713645247793
Trade Name Air Excellent
Technical
Colour Green
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Circular

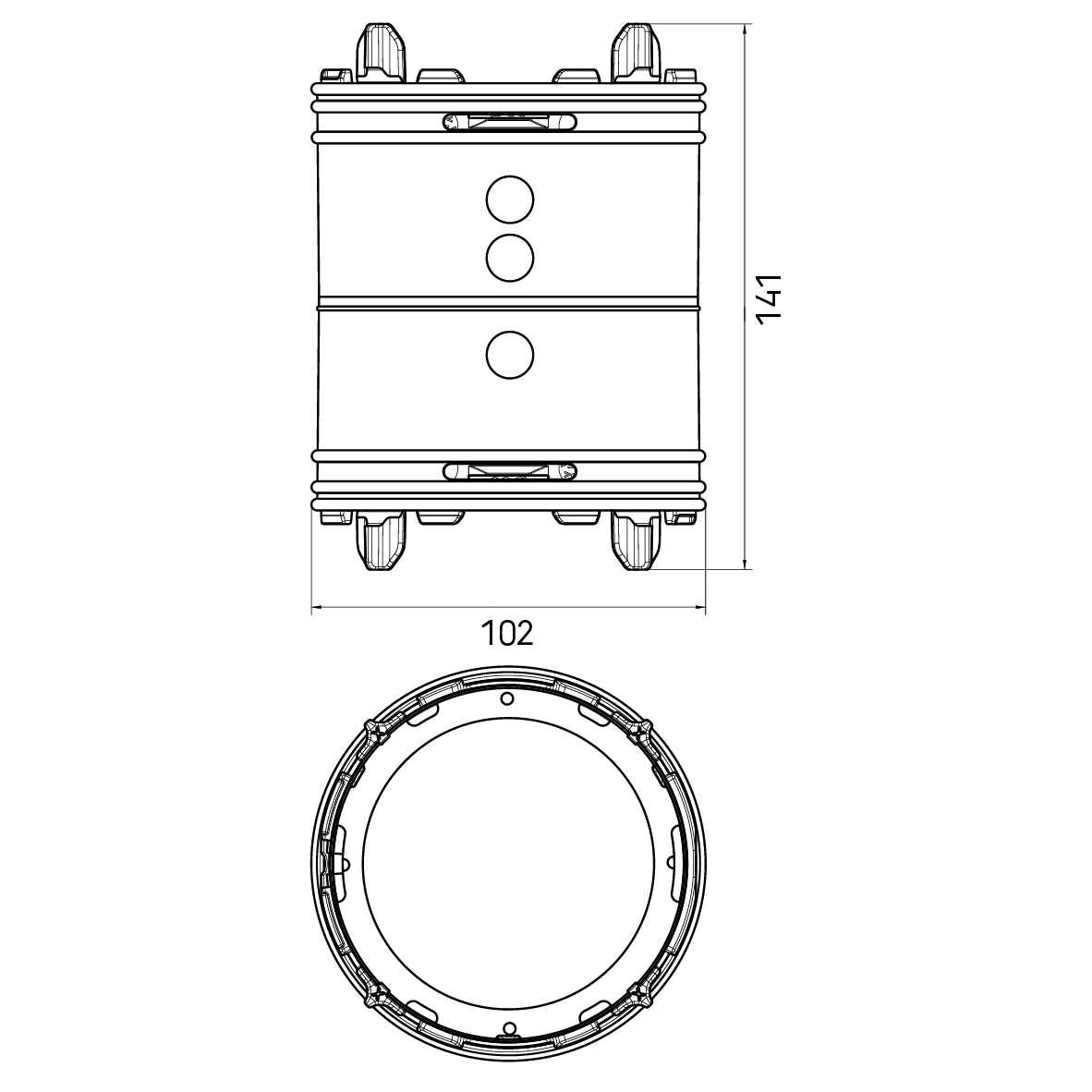

Dimension 90 mm
Dimensions
Length Gross 141 mm
Width 103 mm
Height 103 mm
Net Weight 0.098 kg
Logistical
Intrastat 39259080
Base Unit Packaging Sealed Bag
Gross Weight 0.098 kg
Packaging / Trade Length 141 mm
Packaging / Trade Width 103 mm
Packaging / Trade Height 103 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
