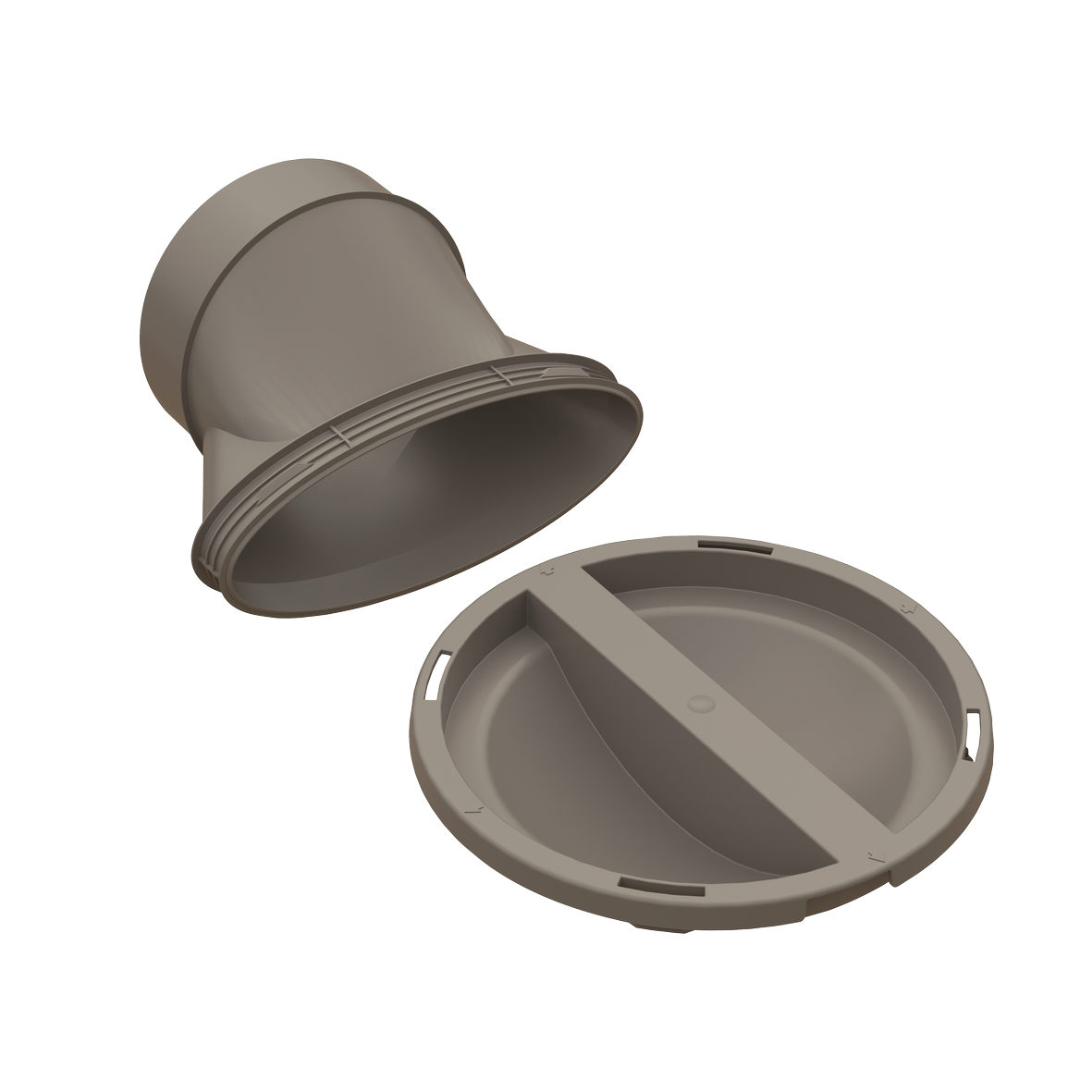

An Air Excellent distribution box accessory used to convert the DBOX 206V to an Air Excellent DBOX 206 Inline DN125.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class ATC1 up +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

This item can be used to convert the Air Excellent DBOX 206V to an Air Excellent DBOX 206 Inline DN125.


Specifications

General
Product Name Air Excellent DBOX 206 Inline Adaptor Kit DN125
Type Adaptors
GTIN 8713645217123
Trade Name Air Excellent
Technical
Colour Grey
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Dimension 125 mm

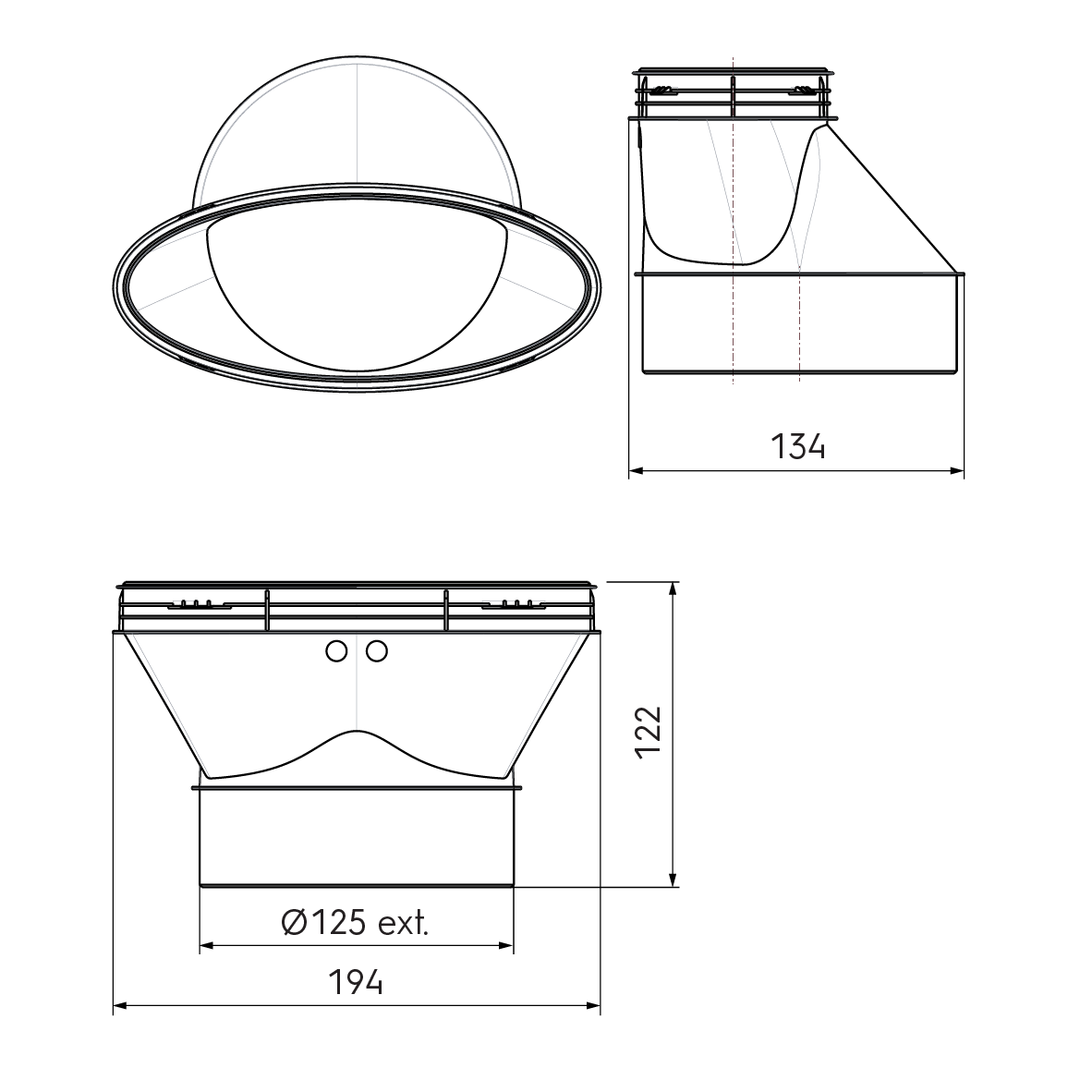

Dimensions
Length Gross 122 mm
Width 194 mm
Height 134 mm
Net Weight 0.19 kg
Logistical
Intrastat 39259080
Base Unit Packaging Box
Gross Weight 0.43 kg
Packaging / Trade Length 262 mm
Packaging / Trade Width 201 mm
Packaging / Trade Height 181 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
