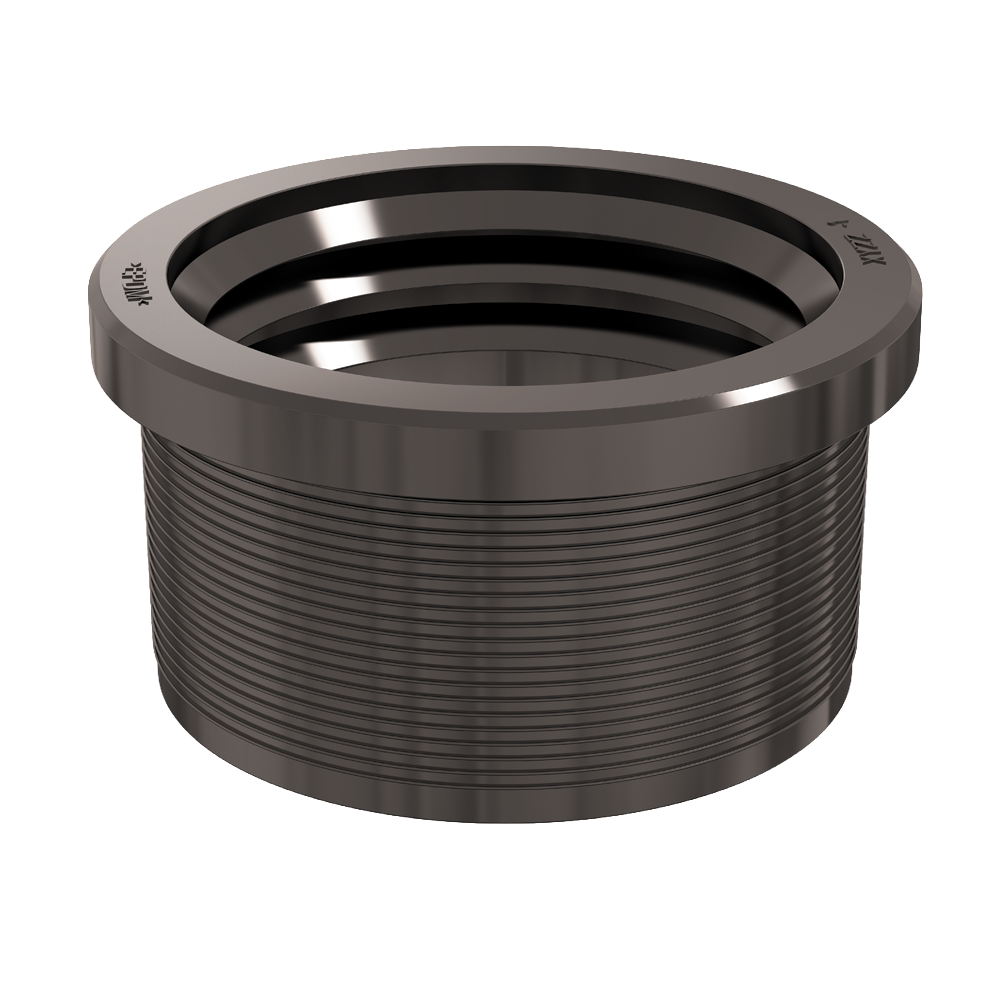

Air Excellent Distribution Box AE48C Connection Sleeve
Air Excellent Distribution Box AE48C Connection Sleeve

Air Excellent Distribution Box AE48C Connection Sleeve

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

An adaptor used to connect the AE48C 90° bend directly to the distribution box.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class ATC1 up +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
  • TÜV SÜD and ISEGA tested and certified, REACH compliant


Detailed information

This item is used to connect the AE48C 90° bend directly to the Air Excellent distribution boxes.


Specifications

General
Product Name Air Excellent DBOX AE48C Connection Sleeve
Type Connectors
GTIN 8713645229997
Trade Name Air Excellent
Technical
Colour Black
Material EPDM
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Dimension 90 mm

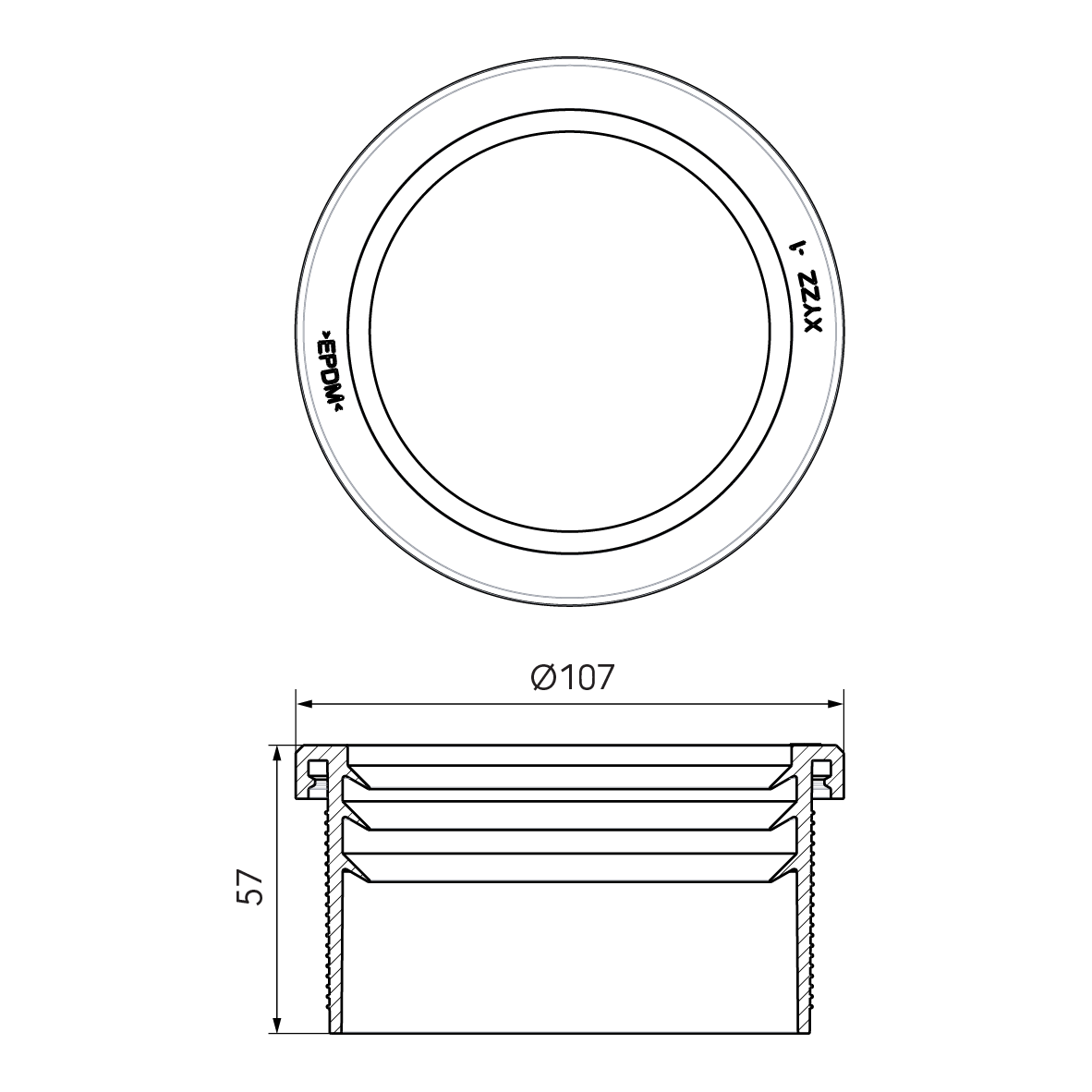

Dimensions
Length Gross 107 mm
Width 107 mm
Height 57 mm
Net Weight 0.096 kg
Logistical
Intrastat 39259080
Base Unit Packaging Unpacked
Gross Weight 0.096 kg
Packaging / Trade Length 107 mm
Packaging / Trade Width 107 mm
Packaging / Trade Height 57 mm
Performance
CE String -
