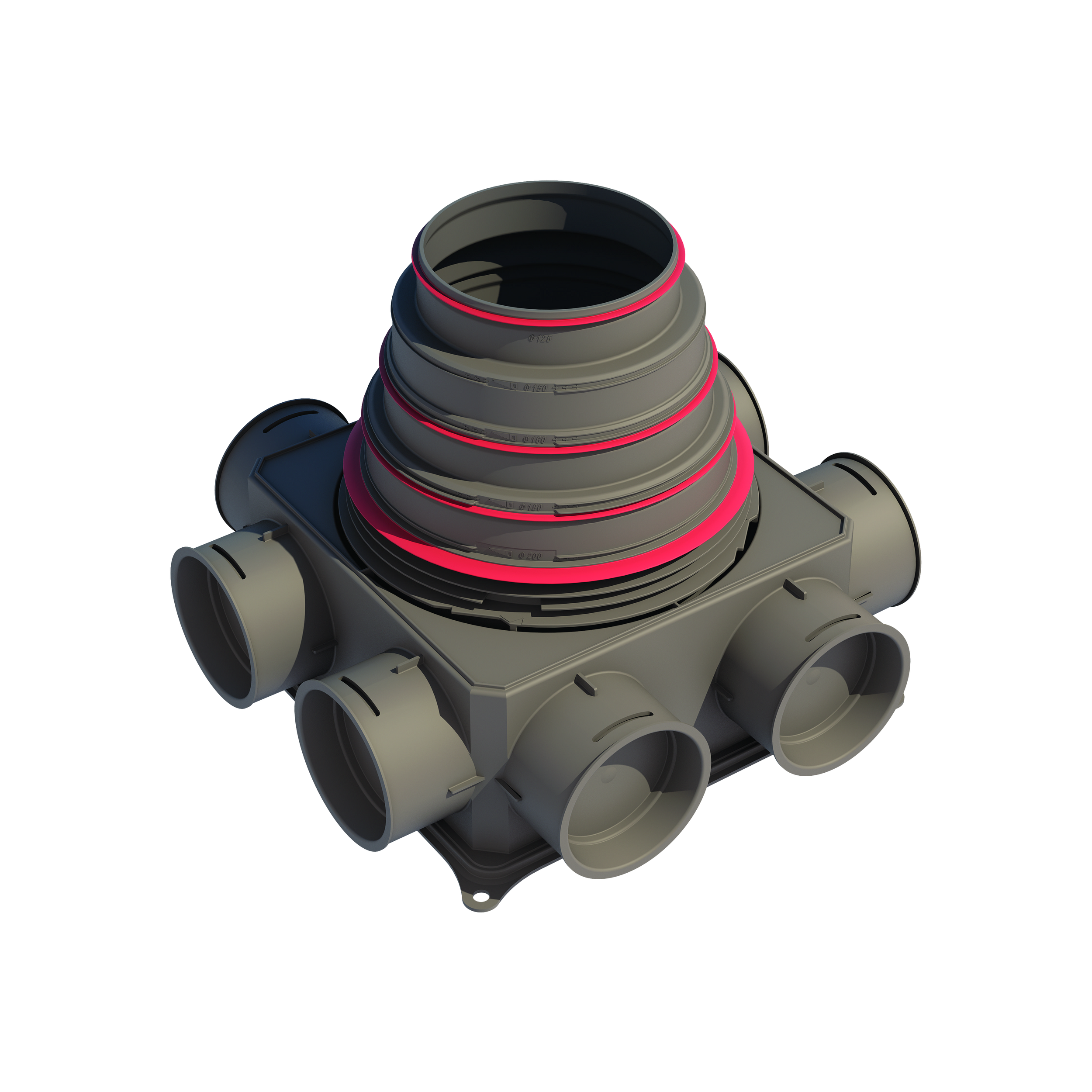

Air Excellent Distribution Box DB208V125-200 8 Connections

Sold out

The Air Excellent DB208 is designed to radially distribute air from a ventilation unit, minimising system pressure drop, fan energy use, and sound levels. It is compatible with Aerfoam insulated ducts and features 8 Air Excellent AE34C duct connections. With DBOX adaptors, it can connect to any duct diameter within the Air Excellent range. The compact box is ideal for small spaces, it can be installed on ceilings, walls, or floors.

  • Includes stepped adaptor, 8 internal air restrictor rings, and 4 covers for unused connections
  • Ideal for optimising space in small areas
  • Made of durable, rust-free, lightweight plastic (PP) for easy handling and installation
  • Mechanical connections to minimise pressure loss, fan energy consumption, and sound levels


Detailed information

The Air Excellent distribution box DB208 is a versatile and efficient solution, complete with a stepped adaptor, internal air restrictor rings, and covers for unused connections. The stepped adaptor accommodates all sizes of Aerfoam insulated ducts, offering flexible configuration options. The internal air restrictor rings allow precise control of the airflow rate to each room, ensuring optimal comfort throughout your space. Configuration is straightforward using the Air Excellent calculation tool available on our website.


Specifications

General
Product Name Air Excellent Distribution Box DB208V125-200 8 Connections
Type Distribution Boxes
GTIN 8713645246802
Accessories in Package 8 Internal Air Restrictor Rings
4 Covers for Unused Connections
Trade Name Air Excellent
Technical
Colour Grey
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Dimensions
Length Gross 318 mm
Width 318 mm
Height 257 mm
Net Weight 1.487 kg
Logistical
Intrastat 39259080
Base Unit Packaging Box
Gross Weight 1.87 kg
Packaging / Trade Length 330 mm
Packaging / Trade Width 330 mm
Packaging / Trade Height 220 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
