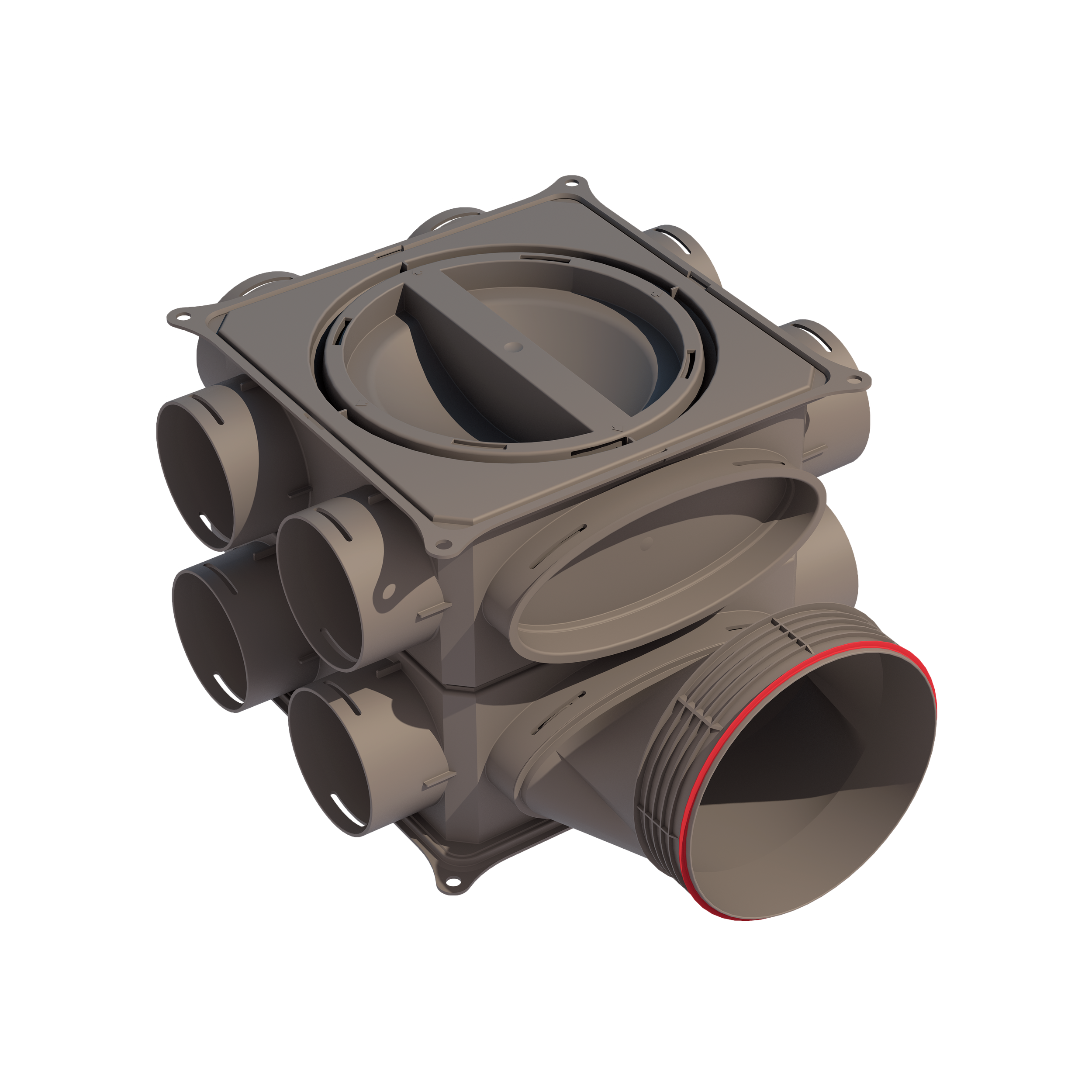

Air Excellent Distribution Box DB212H160VE 12 Connections

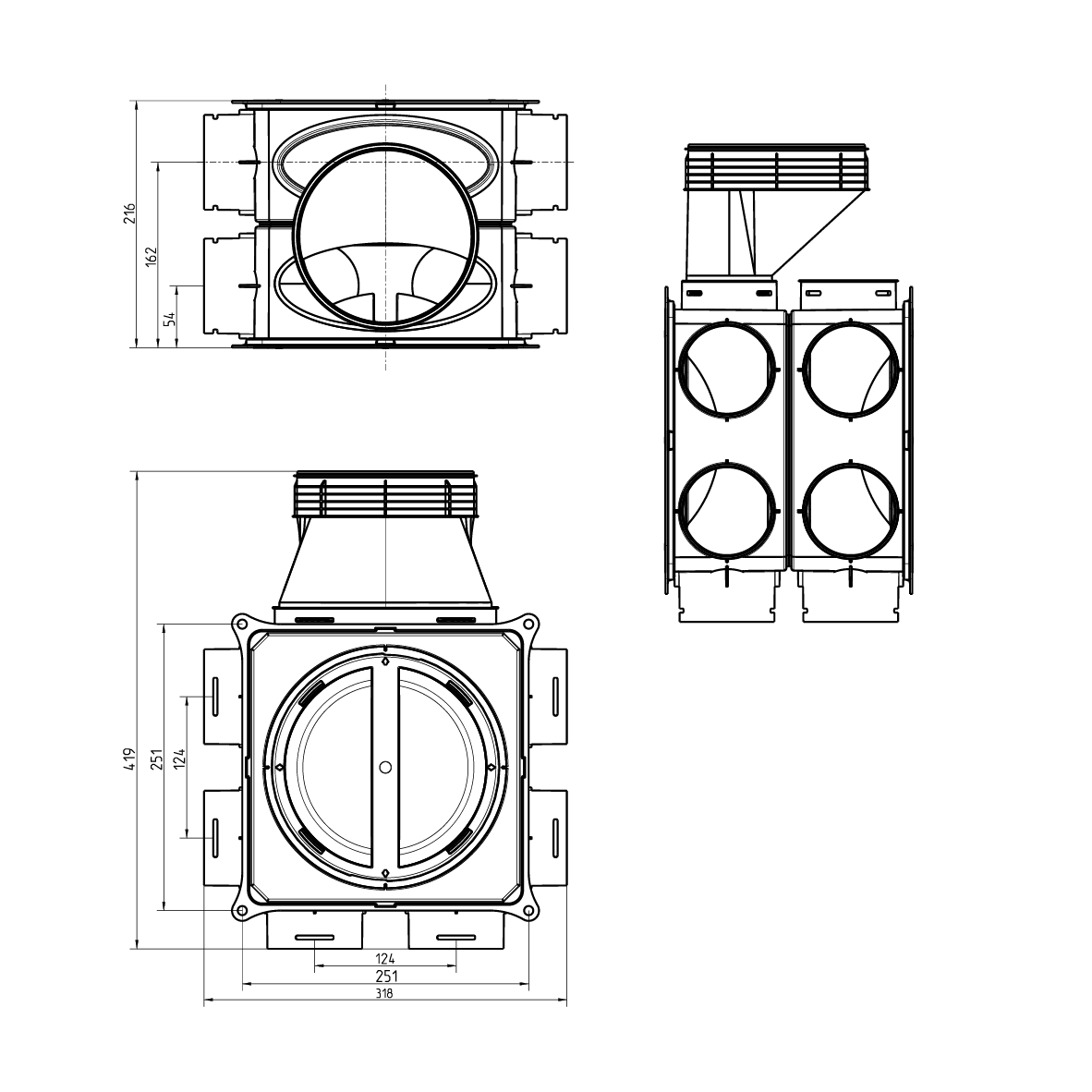

Technical drawing of a cylindrical object with dimensions
Technical drawing of a cylindrical object with dimensions

Air Excellent Distribution Box DB212H160VE 12 Connections

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

The Air Excellent DB212H160VE is designed to radially distribute air from a ventilation unit, minimising system pressure drop, fan energy use, and sound levels. It is compatible with the 160mm Aerfoam insulated ducts and features 12 Air Excellent AE34C duct connections. With DBOX adaptors, it can connect to any duct diameter within the Air Excellent range. The compact box is ideal for small spaces, it can be installed on ceilings, walls, or floors.

  • Includes horizontal adaptor, 12 internal air restrictor rings, and 6 covers for unused connections
  • Ideal for optimising space in small areas
  • Made of durable, rust-free, lightweight plastic (PP) for easy handling and installation
  • Airtight mechanical connections to minimise pressure loss, fan energy consumption, and sound levels


Detailed information

The Air Excellent distribution box DB212H160VE is a versatile and efficient solution, complete with a horizontal adaptor, 12 internal air restrictor rings, and 6 covers for unused connections. The internal air restrictor rings allow precise control of the airflow rate to each room, ensuring optimal comfort throughout your space. Configuration is straightforward using the Aerflux ventilation configurator available online.


Specifications

General
Product Name Air Excellent Distribution Box DB212H160VE 12 Connections
Type Distribution Boxes
GTIN 8713645247267
Accessories in Package 12 Internal Air Restrictor Rings
6 Covers for Unused Connections
Trade Name Air Excellent
Technical
Colour Grey
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Dimensions
Length Gross 419 mm
Width 318 mm
Height 216 mm
Logistical
Intrastat 39259080
Base Unit Packaging Box
Gross Weight 2.208 kg
Packaging / Trade Length 330 mm
Packaging / Trade Width 330 mm
Packaging / Trade Height 325 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
