Air Excellent Distribution Box DB824 125-200 24 Connections

Air Excellent Distribution Box DB824 125-200 24 Connections

Name: Air Excellent Distribution Box DB824 125-200 24 Connections
Brand: Ubbink
SKU: UBBINK-188952
Price: 720.00 AUD
Availability: InStock

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

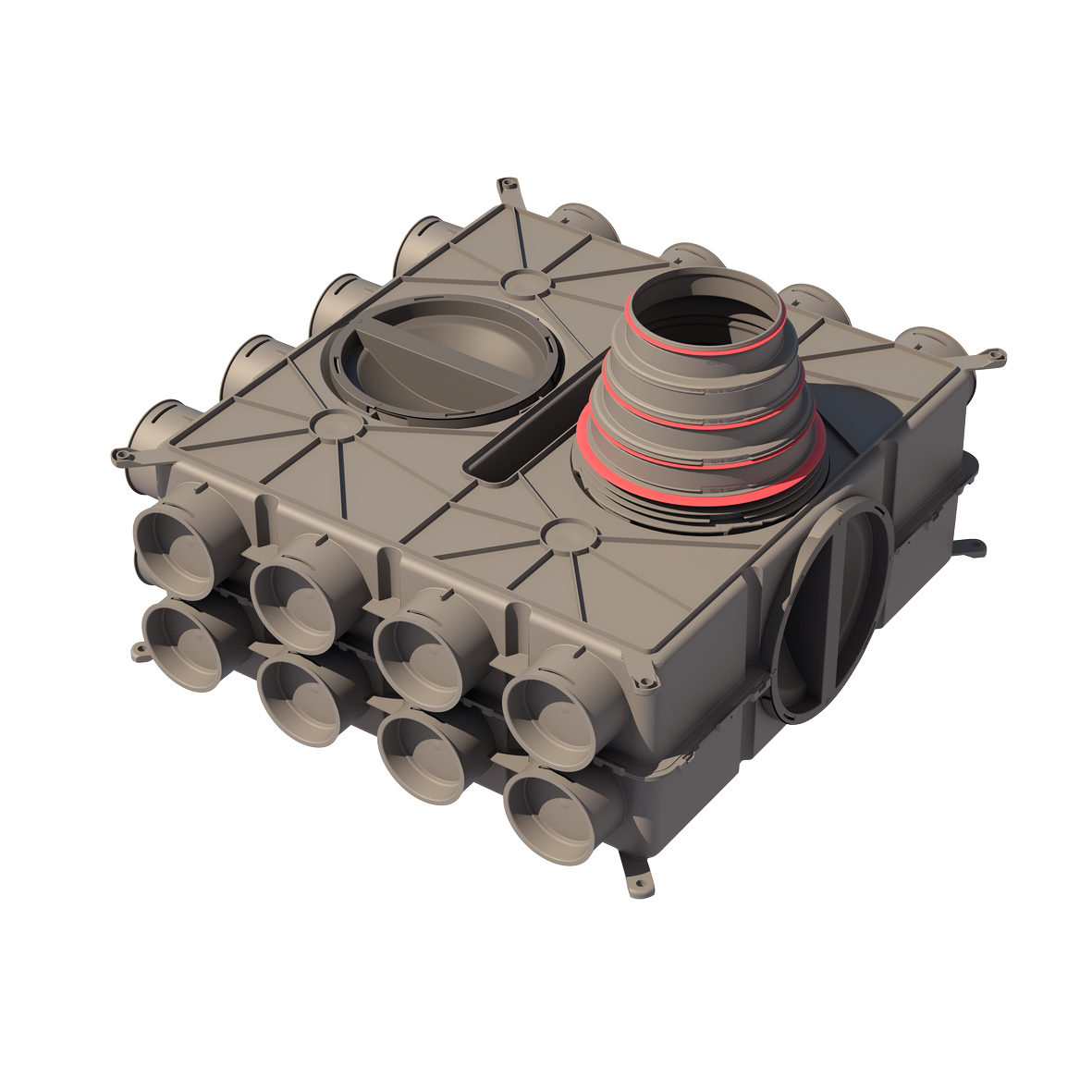

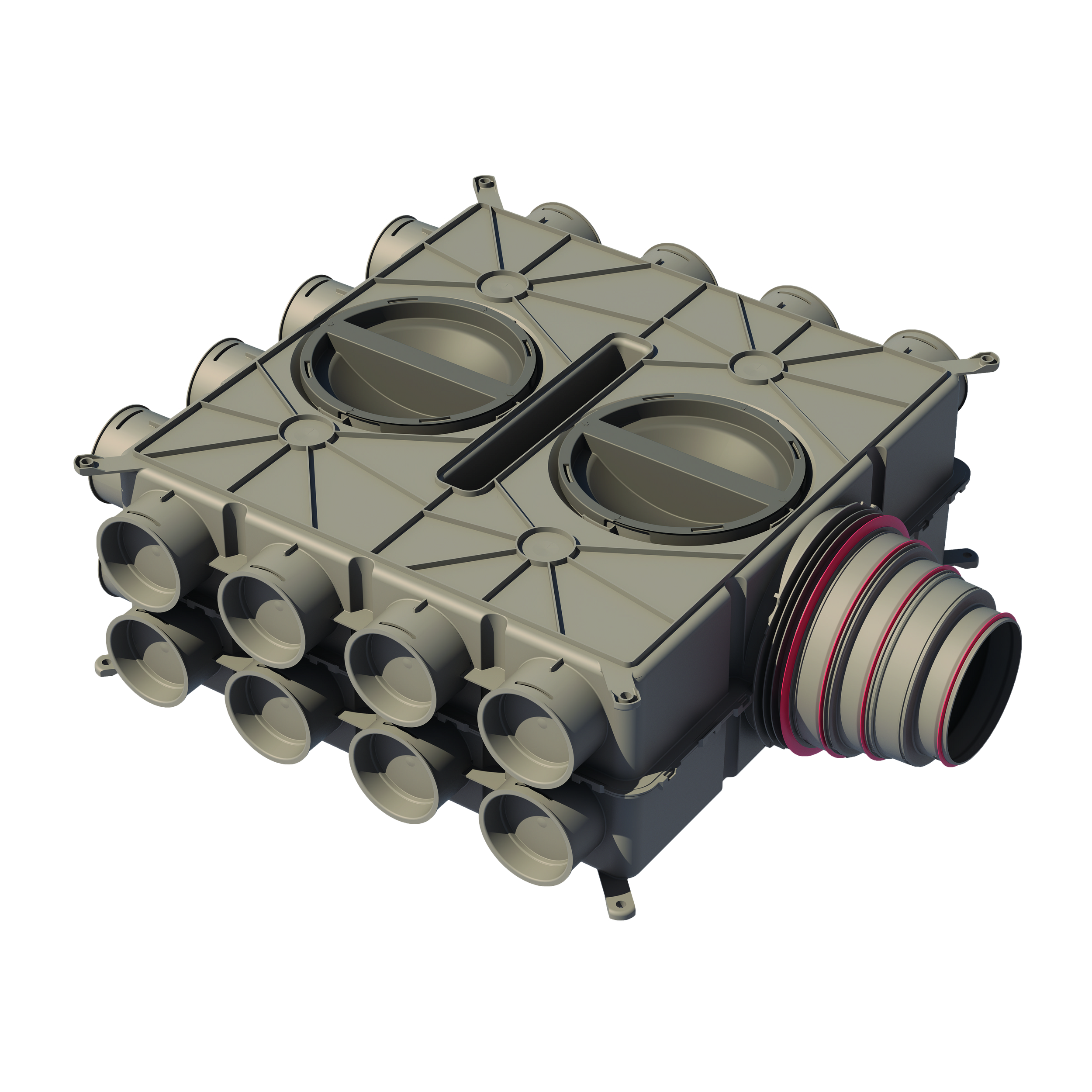

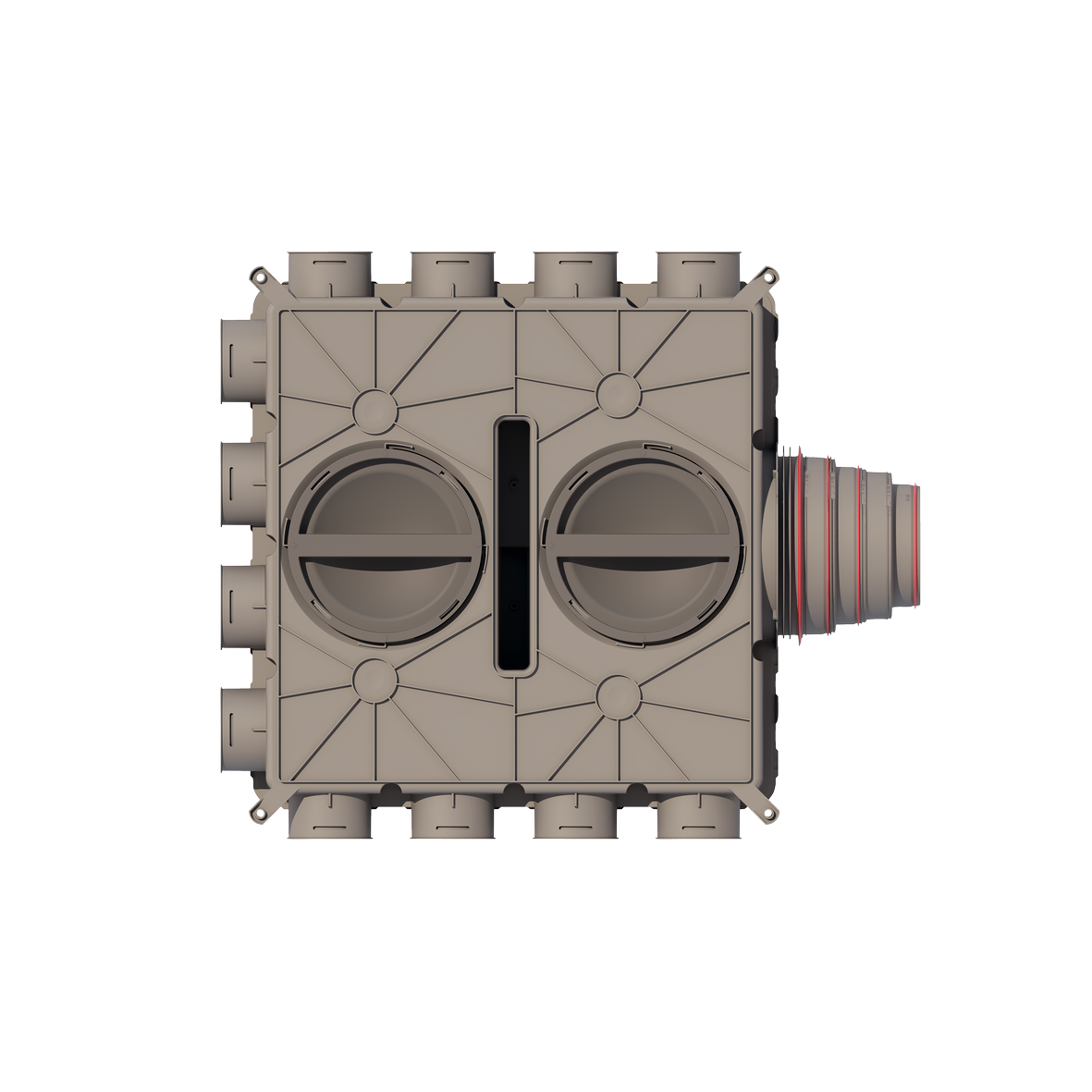

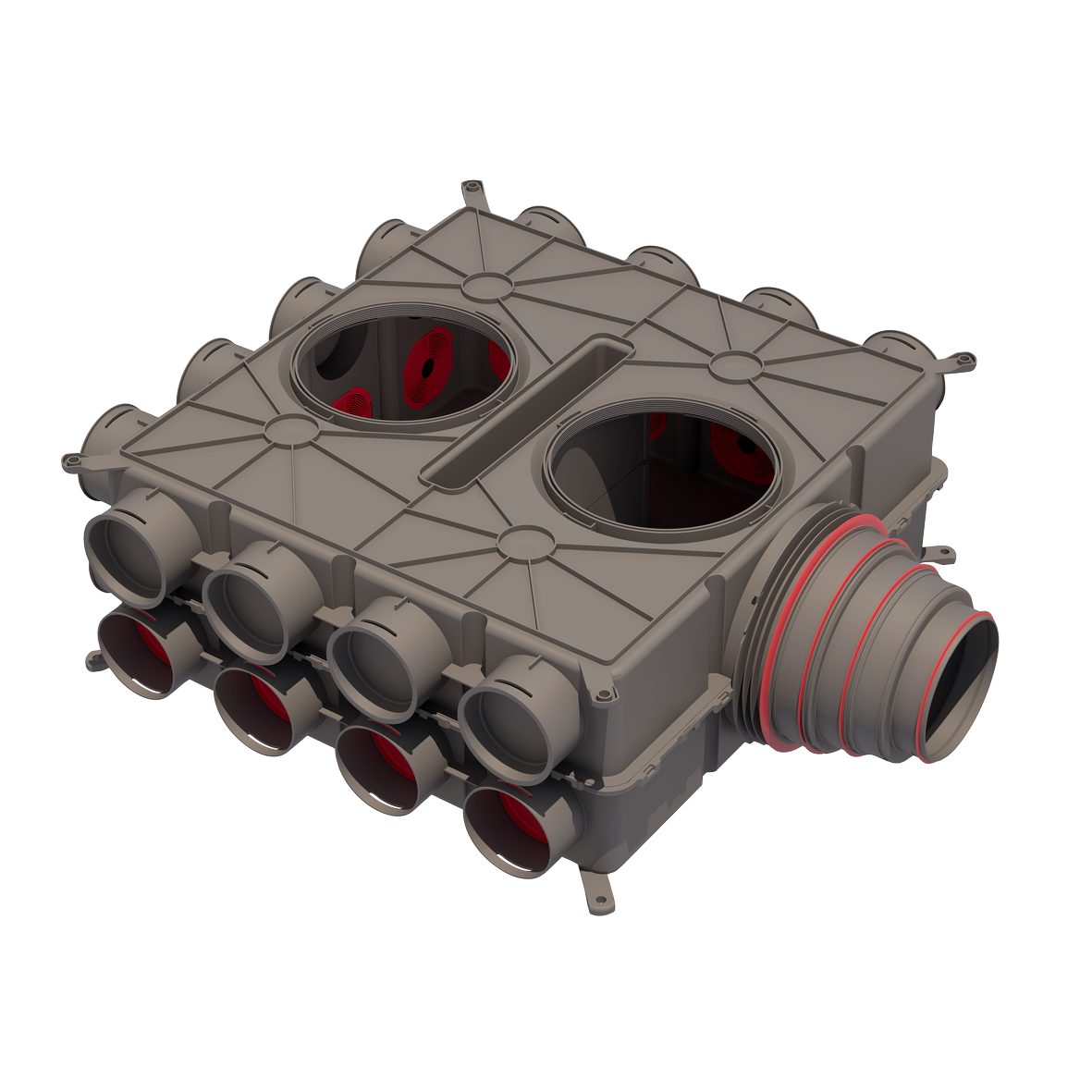

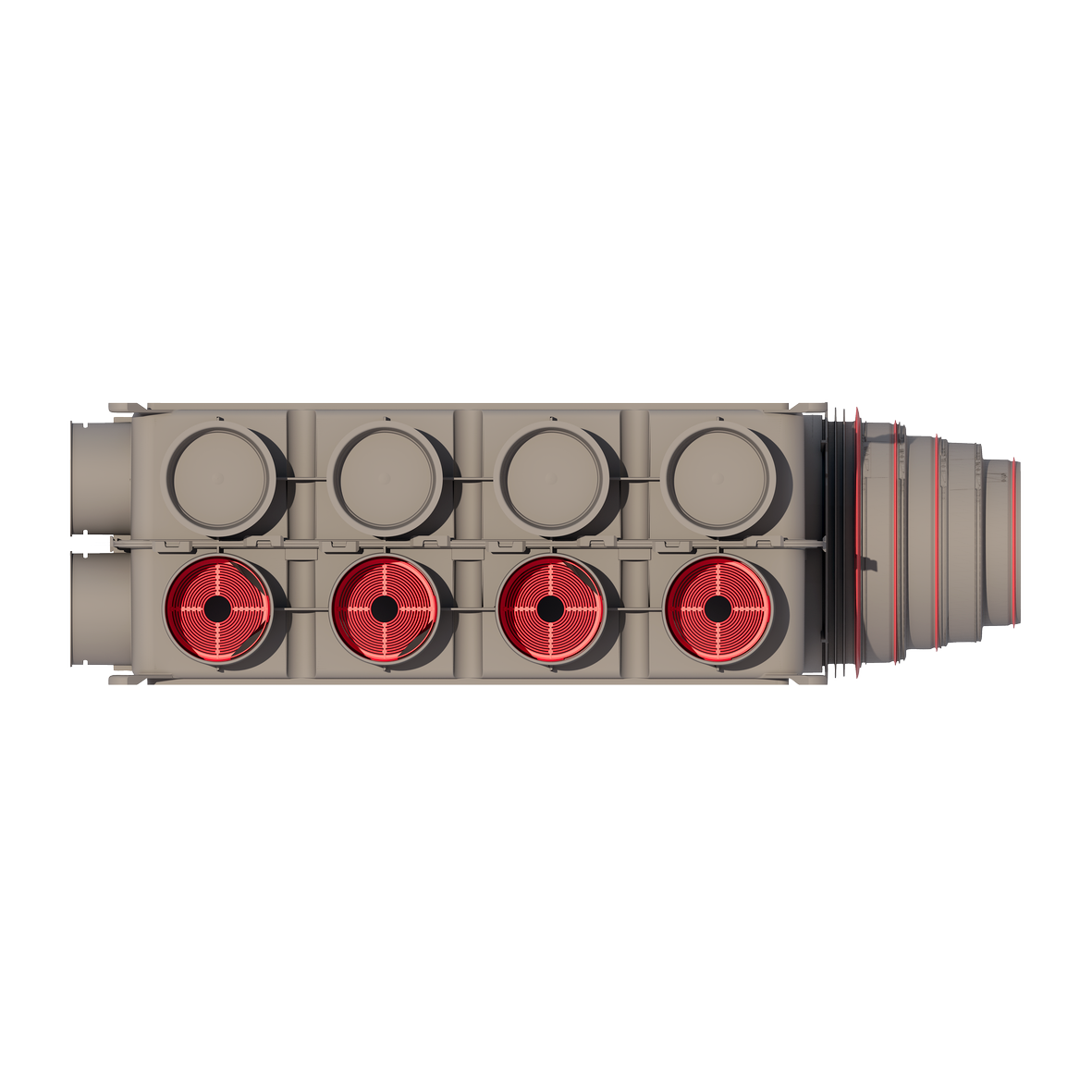

The Air Excellent DB824 is designed to radially distribute air from a ventilation unit, minimising system pressure drop, fan energy use, and sound levels. It is compatible with Aerfoam insulated ducts and features 24 Air Excellent AE34C duct connections. With DBOX adaptors, it can connect to any duct diameter within the Air Excellent range. It offers flexible placement options on either the ceiling or wall and can be connected vertically or horizontally.

Includes stepped adaptor, 24 internal air restrictor rings, and 20 covers for unused connections
Multiple openings for flexible configurations and easy installation/inspection access
Made of durable, rust-free, lightweight plastic (PP) ensuring ease of handling and installation
Airtight mechanical connections to minimise pressure loss, fan energy consumption, and sound levels

Detailed information

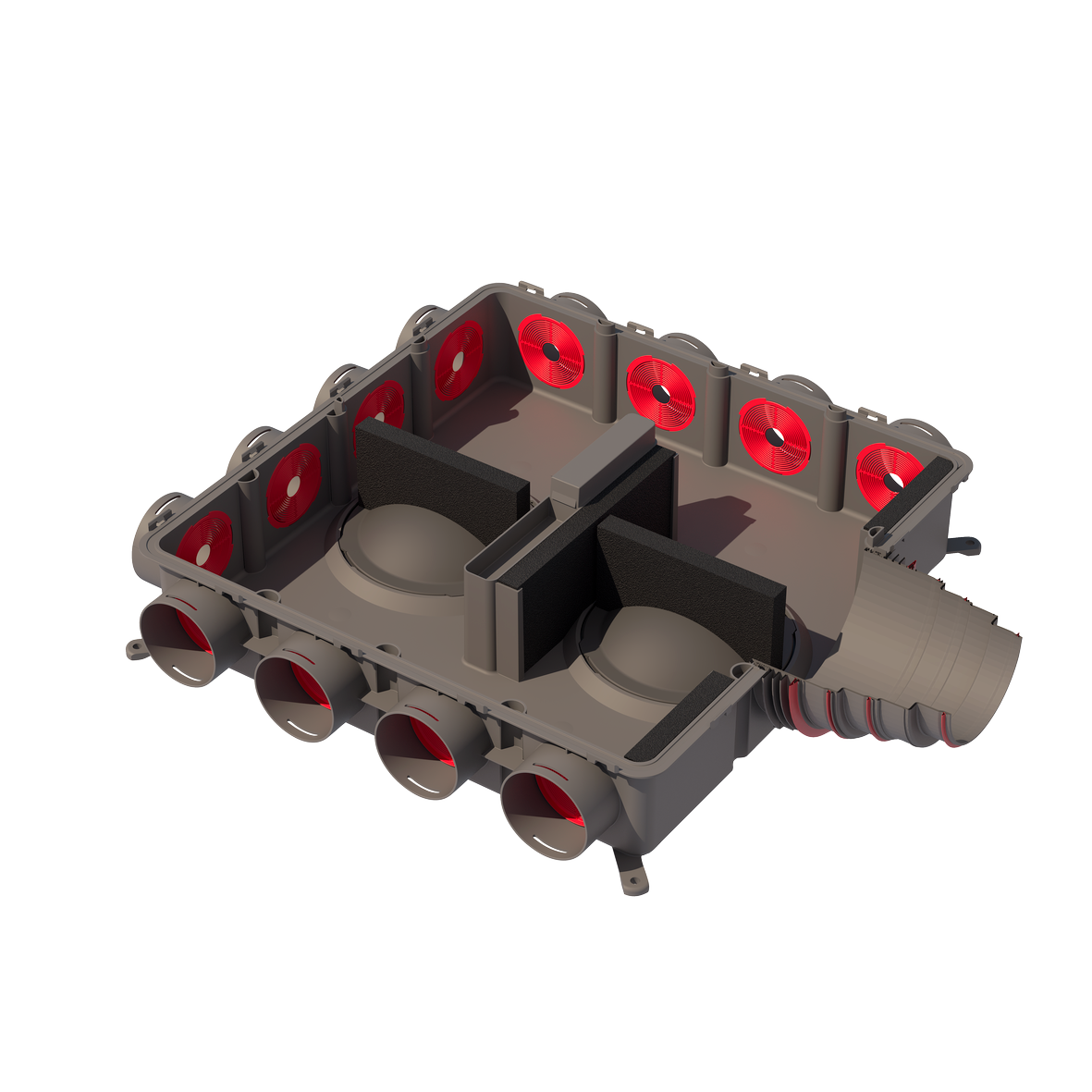

The Air Excellent distribution box DB824 is a versatile and efficient solution, complete with a stepped adaptor, 24 internal air restrictor rings, and 20 covers for unused connections. The stepped adaptor accommodates all sizes of Aerfoam insulated ducts and can be installed in either of the five inspection and maintenance openings (horizontal or vertical), offering flexible configuration options. The internal air restrictor rings allow precise control of the airflow rate to each room, ensuring optimal comfort throughout your space. Configuration is straightforward using the Aerflux ventilation configurator available online. If necessary, acoustic insulation blocks can be installed inside the box to reduce sound transmission through the ductwork system.

Specifications

General

Product Name	Air Excellent Distribution Box DB824 125-200 24 Connections
Type	Distribution Boxes
GTIN	8713645246840
Accessories in Package	24 Internal Air Restrictor Rings 20 Covers for Unused Connections
Trade Name	Air Excellent
