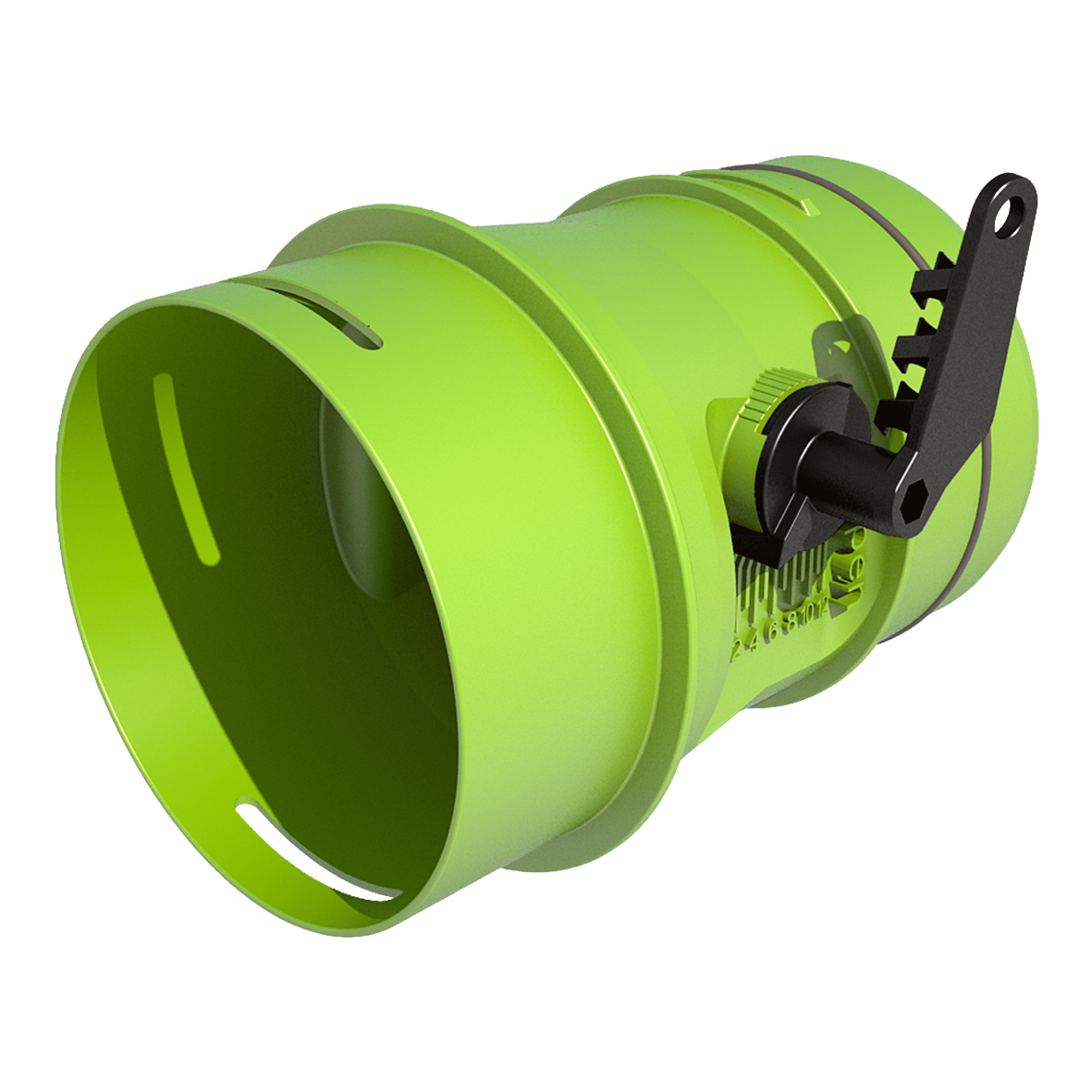

The Air Excellent DBOX External Air Restrictor Valve allows precise adjustment of the air flow rate for each duct, ensuring optimal ventilation performance. It connects directly to the distribution box and, with the use of converters, is compatible with any duct in the Air Excellent range. Air flow settings can be determined via the Aerflux configurator. The external lever enables easy adjustment without the need to access the distribution box, making installation and maintenance quick and hassle-free.

  • Precise air flow control for each duct individually
  • Easy, tool-free adjustment


Specifications

General
Product Name Air Excellent DBOX External Air Restrictor Valve
Type Accessories
GTIN 8713645221687
Trade Name Air Excellent
Technical
Colour Green
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Circular

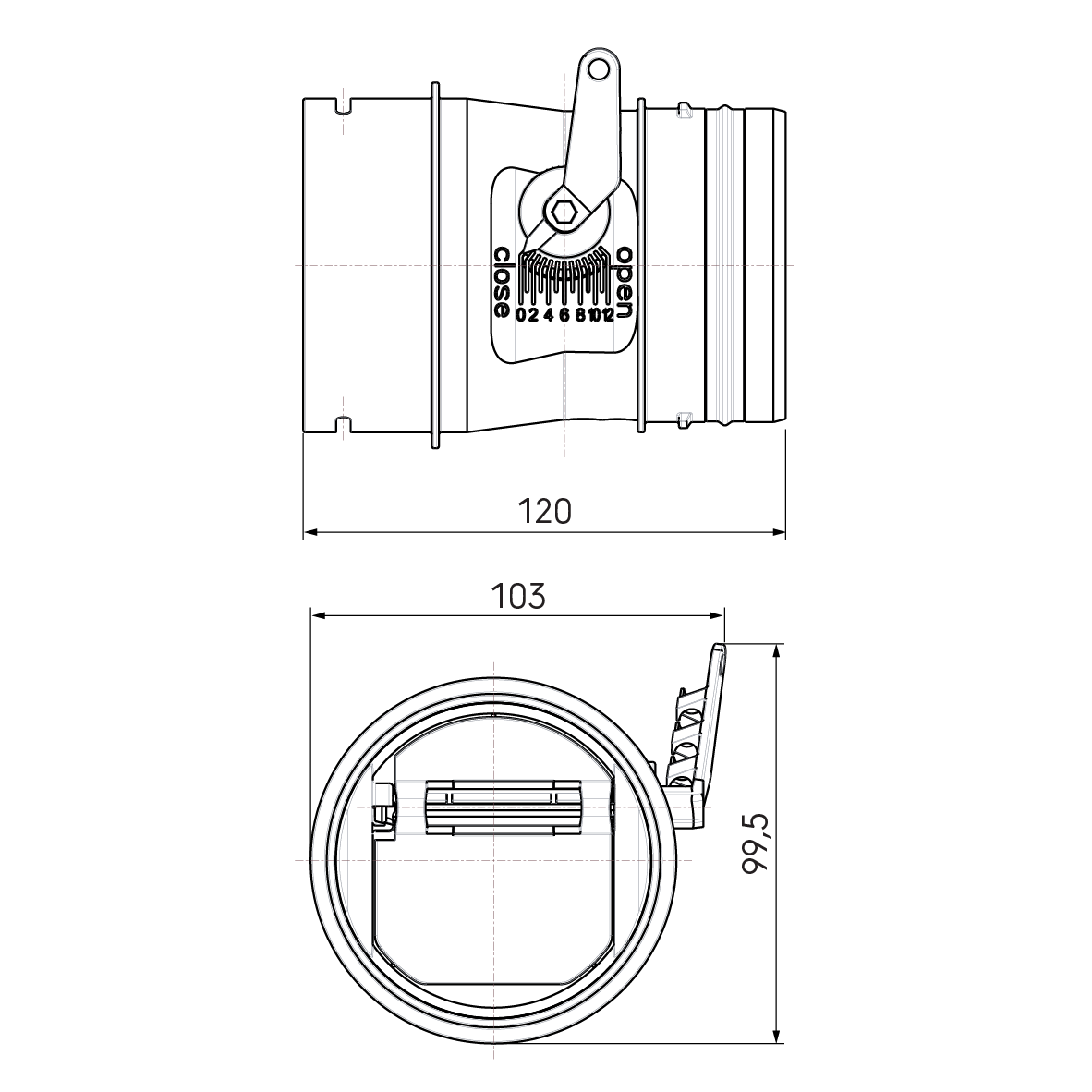

Dimension 75 mm
Dimensions
Length Gross 120 mm
Width 103 mm
Height 100 mm
Net Weight 0.09 kg
Logistical
Intrastat 39259080
Base Unit Packaging Unpacked
Gross Weight 0.09 kg
Packaging / Trade Length 120 mm
Packaging / Trade Width 103 mm
Packaging / Trade Height 100 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
