Air Excellent Distribution Box Internal Air Restrictor Ring
Air Excellent Distribution Box Internal Air Restrictor Ring
Air Excellent Distribution Box Internal Air Restrictor Ring

Air Excellent Distribution Box Internal Air Restrictor Ring

Fresh Ventilation: Warehouse

Available for pickup

Usually ready in 2 hours

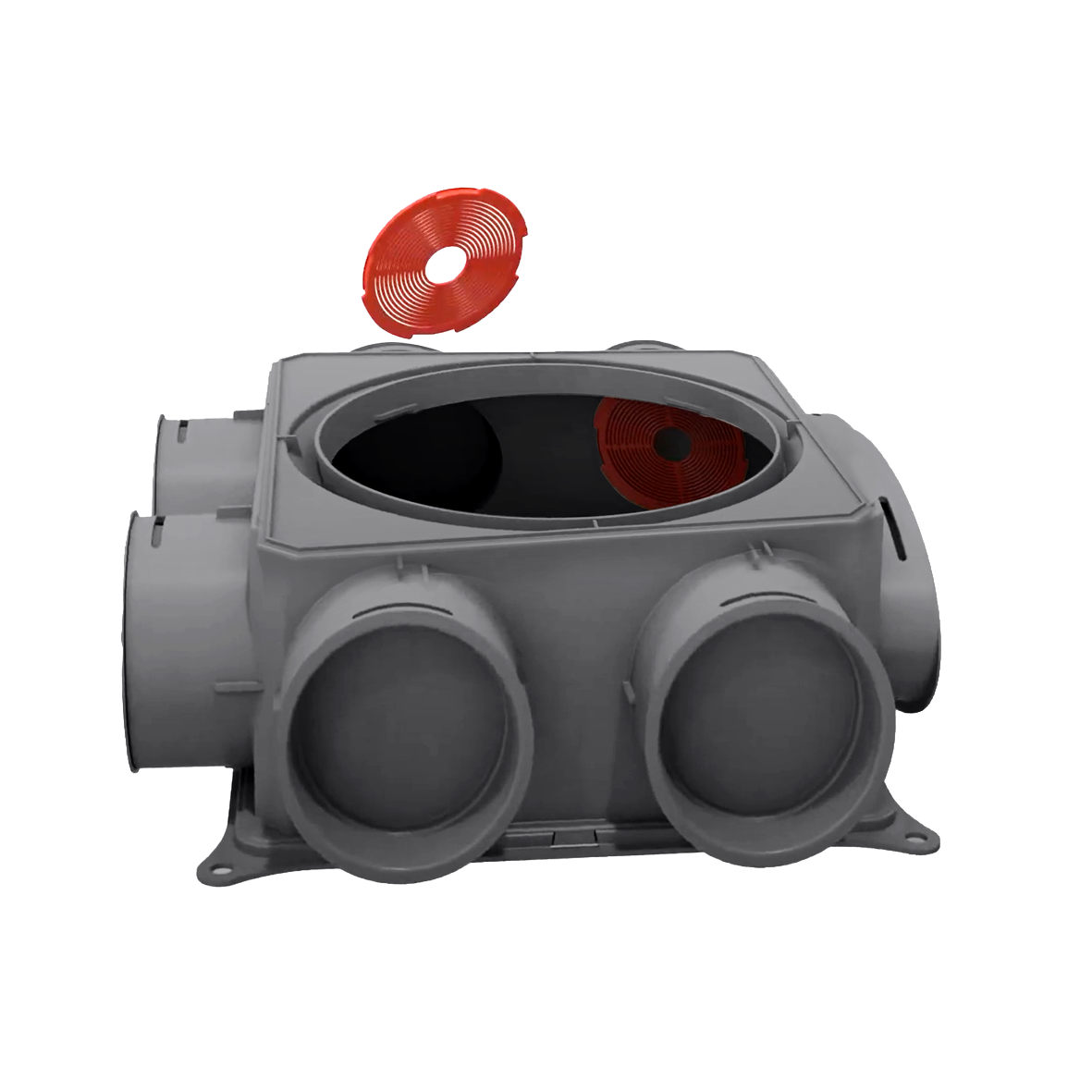

The Air Excellent DBOX Internal Air Restrictor Rings, installed in the distribution box, allows precise adjustment of the air flow rate for each duct, ensuring optimal ventilation performance. Each restrictor features twelve rings, with settings determined by the Aerflux configurator that indicates how many rings to remove. The rings are easily applied with simple pressure and can be quickly removed for cleaning or maintenance.

  • Precise air flow control for each duct individually
  • Easy, tool-free adjustment


Specifications

General
Product Name Air Excellent DBOX Internal Air Restrictor Ring
Type Accessories
GTIN 8713645213507
Trade Name Air Excellent
Technical
Colour Red
Material PP
Anti Static ✅
Antimicrobial ✅
Airflow Direction Supply / Extract
Shape Circular
Dimension 75 mm
Dimensions
Length Gross 79 mm
Width 79 mm
Height 9 mm
Net Weight 0.01 kg
Logistical
Intrastat 39259080
Base Unit Packaging Unpacked
Gross Weight 0.01 kg
Packaging / Trade Length 79 mm
Packaging / Trade Width 79 mm
Packaging / Trade Height 9 mm
Performance
CE String -
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C
