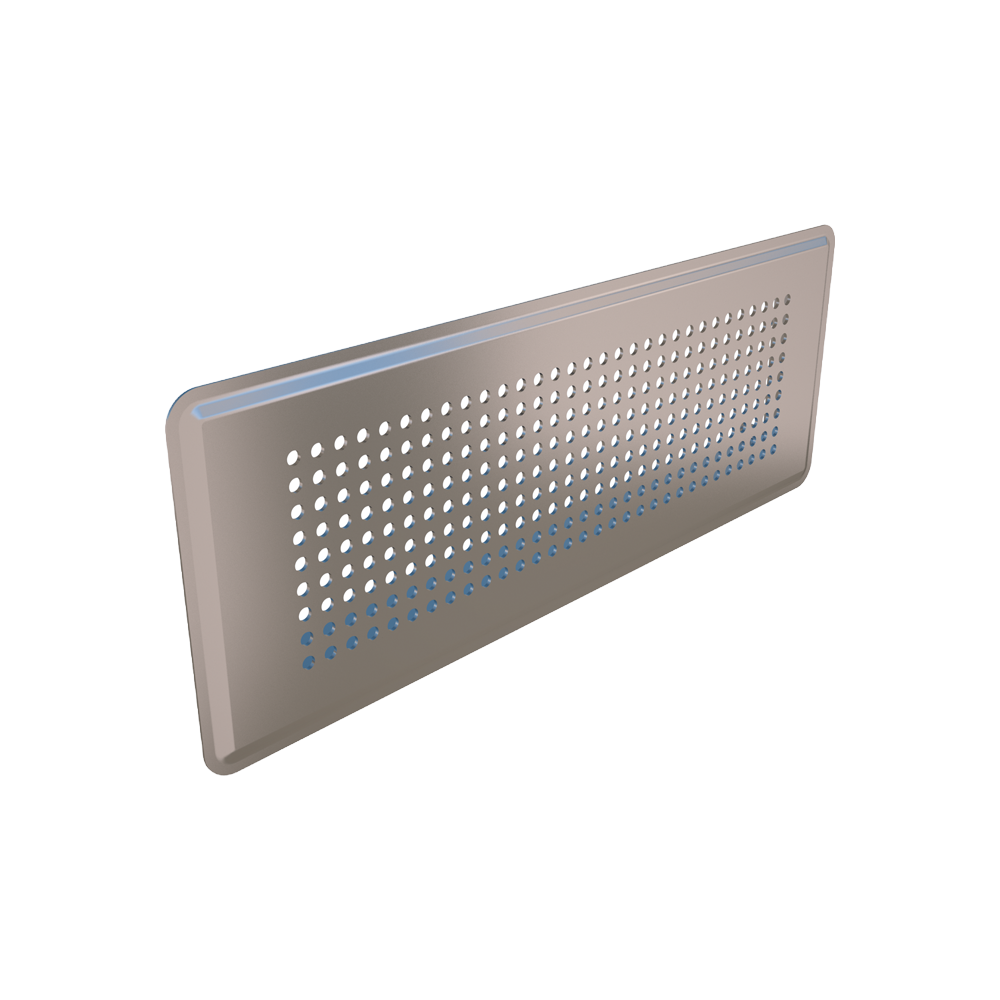

Air Excellent Floor Grille Stainless Steel
Air Excellent Floor Grille Stainless Steel

Air Excellent Floor Grille Stainless Steel

Sold out

A sleek and modern floor grille designed for use with Air Excellent floor grille adaptors. Its rectangular air inlet ensures a smooth and efficient flow of fresh air into living spaces. Suitable for both floor and wall installation.

  • Discreet appearance that blends seamlessly into any interior
  • Easy to clean and maintain
  • Fully dismantlable for convenient access and servicing
  • Quick and simple installation


Detailed information

This item must be used to cover the Air Excellent floor grille adaptors.


Specifications

General
Product Name Air Excellent Floor Grille Stainless Steel
Type Valves & Grilles
GTIN 8713645175126
Trade Name Air Excellent
Technical
Colour Metal Grey
Material Stainless Steel
Airflow Direction Supply / Extract
Shape Rectangular
Duct Dimension 50 x 100 mm / 50 x 140 mm / 60 x 130 mm / 63 mm / 75 mm / 90 mm

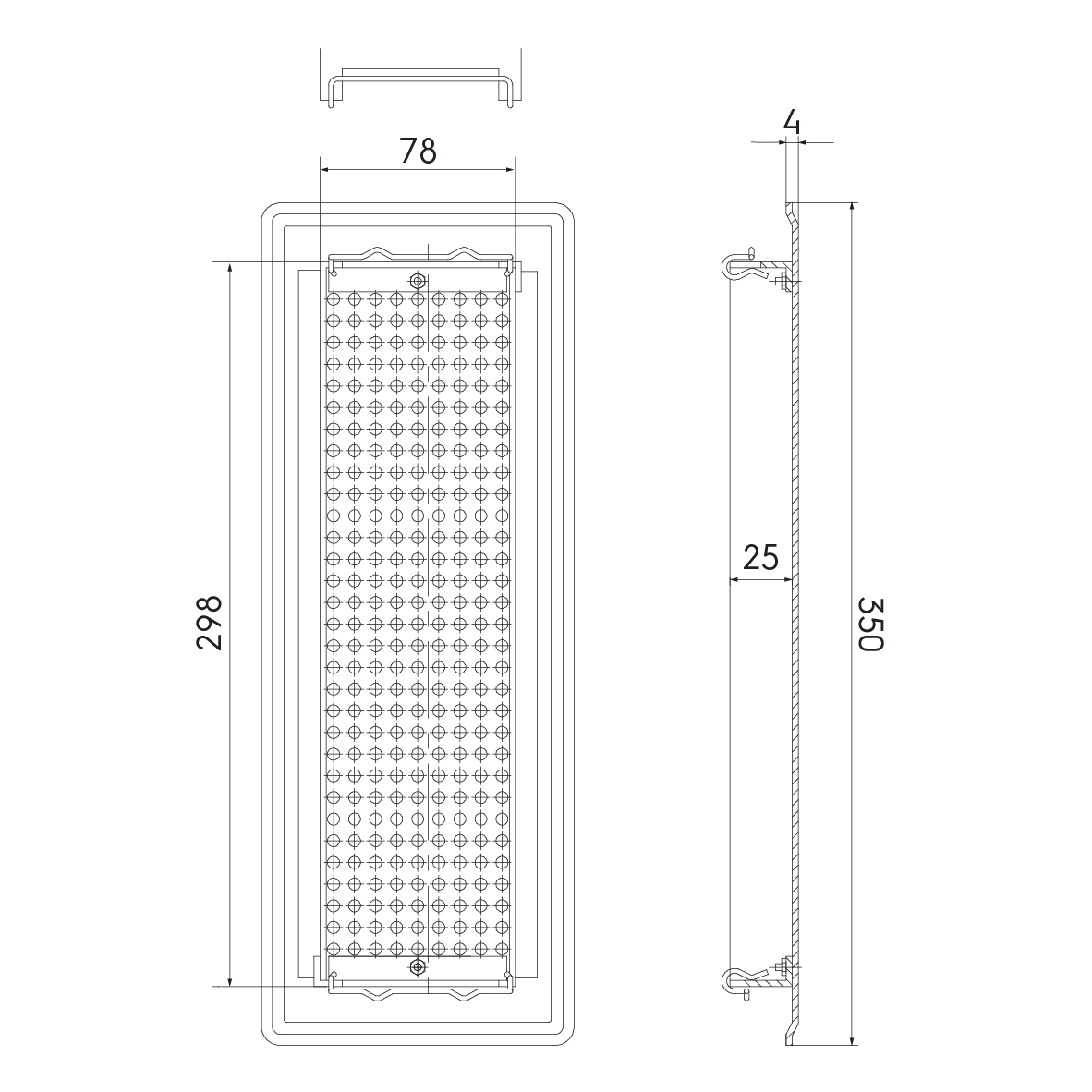

Dimensions
Length Gross 350 mm
Width 130 mm
Height 25 mm
Net Weight 0.52 kg
Logistical
Intrastat 39259080
Base Unit Packaging Box
Gross Weight 0.61 kg
Packaging / Trade Length 365 mm
Packaging / Trade Width 145 mm
Packaging / Trade Height 40 mm
Performance
CE String -
Supply Capacity 50 m³/h
Extract Capacity 50 m³/h
Temperature Resistance (min.) -20 °C
Temperature Resistance (max.) 60 °C


Downloads

Air Excellent Floor Grille Stainless Steel
Air Excellent Floor Grille Stainless Steel
