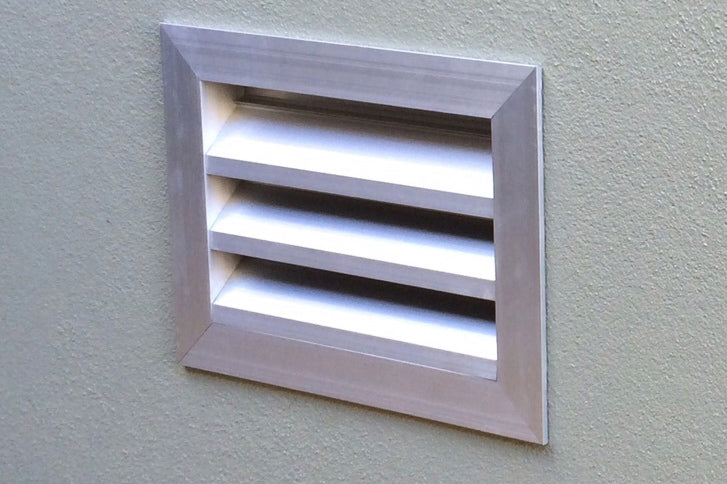

Anodised Aluminium Weatherproof Grille
Anodised Aluminium Weatherproof Grille

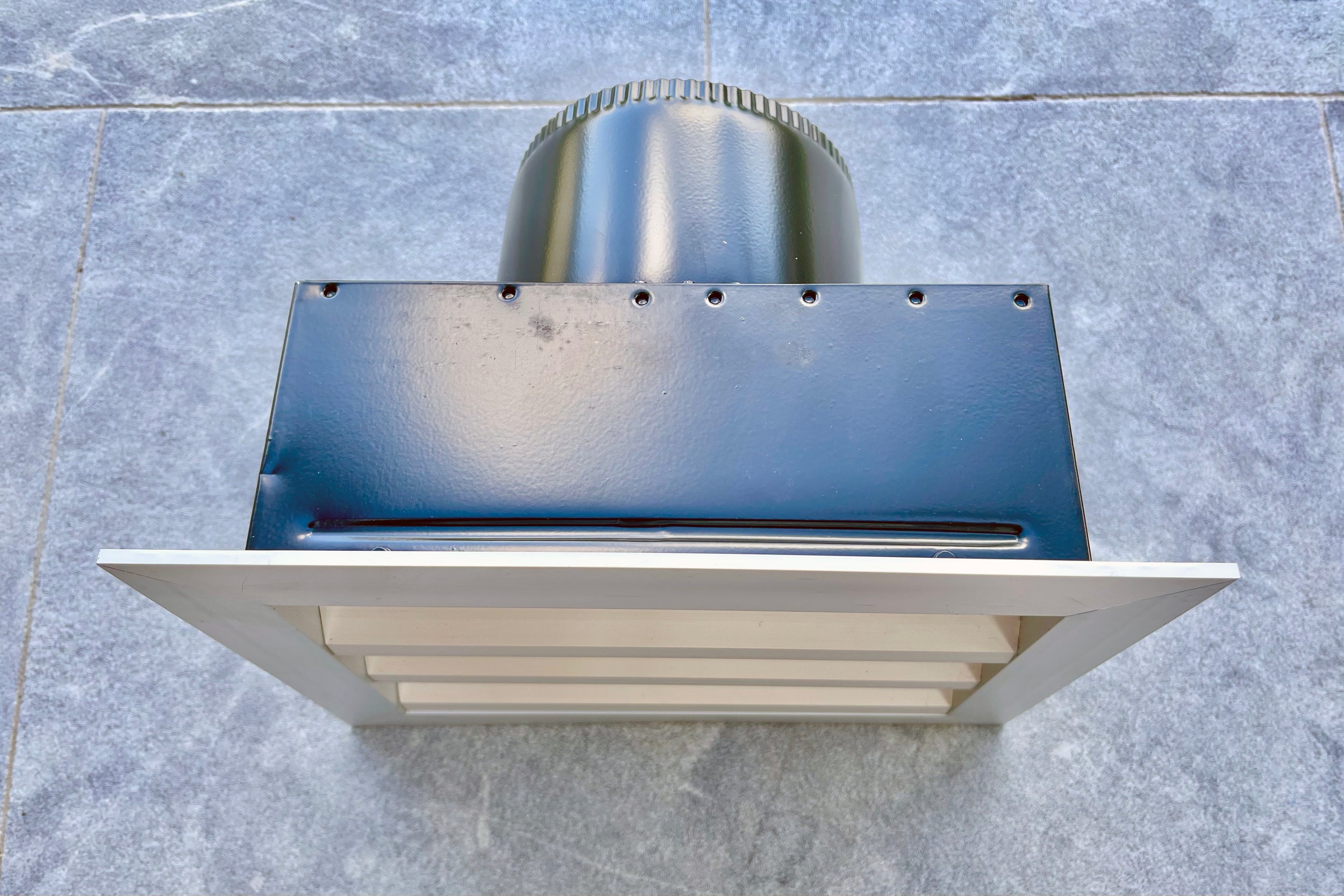

Back Box for Anodised Aluminium Weatherproof Grille
Back Box for Anodised Aluminium Weatherproof Grille

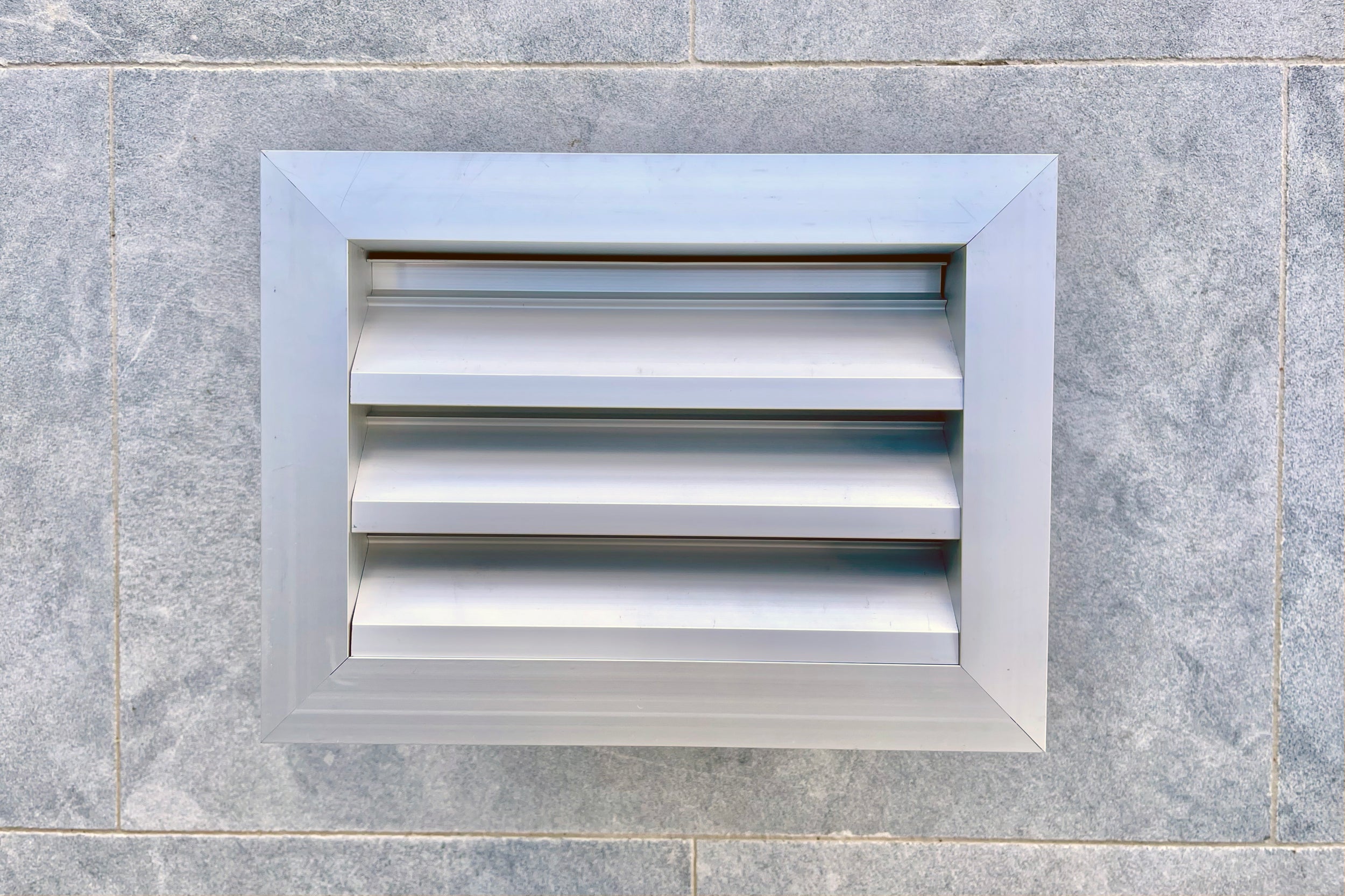

Anodised Aluminium Weatherproof Grille
Anodised Aluminium Weatherproof Grille
Back Box for Anodised Aluminium Weatherproof Grille
Back Box for Anodised Aluminium Weatherproof Grille

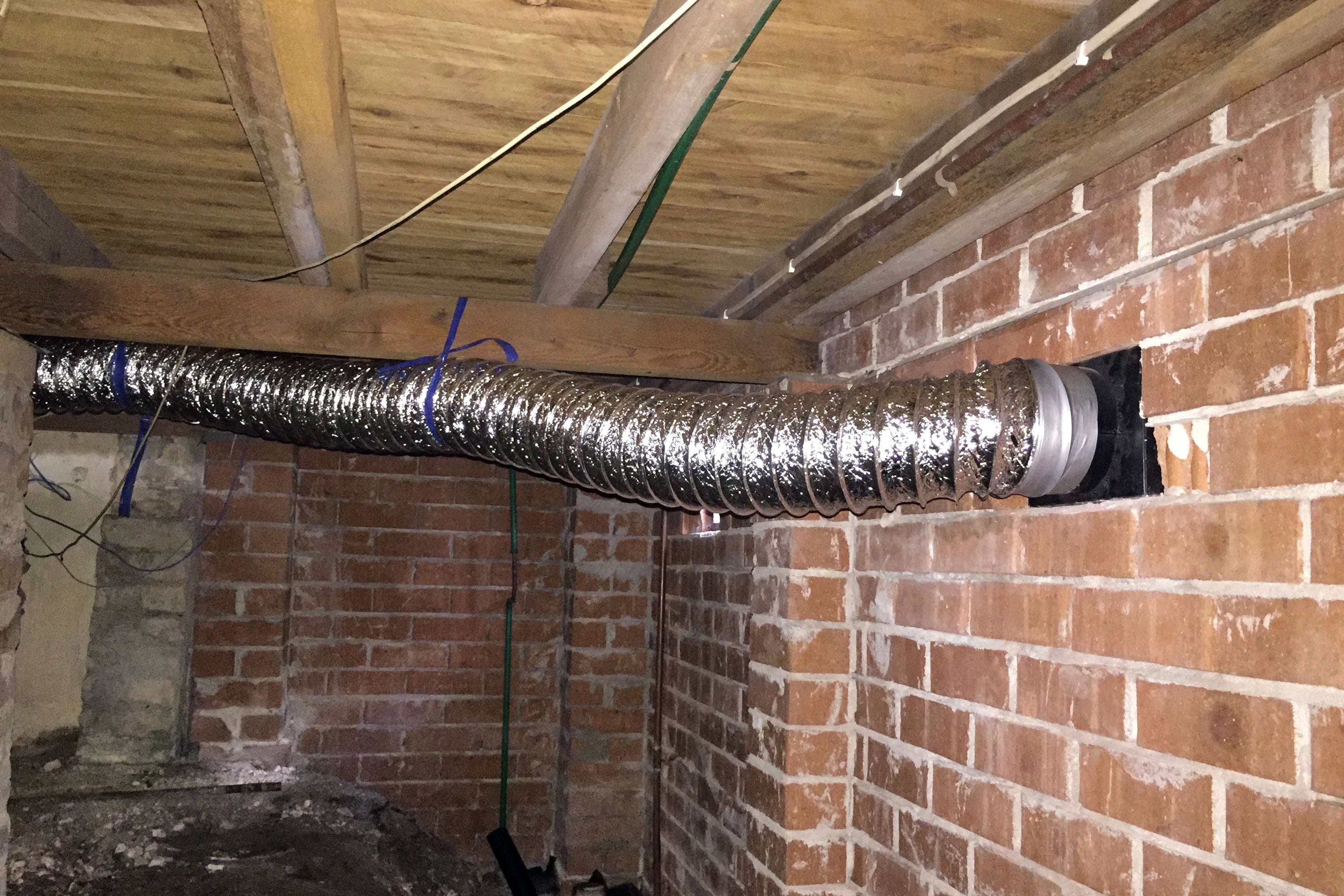

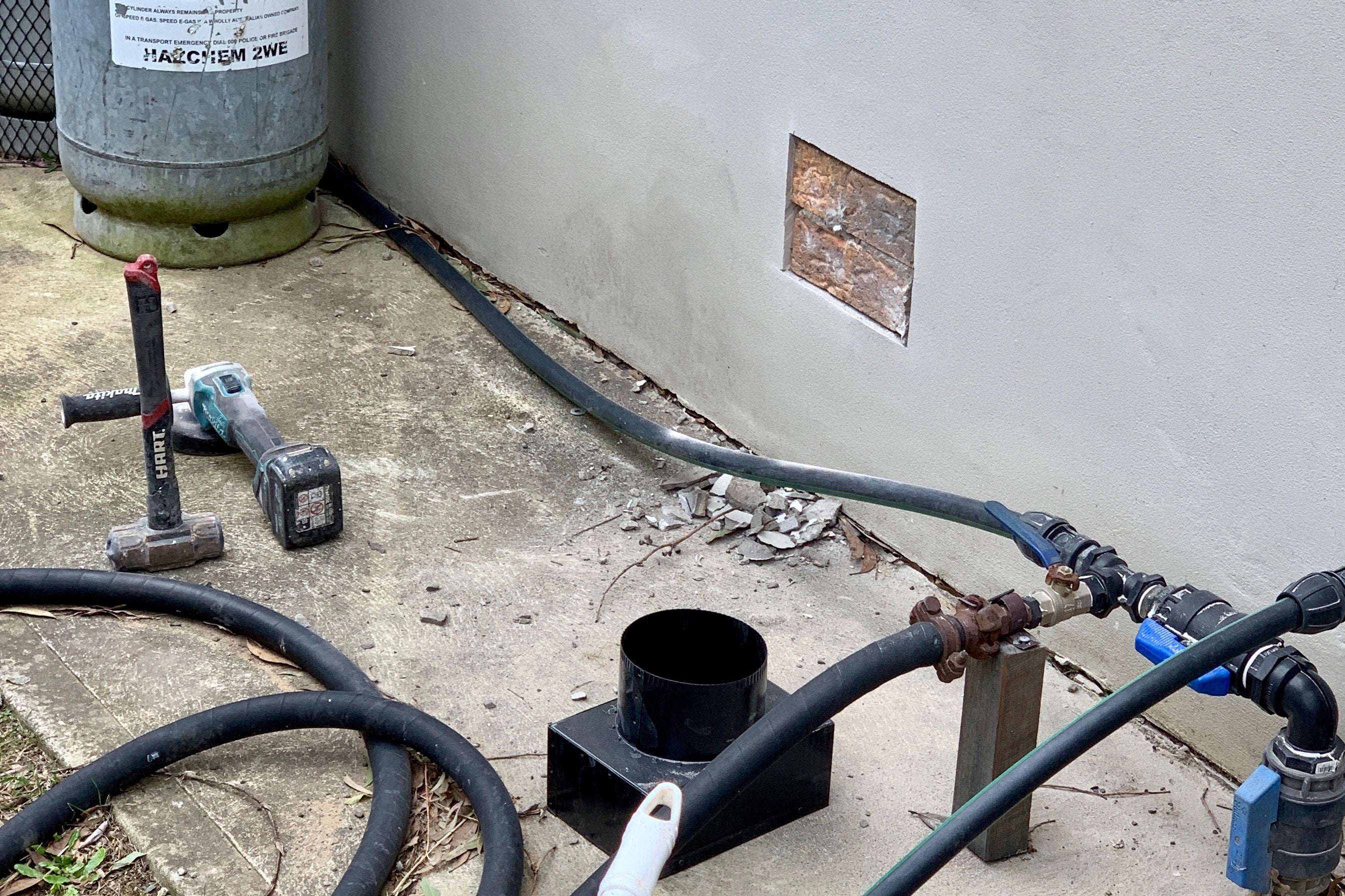

Installation
Installation

Anodised Aluminium Weatherproof Grille with Back Box

$60
/
Tax included
Fresh Ventilation: Showroom

Available for pickup

Usually ready in 2 hours

  • Anodised aluminium.
  • Weatherproof for external use.
  • Back box with 150mm duct connection spigot.
  • Wire mesh to keep out rodents.
  • Fits in place of two standard bricks.
  • Can be painted.

Anodised Aluminium Face Dimensions

  • 285mm (W) x 214mm (H) x 4mm (D)

Back Box and Spigot Dimensions

  • 232mm (W) x 168mm (H) x 186mm (D)
  • Back Box Depth: 100mm
  • Spigot Depth: 86mm
  • Duct Connection: 145mm
Anodised Aluminium Weatherproof Grille
Anodised Aluminium Weatherproof Grille with Back Box
$60
FV-A-AWG97
240 in stock
$60 /each
Total:
Anodised Aluminium Weatherproof Grille with Back Box

Available for pickup

Usually ready in 2 hours

Fresh Ventilation: Showroom

Available for pickup

Usually ready in 2 hours

Unit 1, 3-7 Frankland Street
Mittagong NSW 2575
Australia

+61248799750

You may also like

Customers praised this weatherproof grille for its superior quality and construction. Reviews highlighted "easy to install" with basic tools, "nice and quiet" fan operation, and "massive improvement in air flow." Some noted minor mesh sizing gaps and occasional bent vents upon arrival, though customer service provided prompt replacements.

  • 5 stars: 7 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
Dave (NSW)
Perfect quality grille

Perfect quality product, grille is a tight fit and will never have an issue falling out like some other products

M
Michael Sterling (VIC)
Exactly what I required for the job I had

Exactly what I required for the job I had. Quality was very good and fitted perfectly.

A
Anonymous (NSW)
Very

Very good

d
david craig lee westren (NSW)
Good instructions, Quiet fan, Easy to install

I found the instructions to be easy to read easy to follow. Install was easy only needing Fairly basic tools. The fan is nice and quiet Would definitely recommend

A
Andrew P (NSW)
Much better quality than other “similar” vents out there

I’ve used multiple similar products from other retailers. The others have very flimsy boxes behind them that fall off and make installation difficult. This is a much higher quality product.

M
Michael Dow (SA)
Good looking vent

The vents are pretty well made and look good - massive improvement in air flow over air bricks. The mesh on some was slightly undersized, so there was a small gap on one or two edges. Some vents arrived a bit bent. Fresh Ventilation sent replacements immediately.

a
alfred migliucci (NSW)

Anodised Aluminium Weatherproof Grille with Back Box

A
Adam

What’s the width and length of the outside perimeter of vent.

Fresh Ventilation

Hi Adam,

The face of the vent is 28.5cm wide by 21.5cm high. It has about 25mm coverage on all sides wider than the brick cutout underneath.

Feel free to ask any more questions or give us a call on 02 4855 1025.

Regards,
Claire
Fresh Ventilation

p
peter cipolla

What are the dimension?

Fresh Ventilation

The back box fits in place of two standard bricks: 170mm x 230mm.

The faceplate clips inside the box and has a flange to cover the hole: 215mm x 285mm.

Please note that there is a national shortage on this item at the moment. We expect to have more stock at the end of the month or very early next month. We can take backorders in the meantime.

F
Frank Mammone

Hi , i have a wall opening that is 300wide x 200 high, Would you happen to have any aluminium lovre vents to suit this size?
i am after 4 vents.
Thanks

Fresh Ventilation

We can have something made to fit any size. What colour would you like them? Do you need the box behind also or just the face grille?
