Axial Fans (EC Motors)

Sale price$290.00 Regular price$360.00
Save $70.00
In stock

Size: 150mm

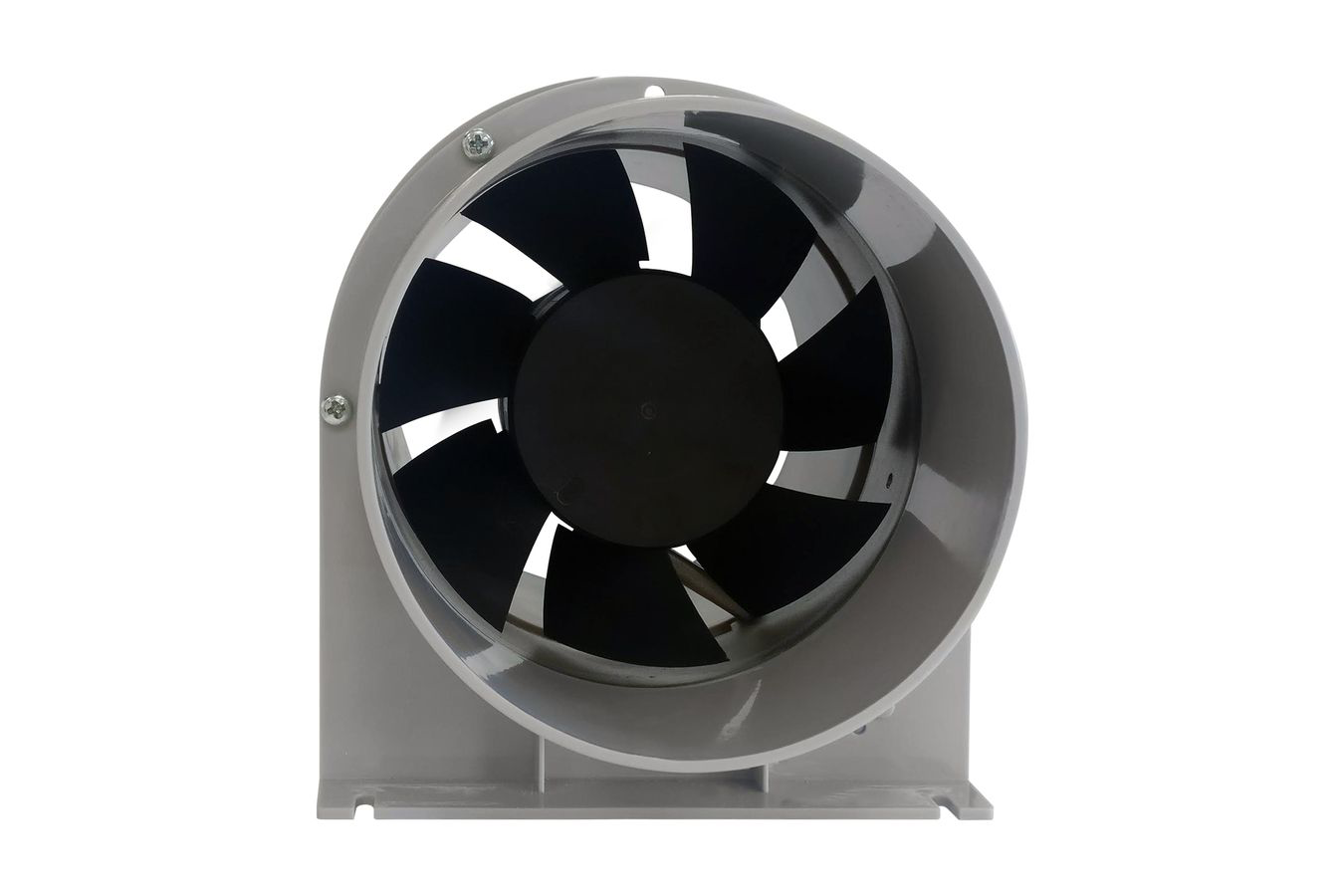

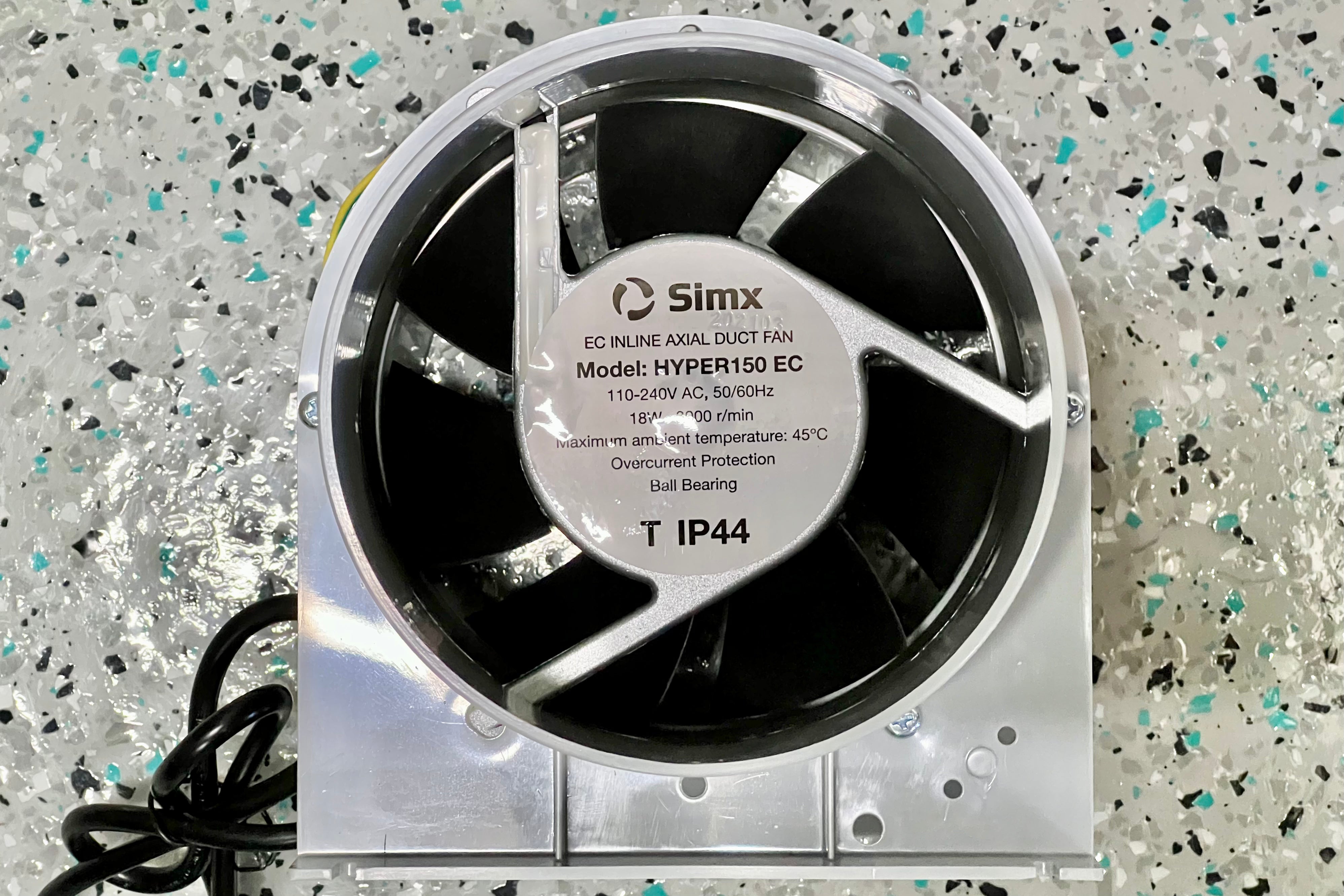

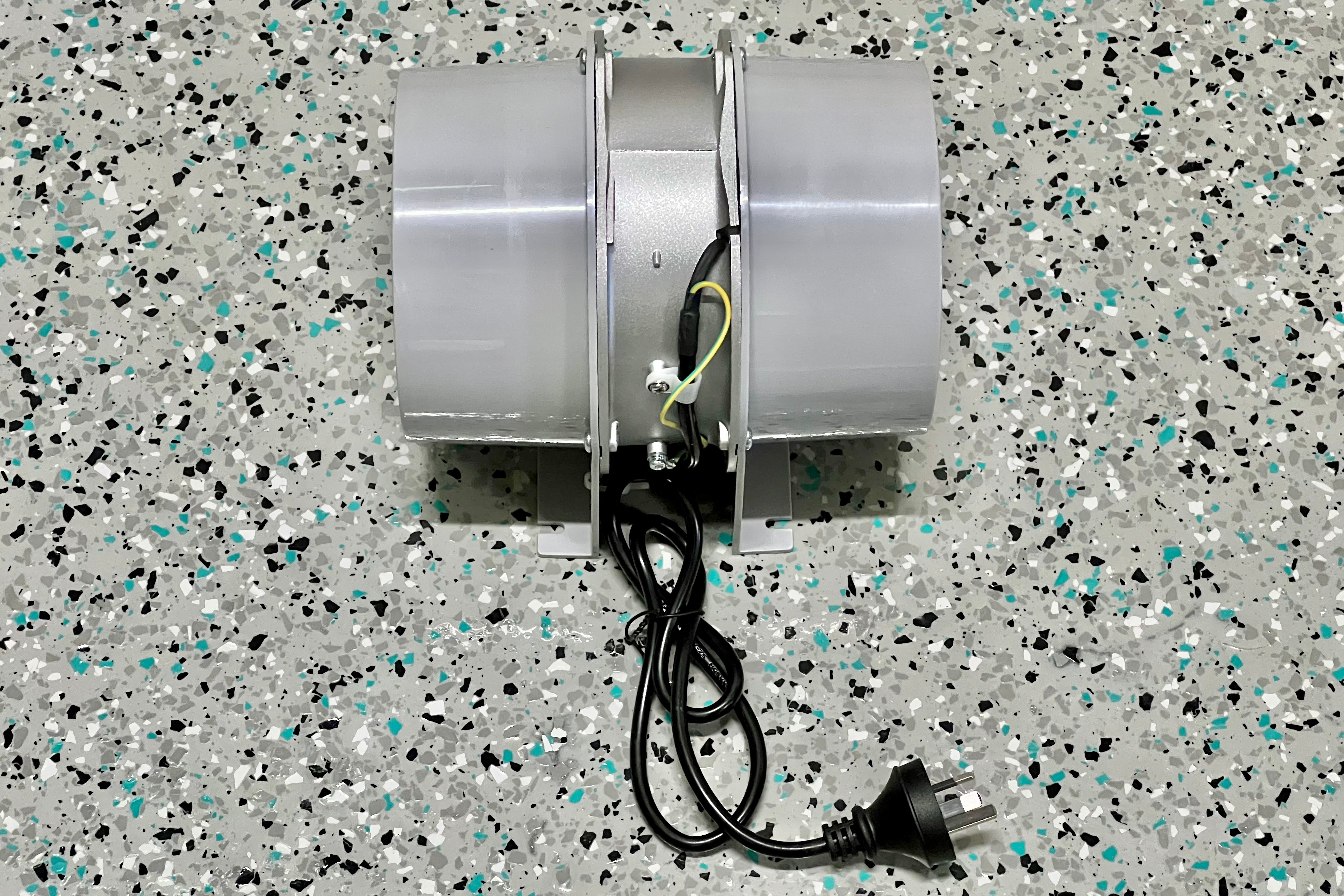

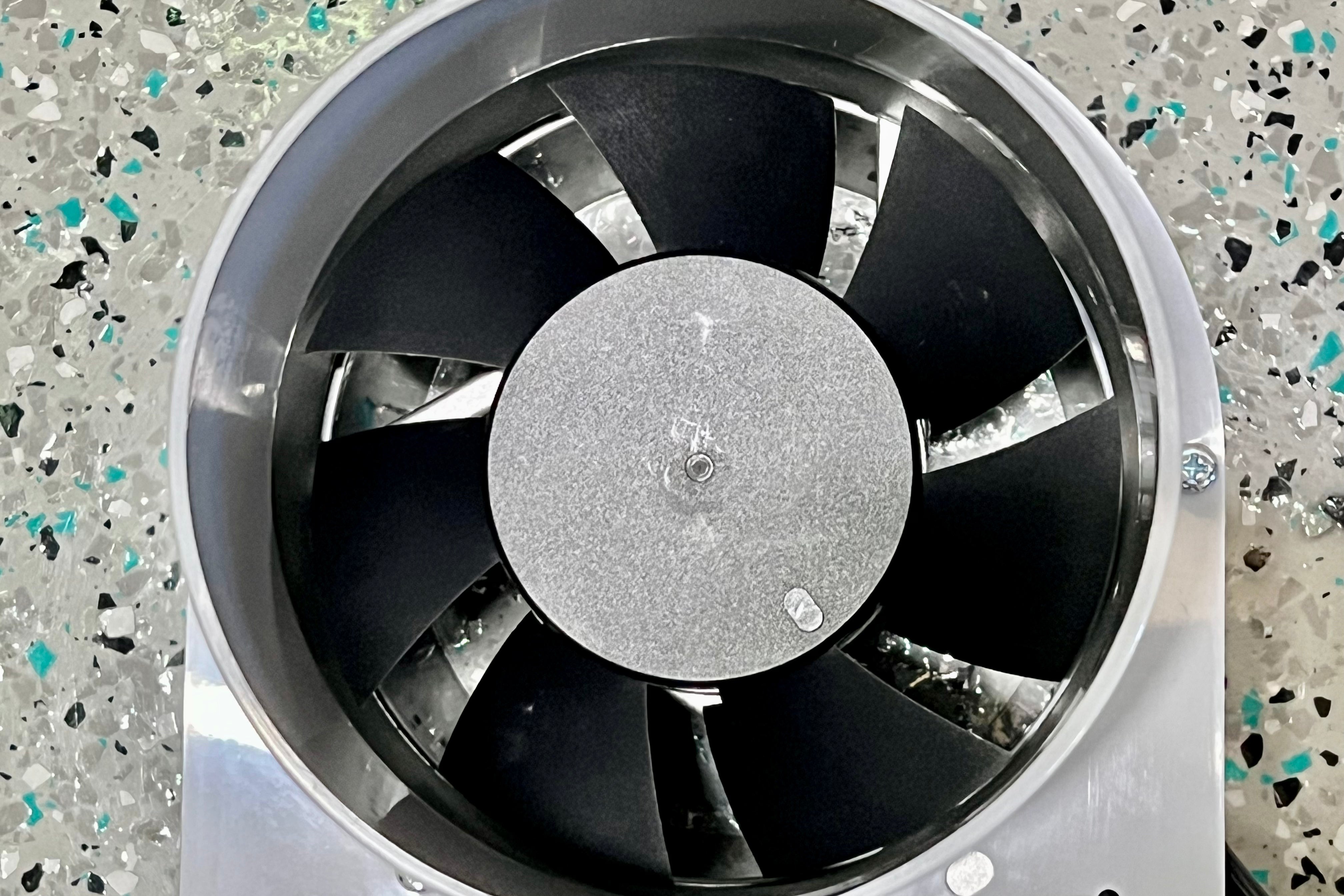

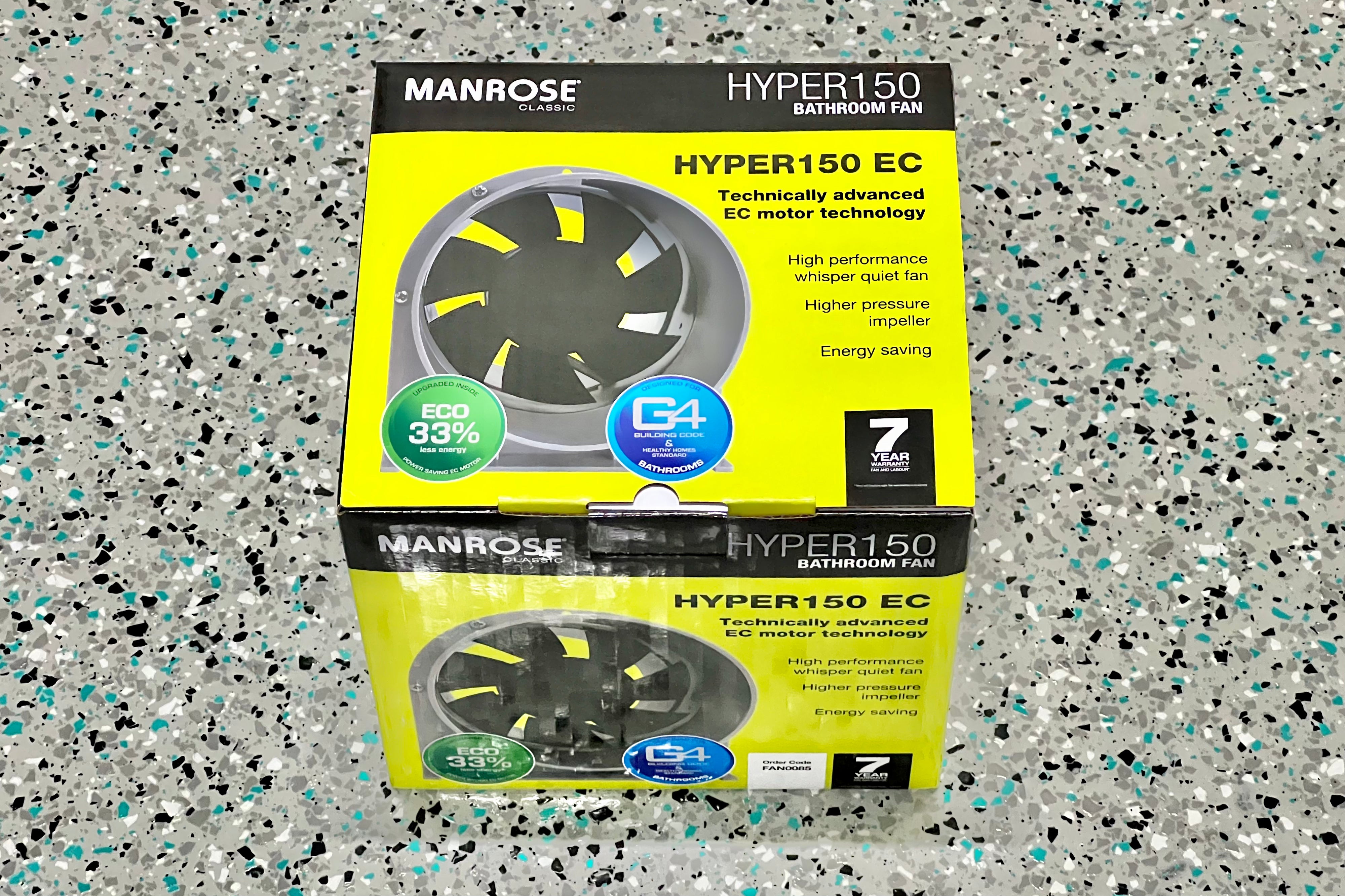

Manrose Hyper150 EC Axial Inline Fan

The 150mm diameter EC inline axial duct fan is suitable for straight forward domestic bathroom applications.

The high speed brushless EC motor, fitted with integral ball bearings, mean a long service life and a quieter operation. These fans are generally mounted in the ceiling cavity to exhaust air from interior vents to the outside. The compact design, low profile, ease of mounting and IP rating to IP44 ensure a straight forward installation.

Suitable for extracting air from toilets and bathrooms. Ideal for the supply of fresh air to stale enclosed areas.

  • Technically advanced EC motor technology.
  • Nominal diameter 150mm.
  • High performance whisper quiet fan.
  • Higher pressure impeller.
  • Energy saving EC motor.
  • Designed for G4 Building Code.
  • High water resistance: IP44 (if installed in a duct).
  • 7 Year Warranty.

150mm Specifications

  • Supply: 110-240V AC 50Hz.
  • Power Consumption: 18W.

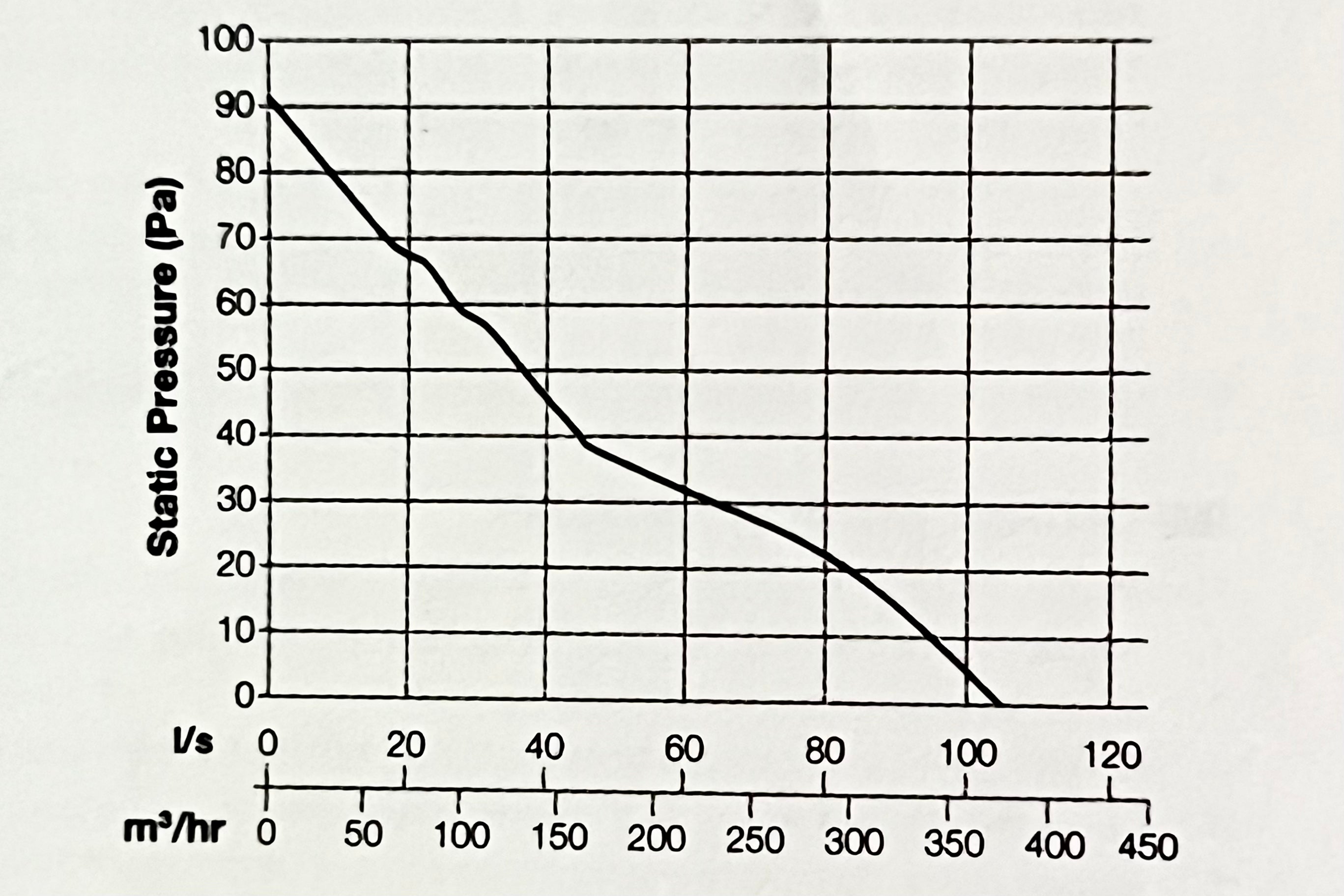

  • Maximum Airflow: 380 m³/h.
  • Maximum Pressure: 91 Pa.
  • Sound Level: 38 dB(A).
  • IP Rating: IP44.
  • Fan Construction: Die Cast Aluminium.
  • Impeller and Outer Housing: PBT Plastic.
  • Maximum Operating Temperature: 45 Degrees Celsius.

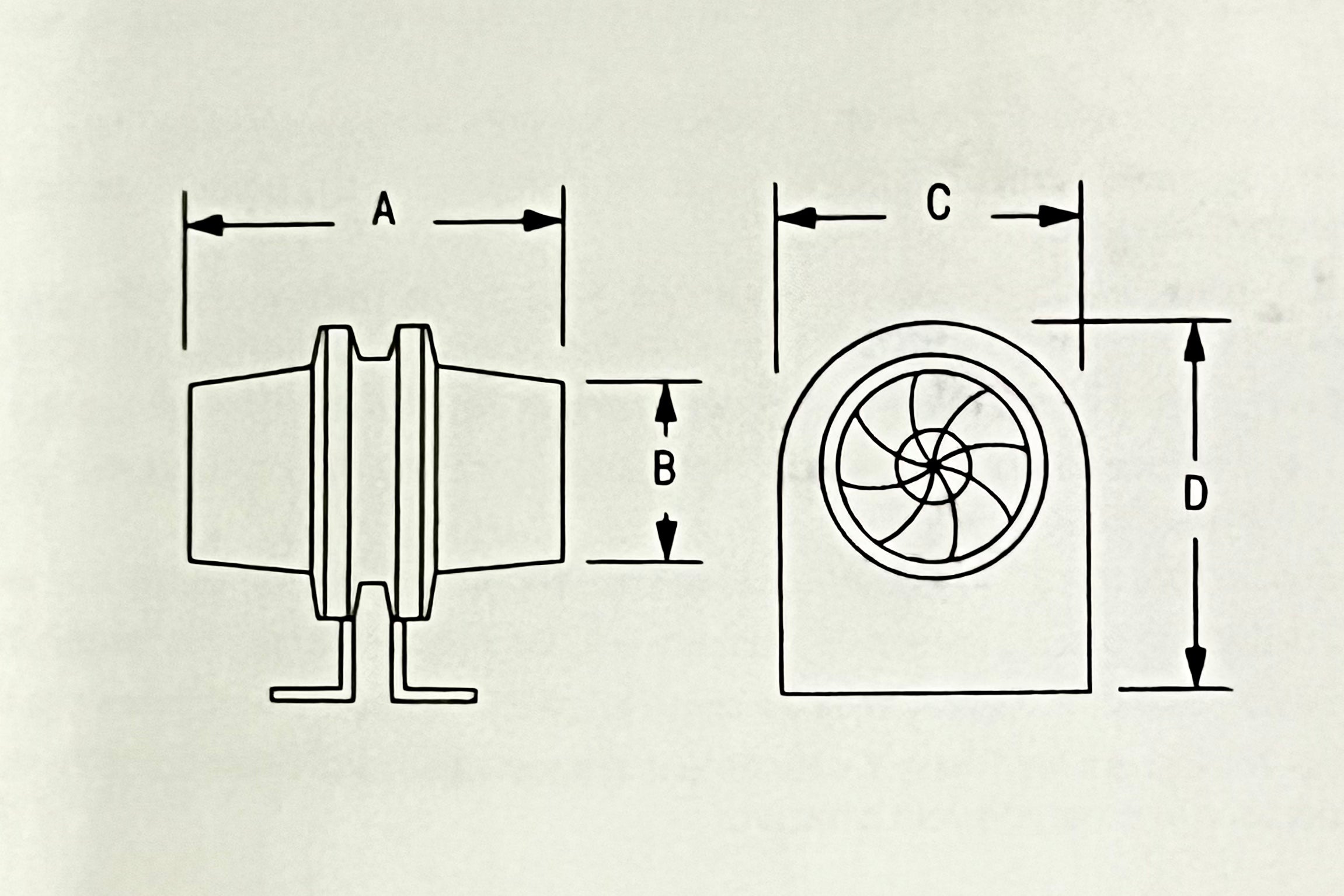

  • 200mm length (A).
  • 143mm duct attachment flange diameter (B).
  • 170mm width (C).
  • 185mm height (D).
