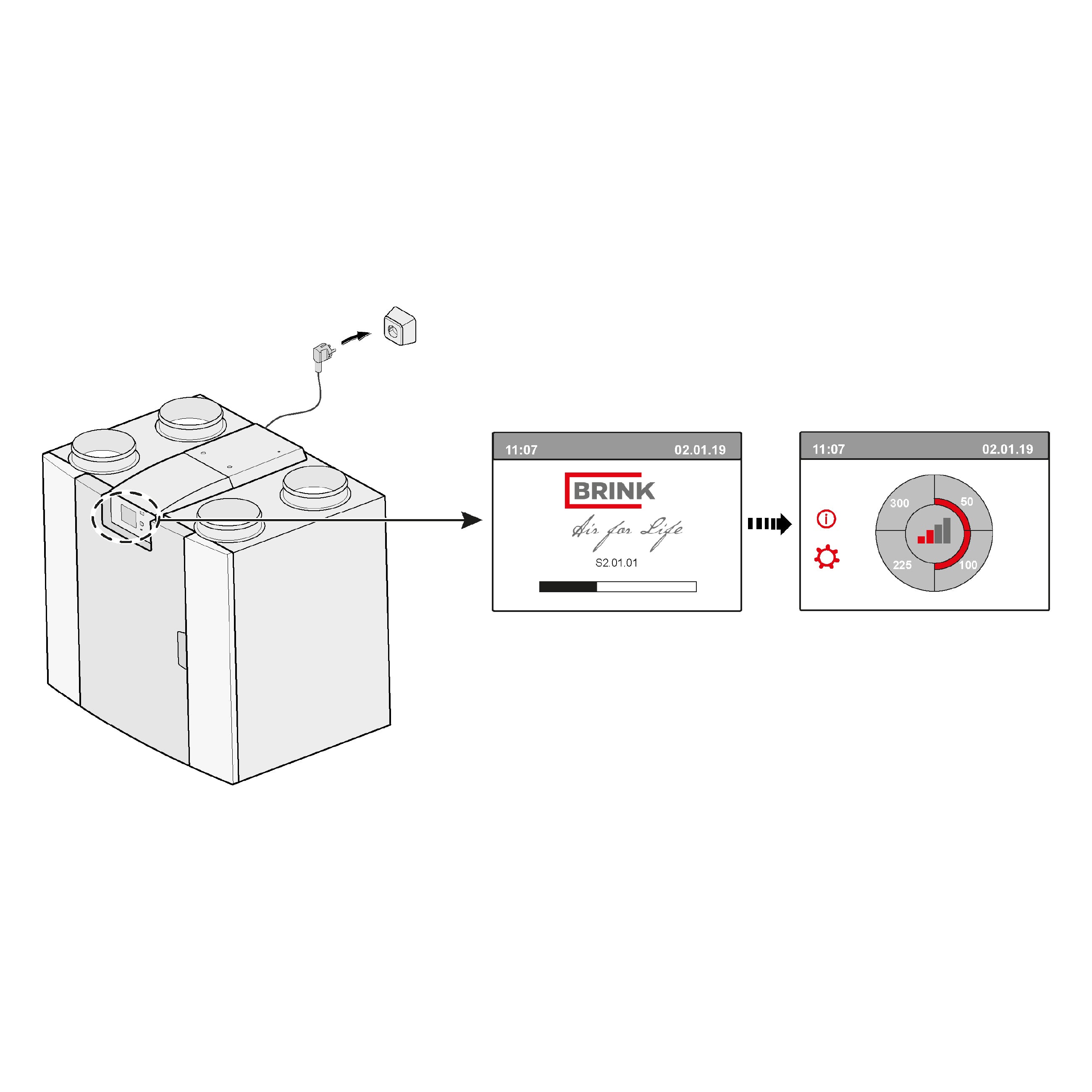

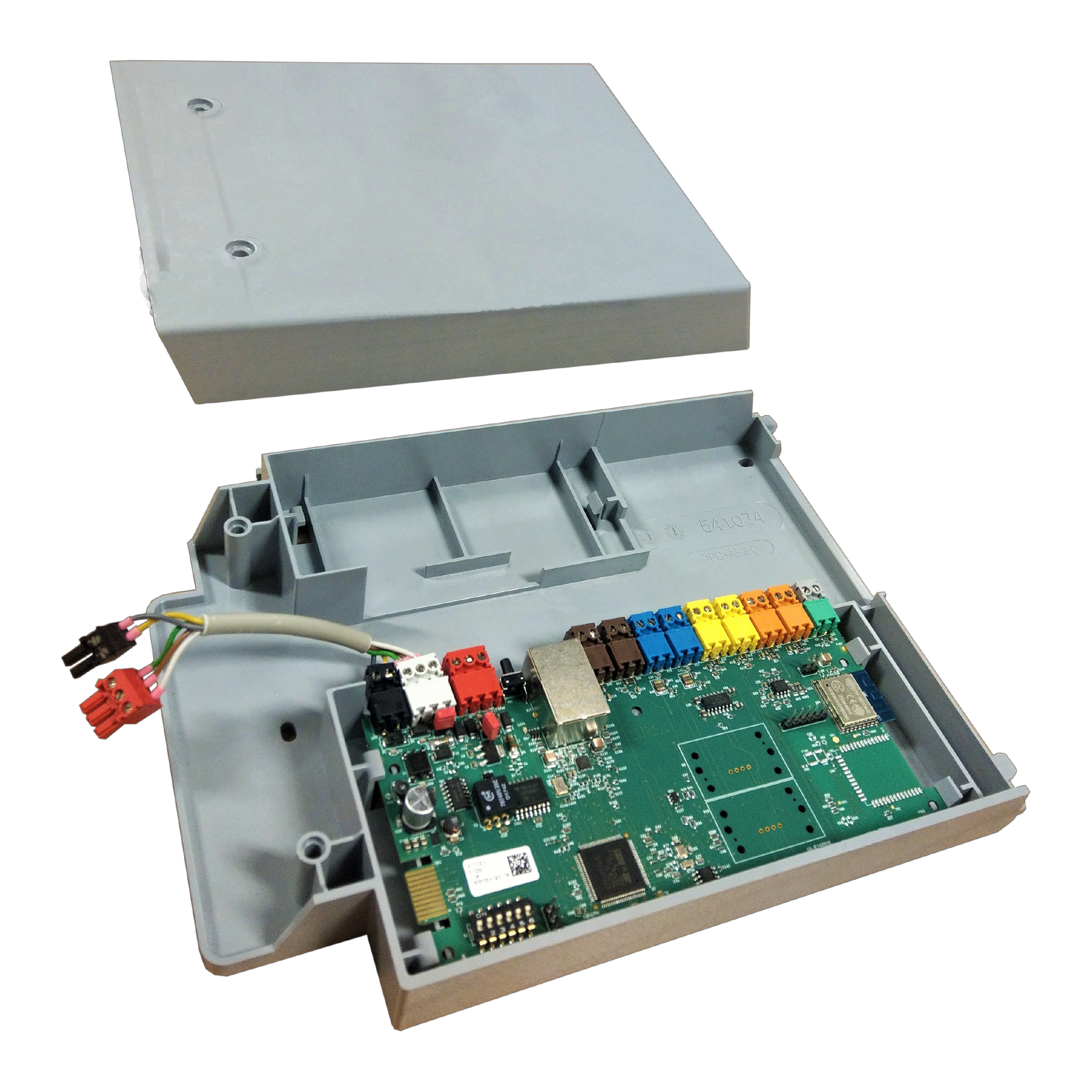

The optional Plus PCB can connect the Flair unit to the Brink Home system, thus giving you easy online control of the unit by phone, tablet or computer using the app or web portal.
Connectivity Options
- RS485 ModBus
- Switching Contact 1 and 2
- Relay Output 1 and 2
- 0-10V Input 1 and 2
- 0-10V Output 1 and 2
- RJ45 LAN Connection
- WiFi
Click Here to download the Plus PCB Installation Manual.
For Home or Professional

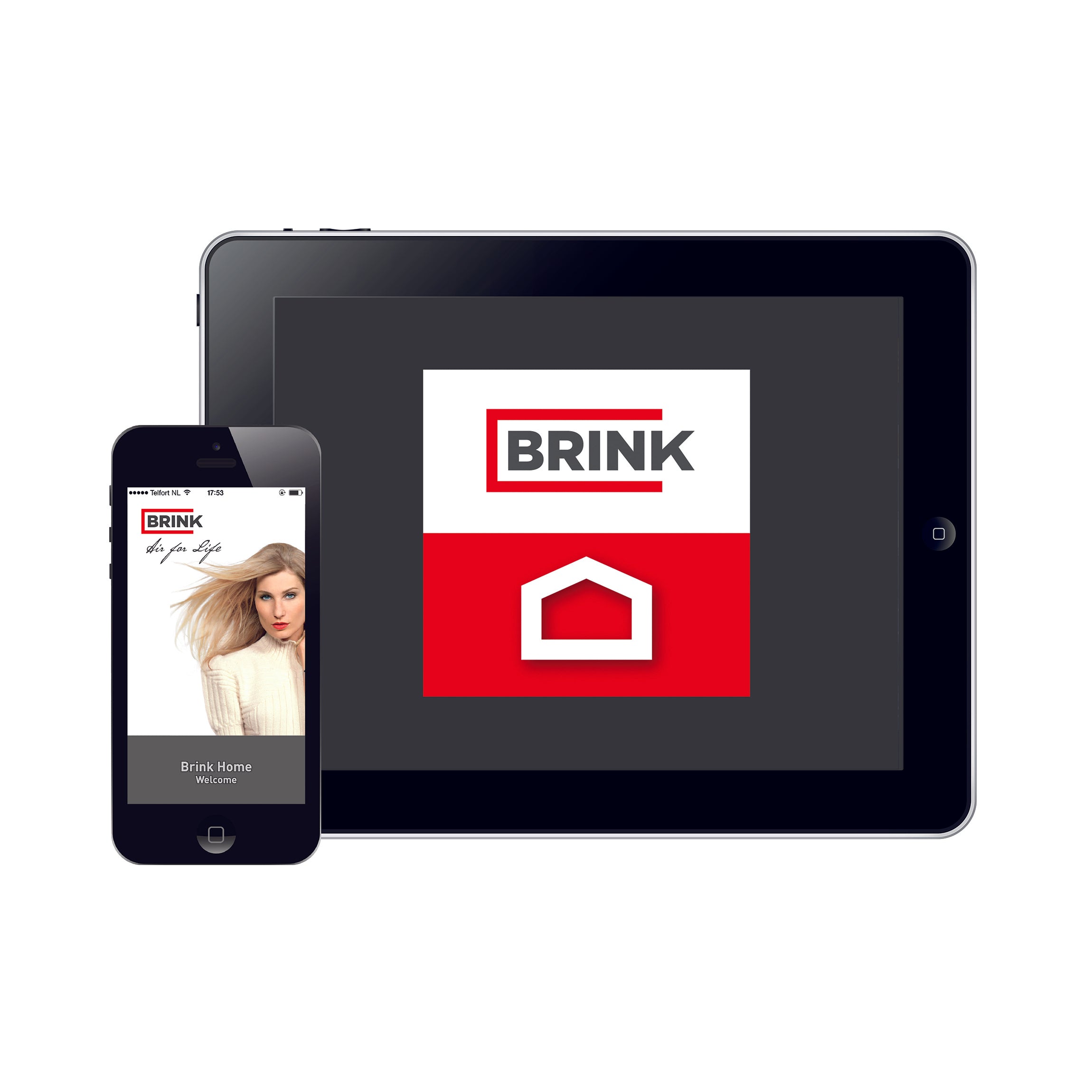

Brink Home Module and App
Brink Home makes it possible to control and read out the ventilation system, Flair or Renovent, anywhere in the world from a smart phone or PC.
The system includes the Brink Home Module and the Brink Home App, linked to the Renovent or Flair ventilation solution, optionally equipped with the Air Control module.
What Can You Do With Brink Home?
- Choose the desired ventilation mode (away, at home, cooking/showering).
- Program the ventilation settings with the optional control module Air Control.
- Gain insight into the CO2 percentage at home.
- Increased ventilation initiated by the humidity (RH) sensor.
- Choose in what zone or zones the 2-zone demand flow is active.
- Choose between active or inactive bypass.
- Get a message when filters need to be replaced.
- Be quickly alerted about any fault.
For Professionals
ModBus Brink Connect
Brink Connect allows you to link all units from the series Flair, Renovent Excellent and Sky as well as the Air 70 to building management systems based on the Modbus protocol.
The Modbus module allows you to read out and/or adjust various parameters. Brink Connect makes it possible to manage ventilation appliances this way from one central location.
