External Wall Mounted Centrifugal Fans: Vortice CA WE (AC Motors)

Sale price$699.00
In stock

Size: 150mm

Fresh Ventilation do not recommend, sell or install any other type of wall mounted fan.

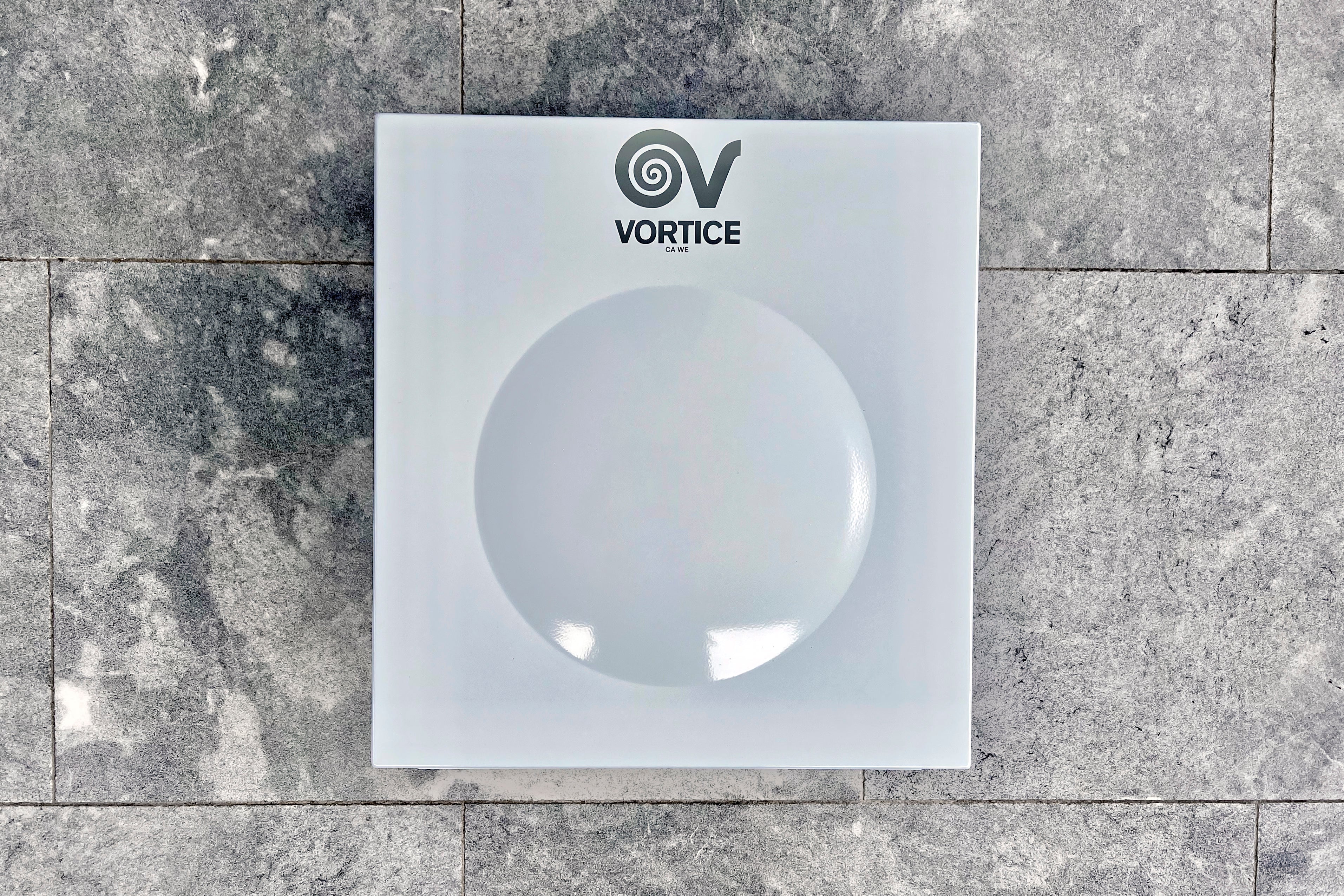

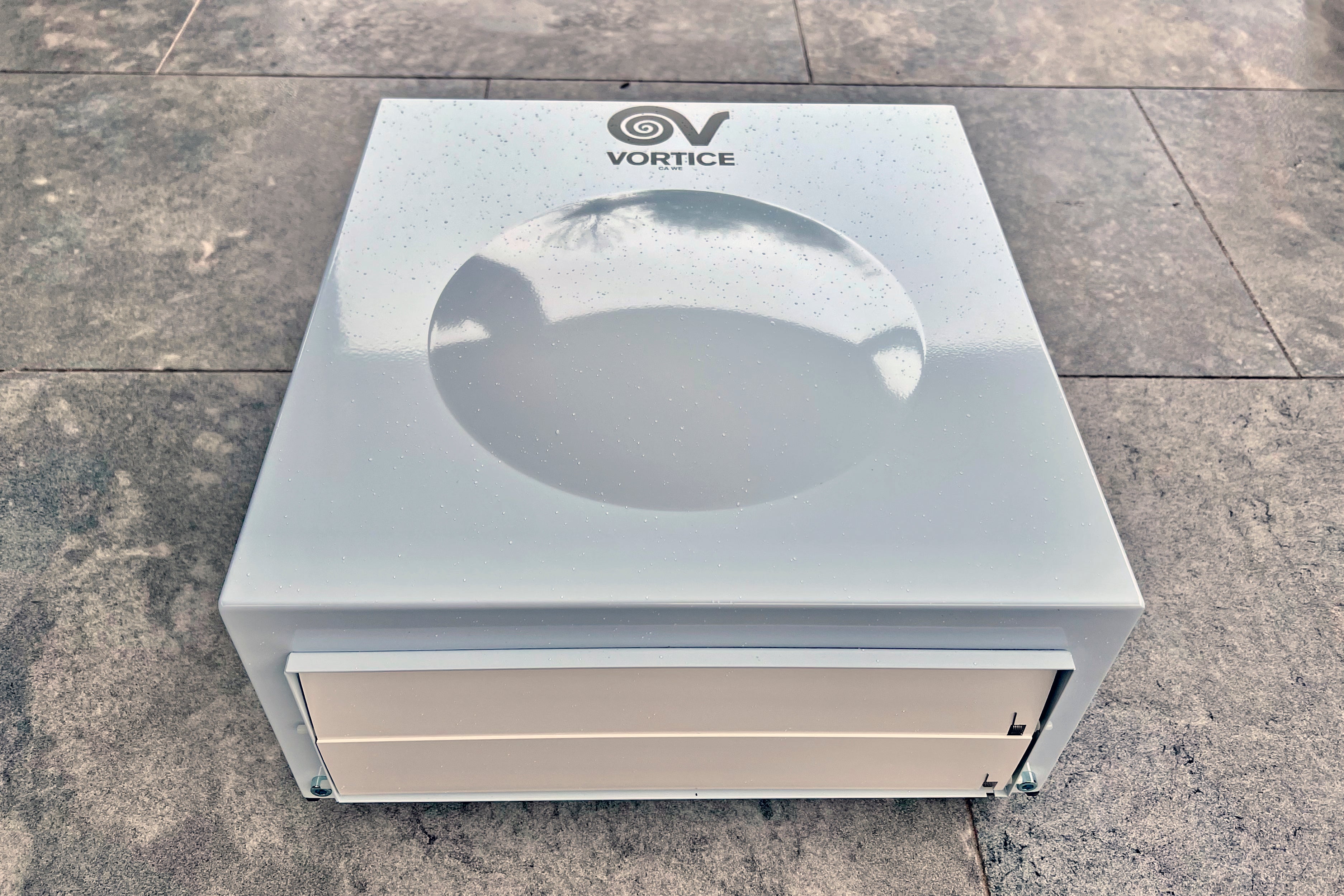

Vortice CA 150 WE D E: Centrifugal Duct Fan for External Wall

The Vortice CA 150 is an externally wall-mounted centrifugal duct fan. Unlike internally mounted fans which are severely limited by mounting space and noise requirements, the Vortice CA 150 actually works!

Included Items

  • 1 x 150mm Vortice CA 150 WE D E centrifugal fan manufactured in Italy.

Recommended Items (Optional)

  • 1 x White plastic Louvre grille (click here).
  • 1 x 6m V-Flex duct manufactured in Australia (click here).
  • 1 x 30m duct tape (click here).
  • 1 x IS-SS IntelliSwitch automatic run-on timer (click here).

Additional quantities of individual items can be purchased in our store.

Specifications

  • R2E220 motor manufactured by ebm-papst in Germany.
  • P04 pressed steel outer enclosure with a polyester paint finish (resistant to atmospheric agents) manufactured by Vortice in Italy.
  • Designed and assembled in Italy.
  • AC motor with a thermal overload cutout.

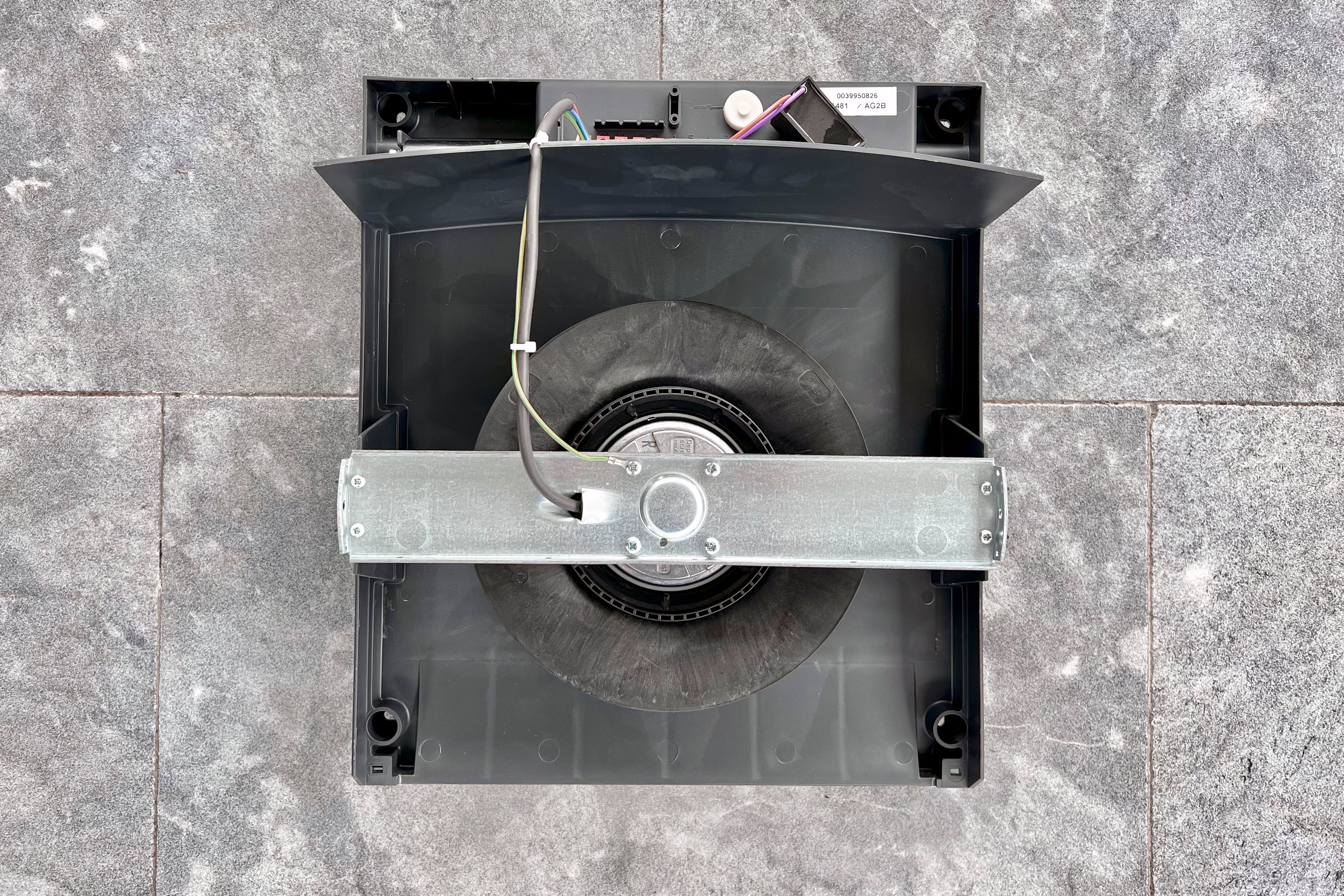

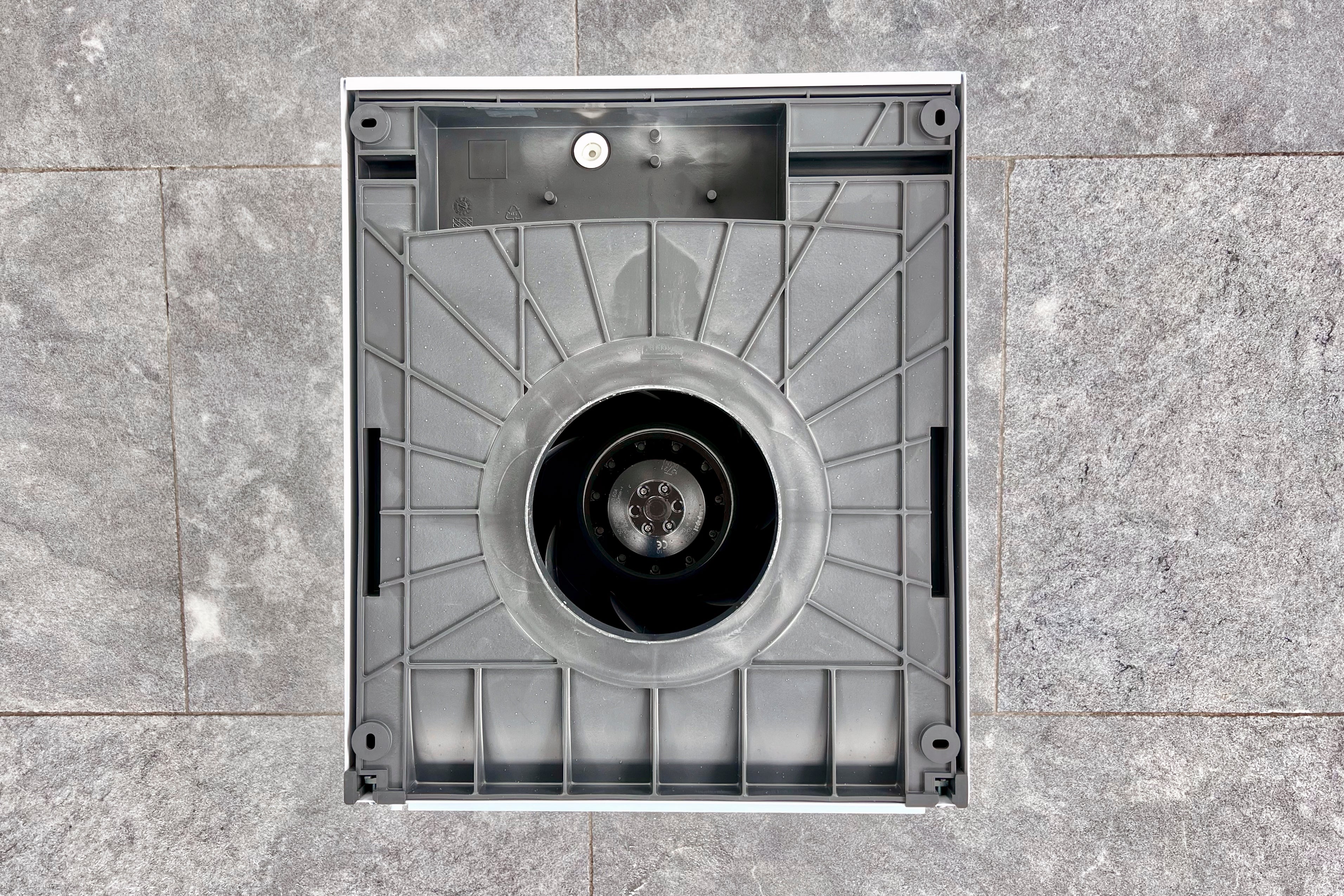

  • Backward curved centrifugal impeller.
  • 3 speed fan (dependant on installation wiring and switching).
  • Controllable by optional remote sensors (temperature, relative humidity, smoke and presence).

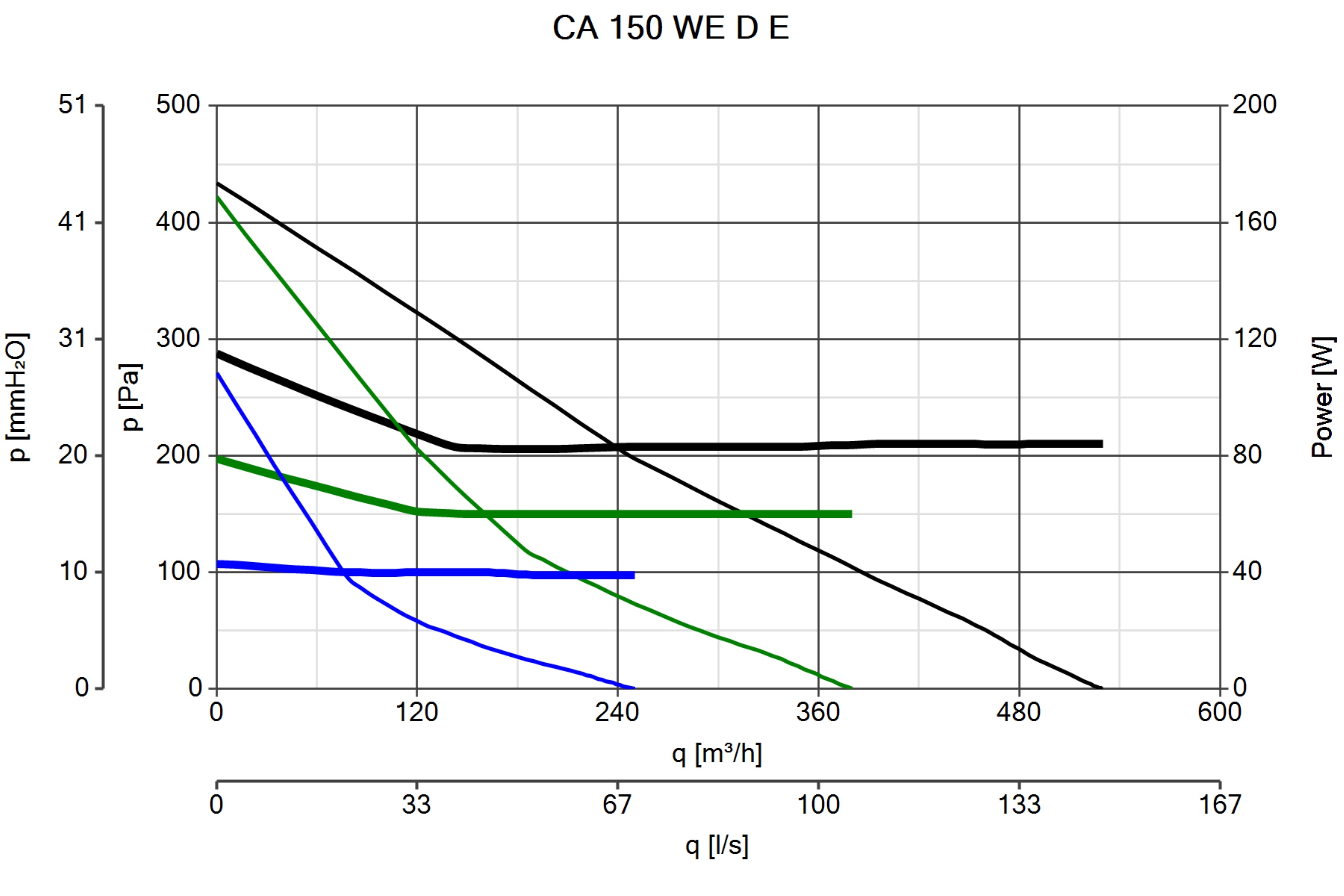

  • Approximately 250 m³/h air flow and 39 W power usage (low speed).
  • 36.2 dB(A) sound pressure level at 3m (low speed).
  • Approximately 530 m³/h air flow and 87 W power usage (max speed).
  • 53.0 dB(A) sound pressure level at 3m (max speed).

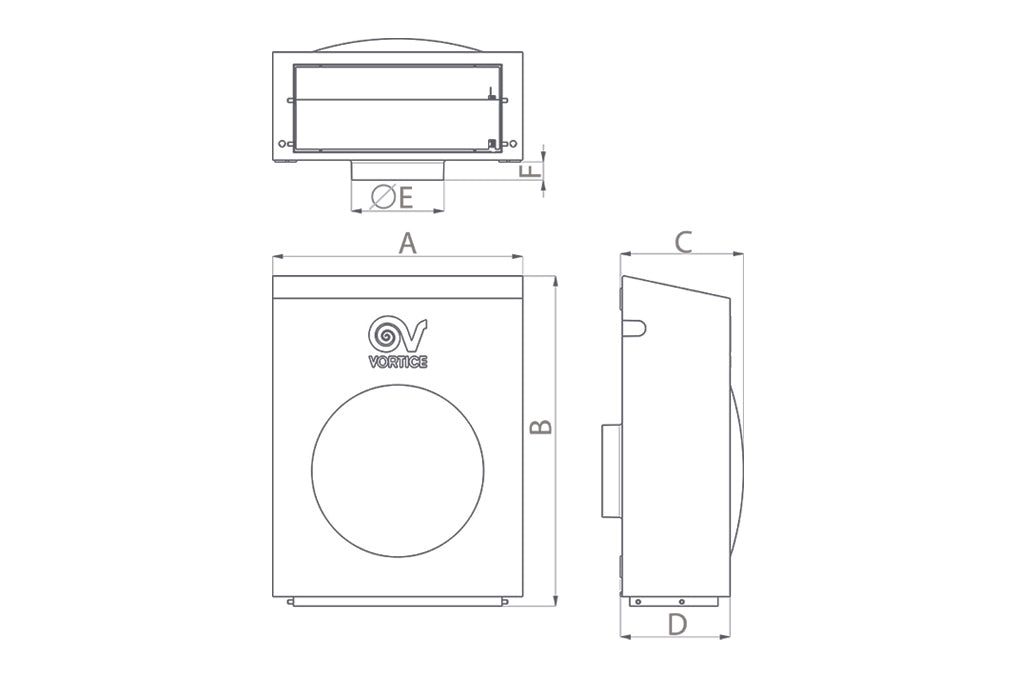

Dimensions

  • 360mm width (A).
  • 430mm height (B).
  • 173mm depth (C).
  • 155mm Louvre opening depth (D).
  • 147mm duct attachment flange diameter (E).
  • 20mm duct attachment flange depth (F).

Vortice CA 200 WE D E: Centrifugal Duct Fan for External Wall

The Vortice CA 200 is an externally wall-mounted centrifugal duct fan. Unlike internally mounted fans which are severely limited by mounting space and noise requirements, the Vortice CA 200 actually works!

Included Items

  • 1 x 200mm Vortice CA 200 WE D E centrifugal fan manufactured in Italy.

Recommended Items (Optional)

  • 1 x 6m V-Flex duct manufactured in Australia (click here).
  • 1 x 30m duct tape (click here).
  • 1 x IS-SS IntelliSwitch automatic run-on timer (click here).

Additional quantities of individual items can be purchased in our store.

Specifications

  • R2E220 motor manufactured by ebm-papst in Germany.
  • P04 pressed steel outer enclosure with a polyester paint finish (resistant to atmospheric agents) manufactured by Vortice in Italy.
  • Designed and assembled in Italy.
  • AC motor with a thermal overload cutout.
  • Backward curved centrifugal impeller.
  • 3 speed fan (dependant on installation wiring and switching).
  • Controllable by optional remote sensors (temperature, relative humidity, smoke and presence).

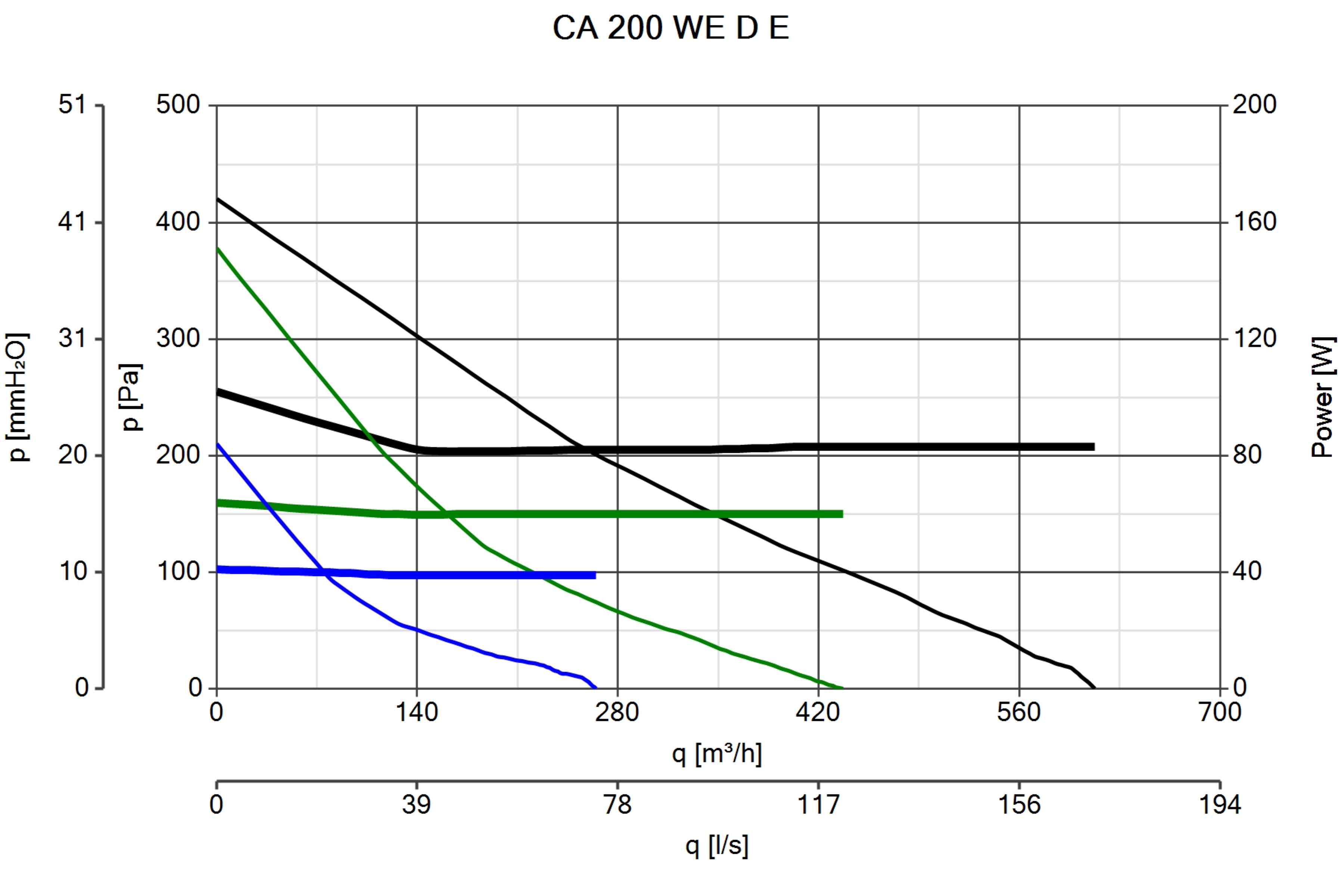

  • Approximately 265 m³/h air flow and 40 W power usage (low speed).
  • 35.7 dB(A) sound pressure level at 3m (low speed).
  • Approximately 613 m³/h air flow and 88 W power usage (max speed).
  • 52.5 dB(A) sound pressure level at 3m (max speed).

Dimensions

  • 360mm width (A).
  • 430mm height (B).
  • 173mm depth (C).
  • 155mm Louvre opening depth (D).
  • 197mm duct attachment flange diameter (E).
  • 20mm duct attachment flange depth (F).
