KAFLEX Cable Sealing Grommets and Patches
TRADE CUSTOMERS: Contact Us for Trade Pricing.
KAFLEX mono/duo
Cable Sealing Grommets
- Weather-resistive and airtight sealing grommets for 1 or 2 cable penetrations.
- Suitable for penetrations in facades and roof linings.
- Provides an airtight connection for the life of the building.
- Made of EPDM, ensuring high flexibility and elasticity.

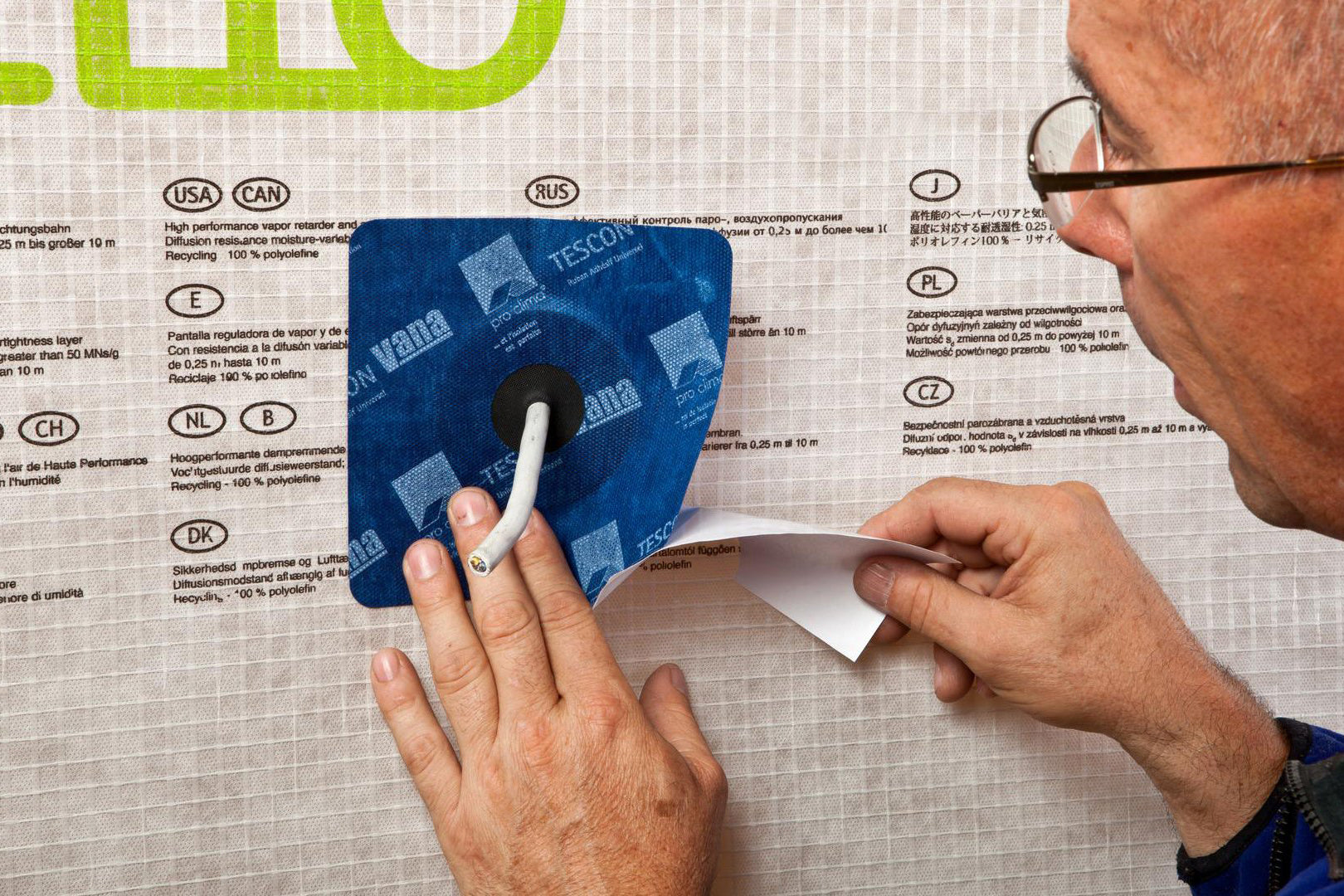

KAFLEX is a cable sealing grommet made from EPDM with a factory bonded flange that self-seals around cables. It has excellent adhesion for secure and airtight seals where round cables penetrate membranes or smooth, non-mineral surfaces.
KAFLEX mono/duo are airtight and weathertight sealing grommets made of strong and flexible EPDM with an integrated adhesive flange. KAFLEX is a beneficial component of all air barrier and weather resistive barrier systems. It is compatible with membranes, underlays as well as rigid sheathings, rigid wall underlays and rigid air barriers (RAB). Strong, flexible, UV stable up to 180 days, with integrated adhesive, and simple-to-remove release paper, ensures maximum productivity during installation. KAFLEX provides an airtight and watertight adhesive seal to the substrate and pressure seal around the cable, for excellent seals under all conditions. Cables and pipes can be pulled and pushed without damaging the airtightness layer.
Technical Data
| Temperature resistance: | Long term -40 °C to +150 °C (EPDM) Long term -40 °C to +90 °C (TESCON® VANA) |
| Installation temperature: | From -10 °C |
| UV stability and outdoor exposure: | Indoor/outdoor |
| Storage: | Cool and dry |
Ordering Information
| PRODUCT | ID CODE | LENGTH | WIDTH | QUANTITY | ||
| KAFLEX mono | 13628 | 145 mm | 145 mm | 5 | ||
| KAFLEX mono | 13629 | 145 mm | 145 mm | 30 | ||
| KAFLEX duo | 13633 | 145 mm | 145 mm | 5 | ||
| KAFLEX duo | 13631 | 145 mm | 145 mm | 30 |
Downloads

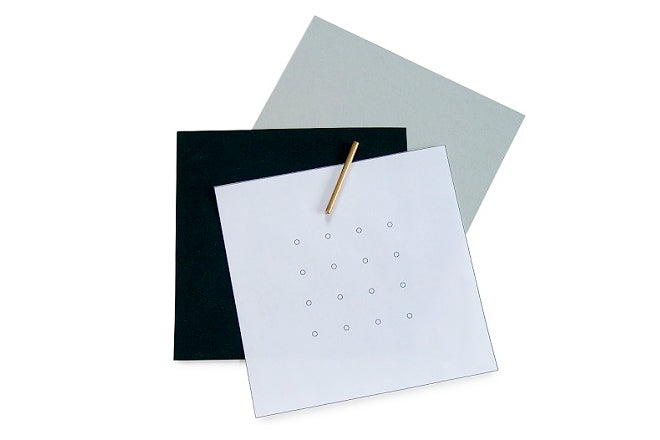

KAFLEX multi
Cable Sealing Grommets
- Weather-resistive and airtight sealing grommets for up to 16 cable penetrations.
- Suitable for penetrations in facades and roof linings.
- Provides an airtight connection for the life of the building.
- Made of EPDM, ensuring high flexibility and elasticity.
KAFLEX is a cable sealing grommet made from EPDM with a factory bonded flange that self-seals around cables. It has excellent adhesion for secure and airtight seals where round cables penetrate membranes or smooth, non-mineral surfaces.

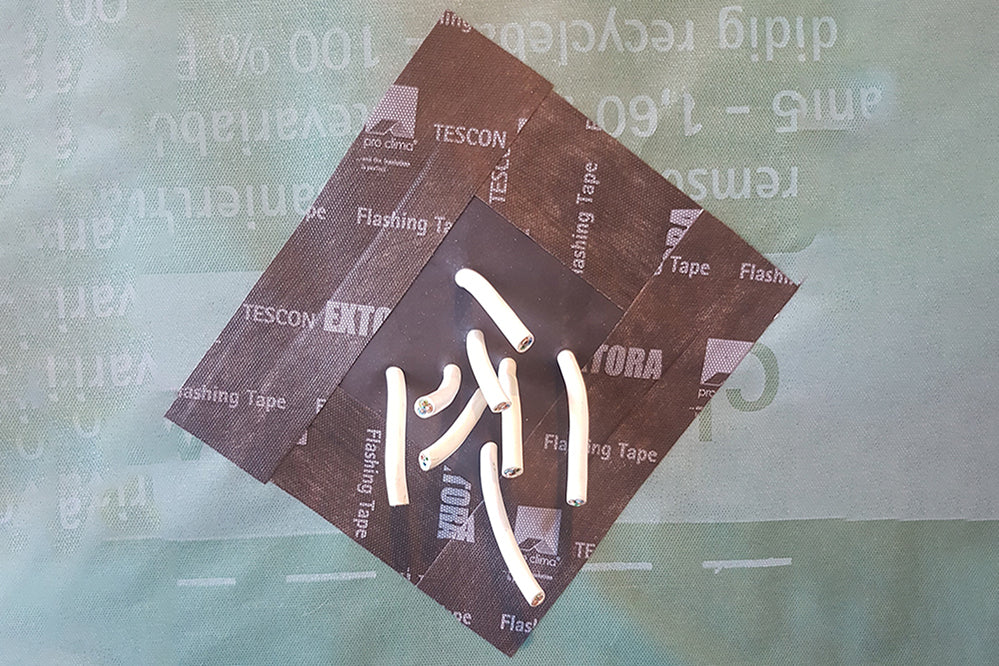

KAFLEX multi is an airtight and weathertight sealing grommet made of strong and flexible EPDM with an integrated adhesive flange. It is used to seal up to 16 penetrations in façades and roof linings. KAFLEX is a beneficial component of all air barrier and weather resistive barrier systems. It is compatible with membranes, underlays as well as rigid sheathings, rigid wall underlays and rigid air barriers (RAB). Strong, flexible, UV stable up to 180 days, with integrated adhesive, and simple-to-remove release paper, ensures maximum productivity during installation. KAFLEX provides an airtight and watertight adhesive seal to the substrate and pressure seal around each cable, for excellent seals under all conditions.
Technical Data
| Temperature resistance: | From -40 °C to +120 °C |
| Installation temperature: | From -10 °C |
| UV stability and outdoor exposure: | 180 days |
| Storage: | Cool and dry |
Ordering Information
| ID CODE | LENGTH | WIDTH | QUANTITY | ||
| 1AR021812 | 140 mm | 140 mm | 2 | ||
| 1AR02181 | 140 mm | 140 mm | 20 |
Downloads

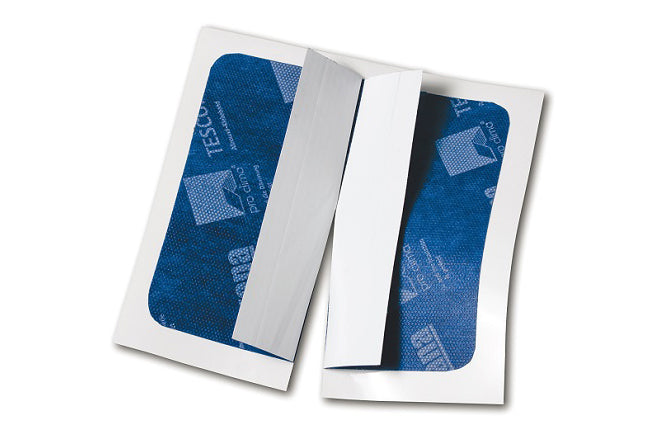

KAFLEX post
Sealing Patch for Already Installed Cables
- Create airtight seals around cables that are already in place.
- Simple, fast and secure application.
- Airtight for the life of the building.
- Extremely flexible and elastic.

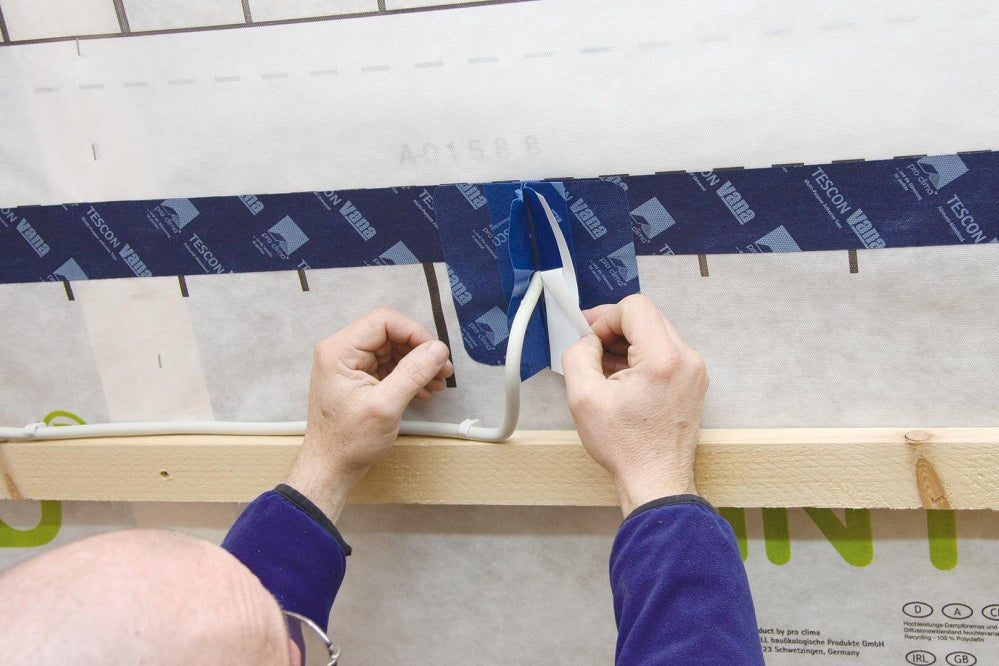

KAFLEX is a sealing patch used to provide a durable seal to an installed cable that is already connected. It can be used in conjunction with internal and external membranes.
KAFLEX post provides quick, permanently secure sealing of installed cables and conduits up to 20 mm in the interior airtightness layer. KAFLEX post is diffusion open and provides airtight sealing in accordance with DIN 4108, SIA 180 and OENORM B8110-2.
Technical Data
| Material: | Special PP fleece/perforated PE foil |
| Release paper: | Siliconised paper |
| Temperature resistance: | Long term -40 °C to +90 °C |
| Installation temperature: | From -10 °C |
Ordering Information
| ID CODE | LENGTH | WIDTH | QUANTITY | ||
| 13635 | 140 mm | 140 mm | 5 | ||
| 1AR02187 | 140 mm | 140 mm | 20 |
Downloads
