STIEBEL ELTRON VRL-C G Premium Accessories

Sale price$475.20
In stock

Accessory: Wall Mounted Controller

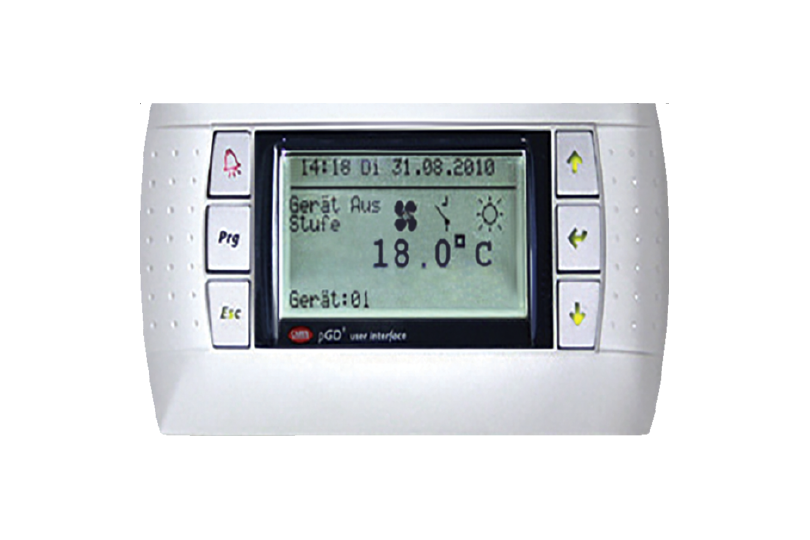

Wall Mounted Controller

Product Details

  • This digital control unit for up to 20 appliances has an integral LCD screen which displays all the relevant operating modes.
  • The system can be operated and programmed intuitively with just 6 buttons. This allows stepless control of air flow rates and supply air temperature.
  • Using the bypass function, night-time cooling in the summer can be set manually or to automatic mode.
  • The integral time switch automatically switches between summertime and wintertime.
  • In addition to the monitoring, status and alarm functions (filter change warning signal), demand-dependent operation can be achieved with the aid of CO2 and VOC sensors.
  • The programming unit is mounted on the wall.

Technical Data

  • Product Number: 204144.
  • Width: 156 mm.
  • Height: 82 mm.
  • Depth: 31 mm.

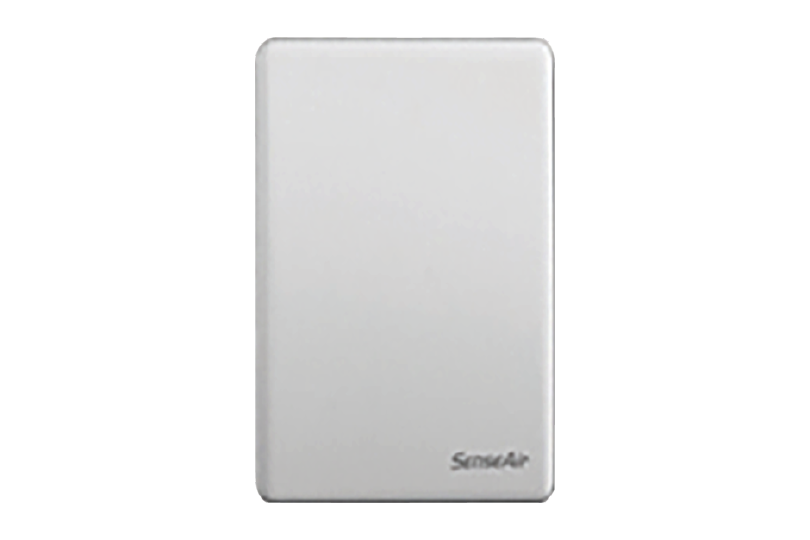

CO2 Sensor

Product Details

  • The CO2 sensor for demand-dependent, enhanced ventilation mode is supplied with a sensor and threshold switch.

Technical Data

  • Product Number: 237649.
  • Version: Room Sensor.
  • Width: 80 mm.
  • Height: 100 mm.
  • Depth: 28 mm.

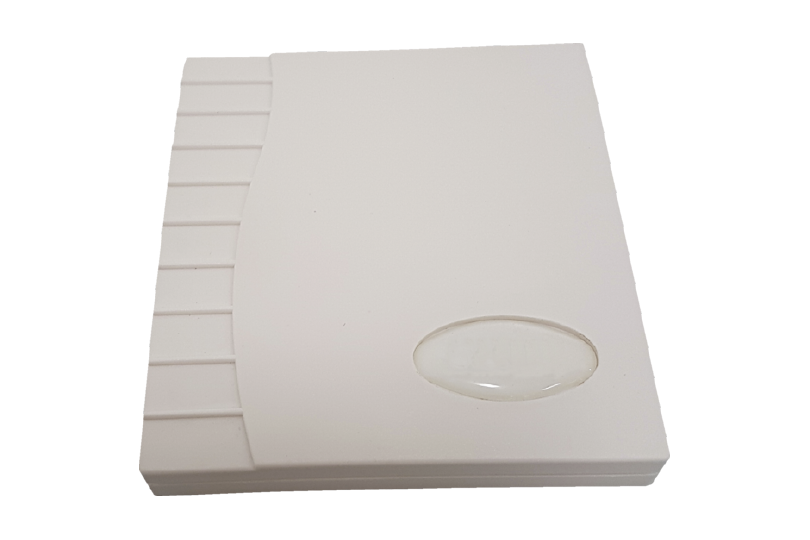

VOC Sensor

Product Details

  • VOC sensor for demand-controlled management of decentralised ventilation units.

Technical Data

  • Product Number: 237658.
  • Width: 100 mm.
  • Height: 100 mm.
  • Depth: 28 mm.
