Budget Sub Floor Ventilation Kits (AC Motors)
Let customers speak for us
System Sizing
The following table outlines useful information, such as quantities of included items and coverage area, for our budget sub floor ventilation kit.
Additional quantities of individual items can be purchased in our store.
Our budget sub floor ventilation kits are designed to be price comparable with other, more basic sub floor ventilation kits available online. Unlike cheaper kits available elsewhere, our budget kits use the same premium components as our premium kits, which are components we install in our business on a daily basis. Our budget kits include fewer items, making them directly comparable to other kits available online.
Our budget sub floor ventilation kits cannot be installed in the same way that we would install our professional sub floor ventilation systems. They do not include enough components or extraction points to achieve the same coverage. They are a simple solution for providing air flow to a sub floor area only. If you would like a kit that replicates our professional installation service, please see our more popular sub floor ventilation kits with AC and EC motors, that also include custom installation maps and one-on-one technical advice.
Premium Sub Floor Ventilation Kits with AC Motors1 Fan Kit
60 m2
1
0
0
2
6 m
1
0
1
0
30 m
50 m
Yes
No
No
Yes

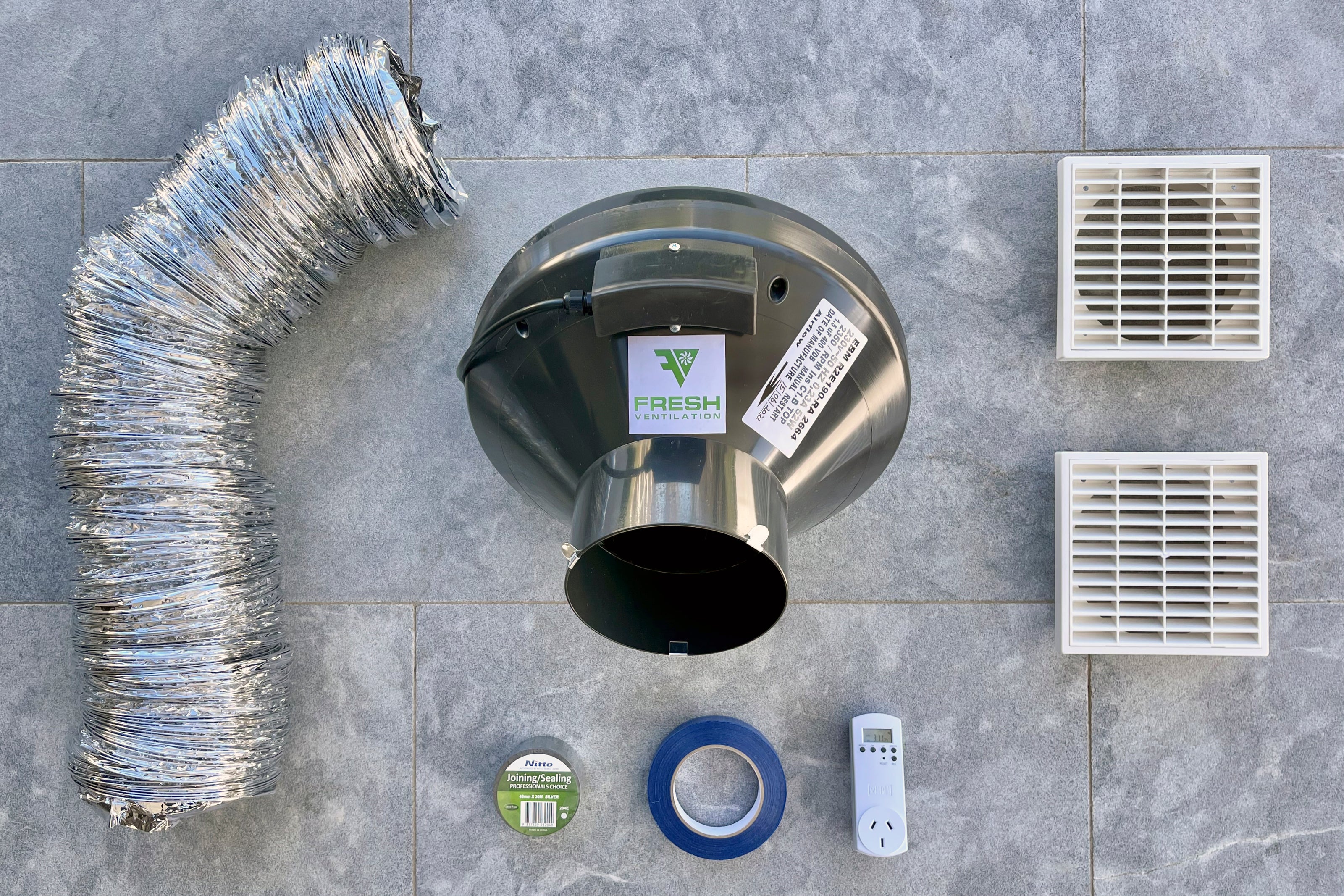

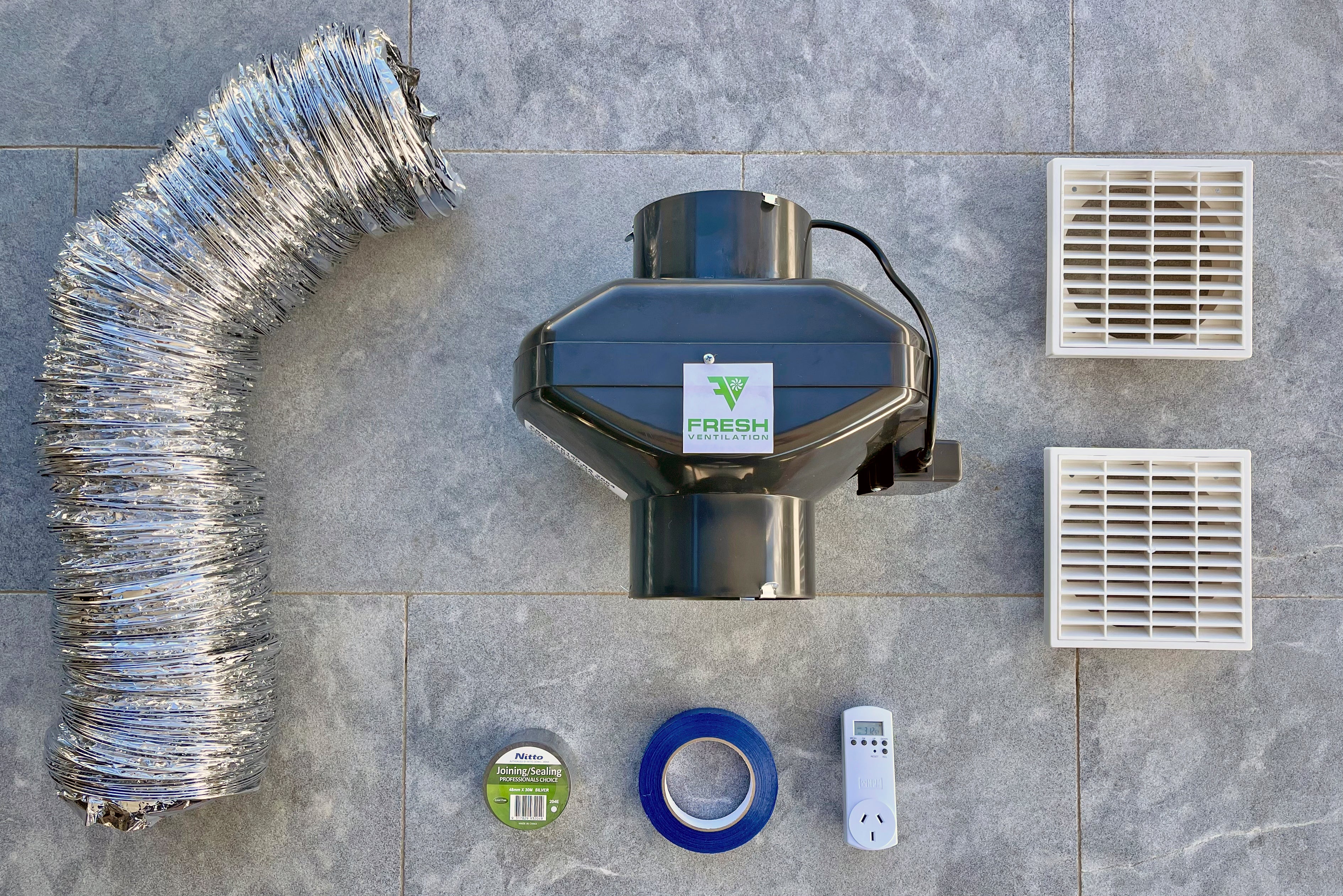

Components

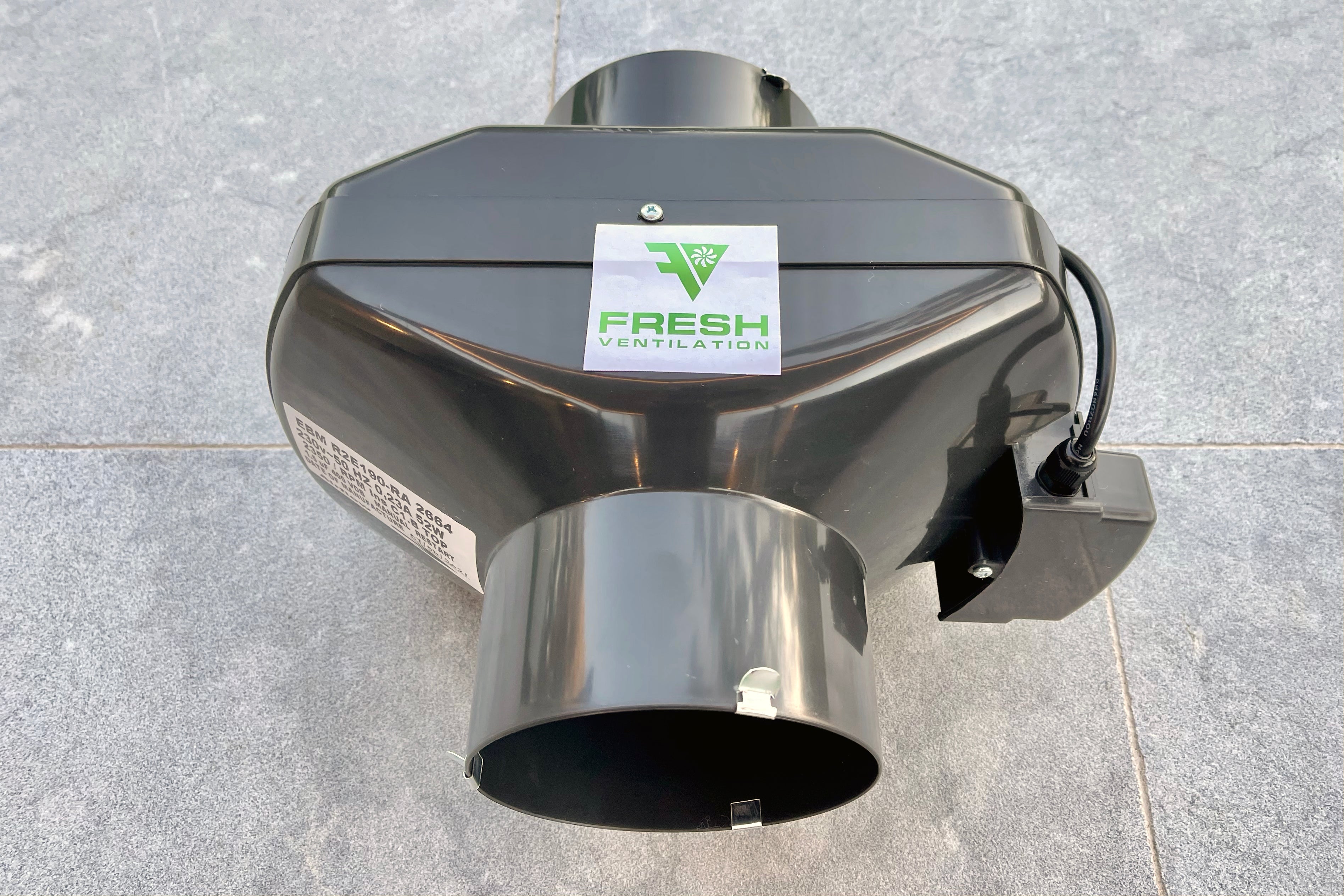

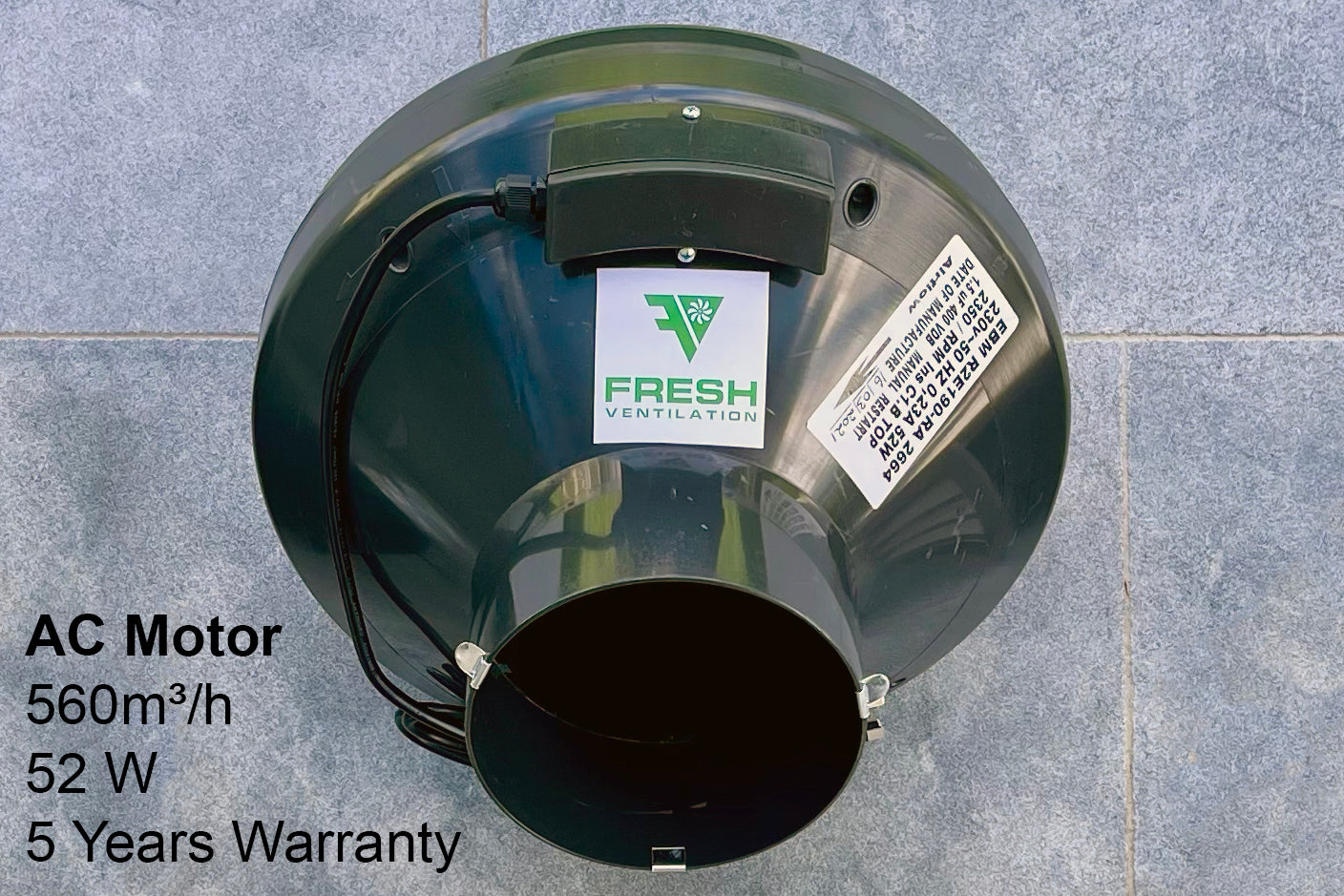

150mm Centrifugal Fan
This is the motor. Depending on the way it's faced, it can either pull air out or push air in. It is suspended in your sub floor area by hanging strap so that vibrations can't be transferred through the structure.

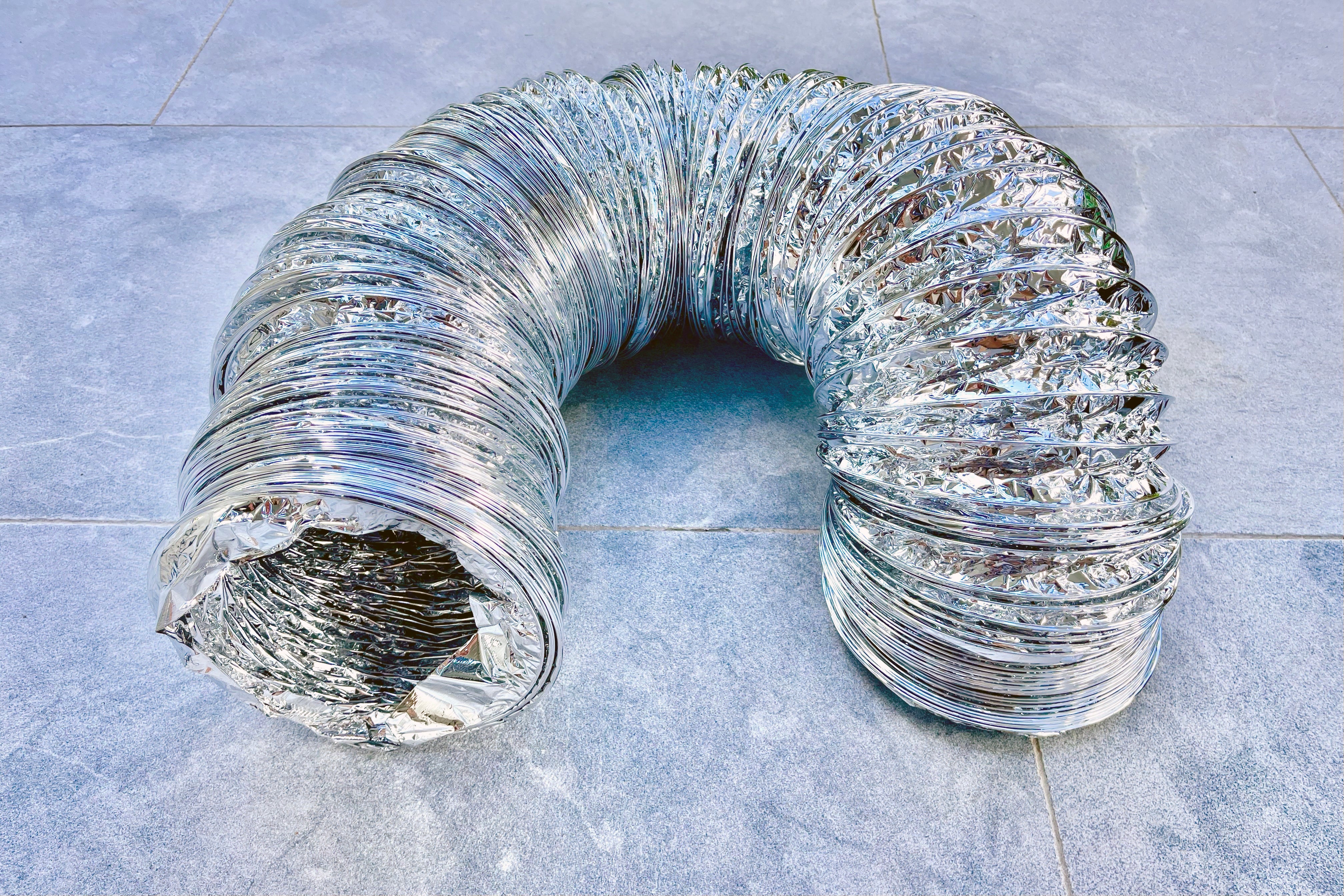

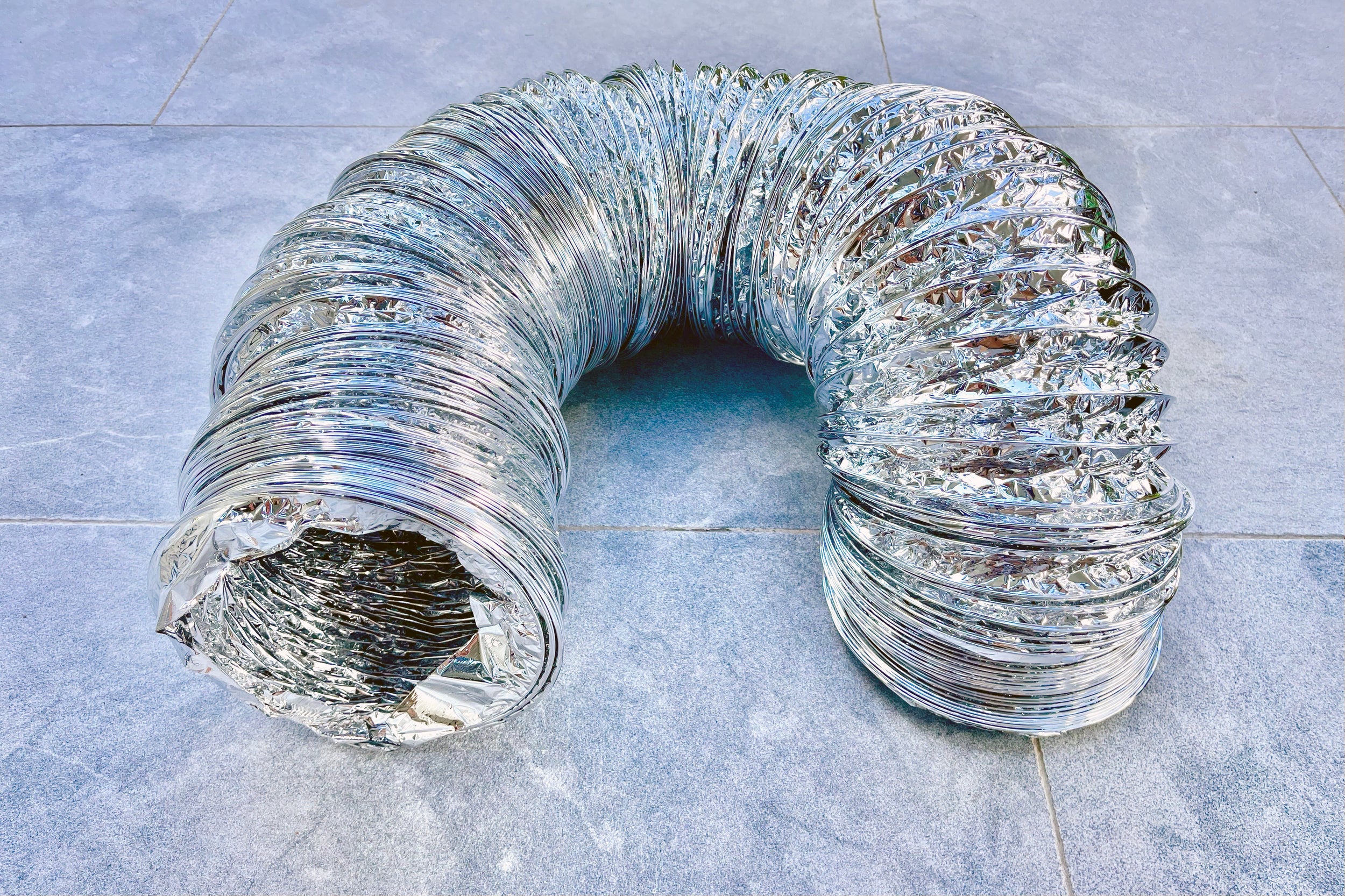

150mm V-Flex Duct
This flexible duct is made in Australia and joins all of the components of the system together. It is much stronger than standard flexible duct.

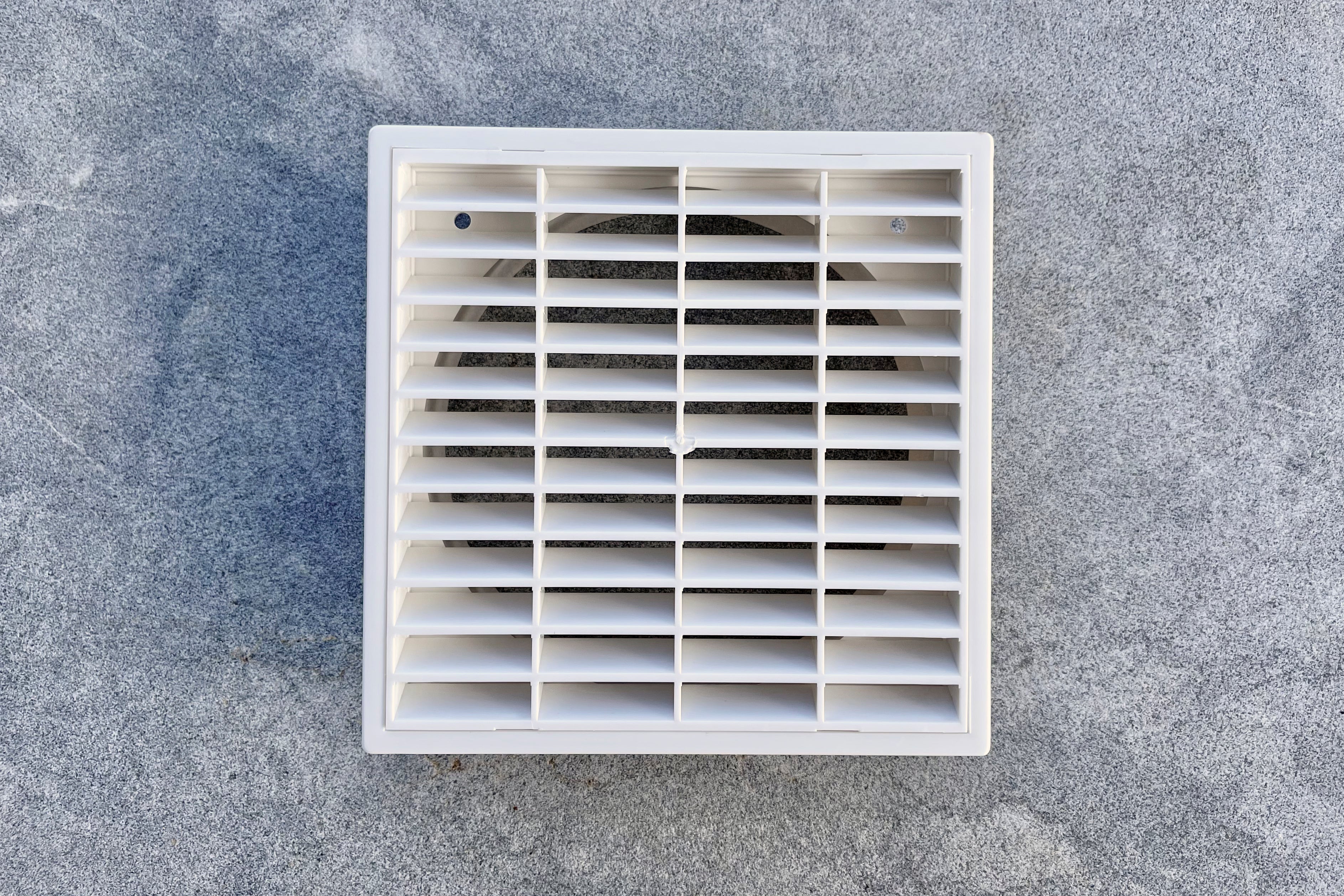

150mm Plastic Louvre Grille
One plastic louvre grille is installed in your external wall. It requires a 160mm round hole to be cut. The grille has a 150mm spigot on the back allowing duct to be connected securely so that there are no leaks. The other plastic louvre grille is installed at the end of the open duct where you are extracting air from. It provides a solid opening to fasten to, so that duct cannot deteriorate over time, or be sucked back in on itself. It also provides a secure point for fastening off to the structure. They are both connected to the fan via ducting.

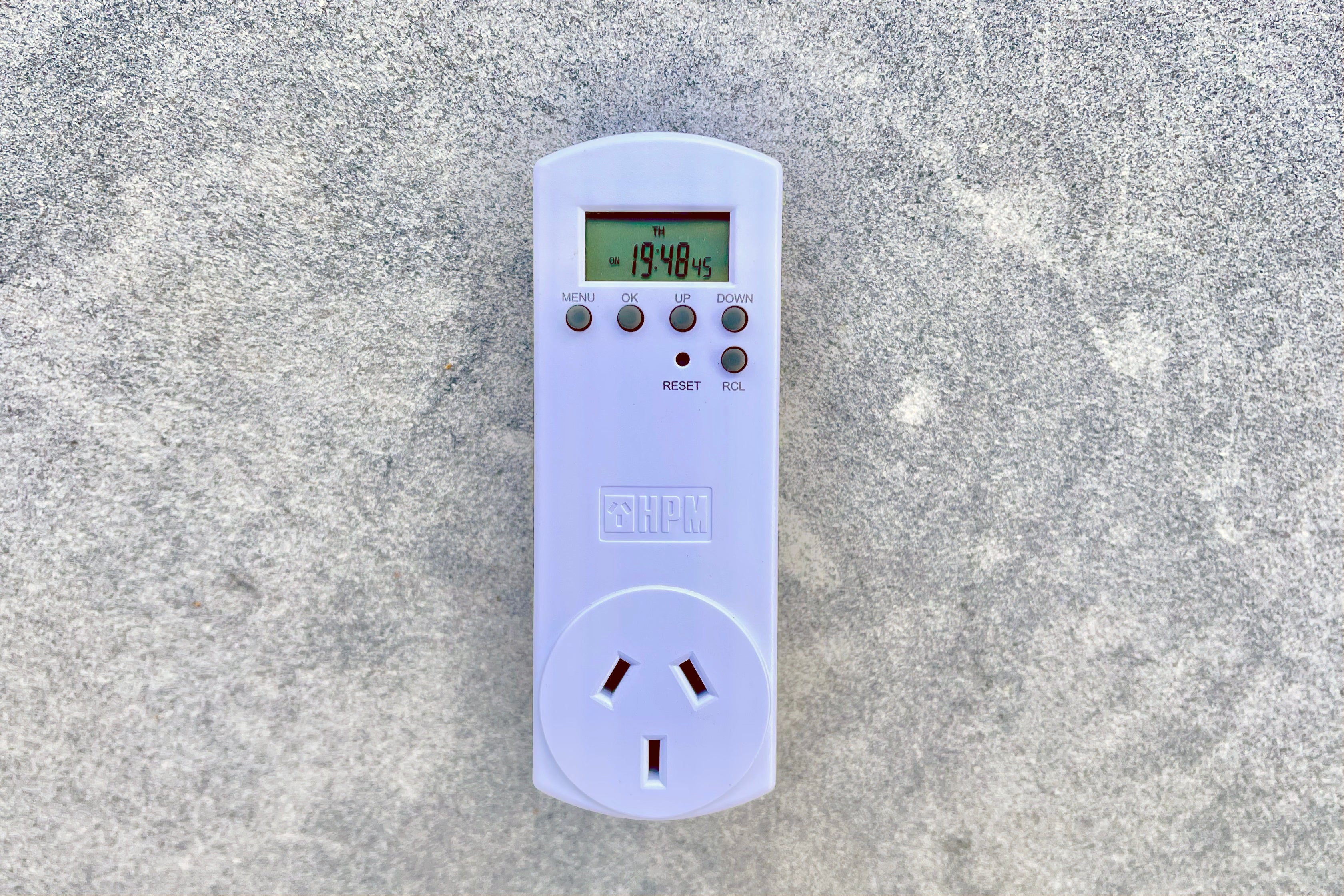

Digital 7 Day Timer with Battery Backup
The fan plugs into this timer, which is then plugged into a power point. It allows the fan to be switched on and off during daylight hours, typically from 7:00am to 5:00pm. Unlike cheaper timers, it has an automatic battery backup. So if the power is interrupted it automatically resumes once power is restored.

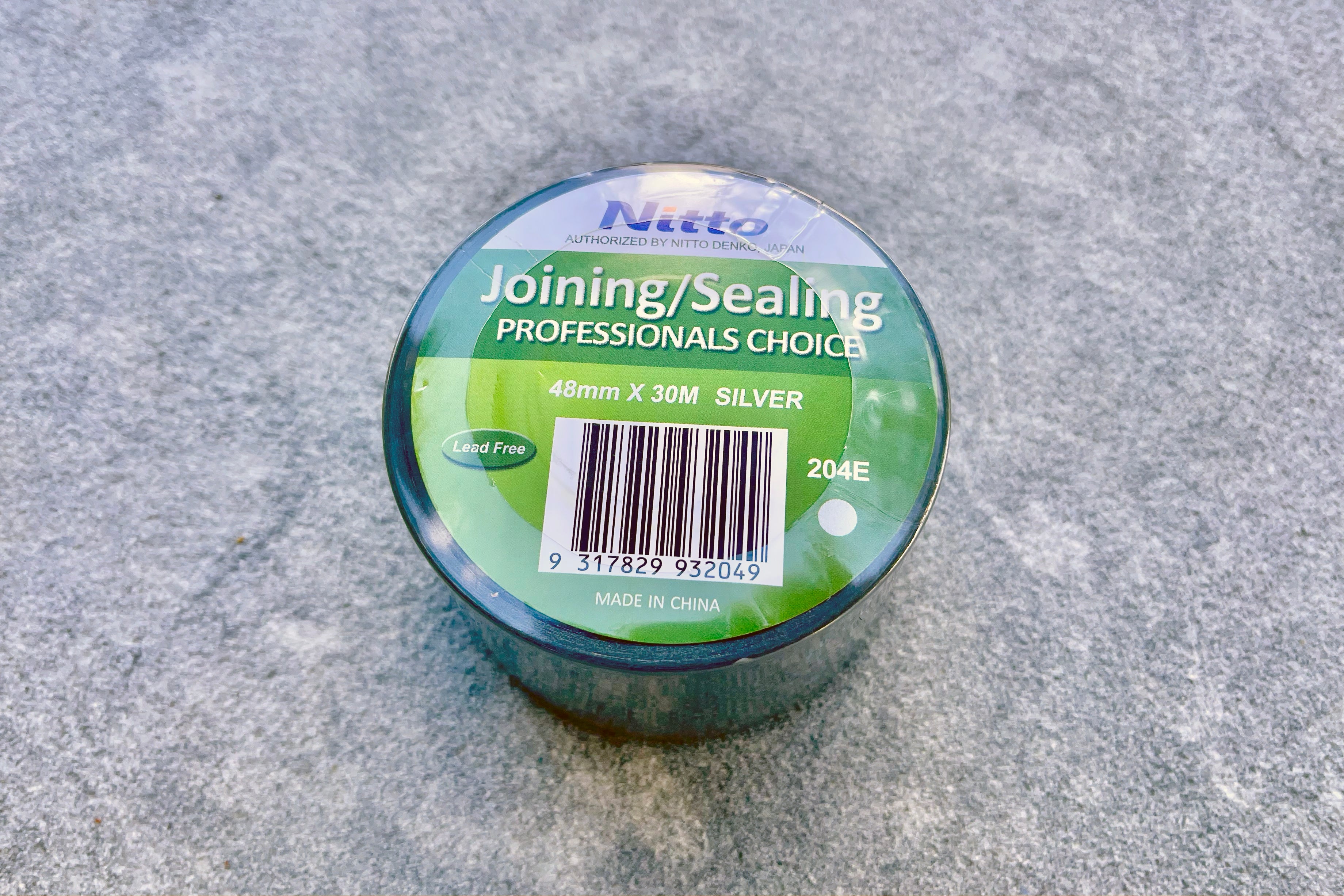

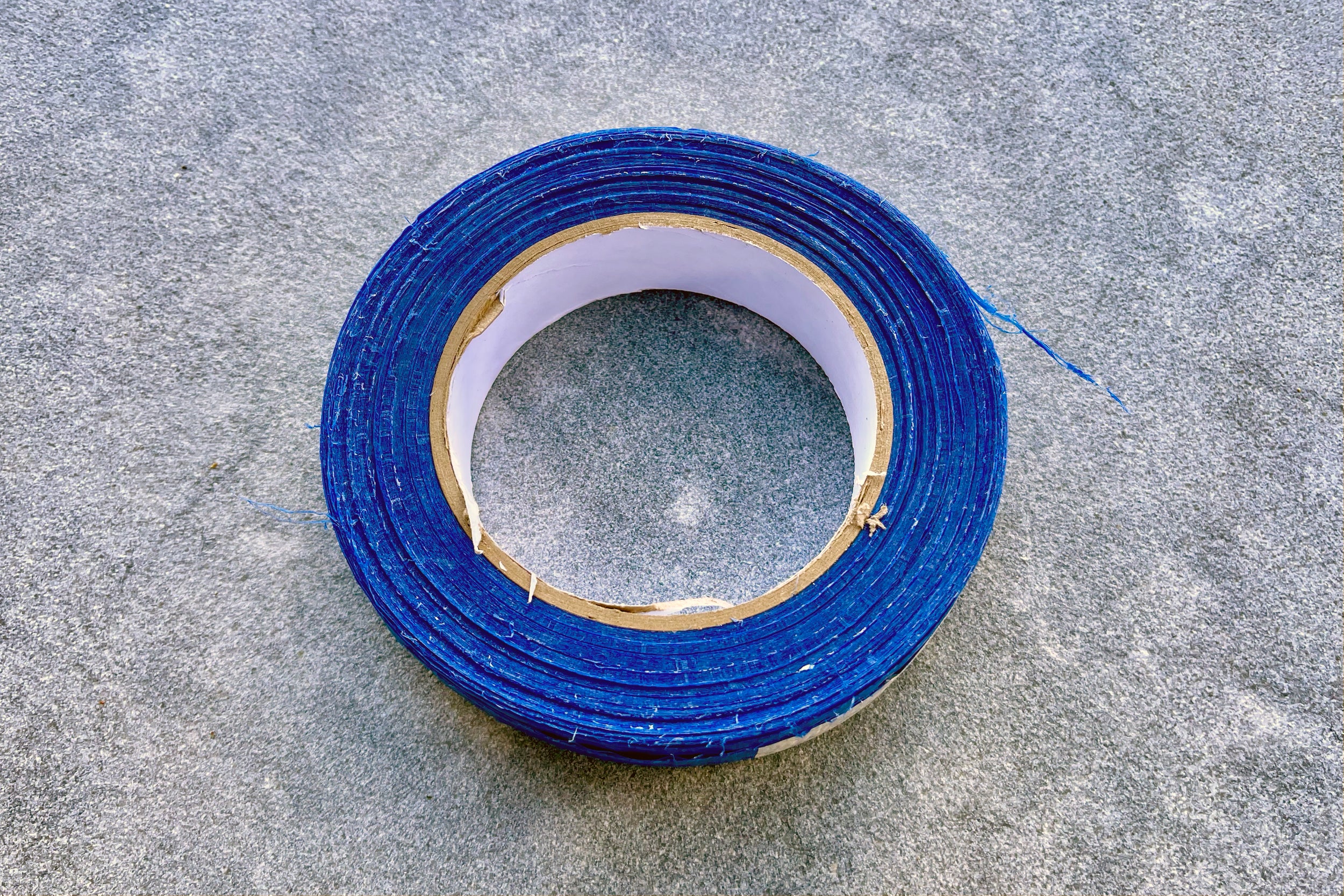

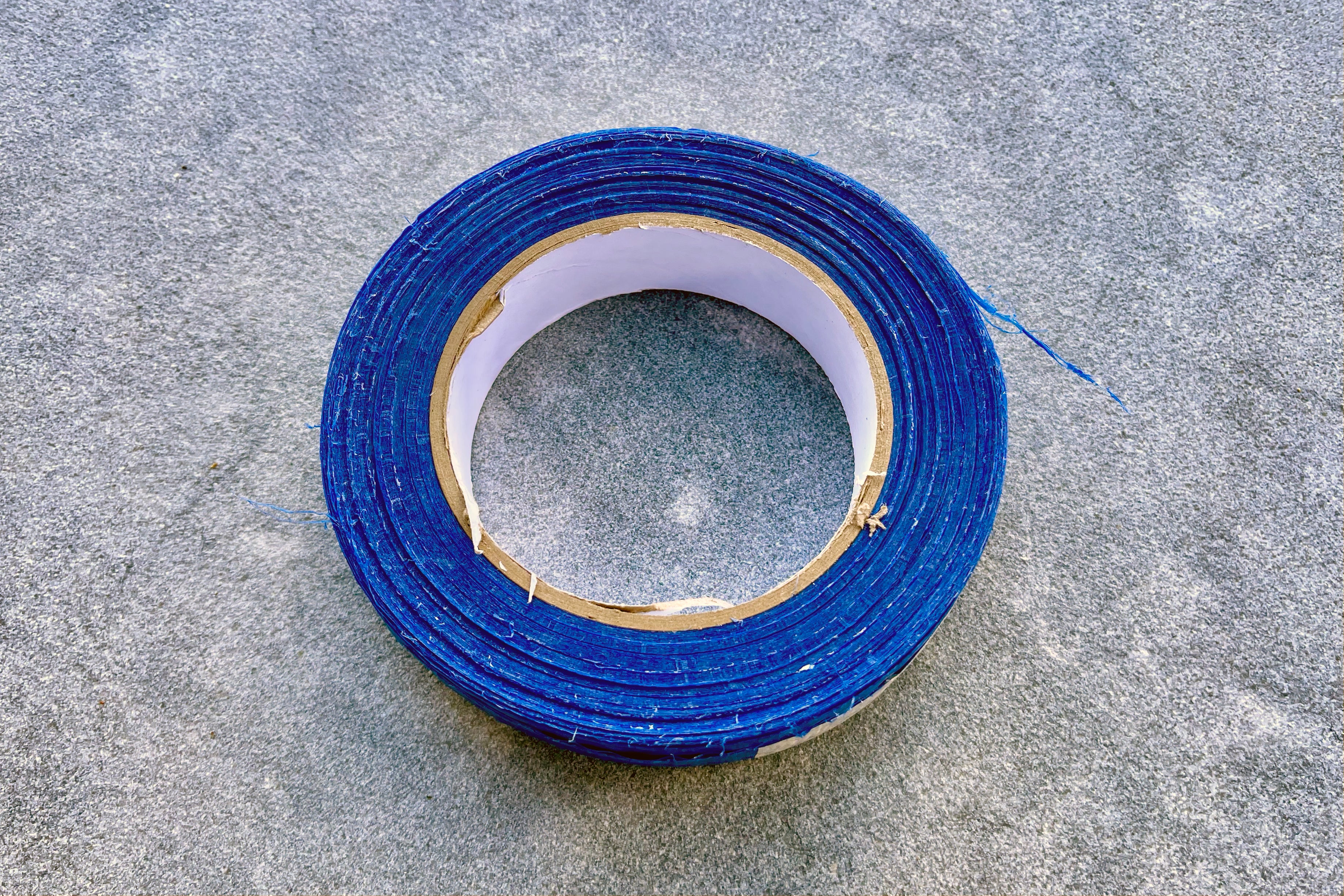

Duct Tape (Left) and Hanging Tape (Right)
Duct tape is used to secure all of the components in the system together. Hanging tape is a polyweave ribbon that is used to tie up and support all of the components in the system.
Fan Specifications
Specifications
- Single speed.
- Approximately 540 m³/h air flow and 48 W power usage.
- 37 dB(A) breakout sound pressure at 100% speed. Please see our FAQ section below on why decibel ratings are misleading.

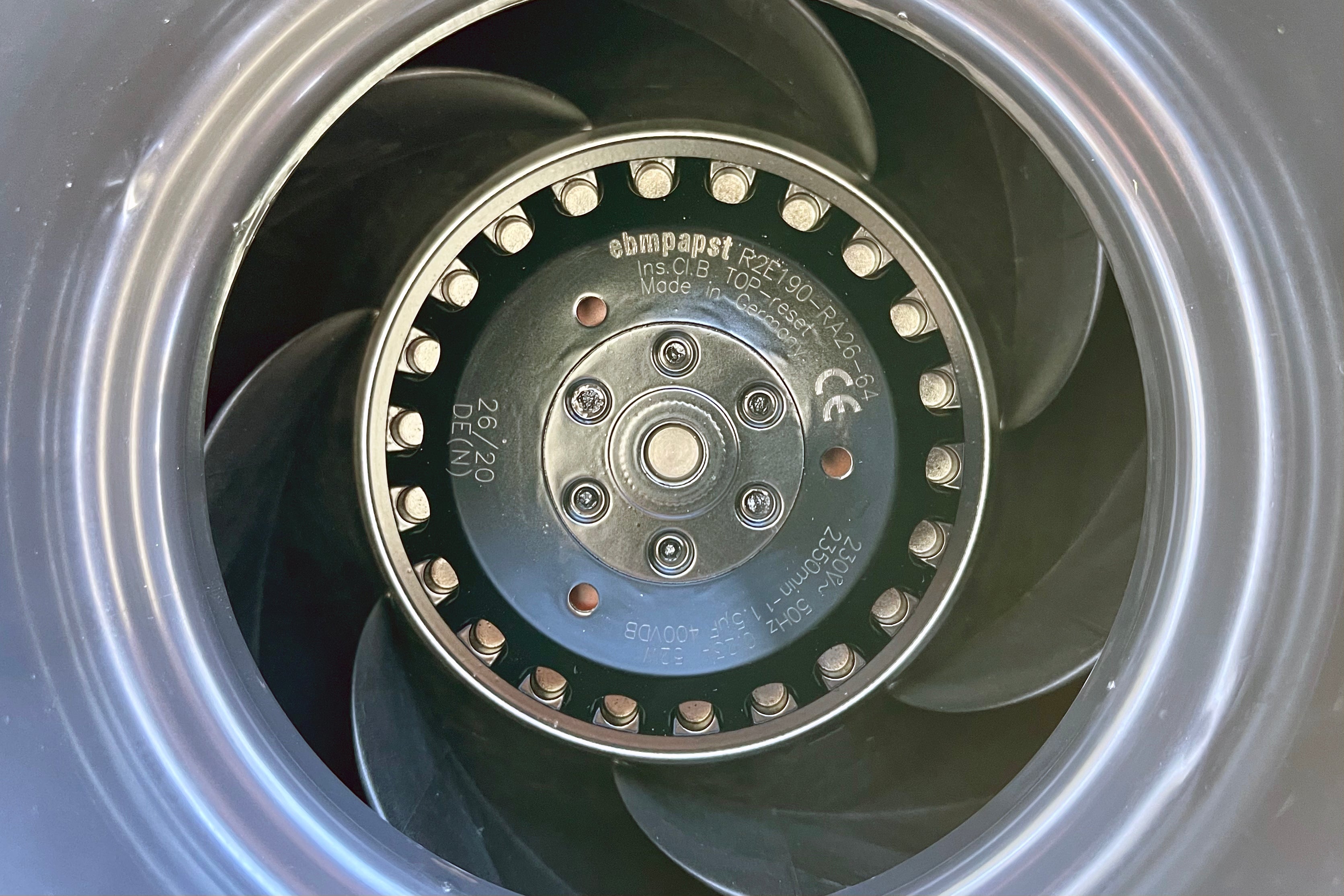

- R2E190 motor manufactured by ebm-papst in Germany.
- Custom Australian made fan housing.
- 5 year warranty.
- IP 44 protection rating.

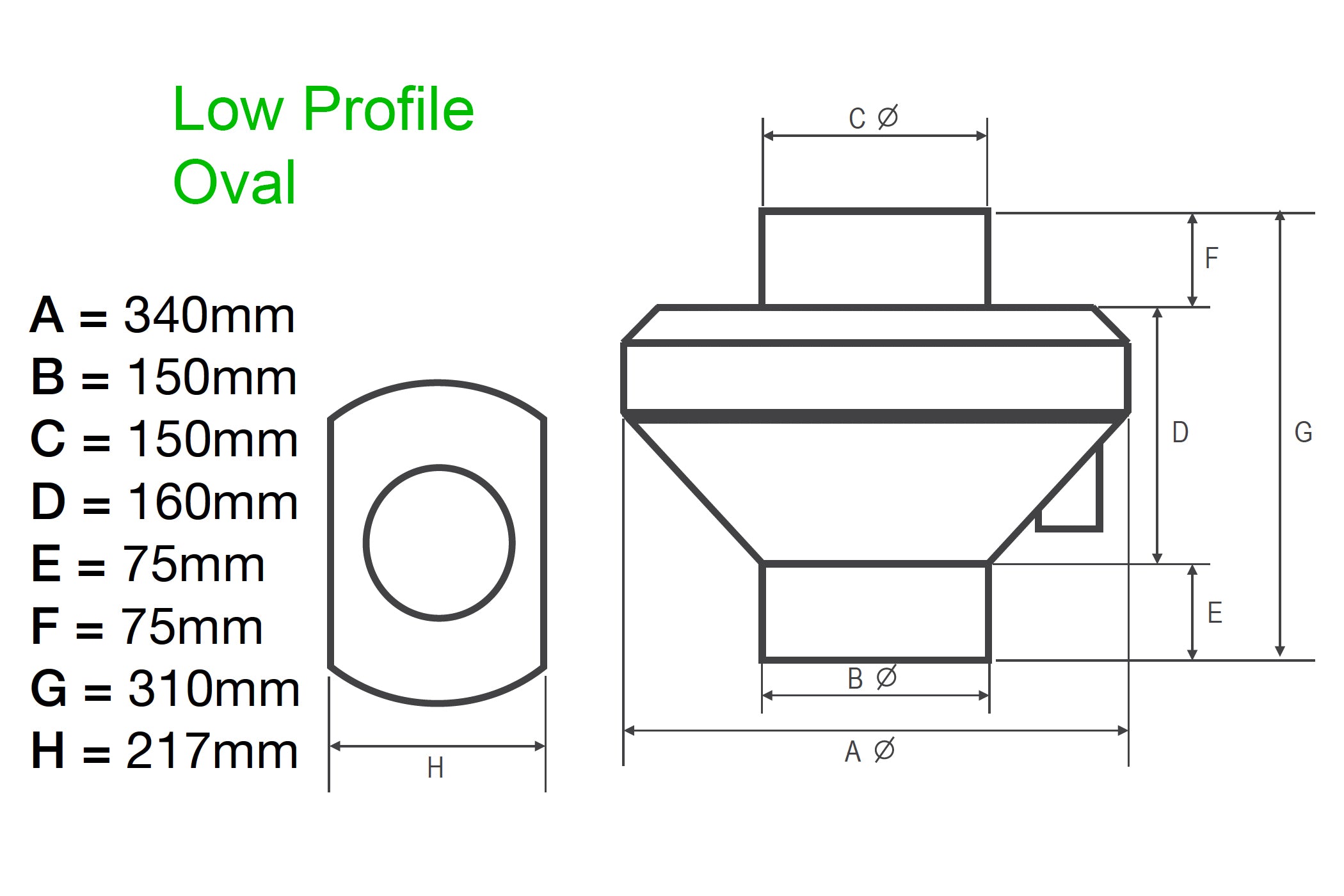

Low Profile Dimensions
- 340mm width (A).
- 217mm height (H).
- 310mm length (G).
- 150mm duct attachment flange diameter (B).

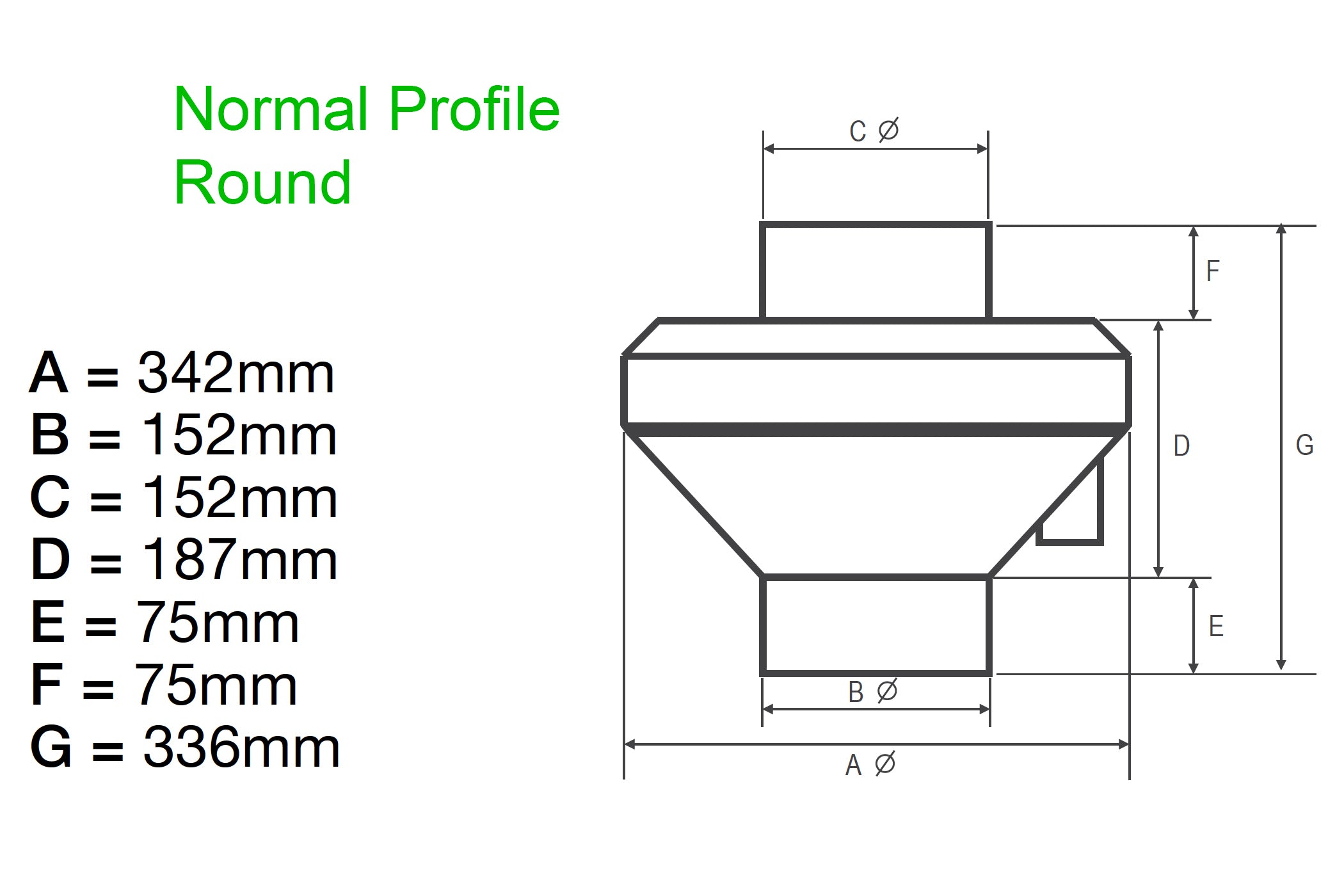

Normal Profile Dimensions
- 342mm width (A).
- 342mm height (A).
- 336mm length (G).
- 150mm duct attachment flange diameter (B).
FAQ
What is an AC motor?
AC motors are cheaper than EC motors but still provide excellent performance. They are very quiet during operation and move large volumes of air through ducting. They operate at one fixed speed where they are most efficient.

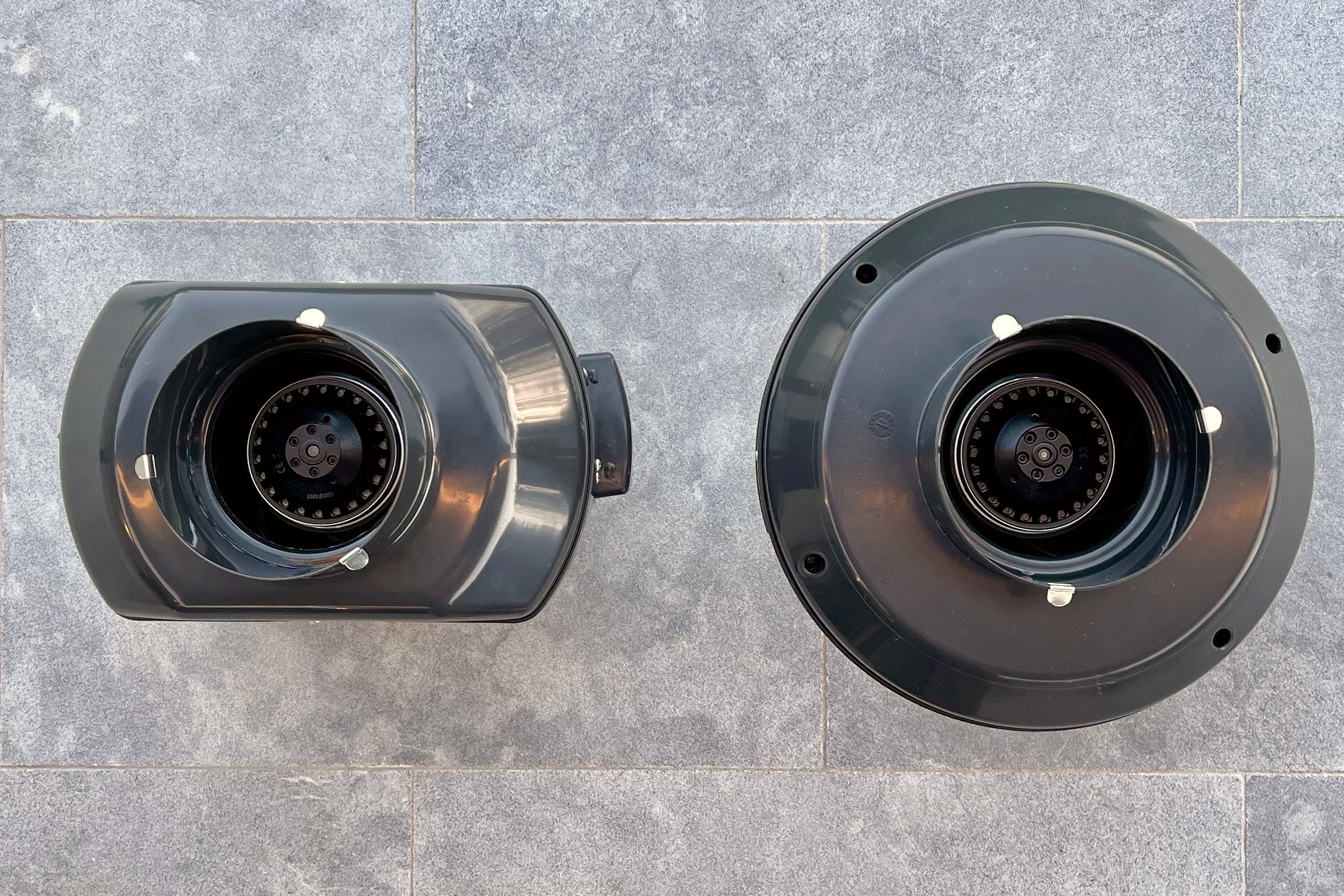

What is the difference between low profile fans and normal profile fans?
Low Profile fans are oval with a width of 340mm and a height of 217mm. The smaller footprint means that Low Profile fans are recommended for shallow installations where access height is limited. Our Low Profile fan housing features an updated design with improved air deflection fins inside. The Low Profile version now has marginally more air flow with marginally less noise, as the improved fins create less air turbulence (compared to the Normal Profile version).
Normal Profile is our standard fan configuration. Normal Profile fans are round with a diameter of 342mm.
Can the fan speed be adjusted?
AC motors are single speed motors. They run at 100% all the time.
What is the airflow capacity of the fan motors?
AC motors have a capacity of approximately 540 m³/h.
How much power do the fans use?
AC motors draw 48 W when running.
How much noise do the fans make?
AC motors are very low noise during operation.
37 dB(A) breakout sound pressure at 100% speed.
Why are decibel ratings misleading?
Decibel ratings are misleading, and many manufacturers are simply dishonest. Please see our Instagram post HERE and our Instagram video HERE for a good explanation of the issue.
We've been installing fans for over 10 years. In that time we've tried everything available on the market, including all of our competitors' fans. We're confident that our fans, in an installed environment, are quieter than any comparable models on the market. Our decibel ratings have been independently tested by VIPAC Engineers & Scientists Ltd.
Frequency (pitch of the sound) is more important than overall noise (decibels). Most fans have a prominent motor ‘whine’ whereas our centrifugal fans have mostly airflow noise. Once installed, much of the airflow noise is eliminated by duct on either side of the fan, whereas motor whine still penetrates through building materials.
Who manufactures the fan motors?
The fan motors are manufactured by ebm-papst in Germany.
What model are the fan motors?
AC motors use a R2E190 motor.
Where are the fan motors and housings made?
The fan motors are made in Germany.
The fan housings are custom made in Australia.
What is the warranty of the fan motors?
The fan motors have a 5 year warranty.
What is the IP rating of the fan motors?
AC motors have a protection rating of IP 44.
Why don't you like solar sub floor ventilation fans?
While we are firm believers in the benefits and need for solar (we have 21kW of it on our roof), unfortunately solar sub floor ventilation fans do not work.
Solar sub floor ventilation systems typically use very low wattage axial fans. Axial fans don't cope well with pressure, which means when ducting is installed airflow volume is severely reduced.
Solar sub floor fans are very noisy. On the numerous occasions we have installed them (against our recommendation) the biggest complaint received has been the noise!
Lastly, solar sub floor ventilation fans don't work well when it's cloudy, overcast, or raining - they often don't work at all on such days! Unfortunately, this is when you need them the most!
Why do you need mechanical sub floor ventilation?
Mechanical sub floor ventilation means there is a powered fan motor present to move air around. The alternative, passive sub floor ventilation, relies on free air movement through gaps and openings.
Passive sub floor ventilation includes any form of opening in the external walls of your sub floor area, such as weep holes, terracotta vents, wire mesh vents, and doors.
Passive sub floor ventilation is not effective if you are experiencing a mould and damp problem in your sub floor area. This is because it does not guarantee movement and exchange of air.
Cross-flow ventilation is nearly always impossible without mechanical subfloor ventilation. Air is lazy, so you can bet on it taking the path of least resistance. That’s why air always takes the easy way out as it moves through a sub floor space (assuming it even enters through restrictive passive vents in the first place). It’s much easier for air to pass through a large open section near the point of entry than to flow around multiple corners into small closed-off sections.
Having mechanical ventilation extracting stale air from these small closed-off sections creates cross-flow ventilation. This is because Air Out = Air In! Airflow is measured in cubic metres per hour (m3/h). For every cubic metre of stale air that gets drawn out from a space, 1 cubic metre of fresh air must get drawn in to the space. As the fans continually draw air out, fresh air enters through existing openings and works its way through the sub floor area to the point of extraction.
Negative Pressure, Positive Pressure or Balanced Pressure?
Installing the most suitable sub floor ventilation system in your home can help get rid of air pollutants that can harm your health and your family’s wellbeing. Fresh Ventilation offers efficient solutions that can eradicate stale, moist air in the sub floor area and replace it with cleaner, fresher and drier air. We have three different types of ducted sub floor ventilation systems that you can choose from.
All of our systems are available in any of the three pressure configurations – the components don’t change, the way they are installed determines the configuration.
Depending on how your sub floor ventilation fans are installed, they will either blow air into your sub floor area (positive pressure) or suck air out of your sub floor area (negative pressure). If you have two or more fans installed, it is possible for fans to both blow air in and suck air out of your sub floor area (balanced pressure).
Negative Pressure
Our most popular configuration. The logic behind a negative pressure system is that a greater quantity of stale air is sucked out of the sub floor area than the fresh air that is blown into it. The vacuum conditions created when stale air is continuously sucked out of the sub floor area will be filled by fresh air drawn in from outside.
Importantly, moisture and musty odours can be controlled since air is sucked out at a chosen location. However, the drying performance may be slightly slower than a positive pressure configuration.
Positive Pressure
A positive pressure system is the opposite of a negative pressure system. A greater quantity of fresh air is blown into the sub floor area using mechanical ventilation, which will as a result force the damp air out.
Positive pressure systems facilitate the drying up of damp or moist sub floor areas because dry air is constantly being blown over them. It can initially be more effective than trying to suck out moist air from damp surfaces. Caution needs to be taken to ensure that passive escape venting is sufficient for the damp air to leave the sub floor area to outside of the home, otherwise the dampness can end up rising into the home above.
Balanced Pressure
Your sub floor ventilation system can be configured as a balanced pressure system, but this needs to be carefully considered and understood before installation. Like any sub floor ventilation system, the key to an effective balanced pressure system is to ensure that it is installed properly.
One or more fans create a positive pressure by blowing dry and fresh air into the sub floor area. An equal amount of fans work using negative pressure to expel the same amount of stale and moist air from the sub floor area. It is balanced because the speed at which the air moves into and out of the sub floor area is the same.
Why Sub Floor Ventilation is Important
Many pest and building inspectors recommend sub floor ventilation to reduce termite risk. These systems are very effective in homes that experience a continuing musty odour or where there is mould on shoes and clothes in wardrobes or on furniture in living spaces.
Your sub floor area may seem insignificant because it does not form part of your living room. However, the fact of the matter is that this space actually has a high impact on the quality of air you breathe in while you are indoors and may affect your health. Poorly ventilated sub floor areas are often damp. This dampness can result in mould, mildew, musty odours, wood rot and pest infestation in your sub floor area and can also contribute to the spread of mould, mildew and allergies above.
Sub floor ventilation can remove ground moisture from underneath raised floors, creating a drier and warmer sub floor area.
Types of Sub Floor Ventilation
Fresh Ventilation supplies and installs a range of efficient and technologically superior sub floor ventilation products. Our systems utilise the latest in ventilation technology, with Australian made components and German made AC or EC motor centrifugal fans by ebm-papst.
Ducted Sub Floor Ventilation Systems
These are the kits you're looking at now! These systems are far superior, have numerous advantages, and use inline fans and duct, which is installed within the sub floor space.
Our own exclusive design, based on years of experience and trialling competing products. This system uses ducting and centrifugal fans and can be installed in almost any sub floor area.
Wall-Mounted Sub Floor Ventilation Systems
These systems use wall-mounted fans. Generally, nothing is installed within the sub floor space.
Fresh Ventilation do not recommend or install wall-mounted sub floor ventilation products unless no other alternative is available. Wall-mounted systems have substantial limitations by design and mostly use inferior and noisy components further limiting their usefulness.
When access to a sub floor area is not possible, it may be possible to install wall-mounted fans. In this situation, the limited ventilation provided is better than none. Ask us how we can help if this applies to you.
Solar Sub Floor Ventilation Fans
While we are firm believers in the benefits and need for solar (we have 21kW of it on our roof), unfortunately solar sub floor ventilation fans do not work.
Solar sub floor ventilation systems typically use very low wattage axial fans. Axial fans don't cope well with pressure, which means when ducting is installed airflow volume is severely reduced.
Solar sub floor fans are very noisy. On the numerous occasions we have installed them (against our recommendation) the biggest complaint received has been the noise!
Lastly, solar sub floor ventilation fans don't work well when it's cloudy, overcast, or raining - they often don't work at all on such days! Unfortunately, this is when you need them the most!
Passive Sub Floor Ventilation
Passive sub floor ventilation includes any form of opening in the external walls of your sub floor area, such as weep holes, terracotta vents, wire mesh vents, and doors.
Passive sub floor ventilation is not effective if you are experiencing a mould and damp problem in your sub floor area. This is because it does not guarantee movement and exchange of air.
Cross-flow ventilation is nearly always impossible without mechanical subfloor ventilation. Air is lazy, so you can bet on it taking the path of least resistance. That’s why air always takes the easy way out as it moves through a sub floor space (assuming it even enters through restrictive passive vents in the first place). It’s much easier for air to pass through a large open section near the point of entry than to flow around multiple corners into small closed-off sections.
Having mechanical ventilation extracting stale air from these small closed-off sections creates cross-flow ventilation. This is because Air Out = Air In! Airflow is measured in cubic metres per hour (m3/h). For every cubic metre of stale air that gets drawn out from a space, 1 cubic metre of fresh air must get drawn in to the space. As the fans continually draw air out, fresh air enters through existing openings and works its way through the sub floor area to the point of extraction.
Ducted Sub Floor Ventilation Systems
Fresh Ventilation supplies a range of efficient and technologically superior ducted sub floor ventilation products. Our systems utilise the latest in ventilation technology, with Australian made components and German made AC or EC motor centrifugal fans by ebm-papst. Ducted sub floor ventilation systems have significant advantages:
Duct can be run to problem areas.
The ability to have multiple pickup points means coverage is far greater.
Smart design can achieve excellent cross-flow ventilation.
Stale air can be drawn from deep in the sub floor area.
Premium centrifugal fans are much quieter than most wall-mounted fans and outperform axial wall-mounted fans in a ducted system.
What Makes Fresh Ventilation Different
Fresh Ventilation is a family owned and operated business. Our main business has specialised in the installation of premium quality ventilation systems for over 10 years. Our sub floor ventilation kits use the same premium components we install in our business on a daily basis.
Effective sub floor ventilation requires quality components and proper installation. Given that no two sub floor areas are the same, there is no one-size-fits-all solution to sub floor ventilation. This is why we place a strong emphasis on customised solutions and after-sales support to help you with installing your system.
Our focus is on premium products and expert advice to create ventilation systems that actually work.
All of our kits include:
Installation photos and videos outlining best practices and things to avoid.
Why Premium Components and Proper Installation Matter
Fresh Ventilation supplies a range of efficient and technologically superior sub floor ventilation products. Our exclusive design is based on years of knowledge, experience and trialling competing products.
Not all components are equal!
System Design
Instead of using a single larger fan, we use smaller fans but more of them.
More fans allow greater coverage, better efficiency and more extraction points.
A single larger fan makes more noise, uses more power and requires longer duct runs to cover the same area as two smaller fans. This is inefficient and leads to uneven duct lengths and subsequently uneven air flow.
Our smaller fans use the same size ducting as our exhaust grilles and we allow one exhaust grille per fan. This allows air to be freely exhausted without a reduction in air flow due to pressure buildup.
Larger fans need reducers to reduce the duct size so that they can be connected to exhaust grilles. This results in a reduction of air flow due to resistance.
When comparing our systems against other systems with the same suggested coverage areas, our kits include more fans, more duct, more extraction points and more exhaust grilles.
Our systems are designed to properly ventilate your sub floor area.
Our kits include the necessary components and advice to do the job properly the first time.
Fans
Our 150mm AC motor centrifugal fan has a capacity of 540 m³/h.
The single speed AC motor consumes 48 W.
Our fans make less noise and use less power. Some larger fans use 193 W when operating and have less capacity than two of our smaller fans.
Our fans have a 5 year replacement warranty.
Timer
Our digital timer has a battery backup. It won't lose time and start running in the middle of the night.
Our digital timer can be programmed differently on different days of the week. This is ideal when you want different operation on the weekends.
Duct
Our duct is manufactured in Australia from two layers of high grade metallised polyester bonded together with fire rated resin encapsulating spring steel wire.
Our duct is not prone to tearing or unravelling like single layer competing products.
