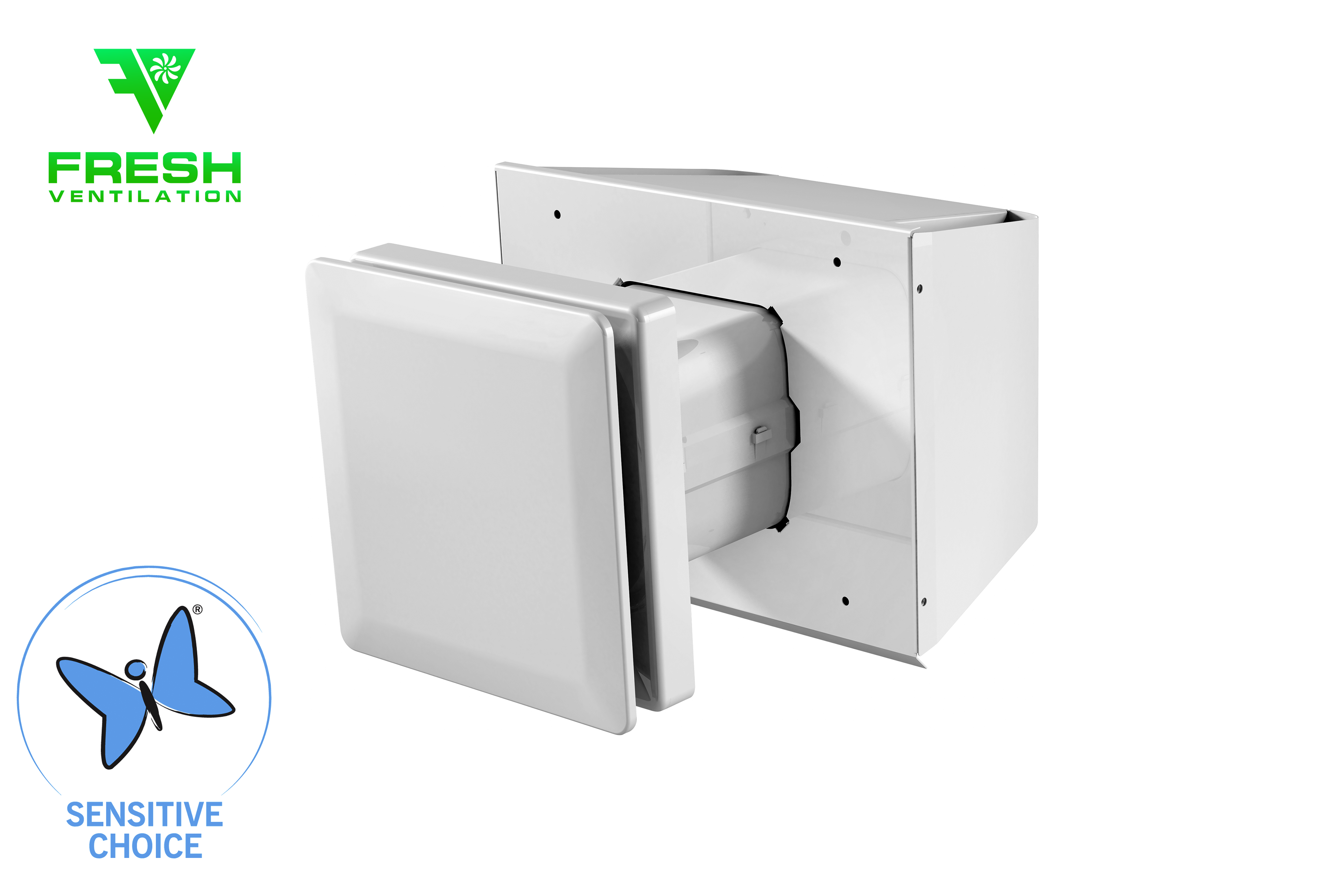

STIEBEL ELTRON VLR 70 S Decentralised Heat Recovery Ventilation Systems
SPECIAL ORDER PRODUCT: Please contact us for delivery timeframe.

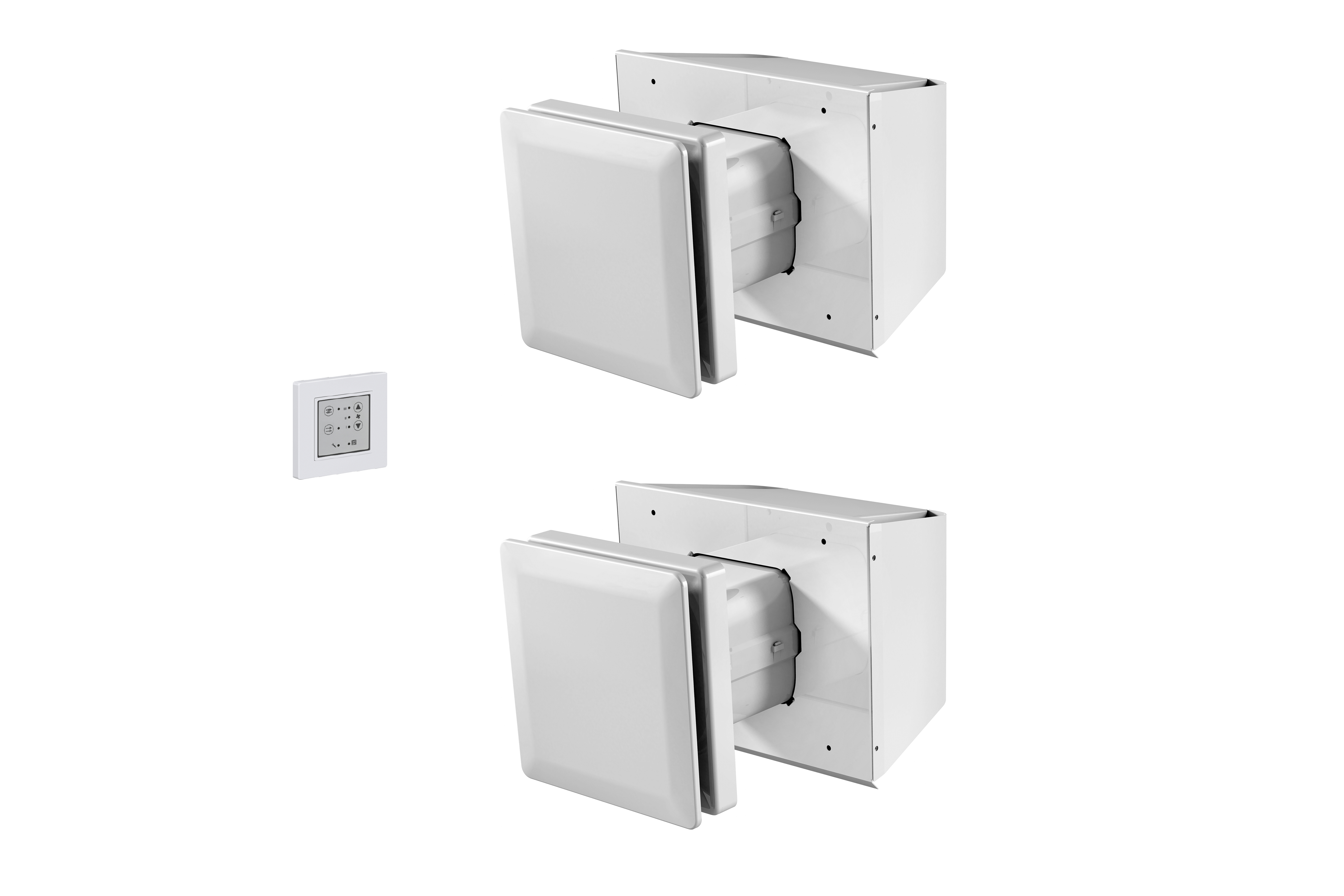

The VLR 70 S is designed to work in pairs and requires at least 1 wall controller. You can connect up to 8 units together with 1 wall controller. Please contact us to purchase additional components. VLR 70 S: $703 each. Wall Controller: $349 each.
Let customers speak for us
Product Overview
- Up to 92% heat recovery.
- Decentralised ventilation – easy installation for new or existing buildings.
- Supplies fresh air from outside into your home or office.
- Prevents the growth of mould with improved air ventilation.
- Hygienic aluminium heat exchanger.
- Quiet operation.

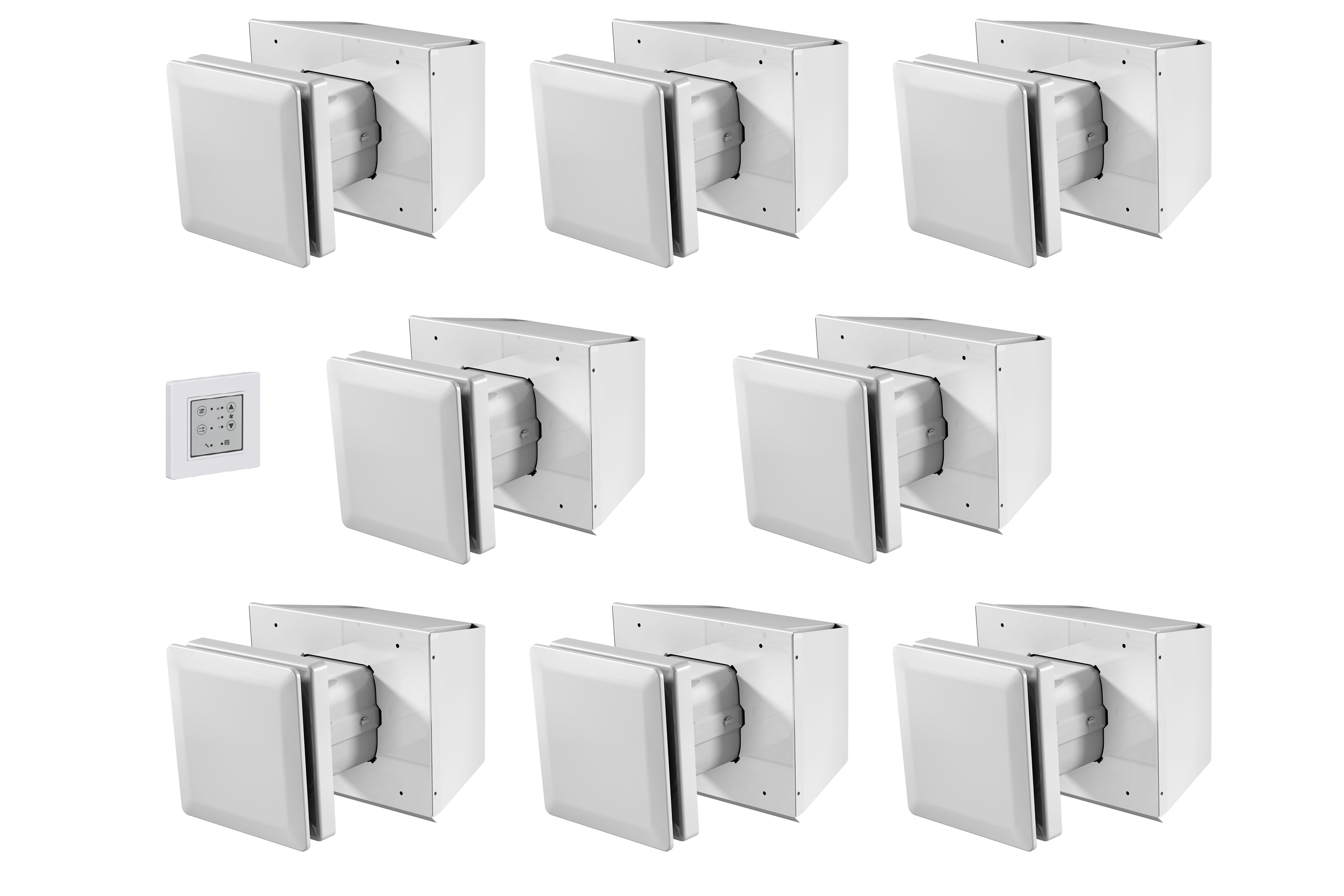

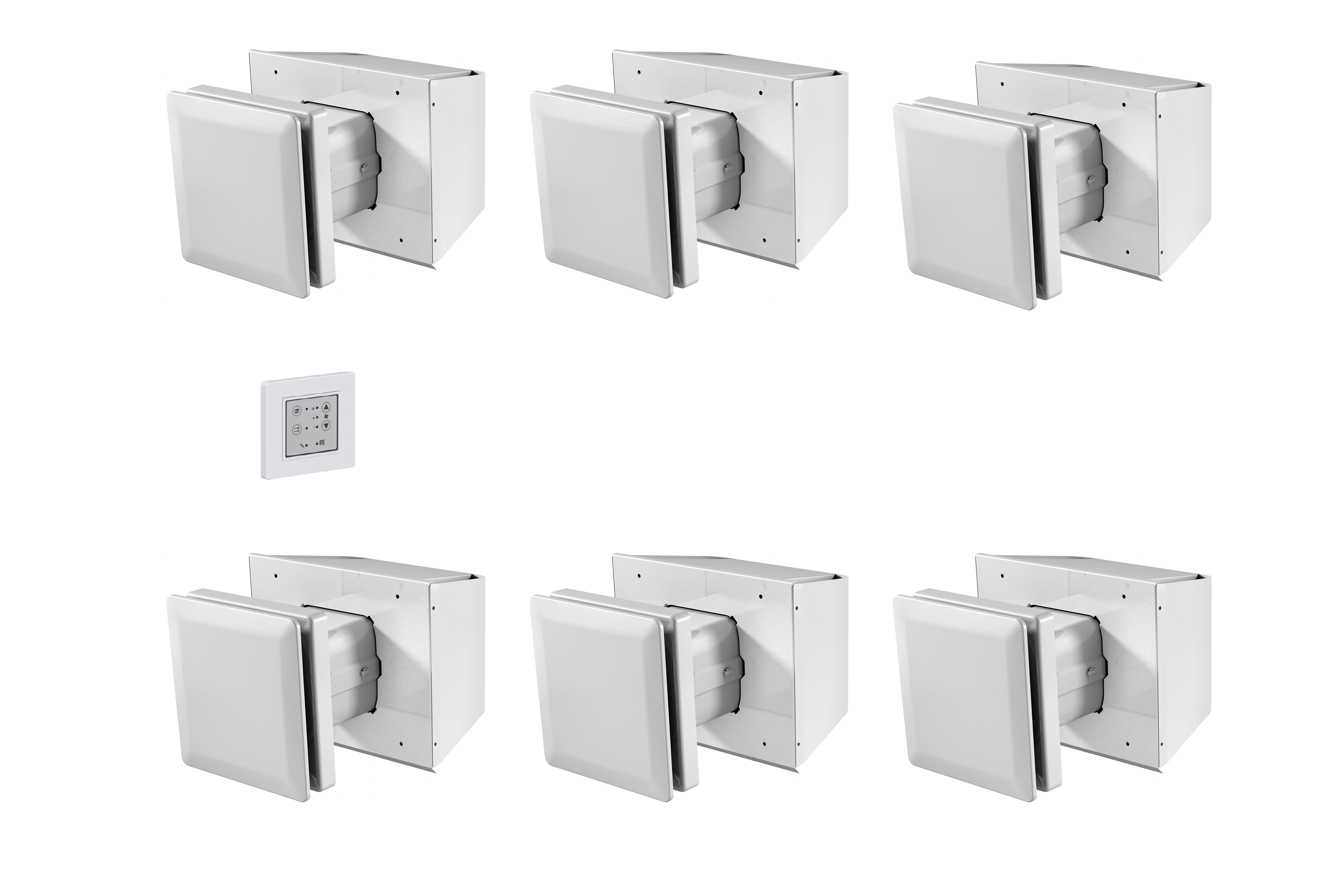

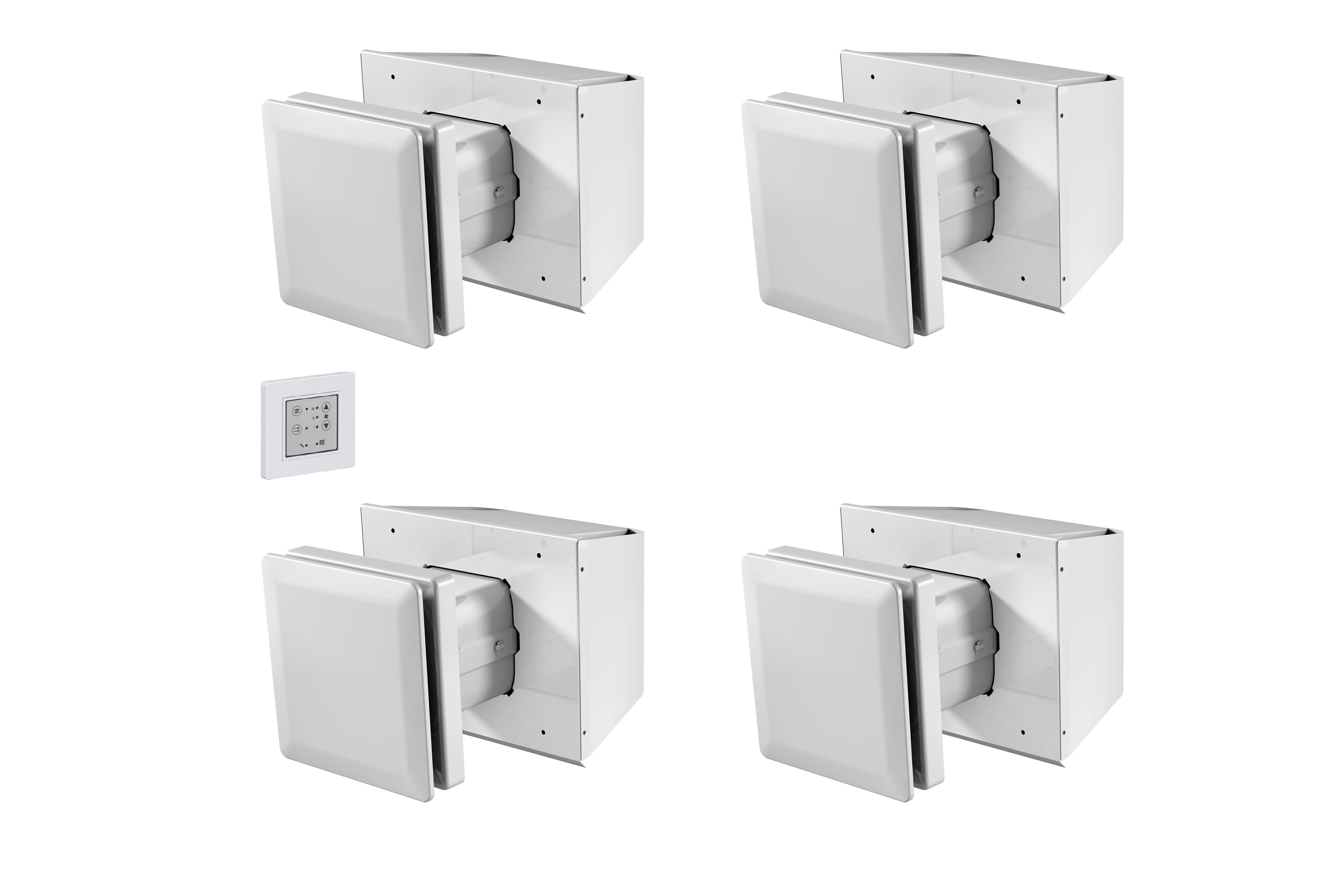

- Installed in pairs, connect up to 8 units together.
Sensitive Choice Product
This appliance has been independently reviewed by the National Asthma Council Australia.
Sensitive Choice is a not-for-profit created by the National Asthma Council Australia in 2006 to inform the public about asthma and allergy management and empower consumers to identify asthma and allergy-aware products and services.
Sensitive Choice products have been certified and approved by an independent Product Advisory Panel.
Create a Pleasant Indoor Environment In the Home
Installed in pairs with ducting through the walls, the VLR 70 S has a heat recovery level of up to 92%. This makes the VLR 70 S ventilation unit an excellent choice for apartments, houses and small commercial properties.
Product Details
Application
The VLR 70S decentralised ventilation unit with heat recovery is used for ventilating apartments and small commercial properties.
Convenience Features
- Contemporary design with a separate programming unit.
- The appliance is suitable for living spaces and commercial premises up to approximately 100 m2.
- Thanks to the axial fan that can overcome back-pressure, use in locations exposed to the wind is possible.
- The appliance is equipped with an efficient heat exchanger made of aluminium.
- The stainless steel, powder-coated external hood is watertight against heavy rain.
- The VLR 70 S features a straightforward filter replacement with an easy-to-remove fan unit.
- Fine dust (F7) filters are available as accessories.
Efficiency
EC fan ensures efficient operation.
Installation
- The unit is installed in a round or square wall outlet.
- The easily accessible mains connection is located on the inside of the fan unit.
Technical Data
VLR 70 S
Up to 92 %
92W (max with 8 units)
230 V
10 - 70 m3/h
ePM1 ≥ 50 % (F7)
ISO Coarse > 30 % (G2)
ø 200 mm
Square 185 x 185
100 - 300 mm
35 dB(A) at 20 m3/h
285 mm
360 mm
590 mm
5.2 kg
FAQ
Can the VLR 70 S be installed in apartments?
Yes, the VLR 70 S is an ideal ventilation system for apartments as it can be installed by retrofit/renovation in existing buildings. Installing a ventilation system can prevent the build up of condensation and mould.
Will the VLR 70 S reduce condensation and prevent mould?
Yes, the VLR 70 S will reduce humidity through improved ventilation, preventing the build up of condensation and mould.
What is an electronically commutated EC motor?
An electronically commutated (EC) motor is designed to run on an alternating current (AC) power supply, but it in fact bears a closer resemblance to a direct current (DC) motor. It is essentially a permanent magnet, brushless DC motor that incorporates on-board electronics. The added electronics allow an EC motor to combine the best features from both AC and DC motors, and then improve on them. For this reason, an EC motor is in a category of its own.
By utilizing this technology, EC fans are highly efficient and pay for themselves through lower operating costs and extended service life. They also provide many operational benefits that are often overlooked.
EC motors use permanent magnets and electrical windings to generate their magnetic fields, in a similar fashion to brushed DC motors. However, as their name suggests, they achieve commutation electronically rather than mechanically. This is only possible by incorporating on-board electronics within the housing of an electronically commutated EC motor.
The on-board electronics include a rectifier that converts the AC supply to DC. An integrated controller then directs the right amount of current, in the right direction, at the right time, through each of the windings. This develops magnetic poles in the stator, which interact with the permanent magnets in the rotor.
The position of each magnet is determined by using Hall effect sensors. The appropriate magnets are attracted, in sequence, to the magnetic poles in the stator. Simultaneously, the rest of the stator windings are charged with the reverse polarity. These attraction and repulsion forces combine to achieve rotation and produce the optimal torque. Since this is all done electronically, precise motor monitoring and control are possible.
What are the advantages of an electronically commutated EC motor?
Energy Efficiency
EC motor efficiency is often above 90%, allowing EC fans to consume up to 70% less energy, when compared to conventional fans. Running an EC fan at 80% speed saves nearly 50% of the energy.
Ease of Control
By continuously monitoring motor functions and automatically adjusting the control input, high efficiency is maintained throughout the operable speed range. EC motors are often capable of being turned down to 20% of full speed, while still maintaining 85% efficiency. Sensors that produce a 0-10V signal provide speed control without the need for a complex variable frequency drive.
Versatility
EC motors are capable of exceeding rated speeds. This allows fans with EC motors to achieve higher capacity within a smaller fan package.
