A Smart System is an Effective System
The distribution box is an important part of radial ventilation systems, like Air Excellent. It connects between the ventilation unit and the valves that are installed in the habitable and wet rooms. Within the distribution boxes, the air capacity to the duct runs can be adjusted by airflow restrictors that are mounted in the ductwork connections of the distribution box. The type of distribution box required, depends on the total volume required, the number of duct runs and the desired system performance. The Air Excellent online configurator is a great help for determining a complete system.

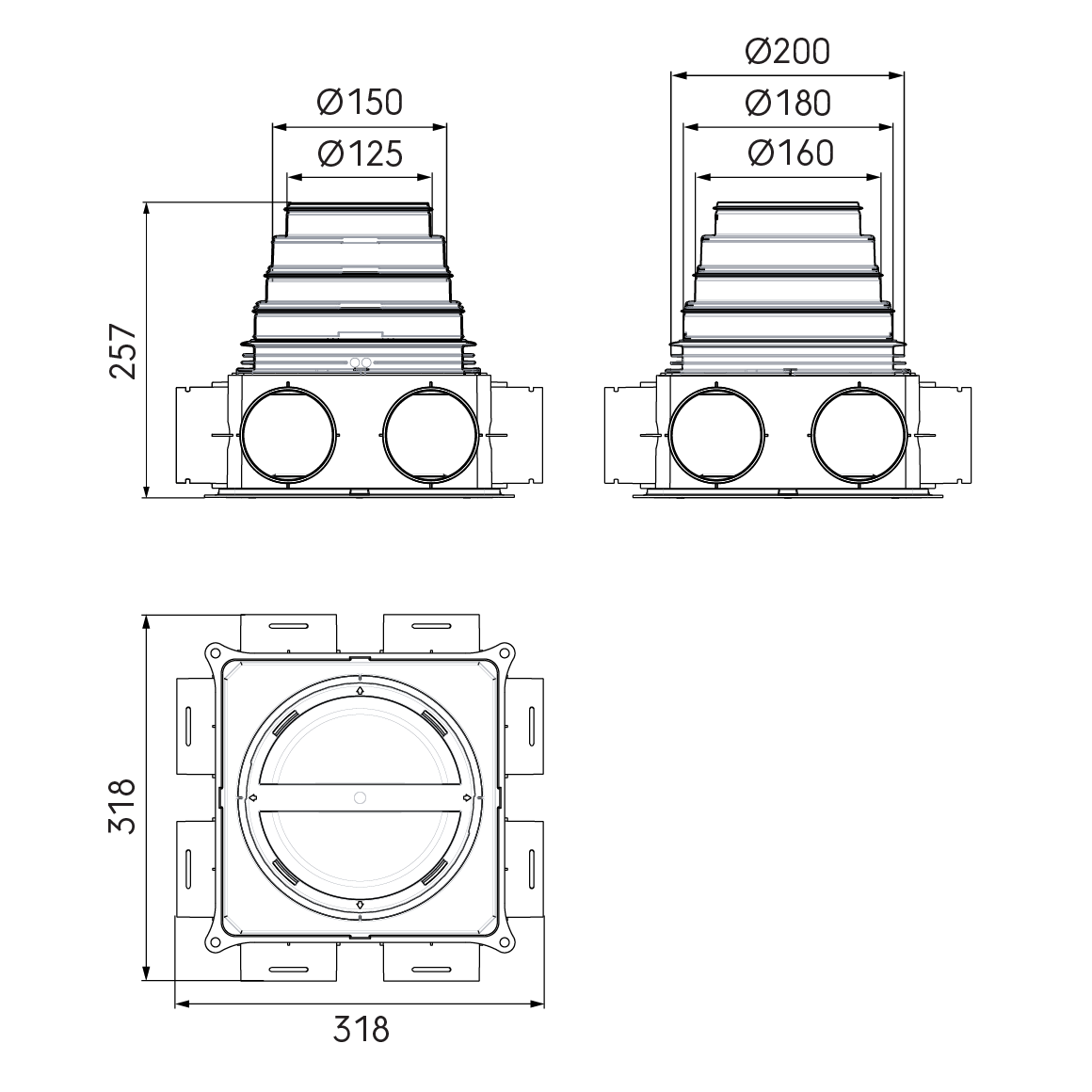

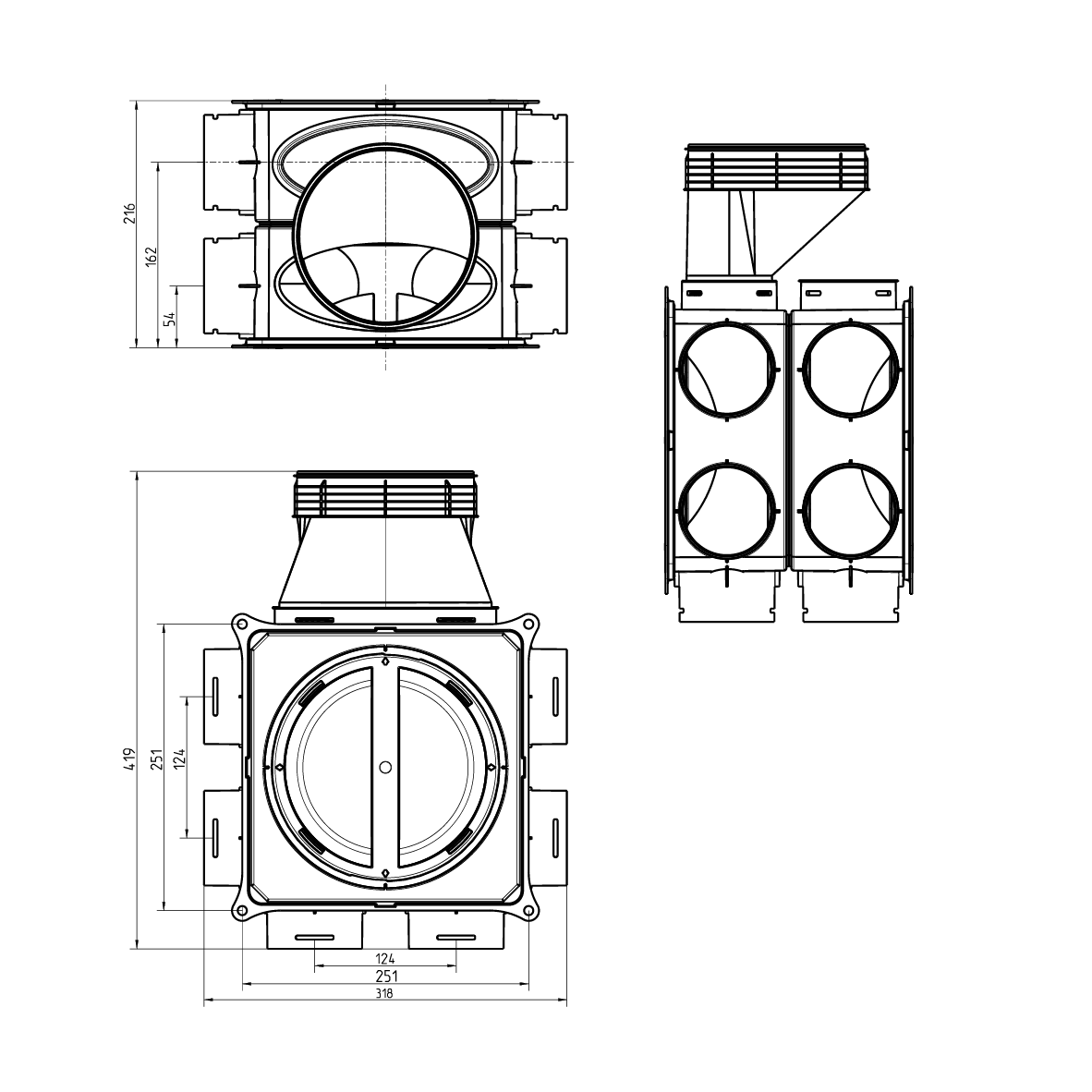

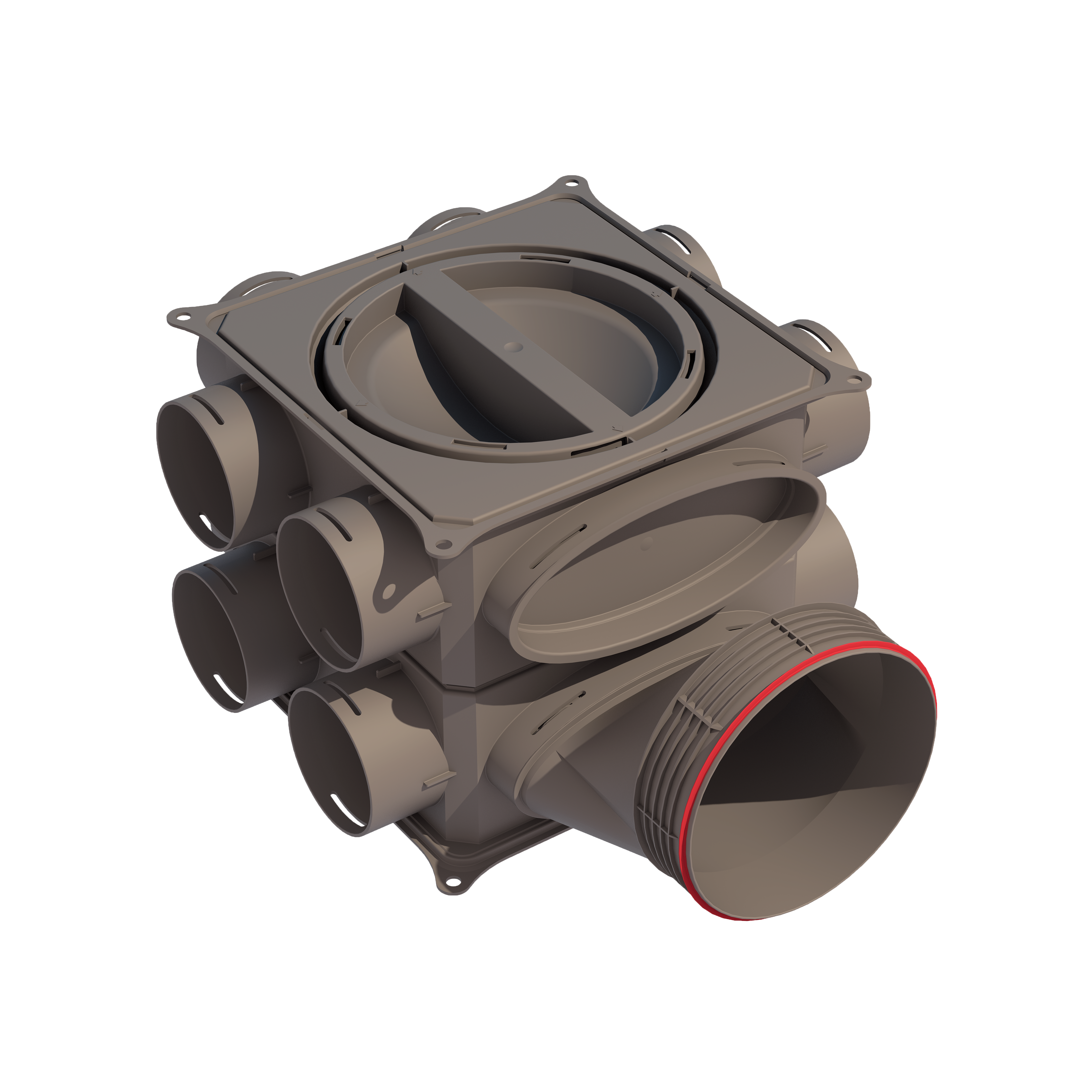

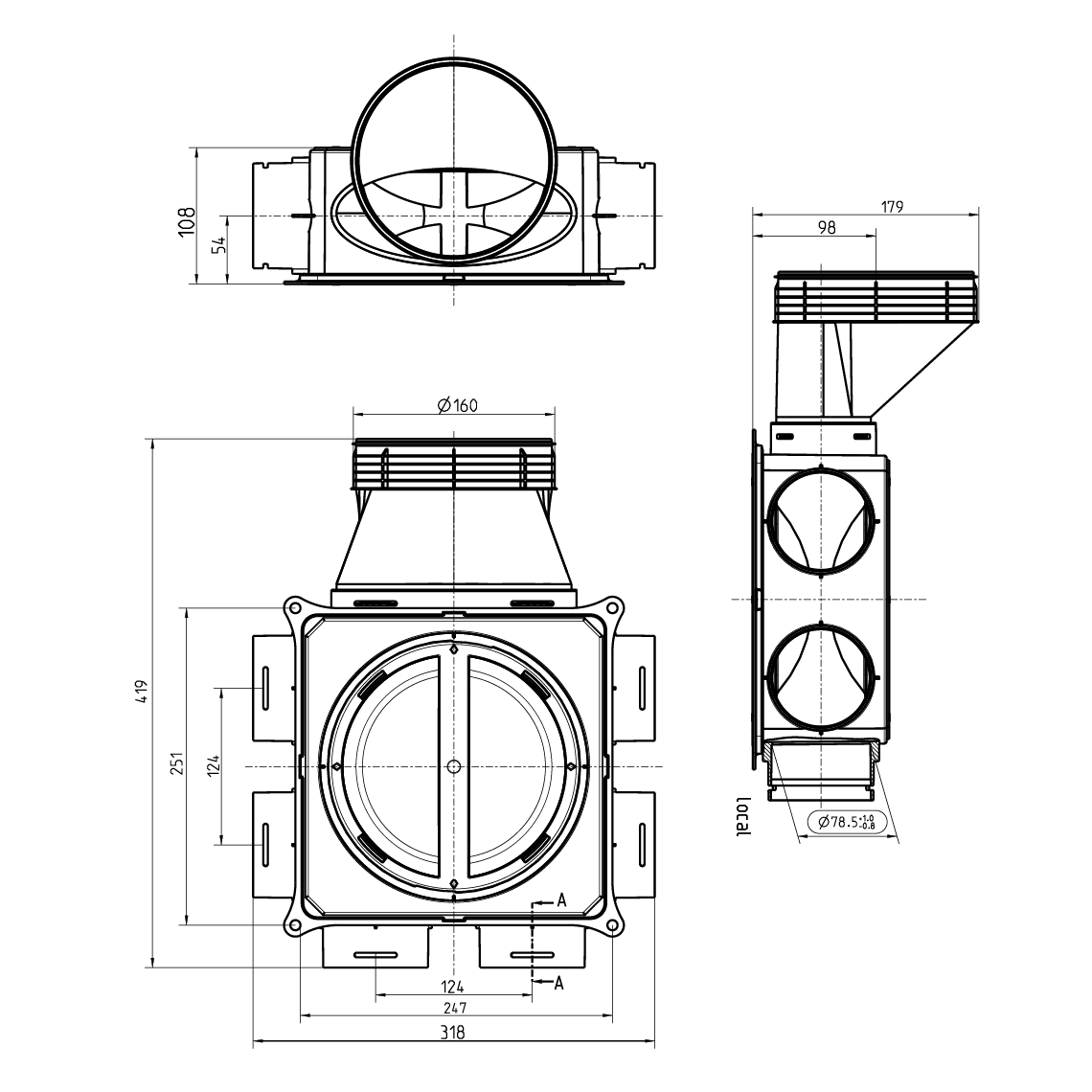

The 200 Series Distribution Boxes
The 200 Series distribution boxes are a modular system that can be characterised by functional partitioning into scalable and reusable modules, interfacing with a constant changing building environment. The system consists of basic box configurations, extension kits and adapters that can be merged to function as one system.
This allows tailor-made solutions for any installation and prevents oversized installations. Its small dimensions make it ideal for residential buildings that require lower air volumes or buildings that have limited installation space. Installations do not require separate mounting brackets and can be executed by a single person on walls, floors and ceilings.

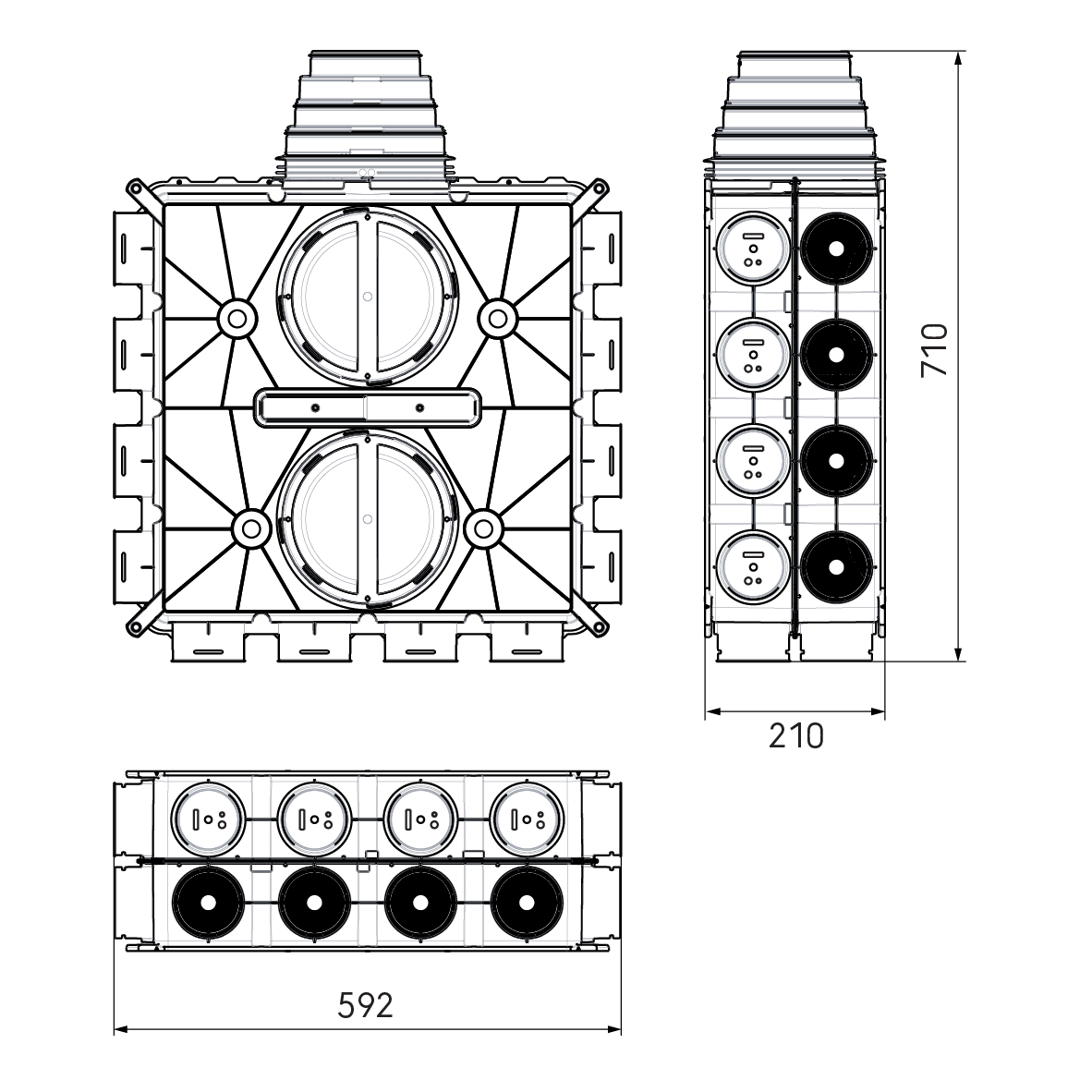

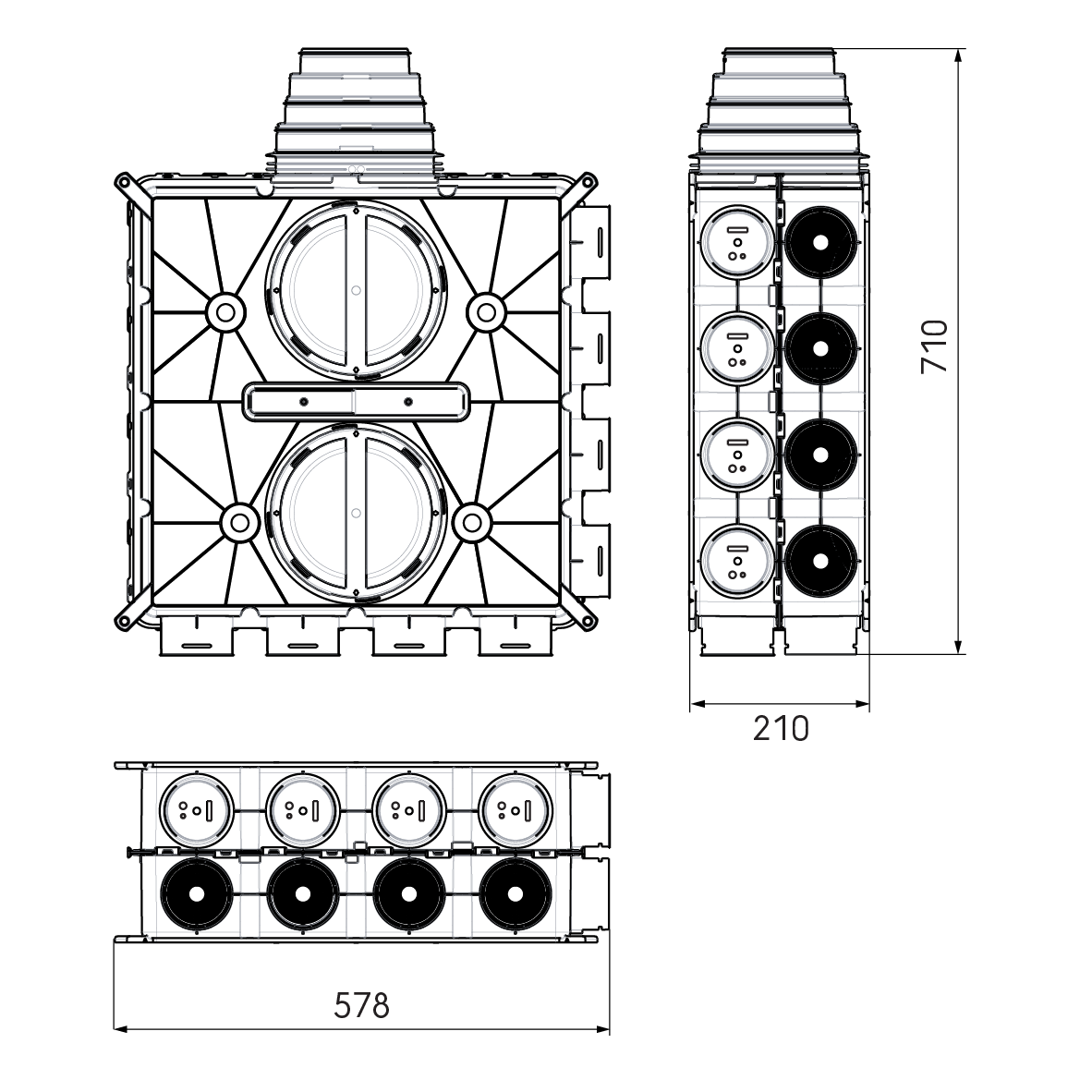

The 800 Series Universal Distribution Boxes

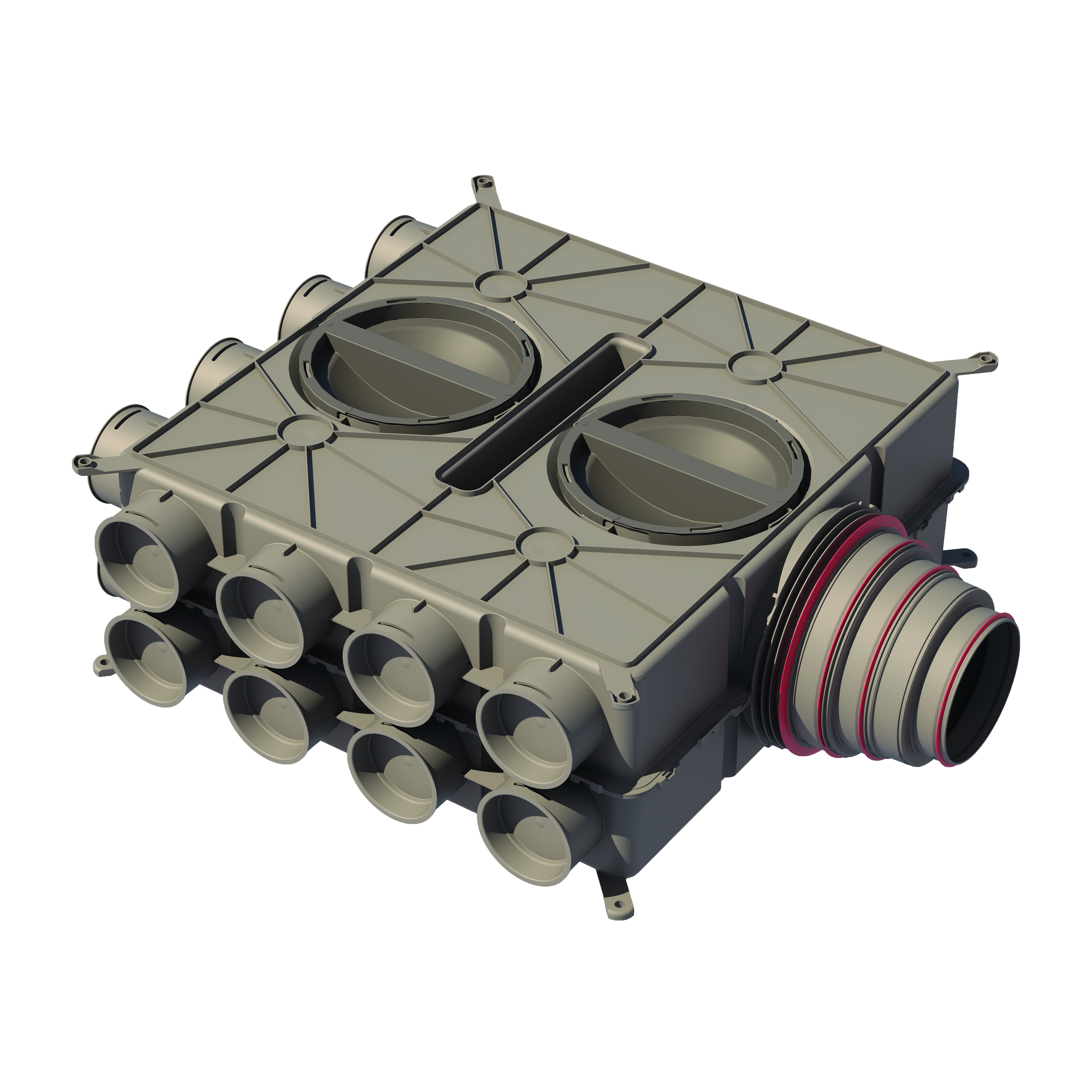

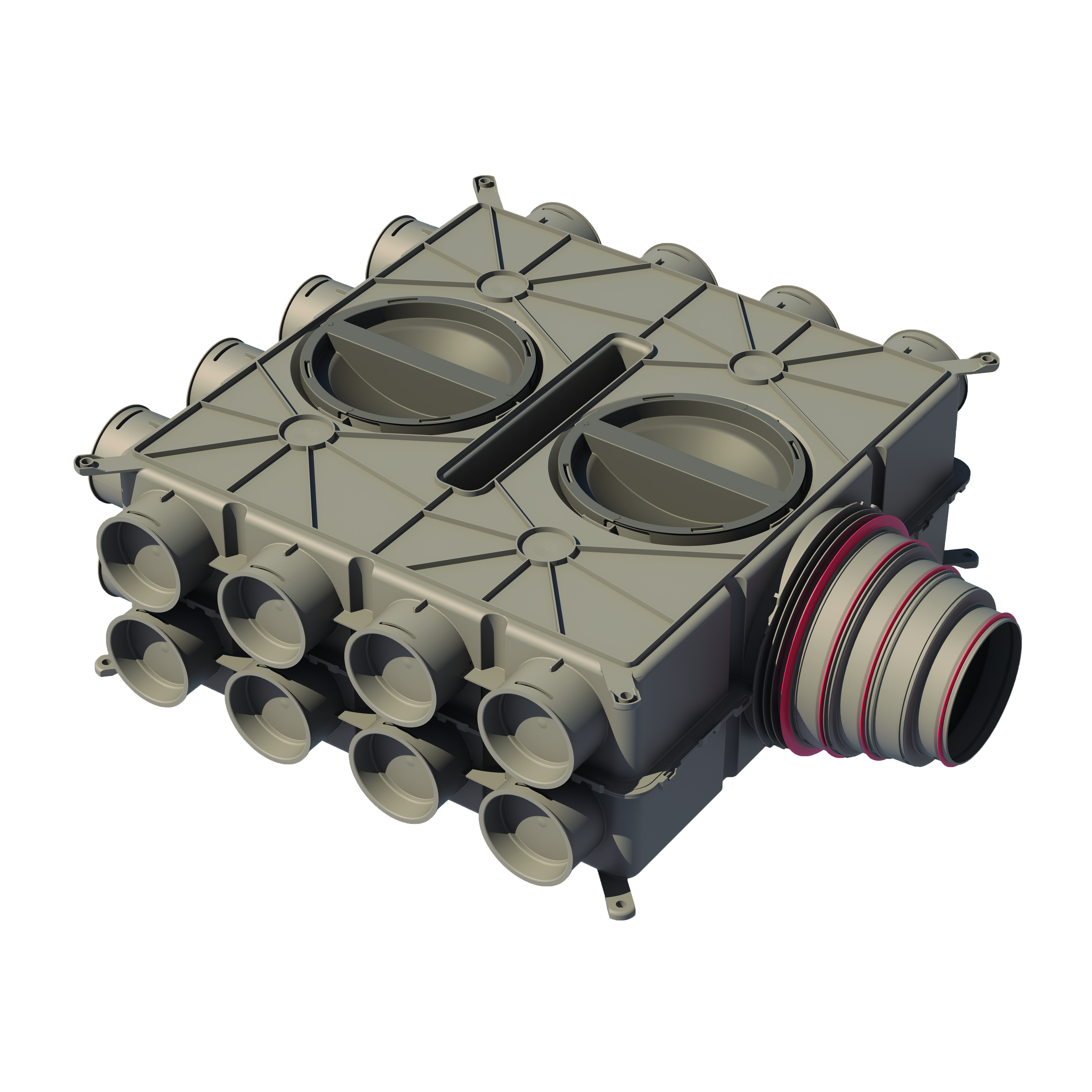

The 800 Series distribution boxes are a universal “one for all” solution for many installations and come in three fixed configurations. The DB808 has 8 ductwork connections, the DB816 has 16 connections and the DB824 delivers the logical 24 connections for maximum installation freedom.
Mass flow ductwork is connected by the use of a stepped mass flow adaptor that connects the diameters of 125, 150, 160, 180 mm and 200mm. Connections can be done vertically or horizontally. Additionally, the 800 Series distribution boxes can be upgraded with a sound damping kit to further enhance system performance by absorbing system noise caused by for instance the ventilation unit or cross talk.
Its larger dimensions make it ideal for residential buildings that require higher air volumes. Installations do not require separate mounting brackets and can be executed by a single person on walls, floors and ceilings.
